7-50 — FRONT SEAT (#139575) — 48 parça

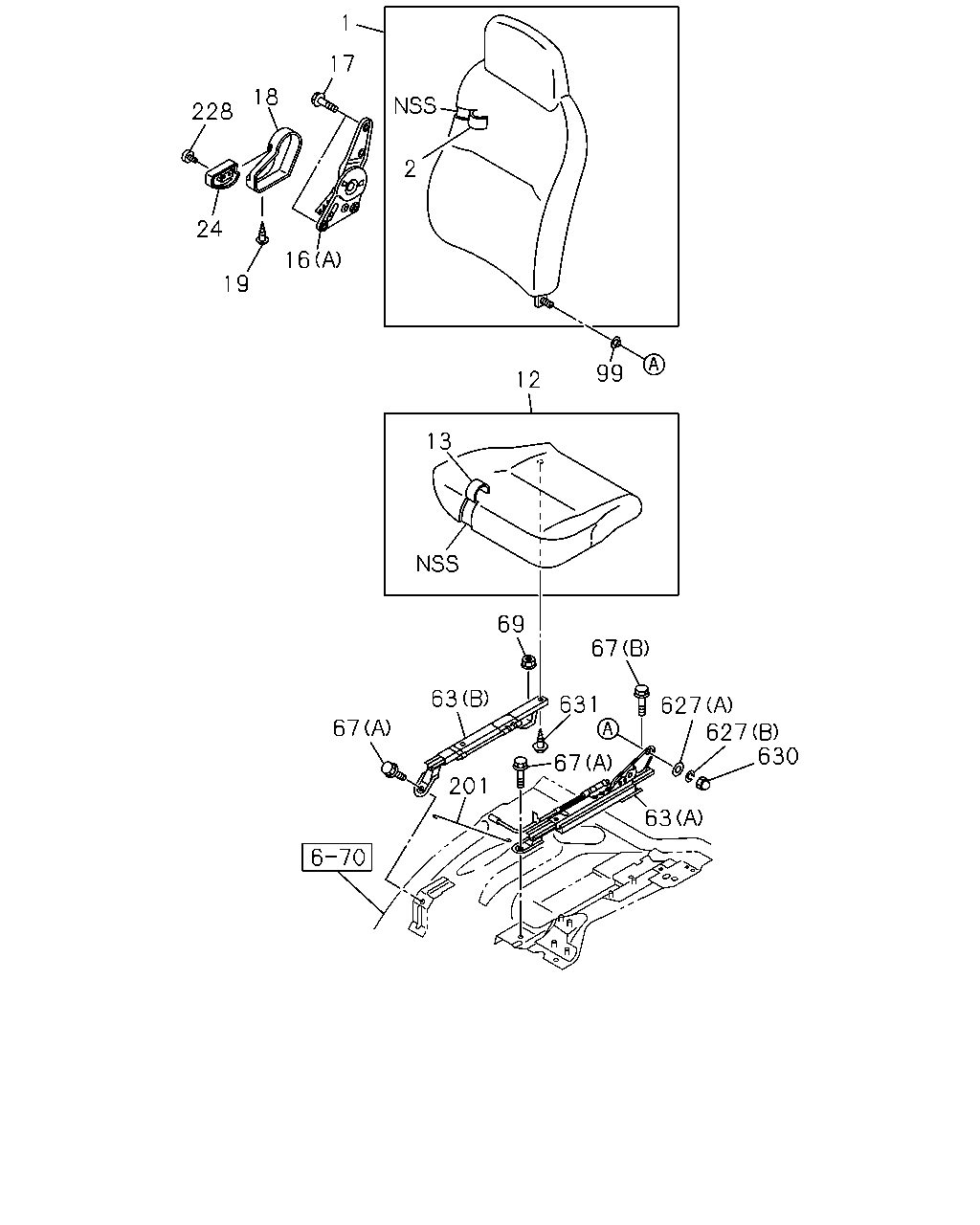

1 17 18 228 24 19 16 2 12 99 13 69 67 627 627 630 631 63 67 201 67 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT THA	8-97924-733-0	01	1	1405-	●	●
2	COVER; TRIM,FRT SEAT,BACK THA	8-97924-740-0	01	1	1405-	●	●
12	CUSHION; SEAT,FRT THA	8-97924-741-1	01	1	1405-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION THA	8-97924-742-0	01	1	1405-	●	●
16	ADJUSTER ASM; RECLINING (B) BLACK THA	8-97859-273-3	01	1	1405-	●	●
16	ADJUSTER ASM; RECLINING (C) BLACK	8-97859-274-3	02	1	1405-	●	●
16	ADJUSTER ASM; RECLINING (A) THA	8-98003-087-1	01	1	1405-	●	●
17	BOLT; RECLINING M10X20 THA	8-98062-661-0	04	1	1405-	●	●
18	COVER; RECLINING GRAY THA	8-97409-332-0	01	1	1405-	●	●
19	SCREW; COVER M5 THA	8-98062-663-0	01	1	1405-	●	●
24	KNOB; RECLINING,FRT,SEAT GRAY THA	8-97409-333-0	01	1	1405-	●	●
63	ADJUSTER; SEAT SLIDE (A) THA	8-97382-800-2	01	1	1405-	●	●
63	ADJUSTER; SEAT SLIDE (B) THA	8-97382-801-1	01	1	1405-	●	●
67	BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	1405-	●	●
67	BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	1405-	●	●
69	NUT; FRT SEAT M10 FLANGE	8-98055-961-0	01	1	1405-	●	●
99	BUSHING; SEAT BACK THA	8-98112-751-0	01	1	1405-	●	●
201	CABLE; ADJ THA	8-98003-086-1	01	1	1405-	●	●
228	SCREW; KNOB M4 THA	8-98062-662-0	01	1	1405-	●	●
627	WASHER; FRT SEAT (A) THA	8-98063-223-0	01	1	1405-	●	●
627	WASHER; FRT SEAT (B) THA	8-98063-224-0	01	1	1405-	●	●
630	NUT; CAP M8 THA	8-98063-225-0	01	1	1405-	●	●
631	BOLT; ADJ,SEAT M8X25 W/LK WASHER THA	8-98062-658-0	02	1	1405-	●	●
631	BOLT; ADJ,SEAT M8X32 W/LK WASHER THA	8-98062-659-0	02	1	1405-	●	●

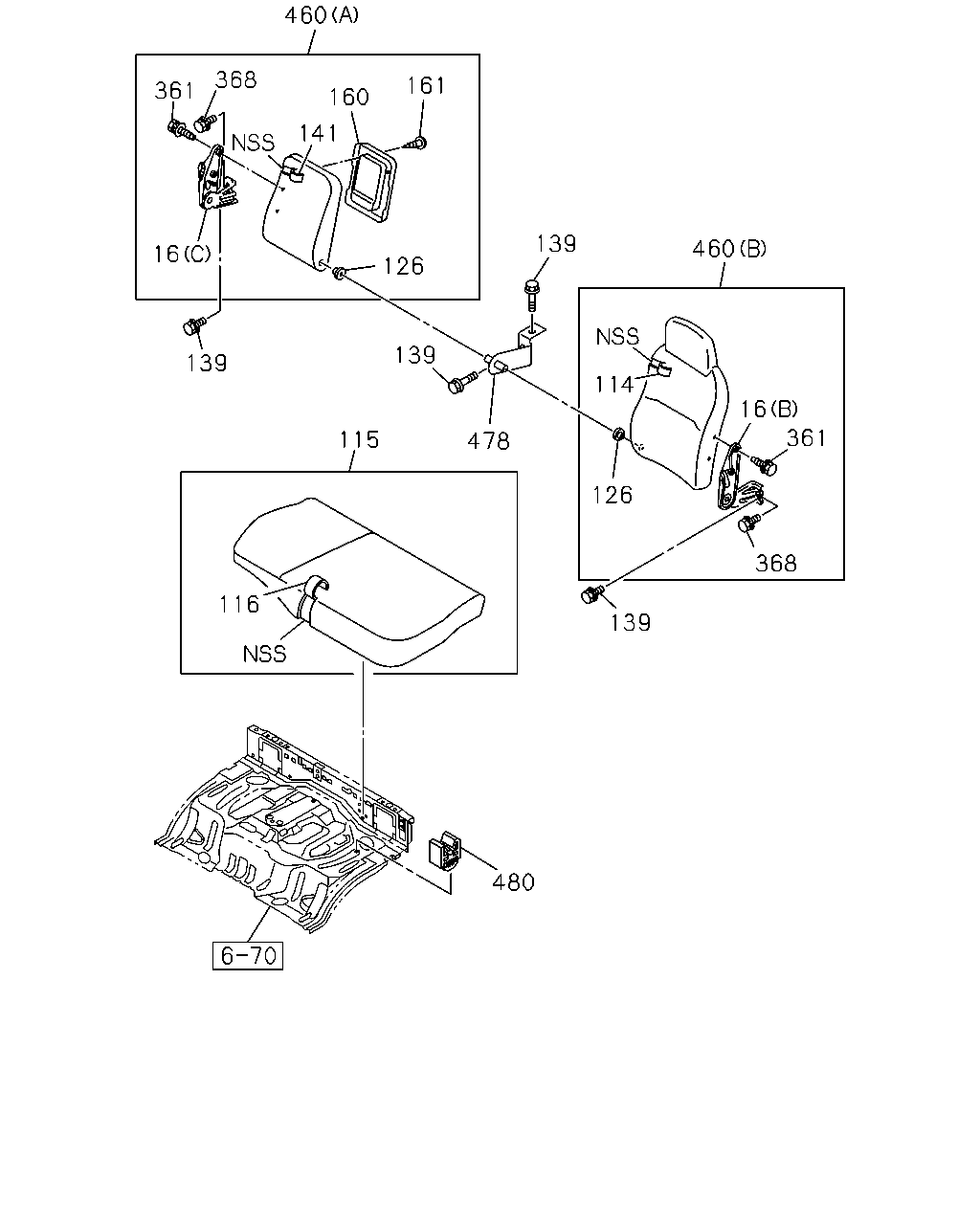

460 361 368 16 141 160 161 126 139 139 139 460 114 478 115 116 126 139 16 361 368 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING (B) BLACK THA	8-97859-273-3	01	1	1405-	●	●
16	ADJUSTER ASM; RECLINING (C) BLACK	8-97859-274-3	02	1	1405-	●	●
16	ADJUSTER ASM; RECLINING (A) THA	8-98003-087-1	01	1	1405-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK VIN MODEL YEAR 2011<VZB> THA	8-97925-278-0	01	1	1405-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. VIN MODEL YEAR 2011<VZB> THA	8-97924-479-0	01	1	1405-	●	●
115	CUSHION ASM; PASSENGER SEAT VIN MODEL YEAR 2011<VZB> THA	8-97925-271-0	01	1	1405-	●	●
115	CUSHION ASM; PASSENGER SEAT EXC. VIN MODEL YEAR 2011<VZB> THA	8-97924-745-0	01	1	1405-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VIN MODEL YEAR 2011<VZB> THA	8-97925-276-0	01	1	1405-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. VIN MODEL YEAR 2011<VZB> THA	8-97924-746-0	01	1	1405-	●	●
126	BUSHING; HINGE,RECLINING	8-98069-558-0	03	1	1405-	●	●
139	BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	04	1	1405-	●	●
141	COVER; TRIM,BENCH SEAT,BACK VIN MODEL YEAR 2011<VZB> THA	8-97925-279-0	01	1	1405-	●	●
141	COVER; TRIM,BENCH SEAT,BACK EXC. VIN MODEL YEAR 2011<VZB> THA	8-97924-478-0	01	1	1405-	●	●
160	CONSOLE; UPR,BACK CENTER GRAY	8-97405-361-1	02	1	1405-	●	●
161	SCREW; CONSOLE VIN MODEL YEAR 2011<VZB> M4X12	8-94279-351-0	08	1	1405-	●	●
161	SCREW; CONSOLE EXC. VIN MODEL YEAR 2011<VZB> M4X12	8-94279-351-0	07	1	1405-	●	●
361	BOLT; ADJ,RECLINING M8X18	8-94279-109-1	06	1	1405-	●	●
368	BOLT; SEAT M8X24.5 W/LK&PL WASHER	8-94279-217-0	03	1	1405-	●	●
460	BACK ASM; PASSENGER SEAT VIN MODEL YEAR 2011<VZB> (B) THA	8-97925-273-0	01	1	1405-	●	●
460	BACK ASM; PASSENGER SEAT VIN MODEL YEAR 2011<VZB> (A) THA	8-97925-274-0	01	1	1405-	●	●
460	BACK ASM; PASSENGER SEAT EXC. VIN MODEL YEAR 2011<VZB> (B) THA	8-97924-466-2	01	1	1405-	●	●
460	BACK ASM; PASSENGER SEAT EXC. VIN MODEL YEAR 2011<VZB> (A) THA	8-97924-467-2	01	1	1405-	●	●
478	BRACKET ASM; HINGE,PASSENGER SEAT	8-98002-092-0	01	1	1405-	●	●
480	CLIP; CUSHION	8-94279-977-0	05	1	1405-	●	●
