7-40 — INSTRUMENT PANEL AND BOX (#139571) — 109 parça

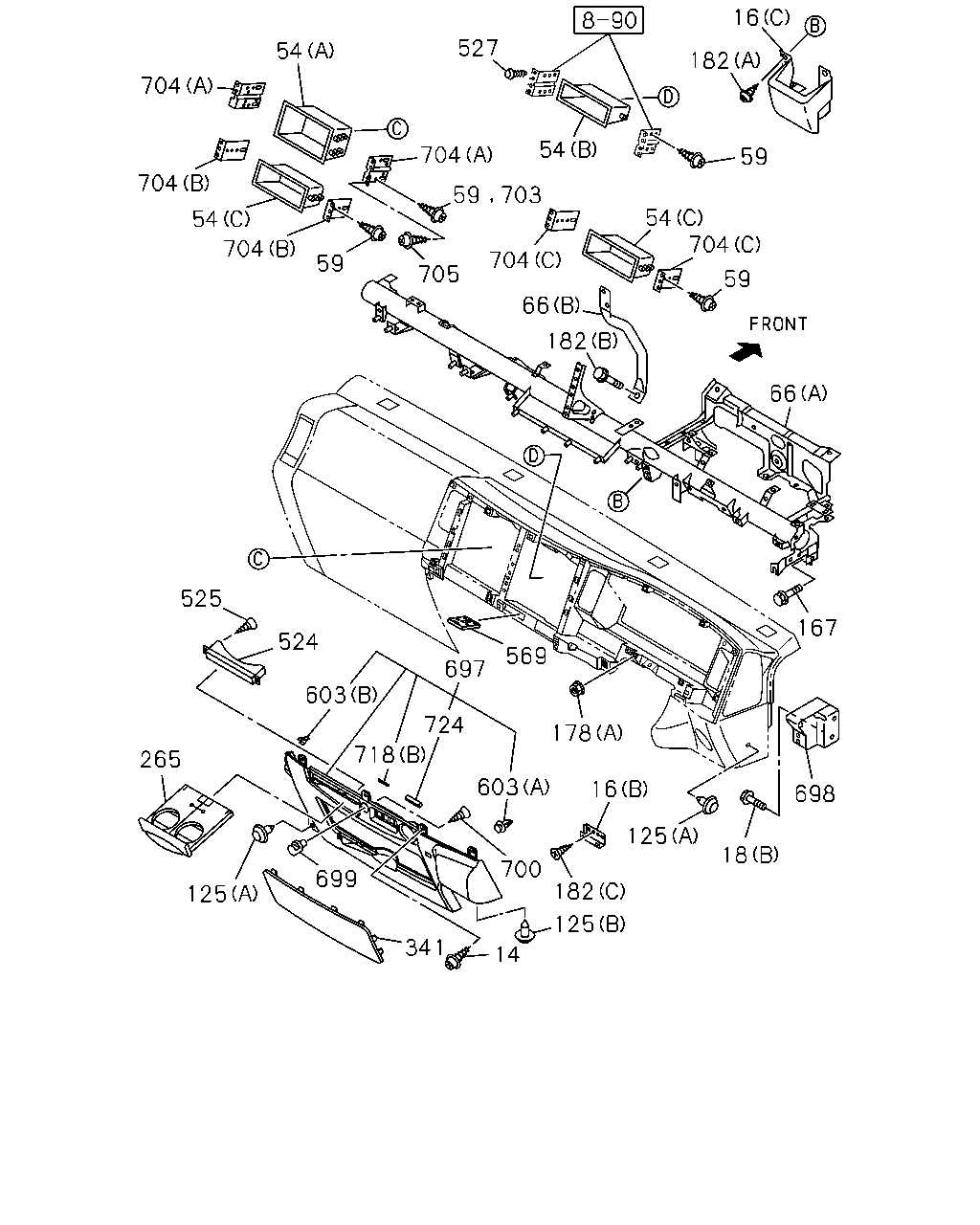

çizim 420956
704 54 704 54 704 59 527 16 182 59 54 704 59 703 705 704 54 704 59 66 182 66 167 698 18 125 16 178 569 697 525 524 603 265 125 718 724 603 700 182 125 14 341 699
BalonParca AdiParca NoAdetTipApplied Date A B
14 SCREW; INST PNL
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1405- ● ●
16 BRACKET; INST PNL
COOLER WO/HEATER<C65> (B) 		8-97585-532-0 01 1 1405- ● ●
16 BRACKET; INST PNL
COOLER WO/HEATER<C65> (A) 		8-97585-612-2 01 1 1405- ● ●
16 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER<8GF> (D) 		8-98034-799-6 01 1 1405- ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1405- ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 04 1 1405- ● ●
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1405- ● ●
54 POCKET; CENTER CLUSTER
(C) THA 		8-97926-412-0 01 1 1405- ● ●
54 POCKET; CENTER CLUSTER
EXC. COOLER WO/HEATER<C65> (C) THA 		8-97926-412-0 01 1 1405- ● ●
54 POCKET; CENTER CLUSTER
(B) THA 		8-97926-414-0 01 1 1405- ● ●
54 POCKET; CENTER CLUSTER
(A) THA 		8-97926-874-0 01 1 1405- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1405- ● ●
59 SCREW; CLUSTER POCKET
EXC. COOLER WO/HEATER<C65> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1405- ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-578-1 01 1 1405- ● ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98199-358-1 01 1 1405- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 1405- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1405- ● ●
125 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1405- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1405- ● ●
178 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1405- ●
178 NUT; INST PANEL
(A) M6 FLANGE THA 		0-91180-106-0 03 1 1405- ● ●
182 BOLT; BRKT,INST PANEL
COOLER WO/HEATER<C65> (C) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1405- ● ●
182 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER<8GF> (D) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1405- ●
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 03 1 1405- ● ●
182 BOLT; BRKT,INST PANEL
(B) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1405- ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1405- ● ●
341 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1405- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1405- ● ●
525 SCREW; CUP STAND
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1405- ● ●
527 CLIP; INST CLUSTER
EXC. COOLER WO/HEATER<C65> DARK GRAY 		8-97098-326-0 01 1 1405- ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 1405- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1405- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 10 1 1405- ● ●
697 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1405- ● ●
698 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1405- ● ●
698 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1405- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1405- ● ●
700 BOLT; HOOK
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1405- ● ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1405- ● ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1405- ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1405- ● ●
704 BRACKET; CENTER POCKET
EXC. COOLER WO/HEATER<C65> (C) 		8-98107-549-0 02 1 1405- ● ●
705 SCREW; BRACKET CENTER POCKET
T25 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1405- ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. COOLER WO/HEATER<C65> T25 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1405- ● ●
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1405- ● ●
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1405- ● ●
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1405- ● ●
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1405- ● ●
724 INSULATOR; INST PANEL 8-98200-042-0 01 1 1405- ● ●

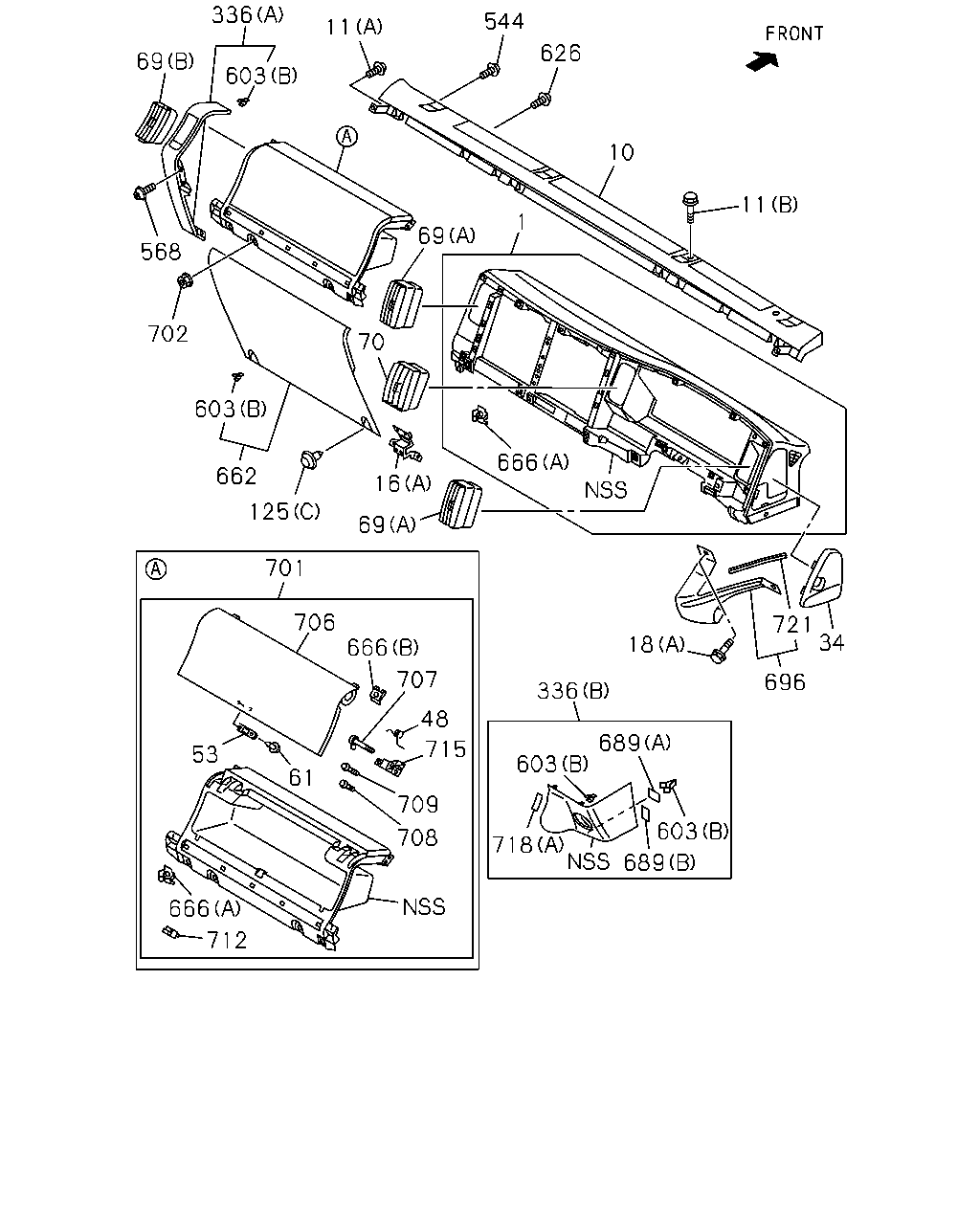

çizim 421170
544 626 10 11 1 666 18 721 34 696 336 689 603 603 689 718 701 706 666 707 48 715 709 708 712 666 53 61 69 16 125 662 603 702 568 70 69 603 336 69 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
THA 		8-97926-375-1 01 1 1405- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1405- ● ●
11 BOLT; INST PNL
(A) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1405- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1405- ● ●
16 BRACKET; INST PNL
COOLER WO/HEATER<C65> (B) 		8-97585-532-0 01 1 1405- ● ●
16 BRACKET; INST PNL
COOLER WO/HEATER<C65> (A) 		8-97585-612-2 01 1 1405- ● ●
16 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER<8GF> (D) 		8-98034-799-6 01 1 1405- ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1405- ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 04 1 1405- ● ●
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1405- ● ●
34 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 1405- ● ●
48 SPRING; GLOVE BOX LID
THA 		8-97926-410-0 01 1 1405- ● ●
48 SPRING; GLOVE BOX LID
THA 		8-97926-411-0 01 1 1405- ● ●
53 STRIKER; GLOVE BOX
THA 		8-97926-403-1 01 1 1405- ● ●
61 SCREW; GLOVE BOX
M4X85 THA 		8-97926-404-0 01 1 1405- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1405- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1405- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1405- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 1405- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1405- ● ●
125 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1405- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 1405- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-688-1 01 1 1405- ● ●
544 SCREW; TRAY
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1405- ● ●
568 BOLT; COVER
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1405- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1405- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 10 1 1405- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1405- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97414-904-2 01 1 1405- ● ●
666 INSERT; INST PANEL
(A) THA 		8-97926-385-0 02 1 1405- ● ●
666 INSERT; INST PANEL
(A) THA 		8-97926-385-0 30 1 1405- ● ●
666 INSERT; INST PANEL
(B) M5 THA 		8-97926-400-0 04 1 1405- ● ●
689 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 1405- ● ●
689 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 1405- ● ●
696 BRACKET; KNEE 8-98199-366-0 01 1 1405- ● ●
701 TRAY; INST
THA 		8-97926-382-1 01 1 1405- ● ●
702 NUT; TRAY
M6 FLANGE THA 		0-91180-106-0 02 1 1405- ● ●
706 LID; TRAY INST
THA 		8-97926-402-1 01 1 1405- ● ●
707 SHAFT; TRAY INST LID
THA 		8-97926-393-0 02 1 1405- ● ●
708 STOPPER; TRAY INST LID
THA 		8-97926-394-0 02 1 1405- ● ●
709 SCREW; TRAY INST
M5X16 TAPPING THA 		0-71040-516-0 04 1 1405- ● ●
712 LOCK; TRAY INST LID
THA 		8-97926-395-0 01 1 1405- ● ●
715 SUPPORT; TRAY,HINGE
THA 		8-97926-396-0 01 1 1405- ● ●
715 SUPPORT; TRAY,HINGE
THA 		8-97926-397-0 01 1 1405- ● ●
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1405- ● ●
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1405- ● ●
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1405- ● ●
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1405- ● ●
721 FINISHER; BRKT,KNEE
L=75 		8-98176-240-0 01 1 1405- ● ●

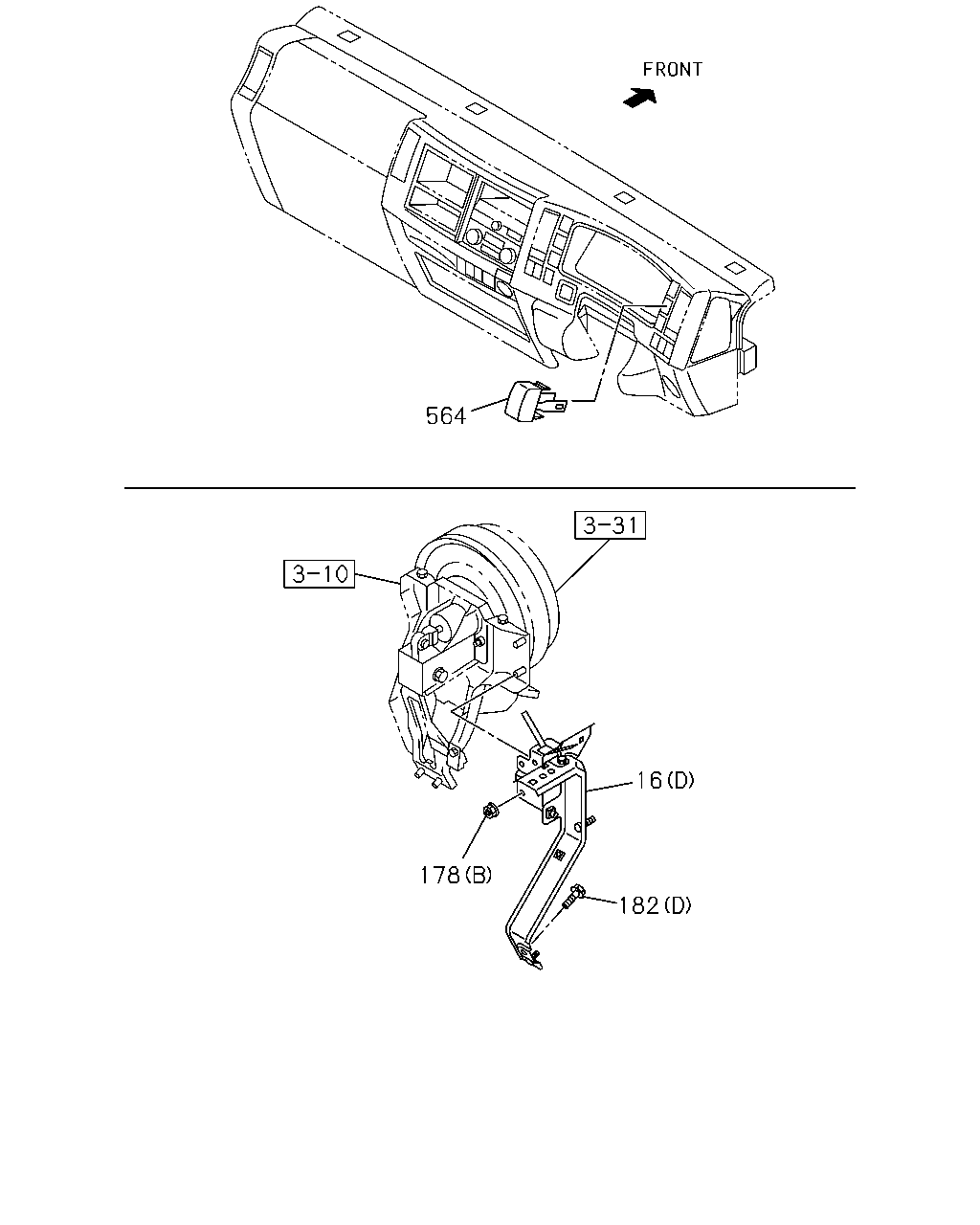

çizim 421930
564 16 182 178
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
COOLER WO/HEATER<C65> (B) 		8-97585-532-0 01 1 1405- ● ●
16 BRACKET; INST PNL
COOLER WO/HEATER<C65> (A) 		8-97585-612-2 01 1 1405- ● ●
16 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER<8GF> (D) 		8-98034-799-6 01 1 1405- ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1405- ● ●
178 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1405- ●
178 NUT; INST PANEL
(A) M6 FLANGE THA 		0-91180-106-0 03 1 1405- ● ●
182 BOLT; BRKT,INST PANEL
COOLER WO/HEATER<C65> (C) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1405- ● ●
182 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER<8GF> (D) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1405- ●
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 03 1 1405- ● ●
182 BOLT; BRKT,INST PANEL
(B) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1405- ● ●
564 COVER; SW 8-98025-954-1 03 1 1405- ● ●
