◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51509 - NPR/NQR(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#139568) — 11 parça
çizim 420967
193 273
BalonParca AdiParca NoAdetTipApplied Date A B
193 PLATE; CAUTION,EGR
THA 		8-97922-970-0 01 1 1405- ● ●
273 LABEL; CAUTION,OIL
THA 		8-97924-886-0 01 1 1405- ●

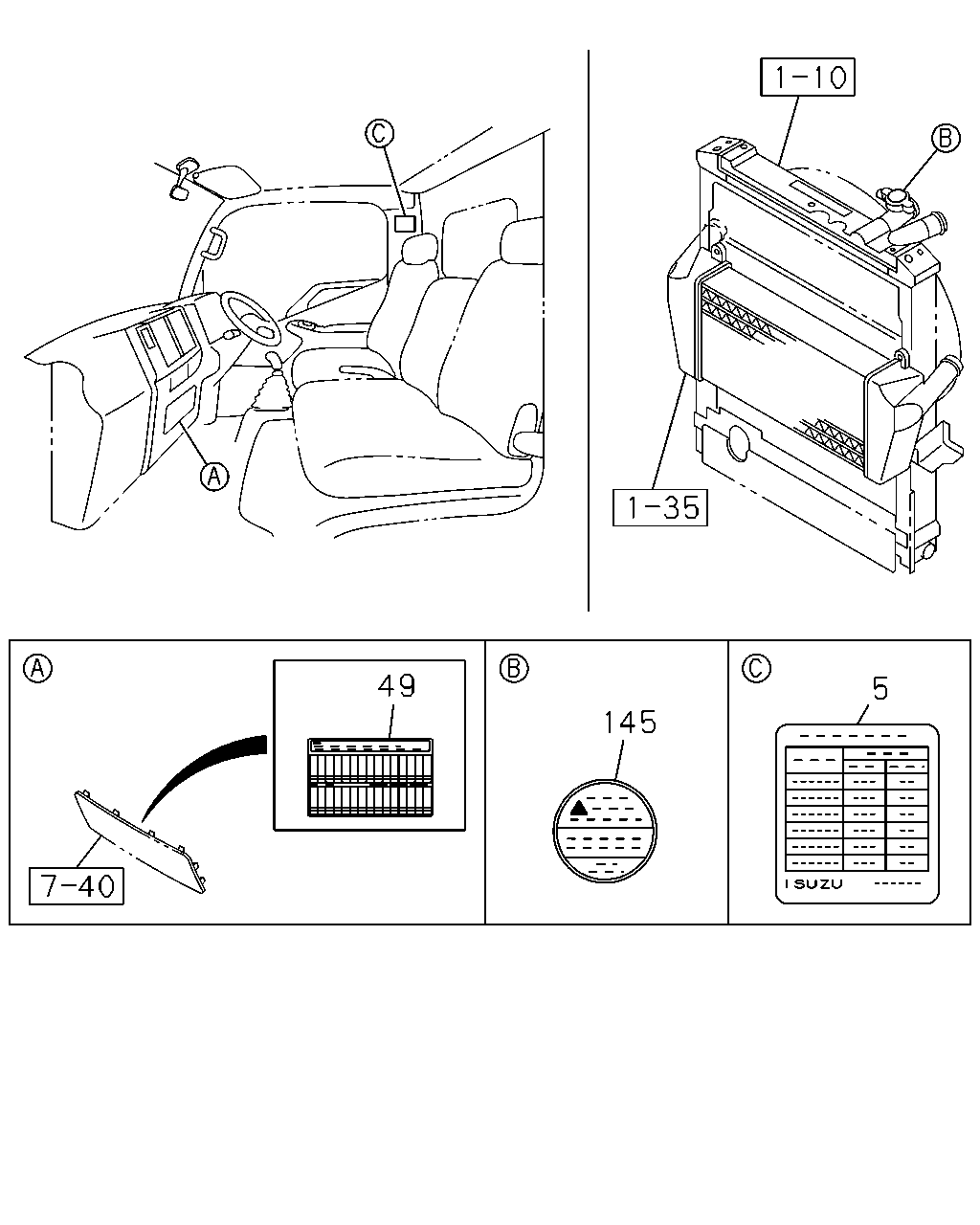

çizim 421364
49 145 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 LABEL; TIRE AIR PRESSURE
THA 		8-97924-661-3 01 1 1405- ● ●
49 PLATE; CAUTION,FUSE BOX
THA 		8-97923-867-0 01 1 1405- ● ●
145 PLATE; CAUTION,RADIATOR
THA 		8-97922-972-0 01 1 1405- ● ●
çizim 421955
306 4 35 48
BalonParca AdiParca NoAdetTipApplied Date A B
4 LABEL; ENG MAINTENANCE
THA 		8-97922-969-0 01 1 1405- ● ●
35 PLATE; CAUTION,CAB
THA 		8-97923-905-1 01 1 1405- ● ●
48 PLATE; CAUTION,PTO
PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98090-262-0 01 1 1405- ●
48 PLATE; CAUTION,PTO
PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-94469-277-0 01 1 1405- ●
48 PLATE; CAUTION,PTO
PTO MANUAL CONTROL<6WC> 		8-94469-277-0 01 1 1405- ●
306 LABEL; BEAM & PASS
THA 		8-97948-259-0 01 1 1405- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
