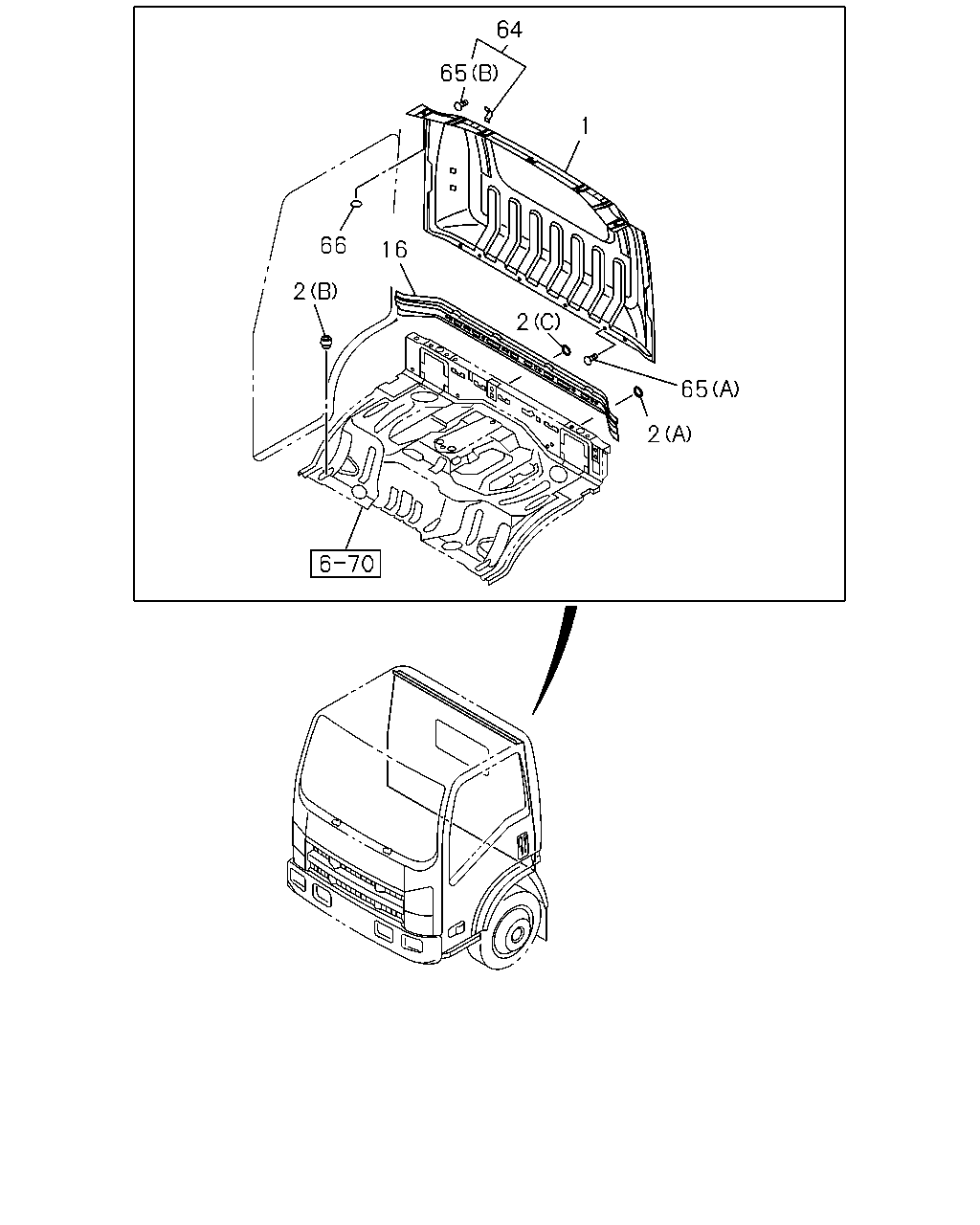

6-80 — BACK PANEL (#139563) — 9 parça

64 65 1 65 2 2 16 66 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; BACK OUTER THA	8-97584-304-3	01	1	1405-	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL (A) OD=25 BLACK THA	1-76798-019-0	02	1	1405-	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL (B) OD=12.1	8-97898-423-0	04	1	1405-	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL (C) OD=32 BLACK	8-98031-126-0	08	1	1405-	●	●
16	REINFORCEMENT; BACK OUTER PNL THA	8-97584-608-2	01	1	1405-	●	●
64	BRACKET; AIR INTAKE DUCT THA	8-97948-248-0	01	1	1405-	●	●
65	STUD; BACK PANEL (B) THA	8-94389-701-0	01	1	1405-	●	●
65	STUD; BACK PANEL (A) M6X12	8-98013-112-0	04	1	1405-	●	●
66	SEAL; BACK PANEL OD=20 T=0.05 WHITE	8-98059-421-0	05	1	1405-	●	●
