◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11129 - FVM(THAI)EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#13956) — 58 parça

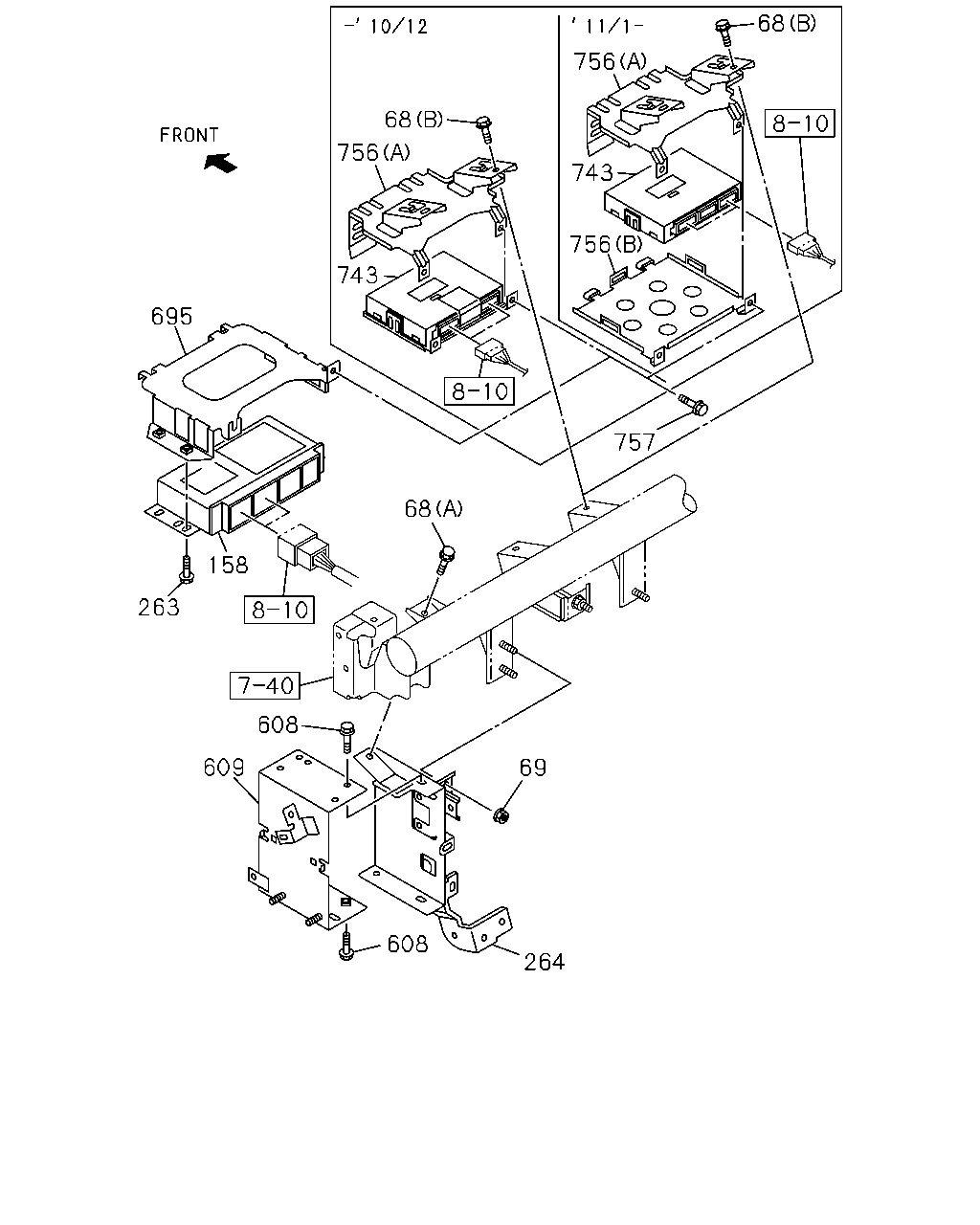

çizim 98231
68 756 68 756 743 756 743 695 757 68 158 263 608 609 69 608 264
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0809-0904
68 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0905-
68 BOLT; BRKT
MEMORY SYSTEM RUNNING CONDITION<NCR> EXC. ANTI LOCK BRAKE<JE5> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0905-
68 BOLT; BRKT
(A) M6X16 FLANGE THA 		0-28650-616-0 01 1 0807-
69 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 01 1 0807-
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> 		1-80119-261-0 01 1 0809-0809
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 295/80R22.5-152/148K RIB CHINA<5E0>,TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA<97N> 		1-80119-261-0 01 1 0809-1003
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 295/80R22.5-152/148K RIB CHINA<5E0>,TIRE 11.00R-22.5-16 RIB<55N>,TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA<97N> 		1-80119-261-0 01 1 1004-1102
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 295/80R22.5-152/148K RIB CHINA<5E0>,TIRE 11.00R-22.5-16 RIB<55N>,TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA<97N> 		8-98170-648-0 01 1 1103-
263 BOLT; CONT UNIT
ANTI LOCK BRAKE<JE5> M6X16 FLANGE THA 		0-28650-616-0 04 1 0808-
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 0807-
608 BOLT; CONT UNIT,AIR SUS
ZF6S1000 M/T<Y5D> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE THA 		0-28650-616-0 05 1 0807-1003
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T<Y5E> M6X16 FLANGE THA 		0-28650-616-0 05 1 0807-1003
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T<Y5E> M6X16 FLANGE THA 		0-28650-616-0 05 1 1004-
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF6S1000 M/T<Y5D> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98095-337-0 01 1 0807-1003
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T<Y5E> 		8-98095-337-0 01 1 0807-1003
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T<Y5E> 		8-98095-337-0 01 1 1004-1308
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T<Y5E> 		8-98169-737-1 01 1 1309-
695 BRACKET; CONT UNIT,ABS
ANTI LOCK BRAKE<JE5> 		8-98045-016-1 01 1 0809-
743 CONTROL UNIT; BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> 		8-98125-904-0 01 1 0905-0908
743 CONTROL UNIT; BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> 		8-98155-169-1 01 1 0909-1007
743 CONTROL UNIT; BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> 		8-98176-213-0 01 1 1008-1012
743 CONTROL UNIT; BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> 		8-98180-923-0 01 1 1101-1101
743 CONTROL UNIT; BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> 		8-98182-026-3 01 1 1101-
756 BRACKET; ECU,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> (B) 		8-98111-836-1 01 1 1101-
756 BRACKET; ECU,BCM
ANTI LOCK BRAKE<JE5> (A) 		8-98056-411-3 01 1 0809-0904
756 BRACKET; ECU,BCM
ANTI LOCK BRAKE<JE5> (A) 		8-98056-411-3 01 1 0905-
756 BRACKET; ECU,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> EXC. ANTI LOCK BRAKE<JE5> (A) 		8-98056-411-3 01 1 0905-
757 BOLT; BRKT,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> EXC. ANTI LOCK BRAKE<JE5> M6X16 FLANGE THA 		0-28650-616-0 02 1 0905-1102
757 BOLT; BRKT,BCM
ANTI LOCK BRAKE<JE5> M6X16 FLANGE THA 		0-28650-616-0 02 1 0808-0904
757 BOLT; BRKT,BCM
ANTI LOCK BRAKE<JE5> M6X16 FLANGE THA 		0-28650-616-0 04 1 0905-1102
757 BOLT; BRKT,BCM
ANTI LOCK BRAKE<JE5> M6X16 FLANGE THA 		0-28650-616-0 02 1 1103-
757 BOLT; BRKT,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> EXC. ANTI LOCK BRAKE<JE5> M6X16 FLANGE THA 		0-28650-616-0 02 1 1103-

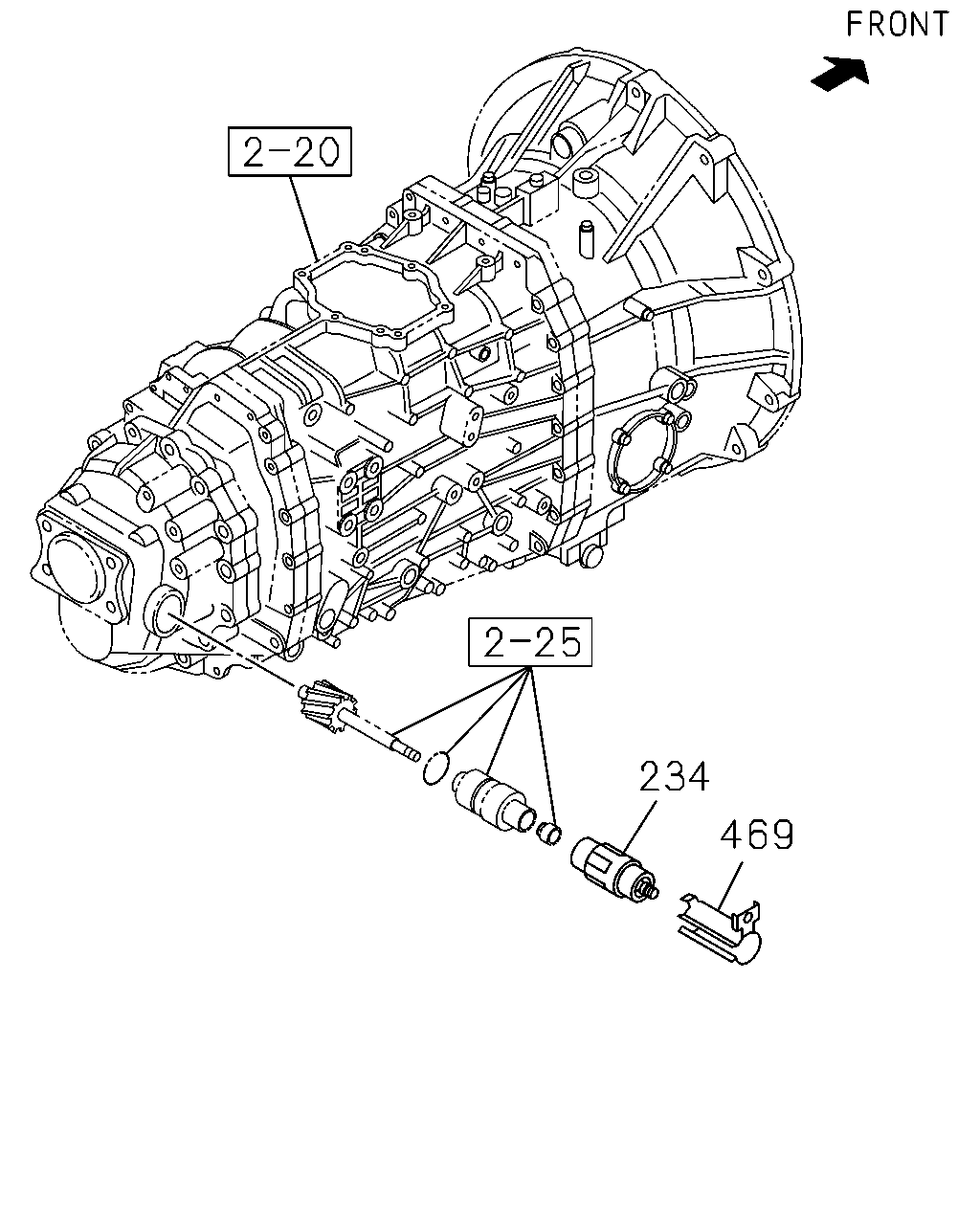

çizim 98283
234 469
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
MZW6P M/T<RSZ> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1103-
469 PROTECTOR; SPEED SENSOR
MZW6P M/T<RSZ> 		8-98119-901-0 01 1 1103-

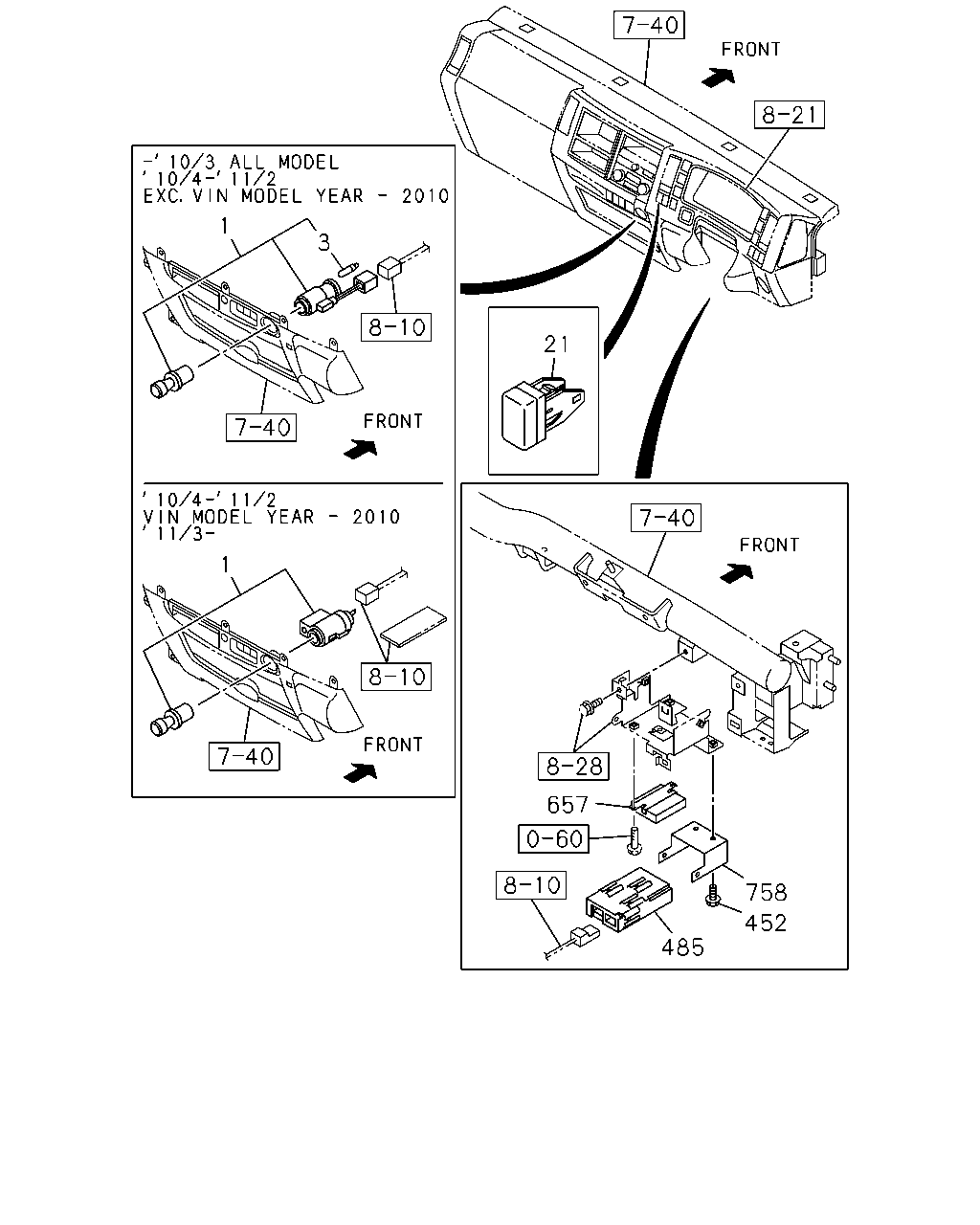

çizim 98341
1 3 1 485 758 452 657 21
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR
VIN MODEL YEAR 2010<VZA> 		8-98142-962-0 01 1 1004-1102
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1103-
1 LIGHTER; CIGAR 8-98076-255-0 01 1 0807-1003
1 LIGHTER; CIGAR
EXC. VIN MODEL YEAR 2010<VZA> 		8-98076-255-0 01 1 1004-1102
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0807-1003
3 BULB; CIGAR LIGHTER
EXC. VIN MODEL YEAR 2010<VZA> 28V 1.8W 		8-97173-159-0 01 1 1004-1102
21 COVER; HOLE 8-98025-954-1 01 1 0807-
452 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 02 1 0807-1102
452 BOLT; BRKT
ZF9S1110 M/T<Y5E> M6X16 FLANGE THA 		0-28650-616-0 02 1 1103-
485 CONTROL UNIT; SPEED SENSOR 1-80190-063-0 01 1 0807-1102
485 CONTROL UNIT; SPEED SENSOR
ZF9S1110 M/T<Y5E> 		1-80190-063-0 01 1 1103-
657 CONTROL UNIT; MIMAMORI
EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> 		8-98013-144-8 01 1 0807-1401
657 CONTROL UNIT; MIMAMORI
EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> 		8-98260-912-0 01 1 1402-
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 0807-1102
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T<Y5E> 		8-98048-743-1 01 1 1103-

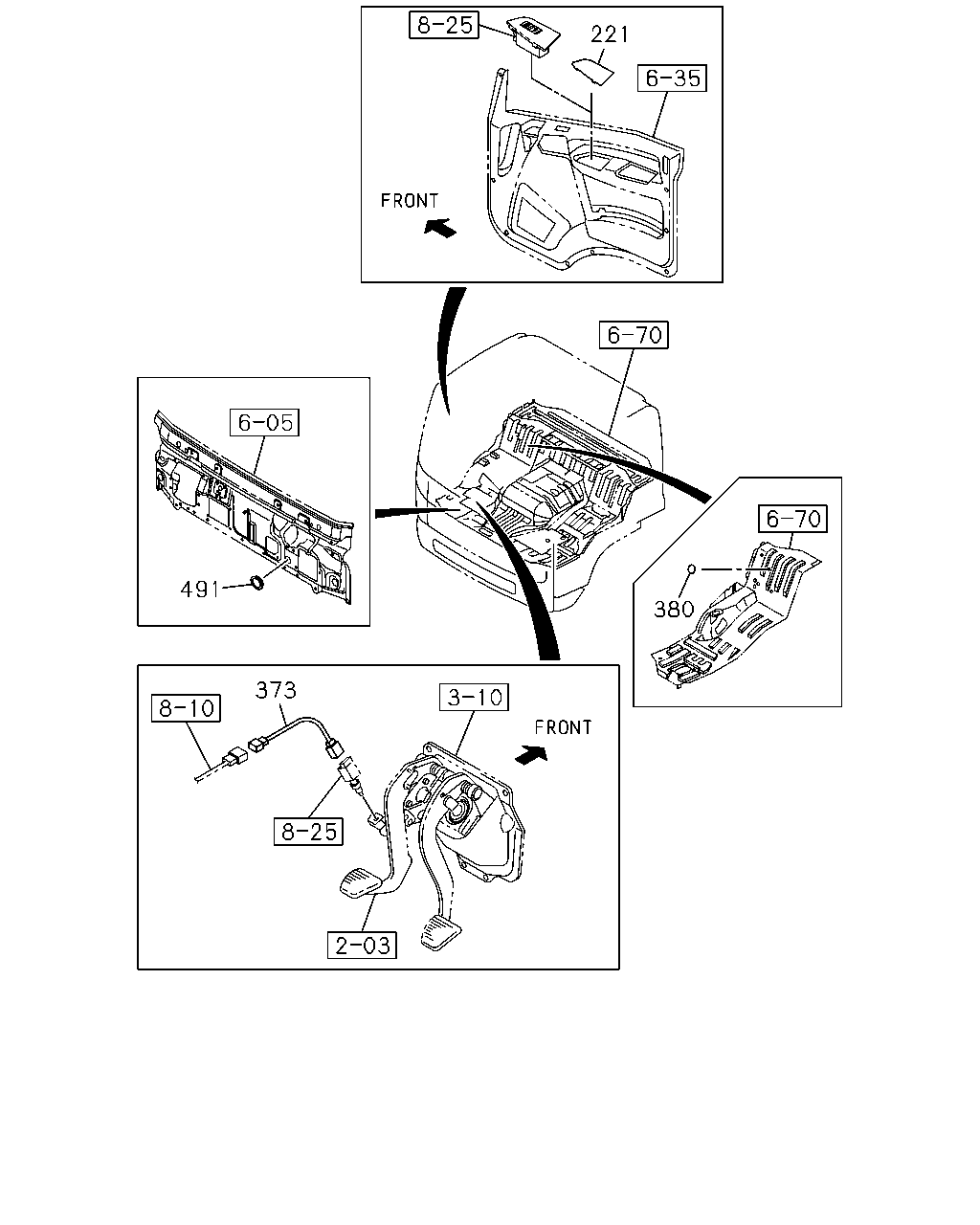

çizim 98405
221 491 380 373
BalonParca AdiParca NoAdetTipApplied Date
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 0807-1003
221 COVER; HOLE,DOOR LOCK SW 8-98029-915-2 01 1 1004-
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 0807-1003
221 COVER; HOLE,DOOR LOCK SW 8-98029-916-2 01 1 1004-
373 HARNESS; CLU SWITCH 8-98059-419-1 01 1 0807-1003
373 HARNESS; CLU SWITCH
EXC. VIN MODEL YEAR 2010<VZA> 		8-98059-419-1 01 1 1004-1102
380 SEAL
OD=25 BLACK THA 		1-76798-019-0 01 1 0807-
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 0807-
