Isuzu WW
▶
TRUCKS
▶
NPR
▶
51509 - NPR/NQR(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-31 - FRONT DOOR GLASS AND REGULATOR
▶
6-31 — FRONT DOOR GLASS AND REGULATOR
(#139552) — 25 parça
Tümü
A - NPR5SN
B - NPR5SS
◀
[631A] NO.2 (6 parça)
[631A] NO.1 (19 parça)
▶
221
223
223
227
222
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B

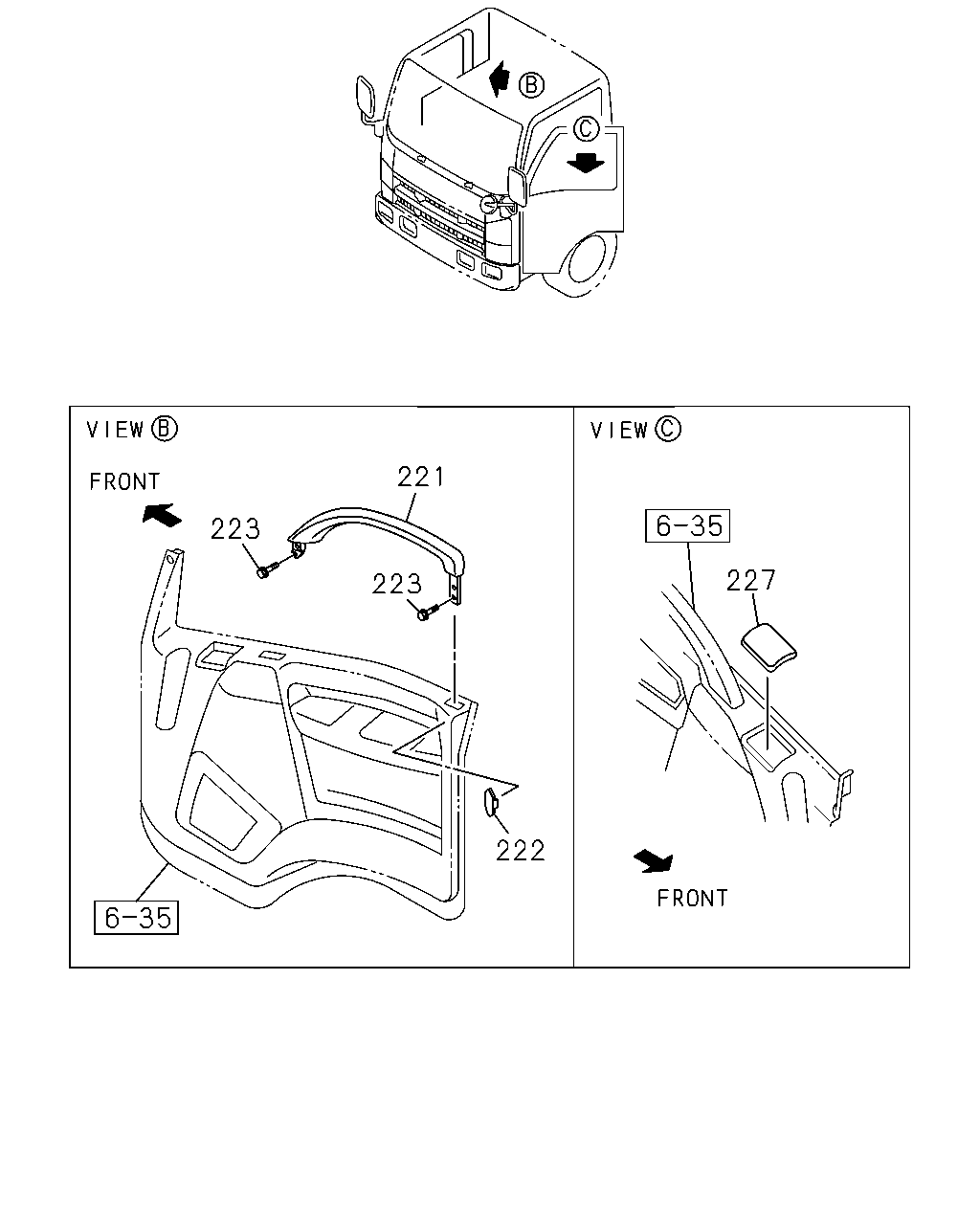

221
BAR ASM; DOOR GLASS GUARD
THA
8-97925-103-0
01
1
1405-
●
●
221
BAR ASM; DOOR GLASS GUARD
THA
8-97925-104-0
01
1
1405-
●
●
222
CAP; GUARD BAR
GRAY
8-97405-318-0
01
1
1405-
●
●
222
CAP; GUARD BAR
GRAY
8-97405-319-0
01
1
1405-
●
●
223
SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET
0-38050-625-0
08
1
1405-
●
●
227
RUBBER; SHUTTER
GRAY
8-97405-321-0
01
1
1405-
●
●
1
72
31
7
192
192
7
12
8
17
19
207
26
39
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B

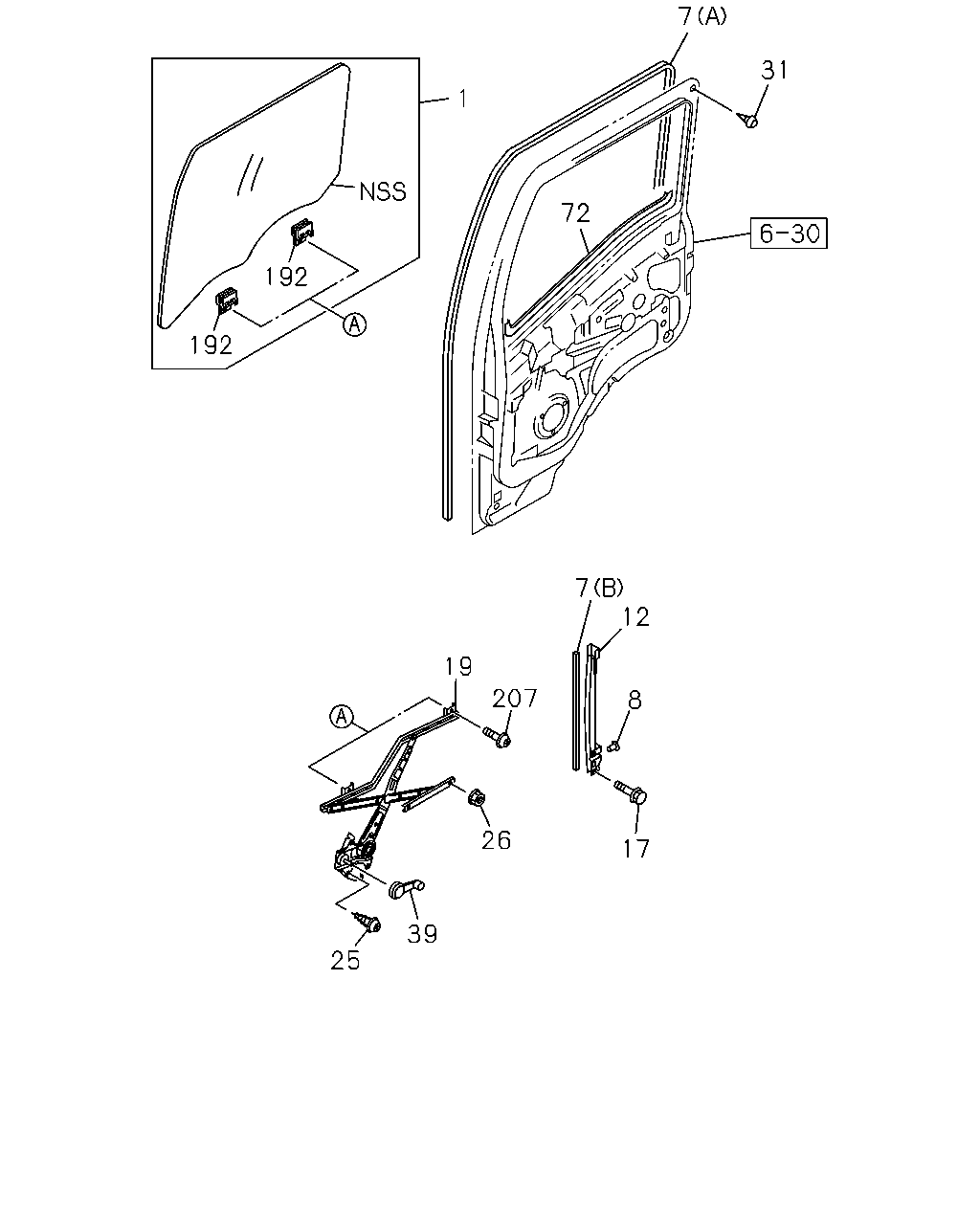

1
GLASS; FRT DOOR
THA
8-97923-680-3
01
1
1405-
●
●
1
GLASS; FRT DOOR
THA
8-97923-681-3
01
1
1405-
●
●
7
GLASS RUN; FRT DOOR
(A)
8-98029-195-3
01
1
1405-
●
●
7
GLASS RUN; FRT DOOR
(A)
8-98029-196-3
01
1
1405-
●
●
7
GLASS RUN; FRT DOOR
(B)
8-98031-742-2
02
1
1405-
●
●
8
CLIP; GLASS GUIDE
8-98048-796-0
02
1
1405-
●
●
12
CHANNEL; GLASS RUN,FRT
8-98188-418-0
01
1
1405-
●
●
12
CHANNEL; GLASS RUN,FRT
8-98188-419-0
01
1
1405-
●
●
17
SCREW; RR CHANNEL
M6X10 FLANGE THA
0-28050-610-0
04
1
1405-
●
●
19
REGULATOR; WINDOW,FRT DOOR
8-98029-233-3
01
1
1405-
●
●
19
REGULATOR; WINDOW,FRT DOOR
8-98029-234-3
01
1
1405-
●
●
25
BOLT; WINDOW REG
M6X10 FLANGE THA
0-28050-610-0
08
1
1405-
●
●
26
NUT; FLANGE,WINDOW REG
M6 FLANGE THA
0-91180-106-0
04
1
1405-
●
●
31
STOPPER; RUBBER,DOOR INNER
THA
8-97948-266-0
04
1
1405-
●
●
39
HANDLE; WINDOW REG,FRT DOOR
THA
8-97948-267-0
02
1
1405-
●
●
72
SEAL; WAIST,FRT DOOR
THA
8-97926-957-0
01
1
1405-
●
●
72
SEAL; WAIST,FRT DOOR
THA
8-97926-958-0
01
1
1405-
●
●
192
HOLDER; DOOR GLASS
THA
8-97288-022-0
04
1
1405-
●
●
207
SCREW; DOOR GLASS
M6X10 FLANGE THA
0-28050-610-0
04
1
1405-
●
●
