◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51509 - NPR/NQR(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#139550) — 47 parça

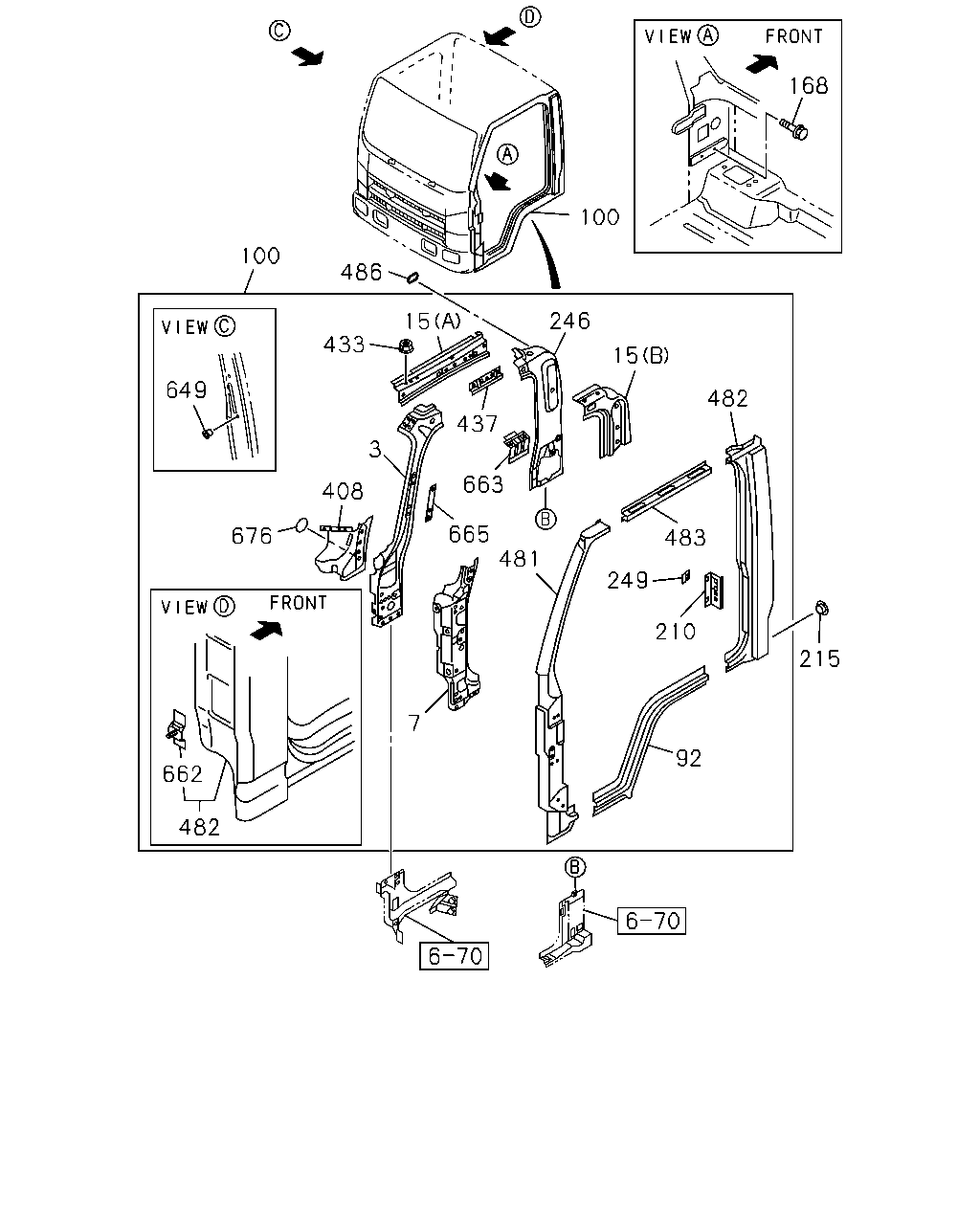

çizim 421633
168 100 486 100 649 433 15 246 15 482 483 249 210 215 92 482 662 7 676 408 481 665 663 437 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR
VIN MODEL YEAR 2011<VZB> 		8-98058-237-1 01 1 1405- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1405- ● ●
7 REINFORCEMENT; HINGE
VIN MODEL YEAR 2011<VZB> THA 		8-97927-059-0 01 1 1405- ● ●
7 REINFORCEMENT; HINGE
THA 		8-97927-058-0 01 1 1405- ● ●
15 PANEL; CANT RAIL SIDE
VIN MODEL YEAR 2011<VZB> (A) THA 		8-97585-295-2 01 1 1405- ● ●
15 PANEL; CANT RAIL SIDE
VIN MODEL YEAR 2011<VZB> (B) THA 		8-97585-303-2 01 1 1405- ● ●
15 PANEL; CANT RAIL SIDE
(A) THA 		8-97585-294-2 01 1 1405- ● ●
15 PANEL; CANT RAIL SIDE
(B) THA 		8-97585-302-1 01 1 1405- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1405- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1405- ● ●
100 PANEL ASM; BODY SIDE
VIN MODEL YEAR 2011<VZB> THA 		8-97948-573-1 01 1 1405- ● ●
100 PANEL ASM; BODY SIDE
THA 		8-97948-556-1 01 1 1405- ● ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 08 1 1405- ● ●
210 PANEL; DOOR STRIKER REINF
VIN MODEL YEAR 2011<VZB> 		8-97585-261-4 01 1 1405- ● ●
210 PANEL; DOOR STRIKER REINF 8-97585-260-4 01 1 1405- ● ●
215 GROMMET; RR PILLAR
OD=35 		8-94122-971-0 01 1 1405- ● ●
246 PANEL; RR PILLAR,INNER
VIN MODEL YEAR 2011<VZB> THA 		8-97585-301-3 01 1 1405- ● ●
246 PANEL; RR PILLAR,INNER
THA 		8-97586-154-3 01 1 1405- ● ●
249 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1405- ● ●
249 REINFORCEMENT; RR PILLAR
VIN MODEL YEAR 2011<VZB> 		8-98012-287-1 01 1 1405- ● ●
408 GUSSET; PILLAR
VIN MODEL YEAR 2011<VZB> THA 		8-98180-850-0 01 1 1405- ● ●
408 GUSSET; PILLAR 8-97585-316-3 01 1 1405- ● ●
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1405- ● ●
433 NUT; HEADER SHELF
VIN MODEL YEAR 2011<VZB> M6 THA 		9-09114-086-0 02 1 1405- ● ●
437 BRACKET; ROOF RAIL
VIN MODEL YEAR 2011<VZB> 		8-98039-020-0 01 1 1405- ● ●
437 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1405- ● ●
481 PANEL; SIDE FRT PILLAR 8-98055-451-0 01 1 1405- ● ●
481 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 1405- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-463-0 01 1 1405- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-464-0 01 1 1405- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1405- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1405- ● ●
486 SEAL; BODY SIDE
OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1405- ● ●
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 1405- ● ●
662 BRACKET; DUCT
THA 		8-97948-248-0 01 1 1405- ● ●
663 BRACKET; AIR
VIN MODEL YEAR 2011<VZB> THA 		8-97948-278-0 01 1 1405- ● ●
663 BRACKET; AIR
THA 		8-97948-277-0 01 1 1405- ● ●
665 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1405- ● ●
665 REINFORCEMENT; GRIP,ASSIST
VIN MODEL YEAR 2011<VZB> 		8-97585-314-0 01 1 1405- ● ●
676 SEAL
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1405- ● ●

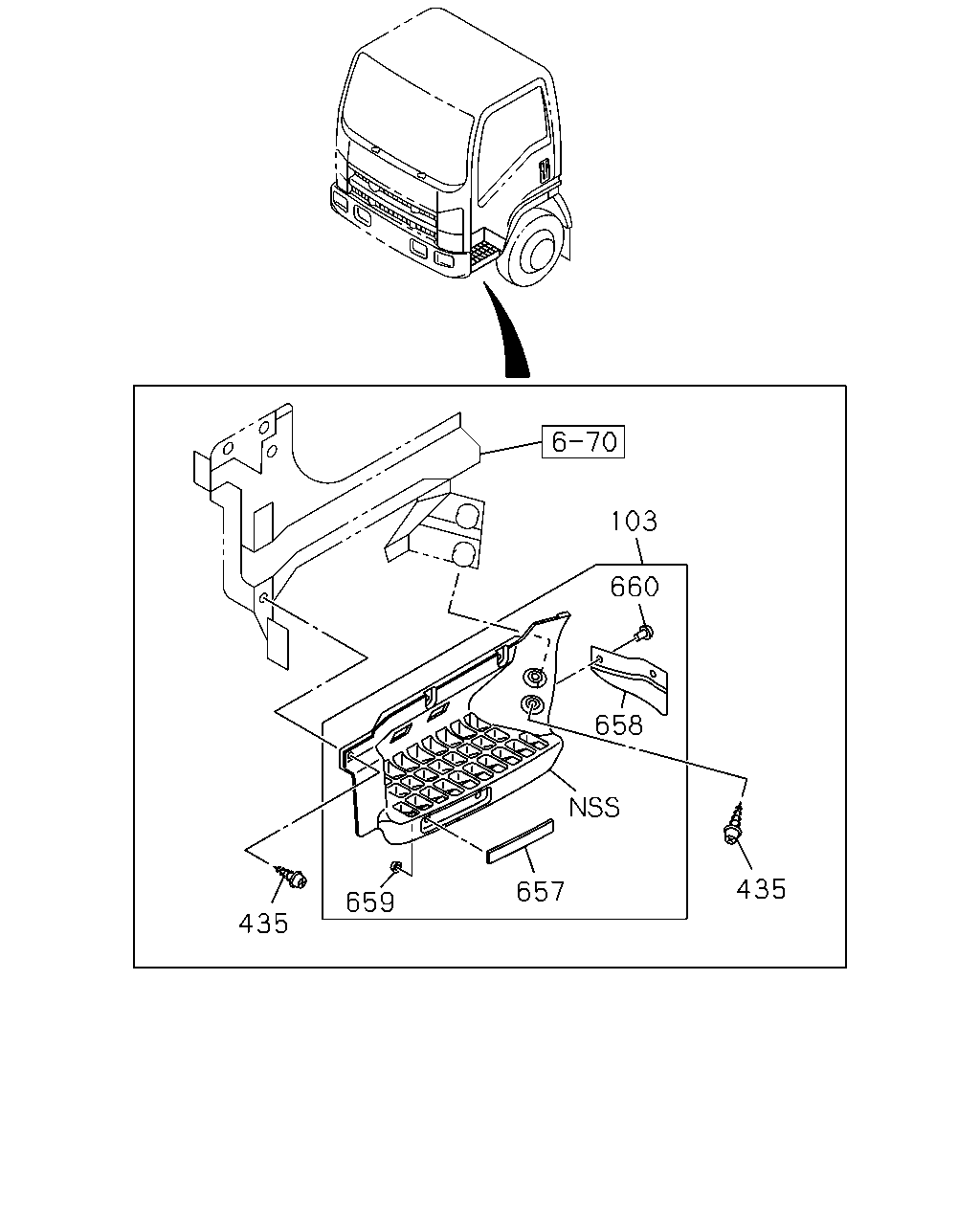

çizim 421759
103 660 658 435 657 659 435
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP 8-98022-774-3 01 1 1405- ● ●
103 PLATE; STEP 8-98022-775-3 01 1 1405- ● ●
435 BOLT; RR STEP
M8X18 		8-98004-345-0 12 1 1405- ● ●
657 REFLECTOR; REFLEX 8-97378-910-0 02 1 1405- ● ●
658 FLAP; STEP 8-98037-560-1 02 1 1405- ● ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1405- ● ●
660 CLIP; FLAP 8-98111-558-0 04 1 1405- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
