5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#139542) — 24 parça
Tümü
A - NPR5SN
B - NPR5SS
◀

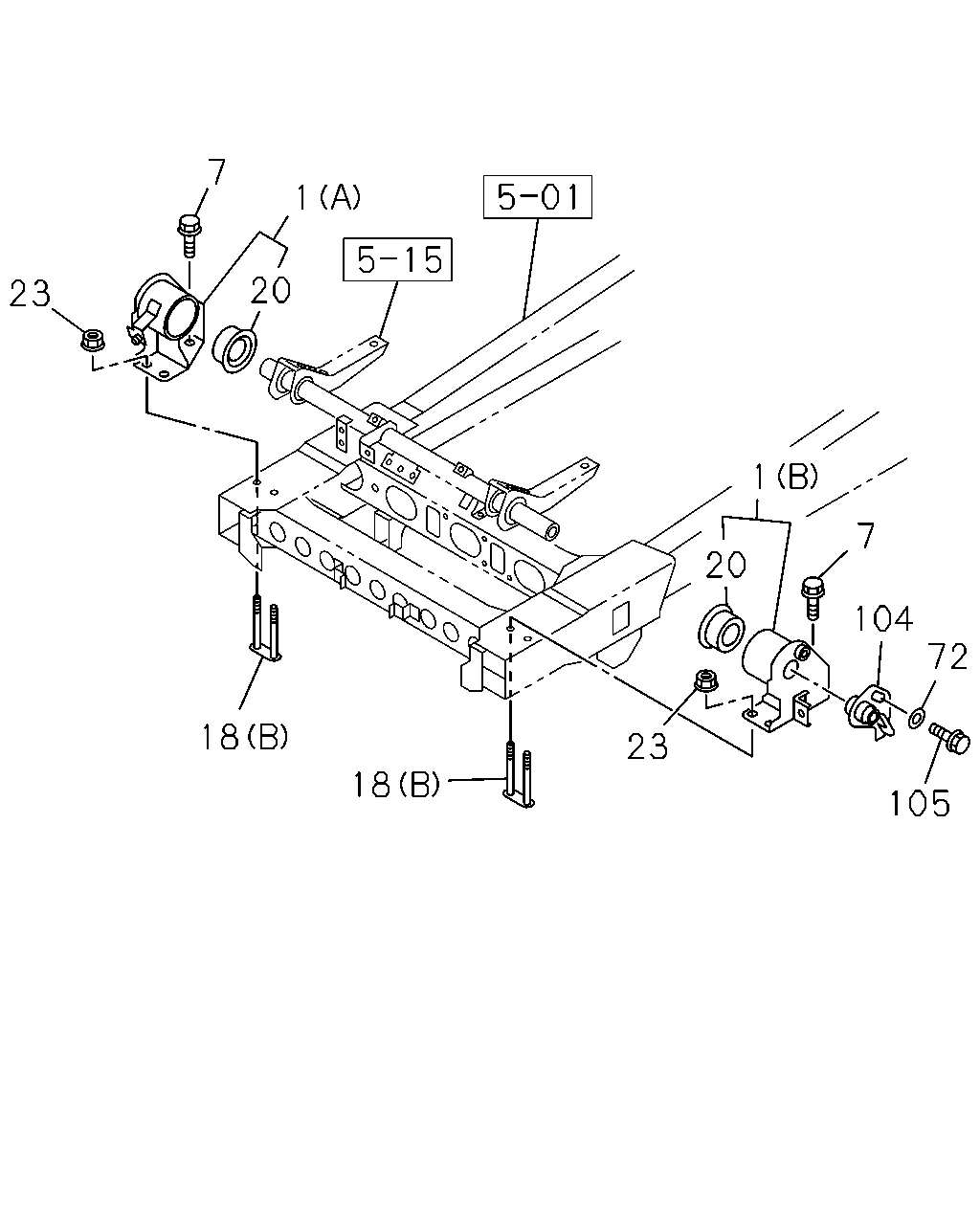

[510A] CAB MTG BRKT FRONT (11 parça)
[510A] CAB MTG BRKT REAR (13 parça)
▶
7
23
1
20
18
18
23
105
72
104
7
20
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRACKET; CAB MTG
(B)
8-98020-467-5
01
1
1405-
●
●
1
BRACKET; CAB MTG
(A)
8-98074-798-2
01
1
1405-
●
●
7
BOLT; BRKT,CAB TILT
M14X40 FLANGE
0-28661-440-0
02
1
1405-
●
●
18
PLATE; MTG BRKT FIX
(A)
8-97034-139-2
02
1
1405-
●
●
18
PLATE; MTG BRKT FIX
(B)
8-98029-285-1
02
1
1405-
●
●
20
RUBBER; MTG,CAB BRKT
8-98007-037-1
01
1
1405-
●
●
20
RUBBER; MTG,CAB BRKT
8-98007-037-1
01
1
1405-
●
●
23
NUT; MTG BRKT
M14
8-98039-989-0
04
1
1405-
●
●
72
WASHER; PL,BRKT TO FRAME
ID=15 OD=36
0-91614-714-0
01
1
1405-
●
●
104
BRACKET; CAB FRAME,CAB FRT MTG
8-97383-788-1
01
1
1405-
●
●
105
BOLT; BRKT TO CAB FRAME
M14X35 FLANGE
0-28661-435-0
01
1
1405-
●
●
159
156
151
199
149
168
199
300
156
151
199
149
168
199
159
300
199
191
199
18
192
191
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
18
PLATE; MTG BRKT FIX
(A)
8-97034-139-2
02
1
1405-
●
●
18
PLATE; MTG BRKT FIX
(B)
8-98029-285-1
02
1
1405-
●
●
149
RUBBER; MTG,CAB,UPR RR
8-98021-561-1
02
1
1405-
●
●
151
WASHER; CAB MTG,RR UPR
ID=17 OD=62
8-97359-042-1
02
1
1405-
●
●
156
NUT; CAB MTG RR
M16 THA
0-91111-516-0
02
1
1405-
●
●
159
RUBBER; CUSHION,CAB MTG
8-97113-340-0
04
1
1405-
●
●
168
NUT; CUSHION RUBBER,BODY MTG
M8 FLANGE THA
0-91180-108-0
04
1
1405-
●
●
191
BOLT; BRKT FIX
M12X40 FLANGE
0-28651-240-0
08
1
1405-
●
●
192
NUT; BRKT FIX
M12 FLANGE THA
0-91180-112-0
08
1
1405-
●
●
199
BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ> (A)
8-98178-618-1
01
1
1405-
●
●
199
BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ> (C)
8-98178-617-1
01
1
1405-
●
●
199
BRACKET; CAB RR MTG
(B)
8-98036-883-0
02
1
1405-
●
●
300
BOLT; MTG RUBBER
M10X20 FLANGE THA
0-28651-020-0
08
1
1405-
●
●
