◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11129 - FVM(THAI)EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#13954) — 24 parça

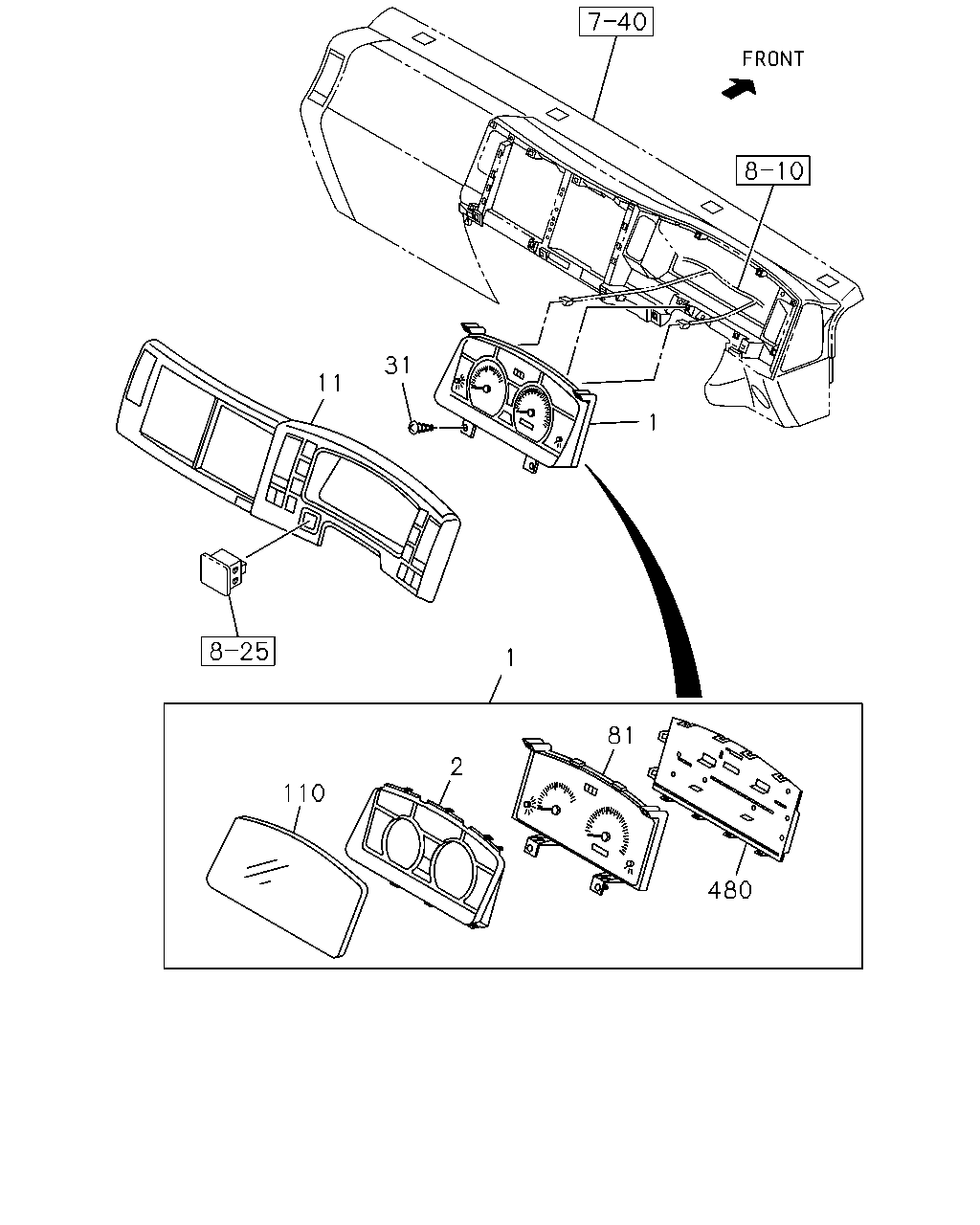

çizim 98435
31 11 1 1 81 2 110 480
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		8-98161-851-1 01 1 1108-
1 METER COMPL; CLUSTER 8-98123-254-0 01 1 0807-0905
1 METER COMPL; CLUSTER 8-98064-911-6 01 1 0906-1107
1 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> 		8-98064-911-6 01 1 1108-
2 PANEL; CLUSTER 8-98054-432-0 01 1 0807-
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 0807-
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0807-
81 METER SUB ASM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		8-98162-024-0 01 1 1108-
81 METER SUB ASM 8-98123-279-0 01 1 0807-0905
81 METER SUB ASM 8-98079-680-0 01 1 0906-1107
81 METER SUB ASM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> 		8-98079-680-0 01 1 1108-
110 GLASS; CLUSTER METER 8-98054-431-0 01 1 0807-
480 COVER; METER
BLACK 		8-98054-433-0 01 1 0807-

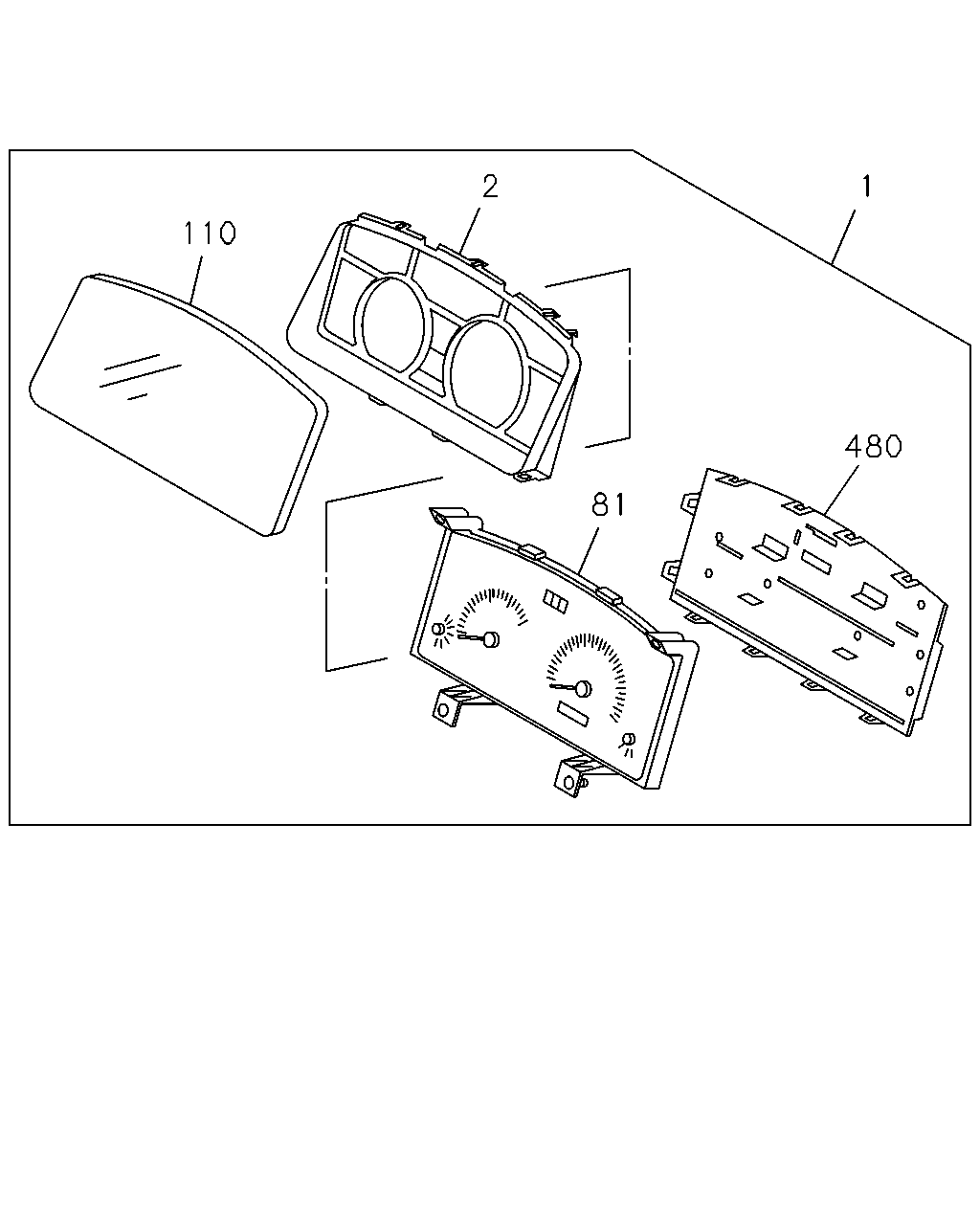

çizim 107027
2 1 110 480 81
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		8-98161-851-1 01 1 1108-
1 METER COMPL; CLUSTER 8-98123-254-0 01 1 0807-0905
1 METER COMPL; CLUSTER 8-98064-911-6 01 1 0906-1107
1 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> 		8-98064-911-6 01 1 1108-
2 PANEL; CLUSTER 8-98054-432-0 01 1 0807-
81 METER SUB ASM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		8-98162-024-0 01 1 1108-
81 METER SUB ASM 8-98123-279-0 01 1 0807-0905
81 METER SUB ASM 8-98079-680-0 01 1 0906-1107
81 METER SUB ASM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> 		8-98079-680-0 01 1 1108-
110 GLASS; CLUSTER METER 8-98054-431-0 01 1 0807-
480 COVER; METER
BLACK 		8-98054-433-0 01 1 0807-
