4-60 — REAR SUSPENSION (#139537) — 20 parça

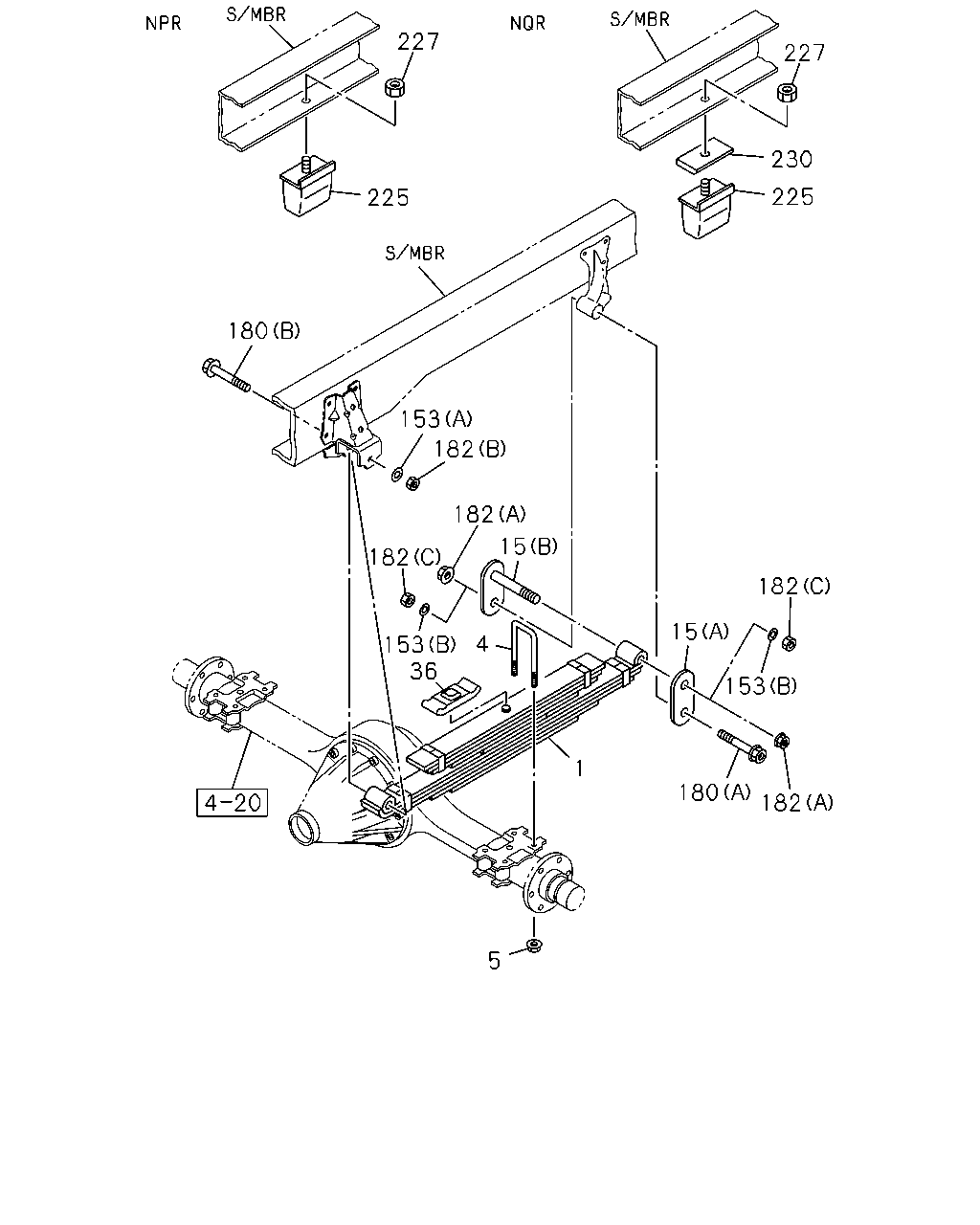

çizim 421597
227 225 227 230 225 180 153 182 182 182 153 36 15 4 15 1 153 182 180 182 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> 13-LEAF THA 		8-97924-380-0 02 1 1405- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> 13-LEAF THA 		8-97924-798-0 02 1 1405- ●
4 U-BOLT; RR SPR
FRAME STRAIGHT TYPE<7KJ> L=345 THA 		8-97948-473-0 04 1 1405- ● ●
5 NUT; U-BOLT,RR SPR
FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 1405- ● ●
15 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 1405- ● ●
15 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 1405- ● ●
36 SEAT; HELPER RUBBER,RR SPR
FRAME STRAIGHT TYPE<7KJ> 		1-51372-059-0 02 1 1405- ● ●
153 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> (B) ID=16.5 		8-98011-489-0 04 1 1405- ● ●
153 WASHER; PL,SPRING PIN
(A) ID=19 		8-97360-119-0 02 1 1405- ● ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (A) M16X122 		8-98011-487-0 02 1 1405- ● ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 1405- ● ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97360-110-0 02 1 1405- ● ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 1405- ● ●
182 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> (C) M16 THA 		0-91110-516-0 04 1 1405- ● ●
182 NUT; PIN,RR SPR
(B) M18 THA 		0-91110-518-0 02 1 1405- ● ●
182 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97360-125-0 04 1 1405- ● ●
225 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> 		8-98187-342-0 02 1 1405- ●
225 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> 		8-98021-554-0 02 1 1405- ●
227 NUT; CUSHION RUBBER
M12 FLANGE THA 		0-91180-112-0 02 1 1405- ● ●
230 SPACER; CUSHION RUBBER
FRAME STRAIGHT TYPE<7KJ> THA 		8-97924-861-0 02 1 1405- ●
