4-50 — FRONT SUSPENSION (#139535) — 29 parça

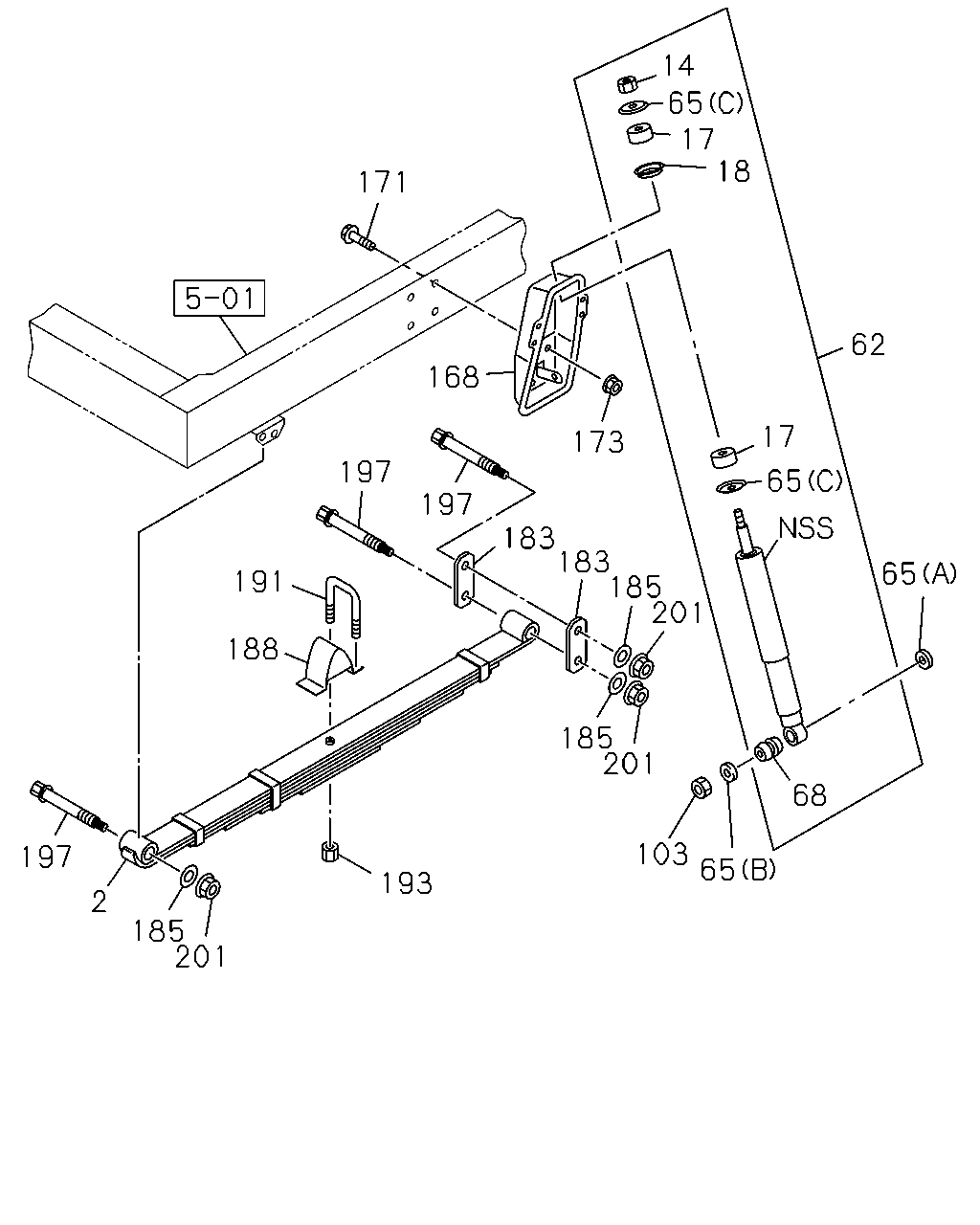

çizim 421495
171 14 65 17 18 62 17 65 65 68 65 103 201 185 201 185 183 183 197 197 173 168 191 188 193 201 185 2 197
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> 6-LEAF THA 		8-98079-923-0 01 1 1405- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> 6-LEAF THA 		8-98079-924-0 01 1 1405- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> 6-LEAF THA 		8-98025-026-0 01 1 1405- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> 6-LEAF THA 		8-98025-027-0 01 1 1405- ●
14 NUT; S/ABS,UPR
M10 T=8 THA 		9-09640-020-0 02 1 1405- ● ●
17 BUSHING; RUBBER,S/ABS
TOKICO THA 		9-51631-603-0 04 1 1405- ● ●
18 WASHER; CENTERING,S/ABS
TOKICO THA 		8-94412-791-0 02 1 1405- ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97924-227-0 02 1 1405- ●
62 ABSORBER ASM; SHOCK,FRT 8-98079-867-1 02 1 1405- ●
65 WASHER; S/ABS
(A) ID=21 OD=40 		0-91614-620-0 02 1 1405- ● ●
65 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 1405- ● ●
65 WASHER; S/ABS
(C) OD=40 THA 		9-51631-614-0 04 1 1405- ● ●
68 BUSHING; S/ABS
TOKICO THA 		8-94382-149-0 02 1 1405- ● ●
103 NUT; S/ABS TO LWR LINK
M14 THA 		0-91110-514-0 02 1 1405- ● ●
168 BRACKET; S/ABS,FRT SUSP 8-98015-001-0 01 1 1405- ● ●
168 BRACKET; S/ABS,FRT SUSP 8-98015-002-0 01 1 1405- ● ●
171 BOLT; S/ABS BRKT
M12X35 FLANGE THA 		0-28651-235-0 08 1 1405- ● ●
173 NUT; S/ABS
M12 		8-97360-126-0 08 1 1405- ● ●
183 SHACKLE; FRT SUSP
THA 		8-94110-399-3 04 1 1405- ● ●
185 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> ID=16.5 		8-98011-489-0 06 1 1405- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRAME STRAIGHT TYPE<7KJ> THA 		8-97925-249-0 02 1 1405- ● ●
191 U-BOLT; FRT SPR
FRAME STRAIGHT TYPE<7KJ> L=135 THA 		8-97948-474-0 04 1 1405- ●
191 U-BOLT; FRT SPR
FRAME STRAIGHT TYPE<7KJ> L=165 THA 		8-97913-488-0 04 1 1405- ●
193 NUT; U BOLT
FRAME STRAIGHT TYPE<7KJ> M14 FLANGE 		8-97360-124-0 08 1 1405- ●
193 NUT; U BOLT
FRAME STRAIGHT TYPE<7KJ> M16 		8-97360-121-0 08 1 1405- ●
197 PIN; FRT SPR,FRT
KD PREPARATORY PACK<6HF> M16X122 		8-98011-487-0 06 1 1405- ● ●
197 PIN; FRT SPR,FRT
EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE 		8-97360-110-0 06 1 1405- ● ●
201 NUT; PIN LK
KD PREPARATORY PACK<6HF> M16 THA 		0-91110-516-0 06 1 1405- ● ●
201 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97360-125-0 06 1 1405- ● ●
