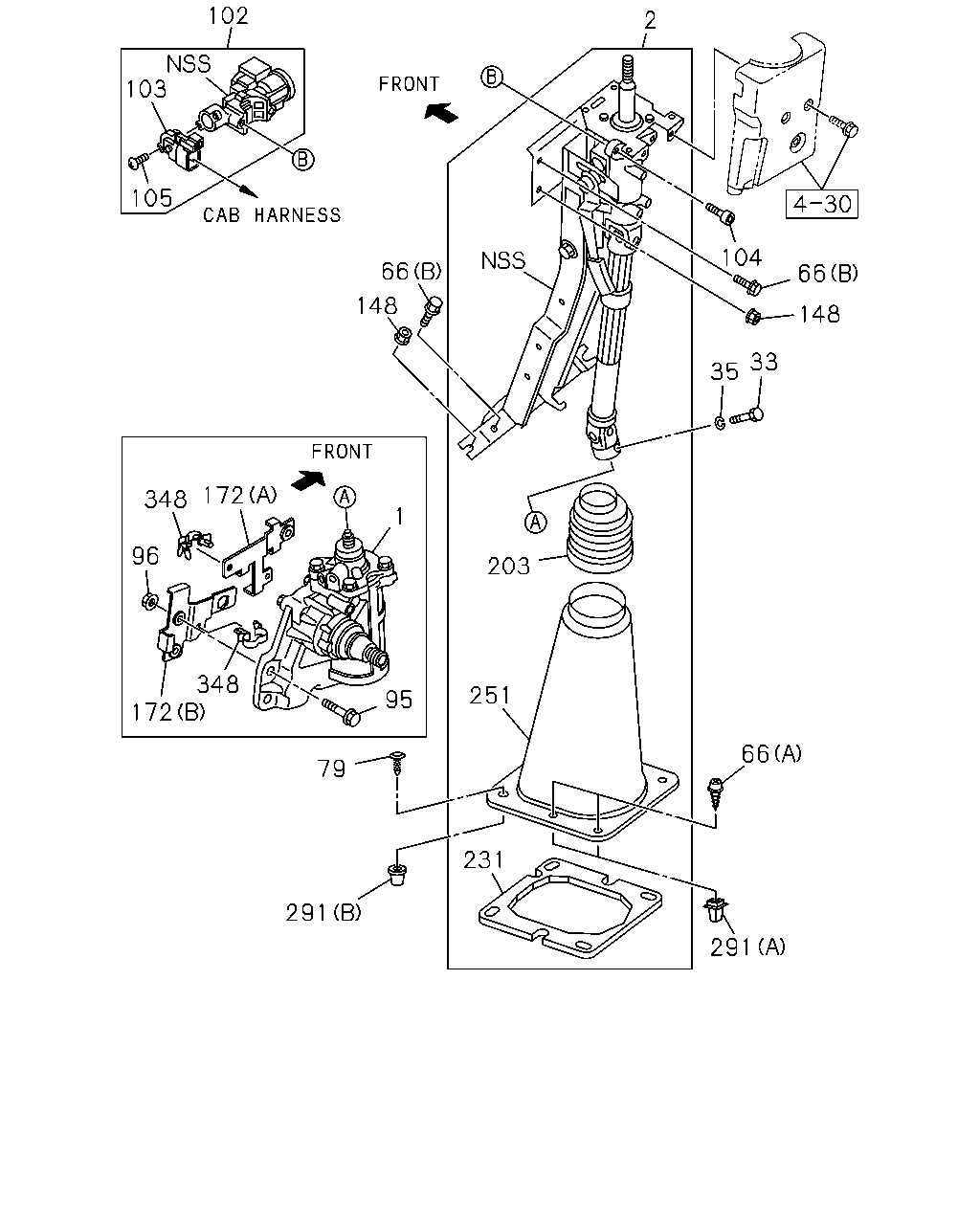

4-31 — STEERING COLUMN AND SHAFT (#139529) — 23 parça

102 103 105 66 148 1 172 348 96 348 172 79 95 291 231 251 203 2 66 148 104 33 35 66 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-98110-219-5	01	1	1405-	●	●
2	SHAFT ASM; STRG THA	8-97948-361-1	01	1	1405-	●	●
33	BOLT; STRG SHAFT TO UNIT M8X30	8-97359-615-0	01	1	1405-	●	●
35	WASHER; LK,STRG SHAFT ID=8.2 THA	0-91510-808-0	01	1	1405-	●	●
66	BOLT; STRG COLUMN (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1405-	●	●
66	BOLT; STRG COLUMN (A) M5X18 TAPPING	0-72180-518-0	04	1	1405-	●	●
66	BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	02	1	1405-	●	●
79	CLIP; STRG COLUMN COVER L=19 BLACK	8-94363-776-0	02	1	1405-	●	●
95	BOLT; STRG UNIT M12X47 FLANGE	8-98055-055-0	04	1	1405-	●	●
96	NUT; STRG UNIT M12 FLANGE	8-97359-618-0	01	1	1405-	●	●
102	LOCK ASM; STRG THA	8-97948-271-0	01	1	1405-	●	●
103	SWITCH; IGNITION THA	8-98045-349-0	01	1	1405-	●	●
104	BOLT; STRG LOCK TO COLUMN M8X20 TORQUE SHEAR BOLT	8-97321-385-0	02	1	1405-	●	●
105	SCREW; IGN SW THA	8-98045-346-0	02	1	1405-	●	●
148	NUT; COLUMN TO BRKT M8 W/DISHED WASHER	8-97329-625-0	03	1	1405-	●	●
172	BRACKET; STRG (A)	8-98055-256-1	01	1	1405-	●	●
172	BRACKET; STRG (B)	8-98081-033-0	01	1	1405-	●	●
203	BOOT; STRG COLUMN LWR THA	8-97948-997-0	01	1	1405-	●	●
231	SEAL; RUBBER,STRG COLUMN THA	8-97949-002-0	01	1	1405-	●	●
251	COVER; LWR THA	8-97948-999-0	01	1	1405-	●	●
291	GROMMET; STRG SHAFT COVER (A) H=15	8-94463-268-1	04	1	1405-	●	●
291	GROMMET; STRG SHAFT COVER (B)	8-98029-442-1	02	1	1405-	●	●
348	CLIP; BRKT,STRG ID=5-12 L=22	1-09709-288-0	02	1	1405-	●	●
