◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51509 - NPR/NQR(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#139521) — 129 parça

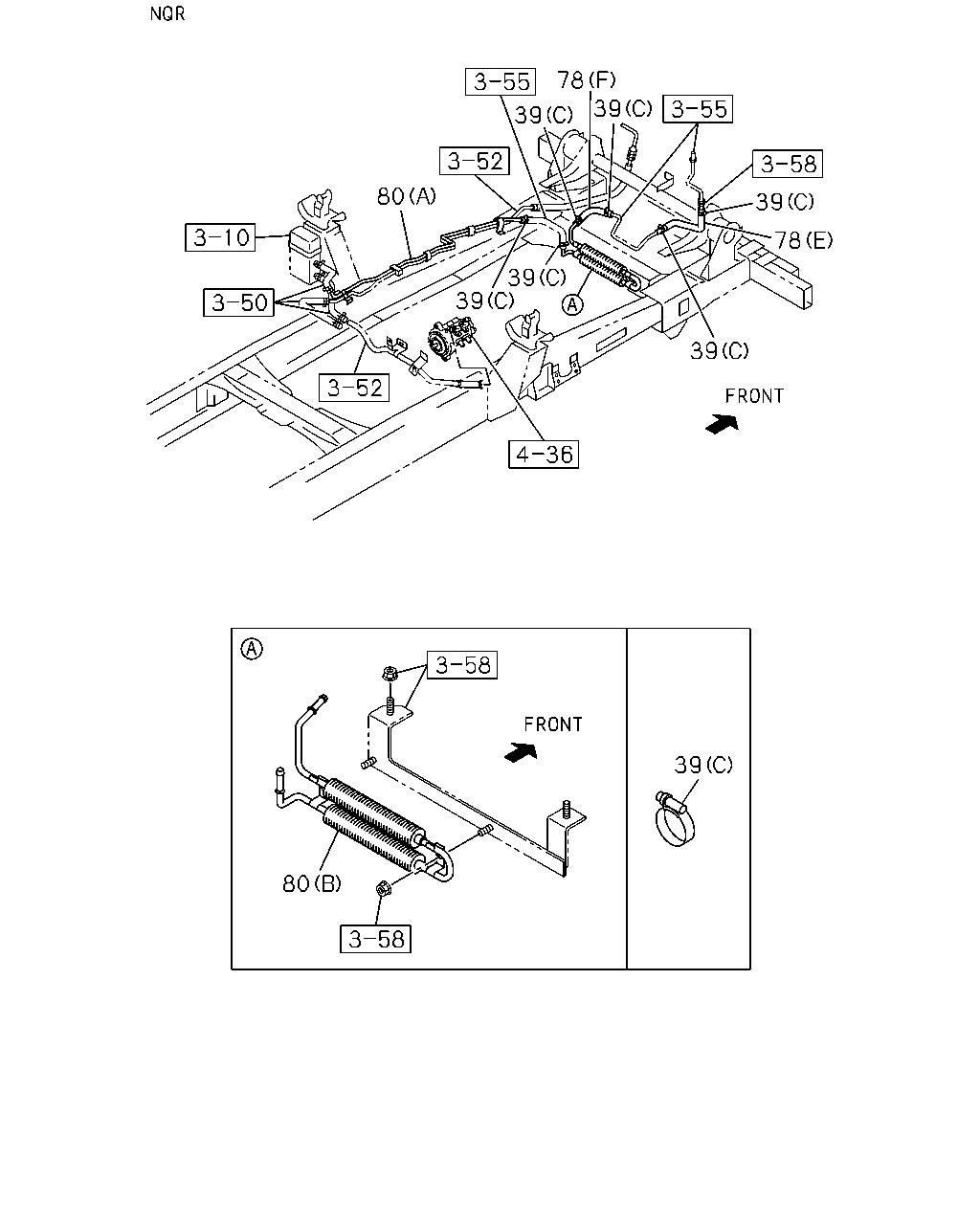

çizim 420049
80 39 39 78 39 39 78 39 80 39 39
BalonParca AdiParca NoAdetTipApplied Date A B
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 1405- ●
39 CLIP; HOSE,VAC
(B) ID=16 		8-94238-568-0 02 1 1405- ●
39 CLIP; HOSE,VAC
(D) ID=16 THA 		8-97329-628-0 02 1 1405- ●
39 CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> (C) ID=11-17 		8-98173-762-1 08 1 1405- ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98057-462-0 01 1 1405- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98112-680-0 01 1 1405- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98171-287-0 01 1 1405- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 1405- ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (F) 		8-97386-589-0 01 1 1405- ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98136-613-0 01 1 1405- ●
80 PIPE; VAC,ENG SIDE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97386-605-0 01 1 1405- ●
80 PIPE; VAC,ENG SIDE
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98097-788-0 01 1 1405- ●

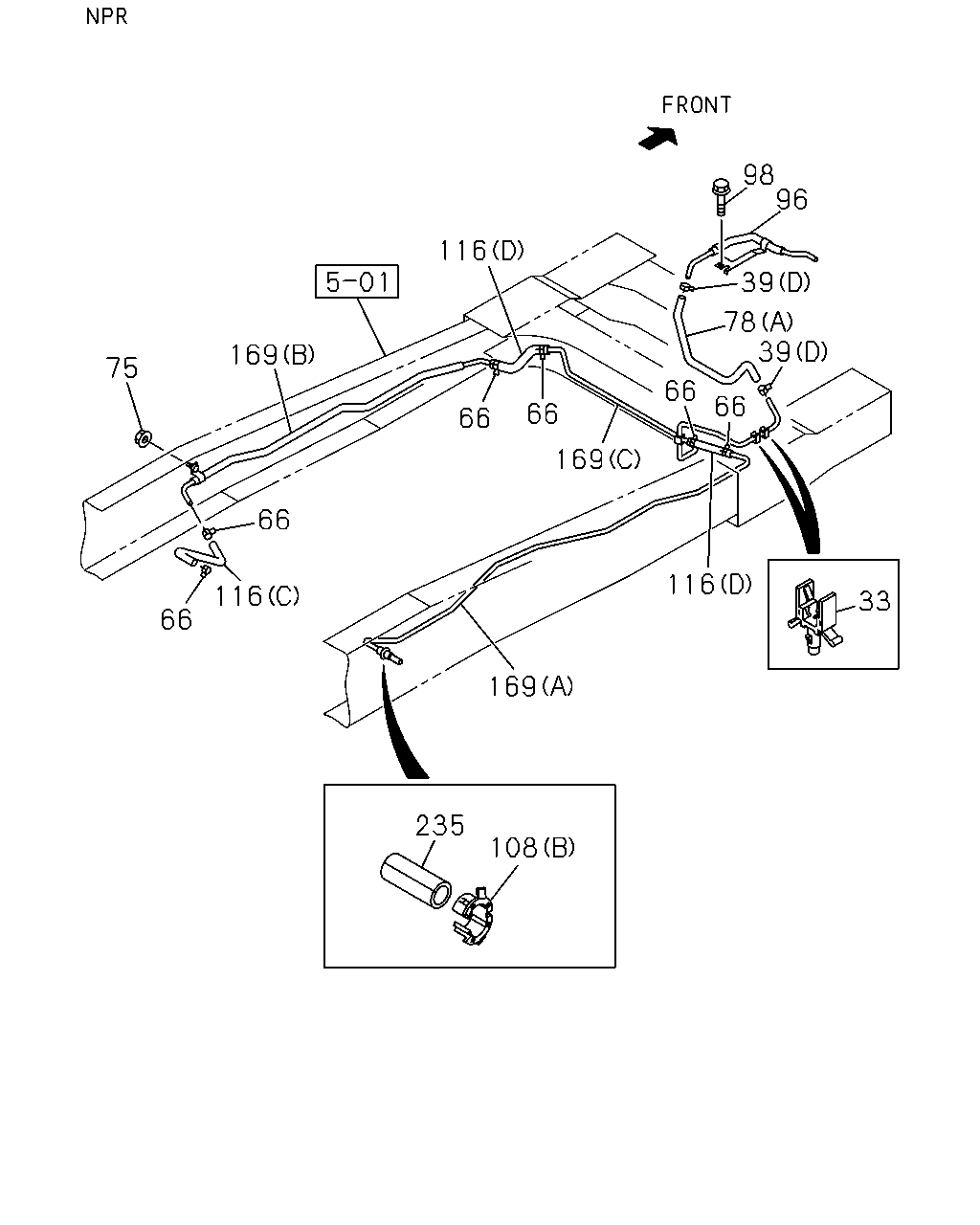

çizim 420051
66 66 66 66 66 66 33 116 169 235 108 116 75 169 116 169 98 39 39 78 96
BalonParca AdiParca NoAdetTipApplied Date A B
33 CLIP; VAC PIPE
FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 		8-94462-219-0 02 1 1405- ●
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 1405- ●
39 CLIP; HOSE,VAC
(B) ID=16 		8-94238-568-0 02 1 1405- ●
39 CLIP; HOSE,VAC
(D) ID=16 THA 		8-97329-628-0 02 1 1405- ●
39 CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> (C) ID=11-17 		8-98173-762-1 08 1 1405- ●
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 02 1 1405- ● ●
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 04 1 1405- ● ●
75 NUT; CLIP,VAC HOSE
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA 		0-91180-108-0 01 1 1405- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98057-462-0 01 1 1405- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98112-680-0 01 1 1405- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98171-287-0 01 1 1405- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 1405- ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (F) 		8-97386-589-0 01 1 1405- ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98136-613-0 01 1 1405- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
FRAME STRAIGHT TYPE<7KJ> 		8-98220-579-0 01 1 1405- ●
98 BOLT; VAC PIPE FIX
M6X12 FLANGE THA 		0-28050-612-0 01 1 1405- ●
98 BOLT; VAC PIPE FIX
FRAME STRAIGHT TYPE<7KJ> M6X12 FLANGE THA 		0-28050-612-0 01 1 1405- ●
98 BOLT; VAC PIPE FIX
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA 		0-28650-825-0 02 1 1405- ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 1405- ● ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 1405- ● ●
108 GROMMET; PIPE
(A) 		9-09956-353-0 01 1 1405- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1405- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1405- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98158-378-0 01 1 1405- ● ●
116 HOSE; VAC,M/VAC
(B) THA 		8-97924-102-1 01 1 1405- ●
116 HOSE; VAC,M/VAC
(A) THA 		8-98094-547-0 01 1 1405- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98041-053-4 01 1 1405- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98067-259-2 01 1 1405- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-98033-805-0 01 1 1405-1409 ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-98296-133-0 01 1 1410- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) THA 		8-98041-052-2 01 1 1405- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98041-052-2 01 1 1405- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (E) THA 		8-98048-901-0 01 1 1405- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (D) THA 		8-98048-903-0 01 1 1405- ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 1405- ● ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 1405- ● ●
çizim 420055
66 66 66 66 66 66 75 169 116 116 169 169 108 235 116
BalonParca AdiParca NoAdetTipApplied Date A B
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 02 1 1405- ● ●
66 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 04 1 1405- ● ●
75 NUT; CLIP,VAC HOSE
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA 		0-91180-108-0 01 1 1405- ● ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 1405- ● ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 1405- ● ●
108 GROMMET; PIPE
(A) 		9-09956-353-0 01 1 1405- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1405- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1405- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98158-378-0 01 1 1405- ● ●
116 HOSE; VAC,M/VAC
(B) THA 		8-97924-102-1 01 1 1405- ●
116 HOSE; VAC,M/VAC
(A) THA 		8-98094-547-0 01 1 1405- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98041-053-4 01 1 1405- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98067-259-2 01 1 1405- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-98033-805-0 01 1 1405-1409 ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER<8GF> (B) 		8-98296-133-0 01 1 1410- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) THA 		8-98041-052-2 01 1 1405- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98041-052-2 01 1 1405- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (E) THA 		8-98048-901-0 01 1 1405- ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (D) THA 		8-98048-903-0 01 1 1405- ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 1405- ● ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 1405- ● ●

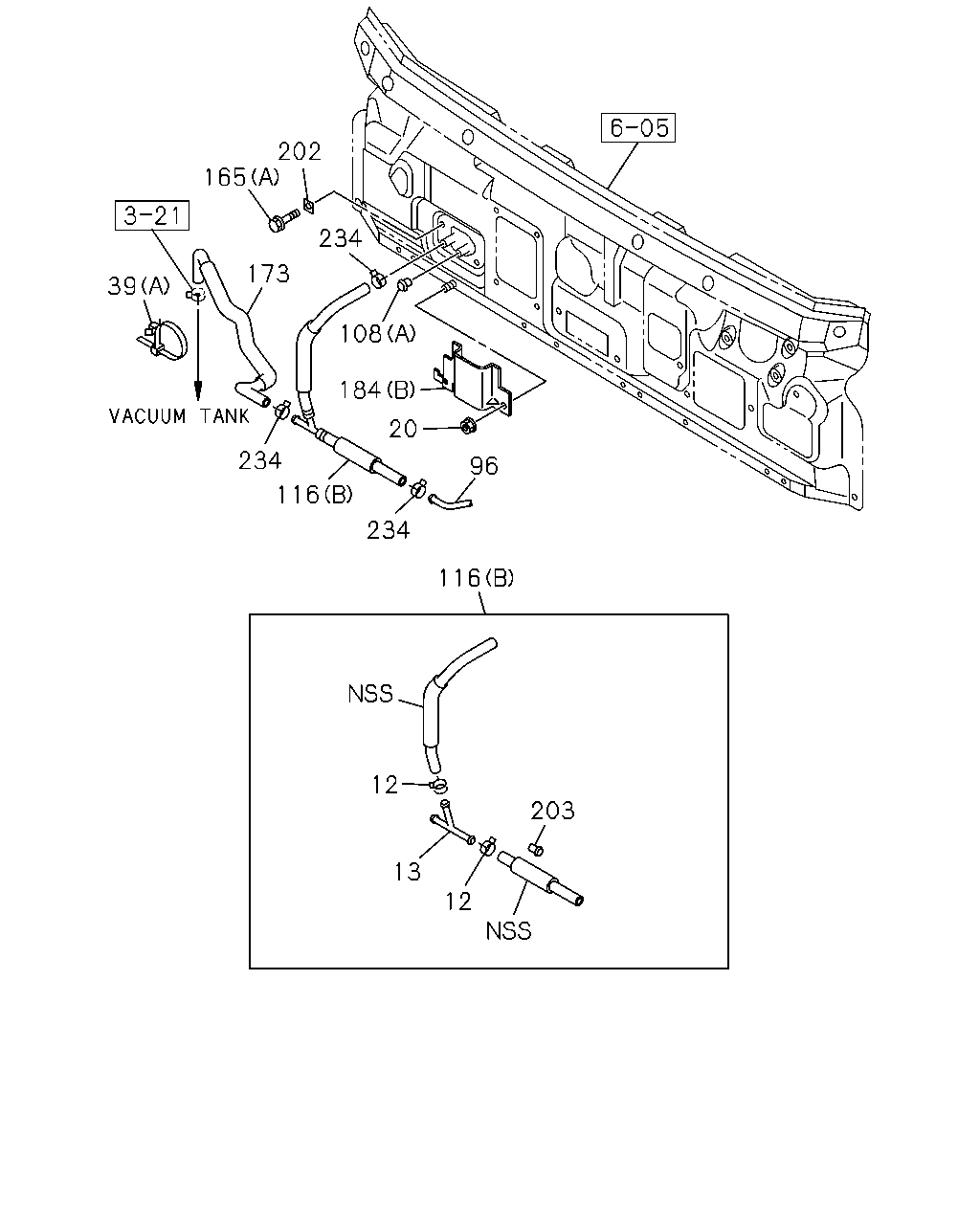

çizim 420060
202 165 39 173 108 184 234 96 20 116 12 13 12 203 116 234 234
BalonParca AdiParca NoAdetTipApplied Date A B
12 CLIP; HOSE
ID=15.5 THA 		8-98008-097-0 02 1 1405- ●
13 JOINT; HOSE,VAC
THA 		8-98035-106-0 01 1 1405- ●
20 NUT; BRKT
EXC. PTO MANUAL CONTROL<6WC> M6 FLANGE THA 		0-91180-106-0 01 1 1405- ● ●
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 1405- ●
39 CLIP; HOSE,VAC
(B) ID=16 		8-94238-568-0 02 1 1405- ●
39 CLIP; HOSE,VAC
(D) ID=16 THA 		8-97329-628-0 02 1 1405- ●
39 CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> (C) ID=11-17 		8-98173-762-1 08 1 1405- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
FRAME STRAIGHT TYPE<7KJ> 		8-98220-579-0 01 1 1405- ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 1405- ● ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 1405- ● ●
108 GROMMET; PIPE
(A) 		9-09956-353-0 01 1 1405- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1405- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1405- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98158-378-0 01 1 1405- ● ●
116 HOSE; VAC,M/VAC
(B) THA 		8-97924-102-1 01 1 1405- ●
116 HOSE; VAC,M/VAC
(A) THA 		8-98094-547-0 01 1 1405- ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1405- ● ●
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 1405- ●
173 HOSE; VAC,VAC TANK SIDE
THA 		8-98107-558-0 01 1 1405- ●
184 BRACKET; UNION FIX
(A) 		8-98183-467-1 01 1 1405- ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-98017-628-1 01 1 1405- ● ●
184 BRACKET; UNION FIX
(D) 		8-98156-526-0 01 1 1405- ●
184 BRACKET; UNION FIX
(C) 		8-98193-145-0 01 1 1405- ●
202 SEAL 8-97856-616-0 02 1 1405- ● ●
203 VALVE; CHECK 8-94386-540-0 01 1 1405- ●
234 CLAMP; PIPE
ID=16 		8-94238-568-0 03 1 1405- ●
çizim 420063
122 136 136 136 136 78 136 44 136 236 158 78 44 136 78 136
BalonParca AdiParca NoAdetTipApplied Date A B
44 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98057-425-1 01 1 1405- ● ●
44 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98070-194-0 01 1 1405- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98057-462-0 01 1 1405- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98112-680-0 01 1 1405- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98171-287-0 01 1 1405- ● ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 1405- ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (F) 		8-97386-589-0 01 1 1405- ●
78 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98136-613-0 01 1 1405- ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> THA 		8-98189-104-0 01 1 1405- ● ●
136 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 02 1 1405- ● ●
136 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 06 1 1405- ● ●
158 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ> ID=14-20 		8-97061-603-0 01 1 1405- ● ●
236 BOLT; PIPE
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA 		0-28650-825-0 01 1 1405- ● ●

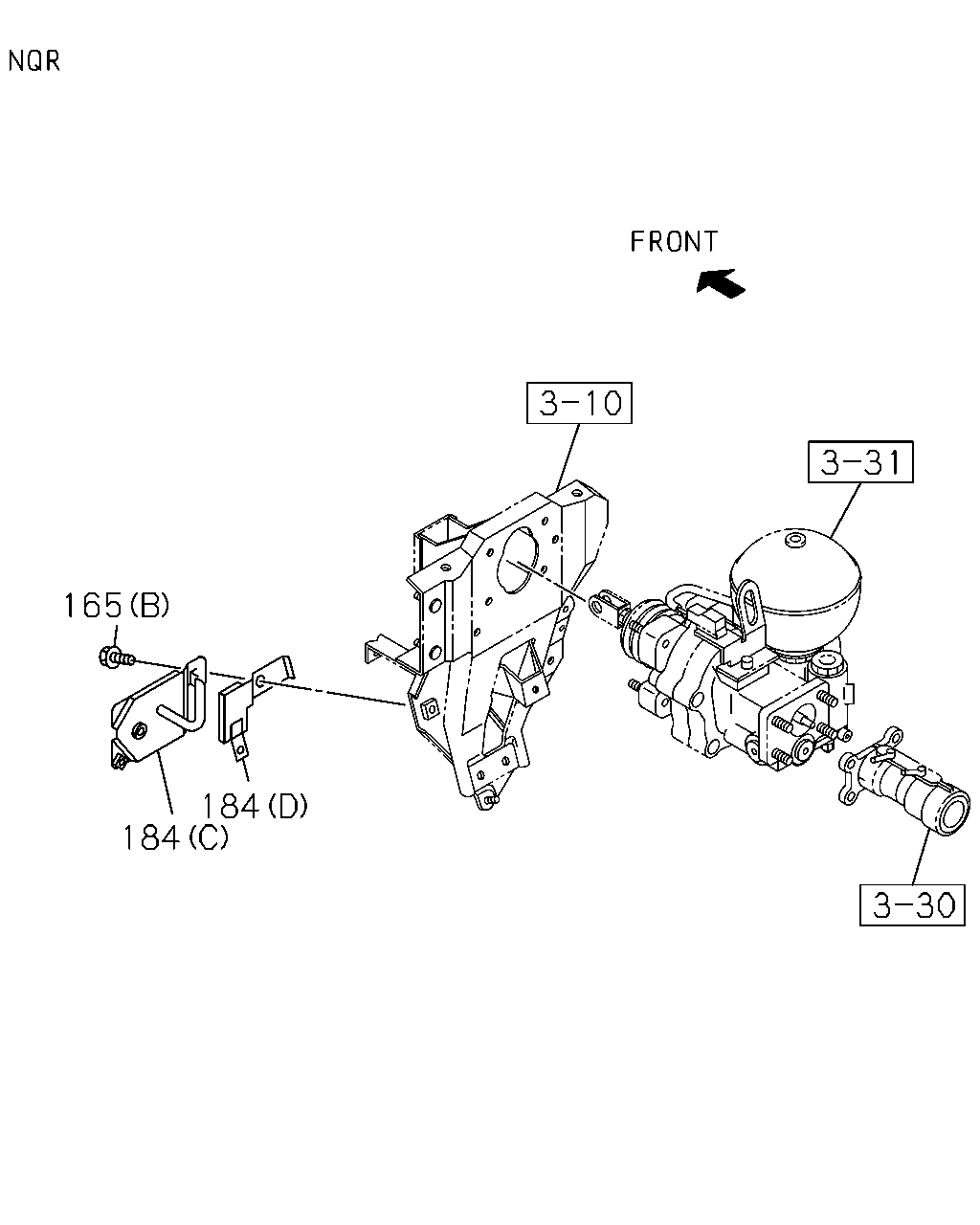

çizim 420814
184 184 165
BalonParca AdiParca NoAdetTipApplied Date A B
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1405- ● ●
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 1405- ●
184 BRACKET; UNION FIX
(A) 		8-98183-467-1 01 1 1405- ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-98017-628-1 01 1 1405- ● ●
184 BRACKET; UNION FIX
(D) 		8-98156-526-0 01 1 1405- ●
184 BRACKET; UNION FIX
(C) 		8-98193-145-0 01 1 1405- ●
çizim 420836
39 116 39 165 184
BalonParca AdiParca NoAdetTipApplied Date A B
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 1405- ●
39 CLIP; HOSE,VAC
(B) ID=16 		8-94238-568-0 02 1 1405- ●
39 CLIP; HOSE,VAC
(D) ID=16 THA 		8-97329-628-0 02 1 1405- ●
39 CLIP; HOSE,VAC
FRAME STRAIGHT TYPE<7KJ> (C) ID=11-17 		8-98173-762-1 08 1 1405- ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1405- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (D) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1405- ● ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98158-378-0 01 1 1405- ● ●
116 HOSE; VAC,M/VAC
(B) THA 		8-97924-102-1 01 1 1405- ●
116 HOSE; VAC,M/VAC
(A) THA 		8-98094-547-0 01 1 1405- ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1405- ● ●
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 1405- ●
184 BRACKET; UNION FIX
(A) 		8-98183-467-1 01 1 1405- ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL<6WC> (B) 		8-98017-628-1 01 1 1405- ● ●
184 BRACKET; UNION FIX
(D) 		8-98156-526-0 01 1 1405- ●
184 BRACKET; UNION FIX
(C) 		8-98193-145-0 01 1 1405- ●
