Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#13952) — 638 parça

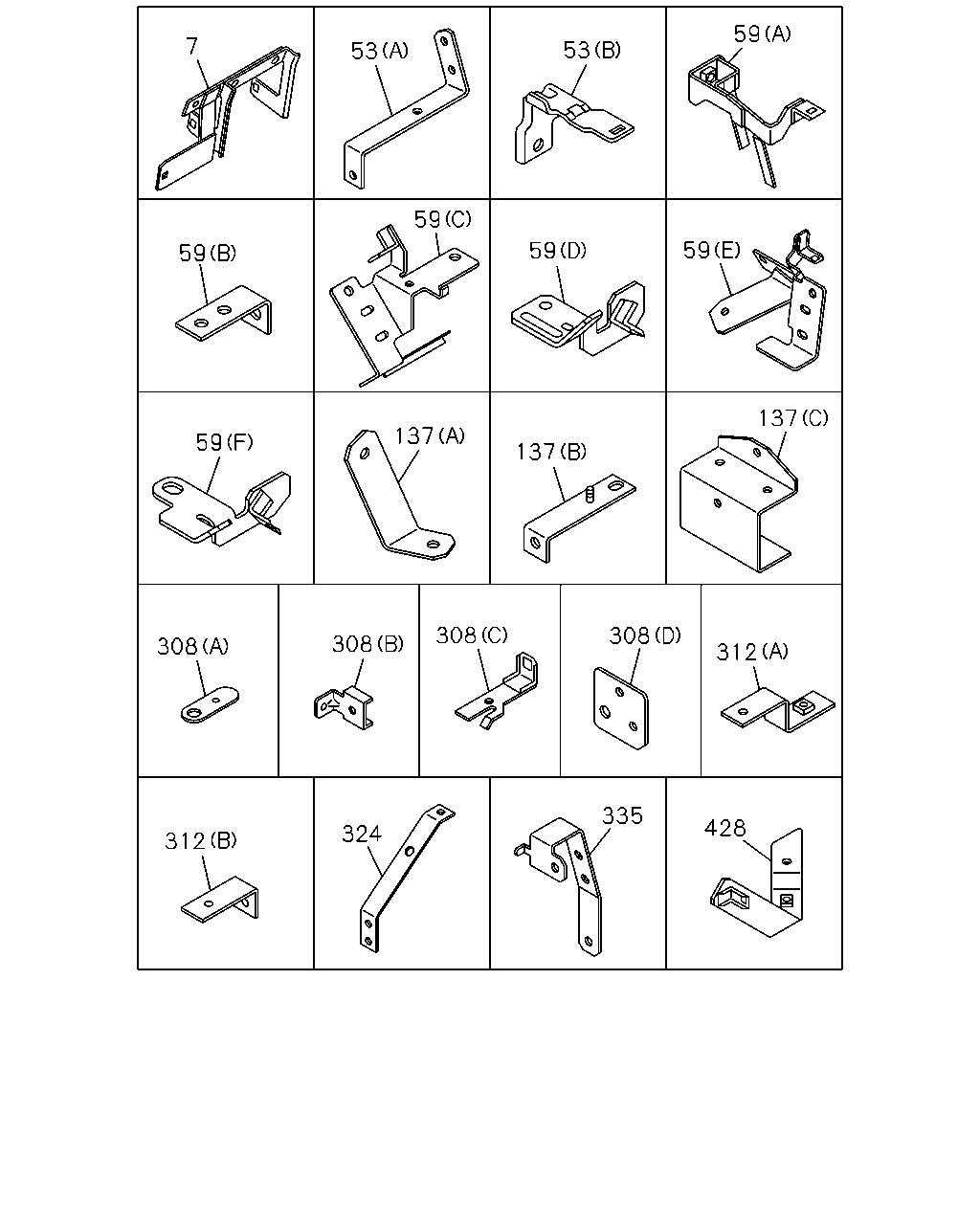

7 53 53 59 59 59 59 59 59 137 137 137 308 308 308 308 312 312 324 335 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR THA	8-97925-591-0	01	1	1205-
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	0807-1204
53	BRACKET; HARNESS POOR QUALITY DIESEL FUEL<KF0> (A)	8-97622-857-0	01	1	0807-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	0807-
59	BRACKET; FRAME HARNESS (B) L=62	1-21464-170-2	01	1	0807-1107
59	BRACKET; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) L=62	1-21464-170-2	01	1	1108-
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	0807-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	0807-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (C)	8-97620-482-1	01	1	0807-0905
59	BRACKET; FRAME HARNESS (E)	8-98107-611-0	01	1	0906-
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE<JE5> (C)	8-97609-797-1	02	1	0809-
137	BRACKET; HARNESS CLAMP (A)	8-97614-728-1	01	1	0807-
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	0807-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	0807-1010
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1011-1102
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	1103-
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	0807-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	0807-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	0807-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	0807-
312	BRACKET; CLIP HARNESS (A)	8-97609-110-1	01	1	0807-
324	BRACKET; CLIP ANTI LOCK BRAKE<JE5>	1-47479-430-0	02	1	0809-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	0807-
428	BRACKET	8-97620-514-0	01	1	0807-

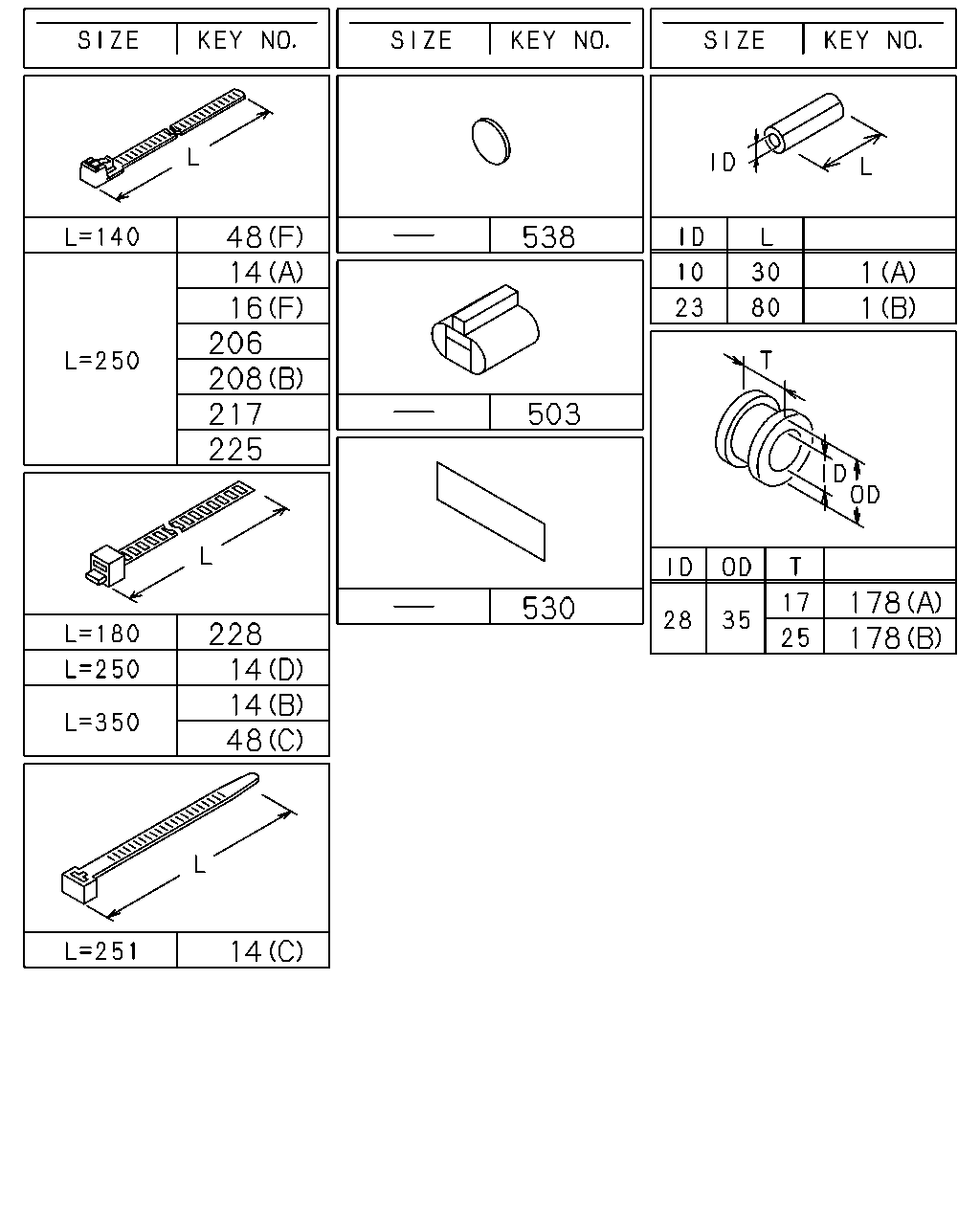

48 14 16 206 208 217 225 538 1 1 503 178 178 530 228 14 14 48 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	0807-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0807-
14	CLIP; BAND,HARNESS (C) L=251	8-97619-917-0	01	1	0910-
14	CLIP; BAND,HARNESS (A) L=250 THA	5-09707-030-1	14	1	0807-0909
14	CLIP; BAND,HARNESS (A) L=250 THA	5-09707-030-1	13	1	0910-1102
14	CLIP; BAND,HARNESS (A) L=250 THA	5-09707-030-1	12	1	1103-1104
14	CLIP; BAND,HARNESS (A) L=250 THA	5-09707-030-1	13	1	1105-1205
14	CLIP; BAND,HARNESS (A) L=250	8-98216-430-0	13	1	1206-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	0807-
14	CLIP; BAND,HARNESS ANTI LOCK BRAKE<JE5> (D) L=250	1-09707-126-0	02	1	0809-1102
14	CLIP; BAND,HARNESS ANTI LOCK BRAKE<JE5> (D) L=250	1-09707-126-0	02	1	1103-1107
14	CLIP; BAND,HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ANTI LOCK BRAKE<JE5> (D) L=250	1-09707-126-0	02	1	1108-

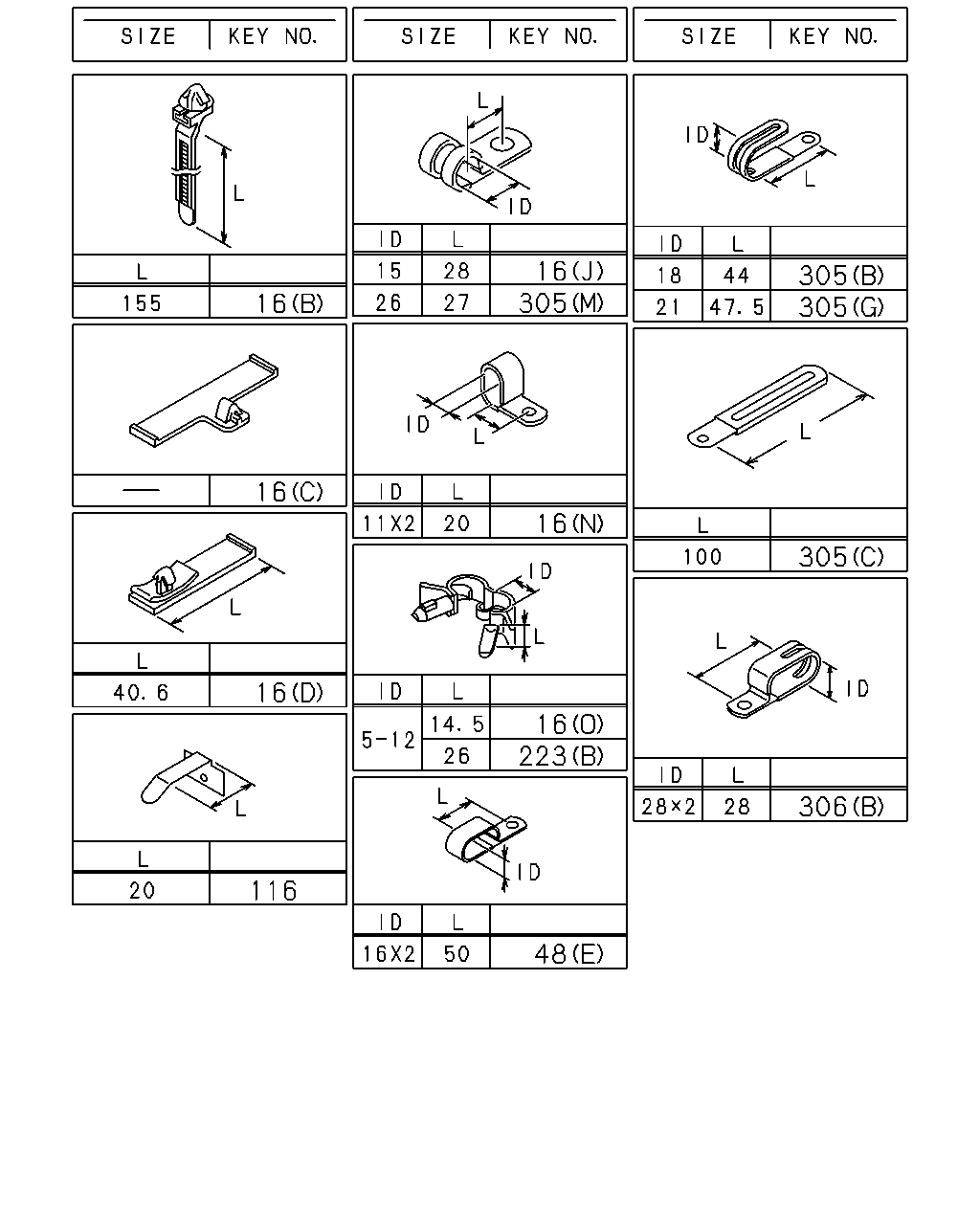

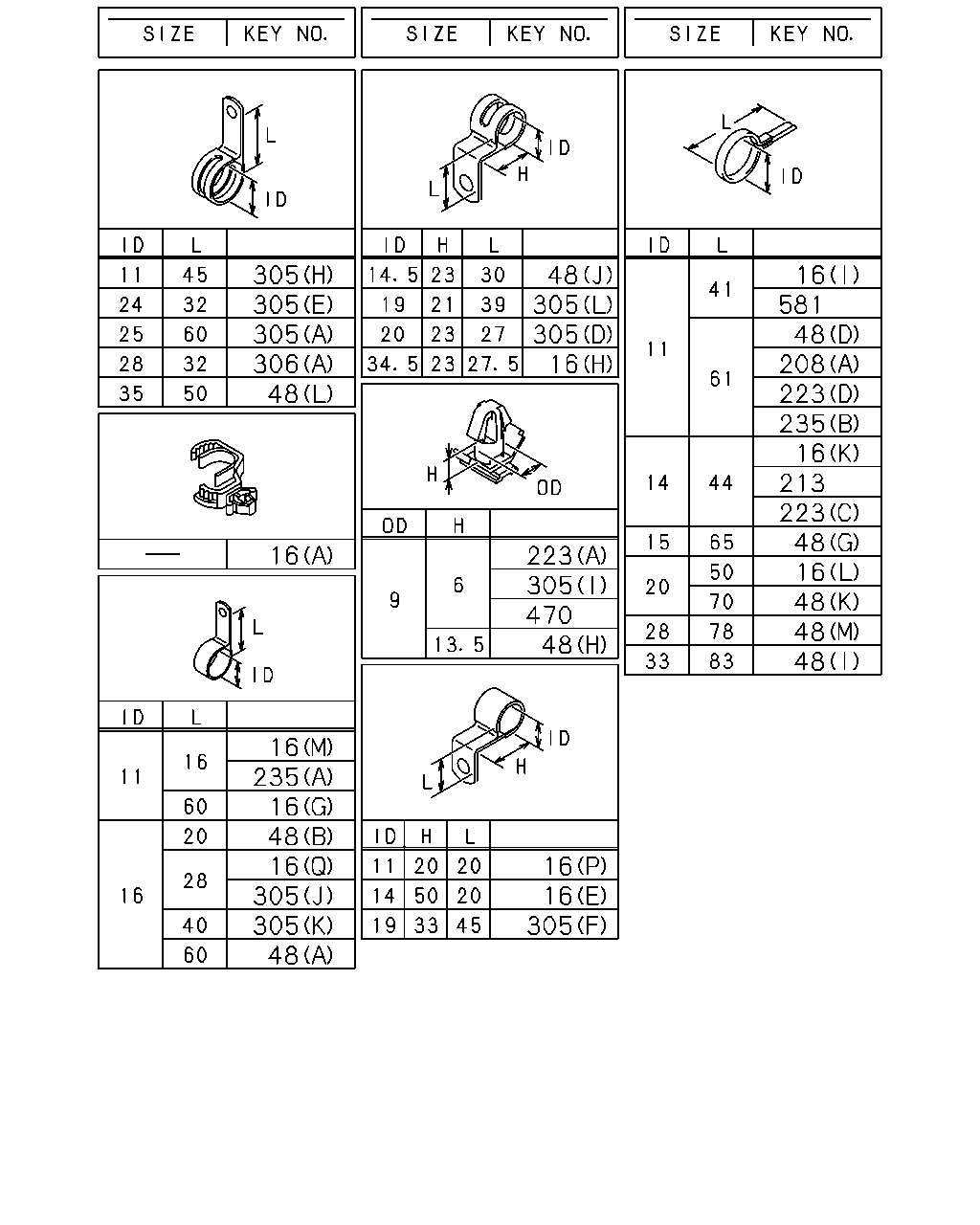

16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (L) ID=20 L=50	9-09917-430-0	03	1	0810-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) ID=11 L=16	0-95235-025-0	02	1	0809-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (N) ID=11X2 L=20	1-09700-871-0	03	1	0809-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (O) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (P) ID=11 H=20 L=20	8-98033-780-0	01	1	0809-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41	1-09700-403-0	02	1	0807-
16	CLIP; HARNESS (G) ID=11 L=60	0-95235-096-0	01	1	0807-0807
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	0807-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	04	1	0807-1208
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1209-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1209-
16	CLIP; HARNESS (J) ID=15 L=28	1-09701-216-0	02	1	0807-0808
16	CLIP; HARNESS (Q) ID=16 L=28	0-95235-556-0	02	1	0809-
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	05	1	0807-1102
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	03	1	1103-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0807-
16	CLIP; HARNESS (K) ID=14 L=44	9-09917-427-0	03	1	0807-0809
16	CLIP; HARNESS EXC. ANTI LOCK BRAKE<JE5> (K) ID=14 L=44	9-09917-427-0	03	1	0810-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 THA	8-97173-307-0	18	1	0807-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 THA	8-97173-307-0	18	1	0807-1003
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1004-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6 THA	8-97229-357-0	02	1	0807-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6 THA	8-97229-357-0	02	1	0807-1003
16	CLIP; HARNESS (D) L=40.6 THA	8-97229-357-0	02	1	1004-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) THA	8-98052-679-0	02	1	0807-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) THA	8-98052-679-0	02	1	0807-1003
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1004-
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM<71W> (G) ID=15 L=65	1-09700-466-0	07	1	1203-
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM<71W> (G) ID=15 L=65	1-09700-466-0	24	1	1110-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (G) ID=15 L=65	1-09700-466-0	03	1	1108-1109
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (G) ID=15 L=65	1-09700-466-0	03	1	1110-1110
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM<71W> (G) ID=15 L=65	1-09700-466-0	03	1	1110-1110
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (G) ID=15 L=65	1-09700-466-0	03	1	1110-1208
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (M) ID=28 L=78	1-09700-858-0	01	1	1108-
48	CLIP; FRAME HARNESS (M) ID=28 L=78	1-09700-858-0	02	1	0807-1107
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (M) ID=28 L=78	1-09700-858-0	02	1	1108-
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	18	1	0810-1102
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	18	1	1103-1105
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	19	1	1106-
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	19	1	1106-
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	01	1	0810-0909
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	01	1	0810-0909
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	0910-1102
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	01	1	0910-1102
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	01	1	0910-1102
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	1103-1104
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	1105-1105
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	01	1	1105-1105
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	01	1	1105-1105
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	24	1	1106-1107
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) ID=20 L=70	1-09700-485-0	24	1	1108-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	16	1	0810-1102
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	03	1	1103-1107
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) ID=20 L=70	1-09700-485-0	03	1	1108-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	02	1	0810-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	02	1	0810-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	19	1	0810-1105
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	1106-1107
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	1108-
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	22	1	0810-1102
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	23	1	1103-1104
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	22	1	1105-1105
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	22	1	1106-1107
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	22	1	1108-
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> (B) ID=16 L=20 THA	0-95235-536-0	01	1	0807-1102
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> (A) ID=16 L=60	0-95235-596-0	01	1	0807-1102
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	17	1	0807-0808
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	18	1	0809-0809
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	18	1	0810-1102
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	18	1	1103-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	0807-0809
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	01	1	0807-0809
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> (G) ID=15 L=65	1-09700-466-0	01	1	0807-0809
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	0810-1102
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	0810-1102
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	0810-1102
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1103-1105
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	05	1	1106-
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	0807-1102
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	0807-1102
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1103-1104
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1105-1105
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1105-1105
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1106-1107
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1106-1107
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1108-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1108-
48	CLIP; FRAME HARNESS (D) ID=11 L=61	1-09700-484-0	01	1	0807-1107
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) ID=11 L=61	1-09700-484-0	01	1	1108-1109
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) ID=11 L=61	1-09700-484-0	01	1	1110-
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM<71W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	01	1	1110-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> (E) ID=16X2 L=50	0-95325-586-0	01	1	0807-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> (J) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0807-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	15	1	0807-0808
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	16	1	0809-0809
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	16	1	0810-1105
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	17	1	1106-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	02	1	0807-0809
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> (G) ID=15 L=65	1-09700-466-0	02	1	0807-0809
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	02	1	0810-0909
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	02	1	0810-0909
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	02	1	0910-1208
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	02	1	0910-1208
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	02	1	0910-1208
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	02	1	1209-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	02	1	1209-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	02	1	1209-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (G) ID=15 L=65	1-09700-466-0	02	1	1209-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	02	1	0807-1107
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	02	1	0807-1107
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	02	1	1108-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	02	1	1108-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) ID=11 L=61	1-09700-484-0	02	1	1108-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> (G) ID=15 L=65	1-09700-466-0	18	1	0807-0808
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> (G) ID=15 L=65	1-09700-466-0	19	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	0810-1102
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> (G) ID=15 L=65	1-09700-466-0	22	1	0807-0809
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	22	1	0810-1102
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	23	1	1103-1104
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	22	1	1105-1105
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1106-1109
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1106-1109
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W>,WHEEL BASE 7100MM<71W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1110-1110
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1110-1110
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1110-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1110-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	03	1	0807-0909
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	04	1	0807-1102
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	1103-1104
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	1105-1105
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1105-1105
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1105-1105
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	1106-1107
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1106-1107
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1106-1107
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) ID=15 L=65	1-09700-466-0	01	1	1108-1208
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1108-1208
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1108-1208
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1209-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1209-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	1209-
48	CLIP; FRAME HARNESS (L) ID=35 L=50	1-09701-214-0	01	1	0807-
48	CLIP; FRAME HARNESS (I) ID=33 L=83	1-09701-291-0	03	1	0807-1104
48	CLIP; FRAME HARNESS (I) ID=33 L=83	1-09701-291-0	04	1	1105-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	01	1	0807-
48	CLIP; FRAME HARNESS (H) OD=9 H=13.5	1-09709-180-0	01	1	0807-
48	CLIP; FRAME HARNESS (F) L=140 THA	5-09707-031-1	02	1	0807-
178	GROMMET; HARNESS ANTI LOCK BRAKE<JE5> (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0809-
178	GROMMET; HARNESS POOR QUALITY DIESEL FUEL<KF0> (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	0807-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	03	1	0807-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0807-
206	CLIP; FUEL TANK HARNESS L=250 THA	5-09707-030-1	02	1	0807-
208	CLIP; HARNESS,MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) ID=11 L=61	1-09700-484-0	01	1	1108-
208	CLIP; HARNESS,MAG VLV PTO CONTROL<SV6> (B) L=250 THA	5-09707-030-1	01	1	1103-1107
208	CLIP; HARNESS,MAG VLV PTO CONTROL<SV6> (B) L=250 THA	5-09707-030-1	01	1	1108-
208	CLIP; HARNESS,MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) L=250 THA	5-09707-030-1	01	1	1108-
217	CLIP; RR BODY HARNESS L=250 THA	5-09707-030-1	02	1	0807-
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=250 THA	5-09707-030-1	03	1	1108-
225	CLIP; AIR TANK HARNESS L=250 THA	5-09707-030-1	04	1	0807-1102
225	CLIP; AIR TANK HARNESS L=250 THA	5-09707-030-1	08	1	1103-1107
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=250 THA	5-09707-030-1	08	1	1108-
228	CLIP; COOLER HARNESS L=180	1-09707-162-1	01	1	0807-0807
503	CONNECTOR VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-82690-668-0	01	1	0807-1104
503	CONNECTOR	1-82690-668-0	01	1	1105-
503	CONNECTOR VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-82690-668-0	01	1	1105-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
530	SEAL; HARNESS 180X40	1-72498-019-1	19	1	0807-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK THA	1-76798-019-0	01	1	0807-

16 305 305 305 16 16 16 305 16 16 223 306 116 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (L) ID=20 L=50	9-09917-430-0	03	1	0810-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) ID=11 L=16	0-95235-025-0	02	1	0809-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (N) ID=11X2 L=20	1-09700-871-0	03	1	0809-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (O) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (P) ID=11 H=20 L=20	8-98033-780-0	01	1	0809-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41	1-09700-403-0	02	1	0807-
16	CLIP; HARNESS (G) ID=11 L=60	0-95235-096-0	01	1	0807-0807
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	0807-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	04	1	0807-1208
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1209-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1209-
16	CLIP; HARNESS (J) ID=15 L=28	1-09701-216-0	02	1	0807-0808
16	CLIP; HARNESS (Q) ID=16 L=28	0-95235-556-0	02	1	0809-
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	05	1	0807-1102
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	03	1	1103-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0807-
16	CLIP; HARNESS (K) ID=14 L=44	9-09917-427-0	03	1	0807-0809
16	CLIP; HARNESS EXC. ANTI LOCK BRAKE<JE5> (K) ID=14 L=44	9-09917-427-0	03	1	0810-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 THA	8-97173-307-0	18	1	0807-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 THA	8-97173-307-0	18	1	0807-1003
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1004-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6 THA	8-97229-357-0	02	1	0807-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6 THA	8-97229-357-0	02	1	0807-1003
16	CLIP; HARNESS (D) L=40.6 THA	8-97229-357-0	02	1	1004-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) THA	8-98052-679-0	02	1	0807-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) THA	8-98052-679-0	02	1	0807-1003
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1004-
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM<71W> (G) ID=15 L=65	1-09700-466-0	07	1	1203-
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM<71W> (G) ID=15 L=65	1-09700-466-0	24	1	1110-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (G) ID=15 L=65	1-09700-466-0	03	1	1108-1109
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (G) ID=15 L=65	1-09700-466-0	03	1	1110-1110
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM<71W> (G) ID=15 L=65	1-09700-466-0	03	1	1110-1110
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (G) ID=15 L=65	1-09700-466-0	03	1	1110-1208
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (M) ID=28 L=78	1-09700-858-0	01	1	1108-
48	CLIP; FRAME HARNESS (M) ID=28 L=78	1-09700-858-0	02	1	0807-1107
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (M) ID=28 L=78	1-09700-858-0	02	1	1108-
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	18	1	0810-1102
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	18	1	1103-1105
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	19	1	1106-
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	19	1	1106-
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	01	1	0810-0909
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	01	1	0810-0909
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	0910-1102
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	01	1	0910-1102
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	01	1	0910-1102
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	1103-1104
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	1105-1105
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	01	1	1105-1105
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	01	1	1105-1105
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	24	1	1106-1107
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) ID=20 L=70	1-09700-485-0	24	1	1108-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	16	1	0810-1102
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	03	1	1103-1107
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) ID=20 L=70	1-09700-485-0	03	1	1108-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	02	1	0810-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	02	1	0810-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	19	1	0810-1105
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	1106-1107
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	1108-
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	22	1	0810-1102
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	23	1	1103-1104
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	22	1	1105-1105
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	22	1	1106-1107
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	22	1	1108-
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> (B) ID=16 L=20 THA	0-95235-536-0	01	1	0807-1102
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> (A) ID=16 L=60	0-95235-596-0	01	1	0807-1102
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	17	1	0807-0808
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	18	1	0809-0809
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	18	1	0810-1102
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	18	1	1103-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	0807-0809
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	01	1	0807-0809
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> (G) ID=15 L=65	1-09700-466-0	01	1	0807-0809
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	0810-1102
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	0810-1102
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	0810-1102
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1103-1105
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	05	1	1106-
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	0807-1102
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	0807-1102
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1103-1104
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1105-1105
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1105-1105
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1106-1107
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1106-1107
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1108-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1108-
48	CLIP; FRAME HARNESS (D) ID=11 L=61	1-09700-484-0	01	1	0807-1107
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) ID=11 L=61	1-09700-484-0	01	1	1108-1109
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) ID=11 L=61	1-09700-484-0	01	1	1110-
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM<71W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	01	1	1110-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> (E) ID=16X2 L=50	0-95325-586-0	01	1	0807-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> (J) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0807-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	15	1	0807-0808
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	16	1	0809-0809
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	16	1	0810-1105
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	17	1	1106-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	02	1	0807-0809
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> (G) ID=15 L=65	1-09700-466-0	02	1	0807-0809
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	02	1	0810-0909
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	02	1	0810-0909
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	02	1	0910-1208
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	02	1	0910-1208
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	02	1	0910-1208
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	02	1	1209-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	02	1	1209-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	02	1	1209-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (G) ID=15 L=65	1-09700-466-0	02	1	1209-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	02	1	0807-1107
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	02	1	0807-1107
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	02	1	1108-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	02	1	1108-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) ID=11 L=61	1-09700-484-0	02	1	1108-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> (G) ID=15 L=65	1-09700-466-0	18	1	0807-0808
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> (G) ID=15 L=65	1-09700-466-0	19	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	0810-1102
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> (G) ID=15 L=65	1-09700-466-0	22	1	0807-0809
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	22	1	0810-1102
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	23	1	1103-1104
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	22	1	1105-1105
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1106-1109
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1106-1109
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W>,WHEEL BASE 7100MM<71W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1110-1110
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1110-1110
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1110-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1110-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	03	1	0807-0909
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	04	1	0807-1102
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	1103-1104
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	1105-1105
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1105-1105
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1105-1105
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	1106-1107
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1106-1107
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1106-1107
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) ID=15 L=65	1-09700-466-0	01	1	1108-1208
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1108-1208
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1108-1208
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1209-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1209-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	1209-
48	CLIP; FRAME HARNESS (L) ID=35 L=50	1-09701-214-0	01	1	0807-
48	CLIP; FRAME HARNESS (I) ID=33 L=83	1-09701-291-0	03	1	0807-1104
48	CLIP; FRAME HARNESS (I) ID=33 L=83	1-09701-291-0	04	1	1105-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	01	1	0807-
48	CLIP; FRAME HARNESS (H) OD=9 H=13.5	1-09709-180-0	01	1	0807-
48	CLIP; FRAME HARNESS (F) L=140 THA	5-09707-031-1	02	1	0807-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	0807-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) OD=9 H=6	1-09709-178-0	01	1	1108-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) ID=5-12 L=26	1-09709-289-0	03	1	1108-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) ID=14 L=44	9-09917-427-0	04	1	1108-1304
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) ID=14 L=44	9-09917-427-0	02	1	1305-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) ID=14 L=44	9-09917-427-0	02	1	1305-
223	CLIP; AIR TANK HARNESS (D) ID=11 L=61	1-09700-484-0	01	1	0807-1102
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (G) ID=21 L=47.5	8-94178-108-0	01	1	0807-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0807-
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0807-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	0807-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	0807-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0807-
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0807-1102
305	CLIP; ENG HARNESS (L) ID=19 L=39 H=21	1-09700-972-1	01	1	1103-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0807-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0807-1102
305	CLIP; ENG HARNESS (M) ID=26 L=27	1-09701-006-0	01	1	1103-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0807-1102
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0807-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	0807-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0807-

305 305 305 306 48 48 305 305 16 16 581 48 208 223 235 16 213 223 48 16 48 48 48 16 223 305 470 48 16 235 16 48 16 305 305 48 16 16 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (L) ID=20 L=50	9-09917-430-0	03	1	0810-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) ID=11 L=16	0-95235-025-0	02	1	0809-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (N) ID=11X2 L=20	1-09700-871-0	03	1	0809-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (O) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (P) ID=11 H=20 L=20	8-98033-780-0	01	1	0809-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41	1-09700-403-0	02	1	0807-
16	CLIP; HARNESS (G) ID=11 L=60	0-95235-096-0	01	1	0807-0807
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	0807-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	04	1	0807-1208
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1209-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1209-
16	CLIP; HARNESS (J) ID=15 L=28	1-09701-216-0	02	1	0807-0808
16	CLIP; HARNESS (Q) ID=16 L=28	0-95235-556-0	02	1	0809-
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	05	1	0807-1102
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	03	1	1103-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0807-
16	CLIP; HARNESS (K) ID=14 L=44	9-09917-427-0	03	1	0807-0809
16	CLIP; HARNESS EXC. ANTI LOCK BRAKE<JE5> (K) ID=14 L=44	9-09917-427-0	03	1	0810-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 THA	8-97173-307-0	18	1	0807-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 THA	8-97173-307-0	18	1	0807-1003
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1004-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6 THA	8-97229-357-0	02	1	0807-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6 THA	8-97229-357-0	02	1	0807-1003
16	CLIP; HARNESS (D) L=40.6 THA	8-97229-357-0	02	1	1004-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) THA	8-98052-679-0	02	1	0807-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) THA	8-98052-679-0	02	1	0807-1003
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1004-
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM<71W> (G) ID=15 L=65	1-09700-466-0	07	1	1203-
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM<71W> (G) ID=15 L=65	1-09700-466-0	24	1	1110-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (G) ID=15 L=65	1-09700-466-0	03	1	1108-1109
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (G) ID=15 L=65	1-09700-466-0	03	1	1110-1110
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM<71W> (G) ID=15 L=65	1-09700-466-0	03	1	1110-1110
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (G) ID=15 L=65	1-09700-466-0	03	1	1110-1208
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (M) ID=28 L=78	1-09700-858-0	01	1	1108-
48	CLIP; FRAME HARNESS (M) ID=28 L=78	1-09700-858-0	02	1	0807-1107
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (M) ID=28 L=78	1-09700-858-0	02	1	1108-
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	18	1	0810-1102
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	18	1	1103-1105
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	19	1	1106-
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	19	1	1106-
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	01	1	0810-0909
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	01	1	0810-0909
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	0910-1102
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	01	1	0910-1102
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	01	1	0910-1102
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	1103-1104
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	1105-1105
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	01	1	1105-1105
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	01	1	1105-1105
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	24	1	1106-1107
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) ID=20 L=70	1-09700-485-0	24	1	1108-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	16	1	0810-1102
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	03	1	1103-1107
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) ID=20 L=70	1-09700-485-0	03	1	1108-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	02	1	0810-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	02	1	0810-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	19	1	0810-1105
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	1106-1107
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	1108-
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	22	1	0810-1102
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	23	1	1103-1104
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	22	1	1105-1105
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	22	1	1106-1107
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	22	1	1108-
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> (B) ID=16 L=20 THA	0-95235-536-0	01	1	0807-1102
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> (A) ID=16 L=60	0-95235-596-0	01	1	0807-1102
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	17	1	0807-0808
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	18	1	0809-0809
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	18	1	0810-1102
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	18	1	1103-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	0807-0809
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	01	1	0807-0809
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> (G) ID=15 L=65	1-09700-466-0	01	1	0807-0809
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	0810-1102
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	0810-1102
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	0810-1102
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1103-1105
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	05	1	1106-
48	CLIP; FRAME HARNESS ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	0807-1102
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	0807-1102
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1103-1104
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1105-1105
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1105-1105
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1106-1107
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1106-1107
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1108-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1108-
48	CLIP; FRAME HARNESS (D) ID=11 L=61	1-09700-484-0	01	1	0807-1107
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) ID=11 L=61	1-09700-484-0	01	1	1108-1109
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) ID=11 L=61	1-09700-484-0	01	1	1110-
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM<71W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	01	1	1110-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> (E) ID=16X2 L=50	0-95325-586-0	01	1	0807-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> (J) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0807-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	15	1	0807-0808
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	16	1	0809-0809
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	16	1	0810-1105
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	17	1	1106-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	02	1	0807-0809
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> (G) ID=15 L=65	1-09700-466-0	02	1	0807-0809
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	02	1	0810-0909
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	02	1	0810-0909
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	02	1	0910-1208
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	02	1	0910-1208
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	02	1	0910-1208
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	02	1	1209-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	02	1	1209-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	02	1	1209-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (G) ID=15 L=65	1-09700-466-0	02	1	1209-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	02	1	0807-1107
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	02	1	0807-1107
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	02	1	1108-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	02	1	1108-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) ID=11 L=61	1-09700-484-0	02	1	1108-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> (G) ID=15 L=65	1-09700-466-0	18	1	0807-0808
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> (G) ID=15 L=65	1-09700-466-0	19	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	0810-1102
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> (G) ID=15 L=65	1-09700-466-0	22	1	0807-0809
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	22	1	0810-1102
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	23	1	1103-1104
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	22	1	1105-1105
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1106-1109
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1106-1109
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W>,WHEEL BASE 7100MM<71W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1110-1110
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1110-1110
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1110-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1110-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	03	1	0807-0909
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	04	1	0807-1102
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	1103-1104
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	1105-1105
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1105-1105
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1105-1105
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	1106-1107
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1106-1107
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1106-1107
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) ID=15 L=65	1-09700-466-0	01	1	1108-1208
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1108-1208
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1108-1208
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1209-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1209-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	1209-
48	CLIP; FRAME HARNESS (L) ID=35 L=50	1-09701-214-0	01	1	0807-
48	CLIP; FRAME HARNESS (I) ID=33 L=83	1-09701-291-0	03	1	0807-1104
48	CLIP; FRAME HARNESS (I) ID=33 L=83	1-09701-291-0	04	1	1105-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	01	1	0807-
48	CLIP; FRAME HARNESS (H) OD=9 H=13.5	1-09709-180-0	01	1	0807-
48	CLIP; FRAME HARNESS (F) L=140 THA	5-09707-031-1	02	1	0807-
208	CLIP; HARNESS,MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) ID=11 L=61	1-09700-484-0	01	1	1108-
208	CLIP; HARNESS,MAG VLV PTO CONTROL<SV6> (B) L=250 THA	5-09707-030-1	01	1	1103-1107
208	CLIP; HARNESS,MAG VLV PTO CONTROL<SV6> (B) L=250 THA	5-09707-030-1	01	1	1108-
208	CLIP; HARNESS,MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) L=250 THA	5-09707-030-1	01	1	1108-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	0807-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) OD=9 H=6	1-09709-178-0	01	1	1108-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) ID=5-12 L=26	1-09709-289-0	03	1	1108-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) ID=14 L=44	9-09917-427-0	04	1	1108-1304
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) ID=14 L=44	9-09917-427-0	02	1	1305-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) ID=14 L=44	9-09917-427-0	02	1	1305-
223	CLIP; AIR TANK HARNESS (D) ID=11 L=61	1-09700-484-0	01	1	0807-1102
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE<JE5> (A) ID=11 L=16	0-95235-025-0	02	1	0809-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE<JE5> (B) ID=11 L=61	1-09700-484-0	02	1	0809-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (G) ID=21 L=47.5	8-94178-108-0	01	1	0807-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0807-
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0807-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	0807-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	0807-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0807-
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0807-1102
305	CLIP; ENG HARNESS (L) ID=19 L=39 H=21	1-09700-972-1	01	1	1103-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0807-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0807-1102
305	CLIP; ENG HARNESS (M) ID=26 L=27	1-09701-006-0	01	1	1103-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0807-1102
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0807-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	0807-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0807-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	0807-
581	CLIP; HARNESS,REAR SUSP ID=11 L=41	1-09700-403-0	01	1	0807-1107
581	CLIP; HARNESS,REAR SUSP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=11 L=41	1-09700-403-0	01	1	1108-

304 139 304 304 304 38 304 313 516 377 386 38 38 139 38 150 38 313 139 313 150 139 139 139 313 139 127 38 515 219 294 524 525 294 47 184

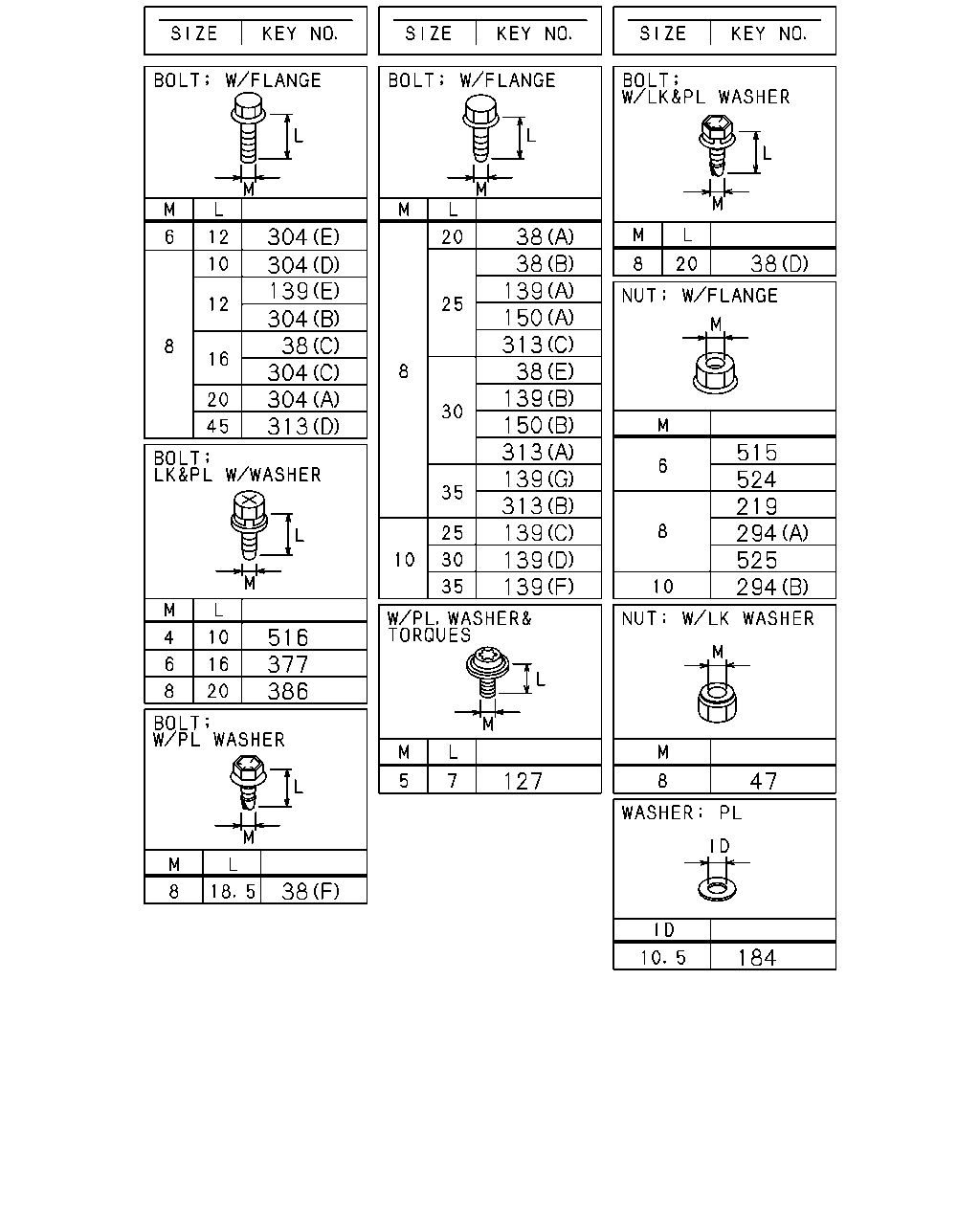

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (E) M8X30 FLANGE THA	0-28650-830-0	02	1	0808-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE THA	0-28650-820-0	02	1	0808-0905
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE THA	0-28650-820-0	02	1	0808-0905
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE THA	0-28650-820-0	02	1	0906-1102
38	BOLT; CLIP,HARNESS (D) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0807-1202
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1203-
38	BOLT; CLIP,HARNESS ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> (C) M8X16 FLANGE THA	0-28050-816-0	02	1	0807-1102
38	BOLT; CLIP,HARNESS ZF9S1110 M/T<Y5E> (C) M8X16 FLANGE THA	0-28050-816-0	02	1	1103-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE THA	0-28650-820-0	02	1	0807-0807
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE THA	0-28650-820-0	01	1	0808-0905
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE THA	0-28650-820-0	04	1	0906-1102
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1103-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1103-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE THA	0-28650-825-0	06	1	0807-1207
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE THA	0-28650-825-0	03	1	1208-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE THA	0-28650-825-0	03	1	1208-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0807-
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE THA	0-28650-830-0	02	1	0808-
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE THA	0-28650-830-0	04	1	0808-0905
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE THA	0-28650-830-0	08	1	0906-1102
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE THA	0-28650-830-0	04	1	1103-
139	BOLT; BRKT (E) M8X12 FLANGE THA	0-28050-812-0	01	1	0807-
139	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	01	1	0807-
139	BOLT; BRKT (B) M8X30 FLANGE THA	0-28650-830-0	01	1	0807-
139	BOLT; BRKT (G) M8X35 FLANGE THA	0-28650-835-0	01	1	0807-1107
139	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) M8X35 FLANGE THA	0-28650-835-0	01	1	1108-
139	BOLT; BRKT (C) M10X25 FLANGE THA	0-28651-025-0	02	1	0807-
139	BOLT; BRKT (D) M10X30 FLANGE THA	0-28651-030-0	01	1	0807-
139	BOLT; BRKT (F) M10X35 FLANGE THA	0-28651-035-0	01	1	0807-
150	BOLT; CLIP (A) M8X25 FLANGE THA	0-28650-825-0	02	1	0807-
150	BOLT; CLIP (B) M8X30 FLANGE THA	0-28650-830-0	01	1	0807-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0807-1102
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1103-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1103-
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE THA	0-91180-108-0	04	1	0906-1102
219	NUT M8 FLANGE THA	0-91180-108-0	02	1	1103-
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE THA	0-91180-108-0	02	1	1103-
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE THA	0-91180-108-0	02	1	1103-
219	NUT M8 FLANGE THA	0-91180-108-0	02	1	0906-1102
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE THA	0-91180-108-0	02	1	0906-1102
219	NUT M8 FLANGE THA	0-91180-108-0	02	1	0807-0807
219	NUT M8 FLANGE THA	0-91180-108-0	02	1	0808-0905
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE THA	0-91180-108-0	02	1	0808-0905
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE THA	0-91180-108-0	02	1	0808-0905
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE THA	0-91180-108-0	02	1	0808-0905
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE THA	0-91180-108-0	03	1	0906-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	02	1	0808-
294	NUT ANTI LOCK BRAKE<JE5> (A) M8 FLANGE THA	0-91180-108-0	02	1	0808-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	02	1	0807-0807
294	NUT ANTI LOCK BRAKE<JE5> (A) M8 FLANGE THA	0-91180-108-0	04	1	0808-0905
294	NUT ANTI LOCK BRAKE<JE5> (A) M8 FLANGE THA	0-91180-108-0	08	1	0906-1102
294	NUT ANTI LOCK BRAKE<JE5> (A) M8 FLANGE THA	0-91180-108-0	04	1	1103-
294	NUT (B) M10 FLANGE THA	0-91180-210-0	02	1	0807-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	0807-1102
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	0807-1102
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	0807-1102
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1103-1107
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1103-1107
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1103-1107
294	NUT POOR QUALITY DIESEL FUEL<KF0> (A) M8 FLANGE THA	0-91180-108-0	01	1	1103-1107
294	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M8 FLANGE THA	0-91180-108-0	01	1	1108-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1108-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1108-
294	NUT POOR QUALITY DIESEL FUEL<KF0> (A) M8 FLANGE THA	0-91180-108-0	01	1	1108-
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE THA	0-28050-810-0	01	1	1103-
304	BOLT; ENG HARNESS CLIP (E) M6X12 FLANGE THA	0-28050-612-0	01	1	0807-
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE THA	0-28050-810-0	01	1	0807-1010
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE THA	0-28050-812-0	03	1	0807-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE THA	0-28050-816-0	03	1	0807-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE THA	0-28050-820-0	01	1	0807-1102
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE THA	0-28050-820-0	02	1	1103-
313	BOLT; BRKT (D) M8X45 FLANGE THA	0-28050-845-0	01	1	0807-
313	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M8X35 FLANGE THA	0-28650-835-0	01	1	0807-
313	BOLT; BRKT (C) M8X25 FLANGE THA	0-28650-825-0	01	1	0807-
313	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	0807-
313	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	0807-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0807-
386	BOLT; GRAND HARNESS M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0807-
515	NUT; BRKT M6 FLANGE THA	0-91180-106-0	02	1	0807-0809
516	BOLT; HARNESS M4X10 W/LK&PL WASHER THA	0-36230-410-0	01	1	0807-
524	NUT; HARNESS M6 FLANGE THA	0-91180-106-0	04	1	0807-
525	NUT; CLIP T=8.5 M8 FLANGE THA	5-09440-010-0	01	1	0807-1102
525	NUT; CLIP T=8.0 M8 FLANGE THA	0-91180-108-0	01	1	0807-
525	NUT; CLIP T=8.0 M8 FLANGE THA	0-91180-108-0	02	1	0807-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
