3-11 — PARKING BRAKE CONTROL (#139513) — 78 parça

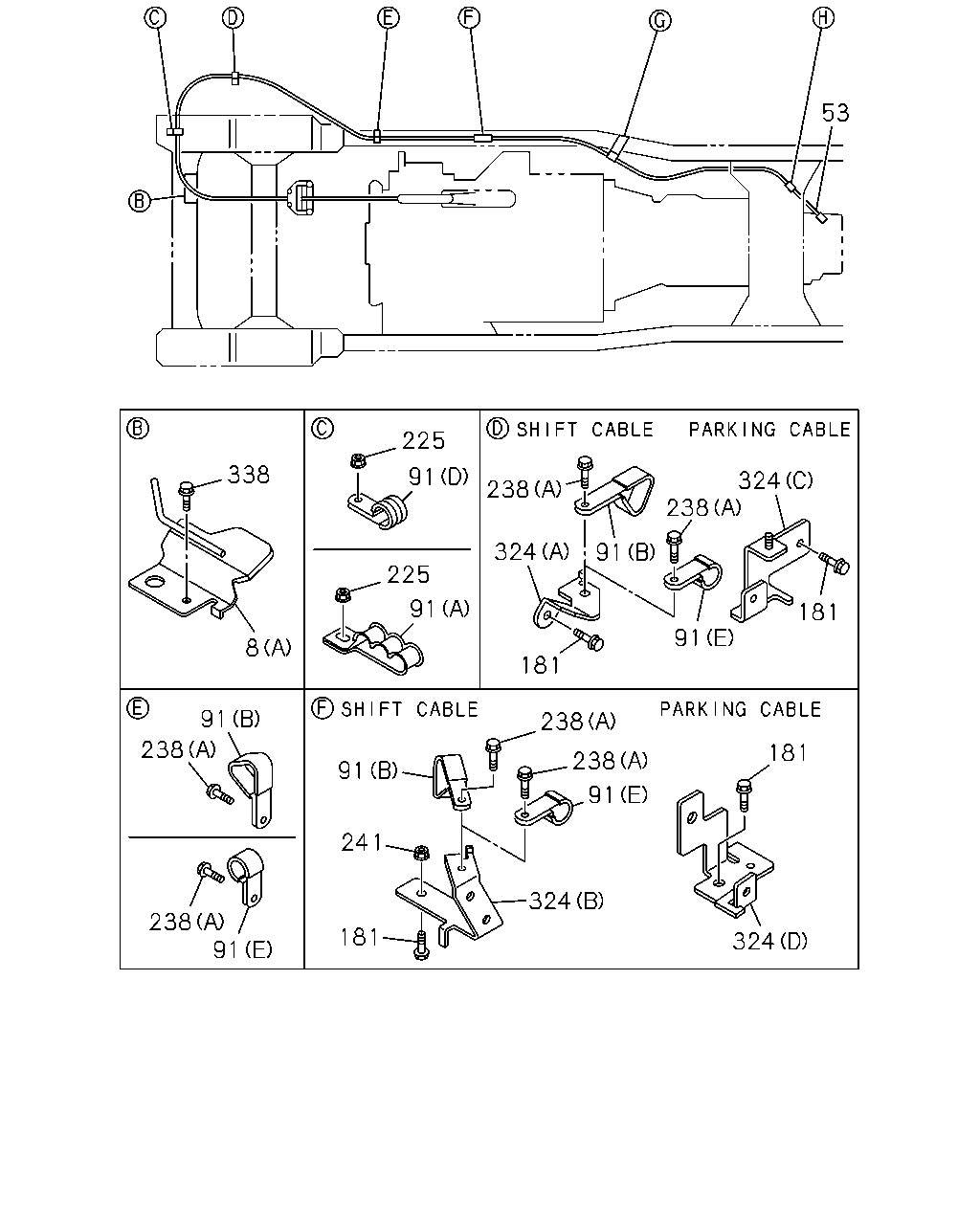

53 338 8 225 91 91 238 238 91 181 241 91 181 324 238 91 225 91 238 324 181 91 181 238 238 91 324 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	GUIDE; PARKING BRK FRAME STRAIGHT TYPE<7KJ> (A)	8-98096-374-0	01	1	1405-	●	●
8	GUIDE; PARKING BRK FRAME STRAIGHT TYPE<7KJ> (B)	8-98110-964-0	01	1	1405-	●	●
53	CABLE; PARK BRK,FRT LWR FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98062-233-3	01	1	1405-	●
53	CABLE; PARK BRK,FRT LWR FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98041-315-3	01	1	1405-	●
53	CABLE; PARK BRK,FRT LWR FRAME STRAIGHT TYPE<7KJ> THA	8-98062-232-3	01	1	1405-		●
91	CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-97036-333-1	01	1	1405-	●
91	CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> (B)	8-97036-333-1	01	1	1405-		●
91	CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER<8GF> (E) ID=13 L=28	0-95235-255-0	03	1	1405-	●
91	CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER<8GF> (D) ID=19 L=32	1-09701-235-0	01	1	1405-	●
91	CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-97036-333-1	02	1	1405-	●
91	CLIP; PARKING BRK CABLE (B)	8-97036-333-1	02	1	1405-		●
91	CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)	8-98023-622-0	01	1	1405-	●
91	CLIP; PARKING BRK CABLE (A)	8-98023-622-0	01	1	1405-		●
91	CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97036-332-1	01	1	1405-	●	●
181	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	03	1	1405-	●	●
181	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	01	1	1405-	●	●
225	NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	01	1	1405-1408	●
225	NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE THA	0-91180-108-0	01	1	1409-	●
225	NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	02	1	1405-	●	●
238	BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE THA	0-28651-030-0	01	1	1405-	●	●
238	BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA	0-28650-825-0	03	1	1405-	●	●
238	BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1405-1408		●
238	BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1409-	●
238	BOLT; CLIP TO BRKT M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1409-		●
241	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	03	1	1405-	●	●
324	BRACKET FRAME STRAIGHT TYPE<7KJ> (B)	8-98034-185-1	01	1	1405-	●	●
324	BRACKET FRAME STRAIGHT TYPE<7KJ> (C)	8-98099-516-0	01	1	1405-	●	●
324	BRACKET FRAME STRAIGHT TYPE<7KJ> (D)	8-98111-394-1	01	1	1405-	●	●
324	BRACKET (A)	8-98034-115-0	01	1	1405-	●	●
338	SCREW; GUIDE FRAME STRAIGHT TYPE<7KJ> M8X35 FLANGE	8-98046-876-0	01	1	1405-	●	●

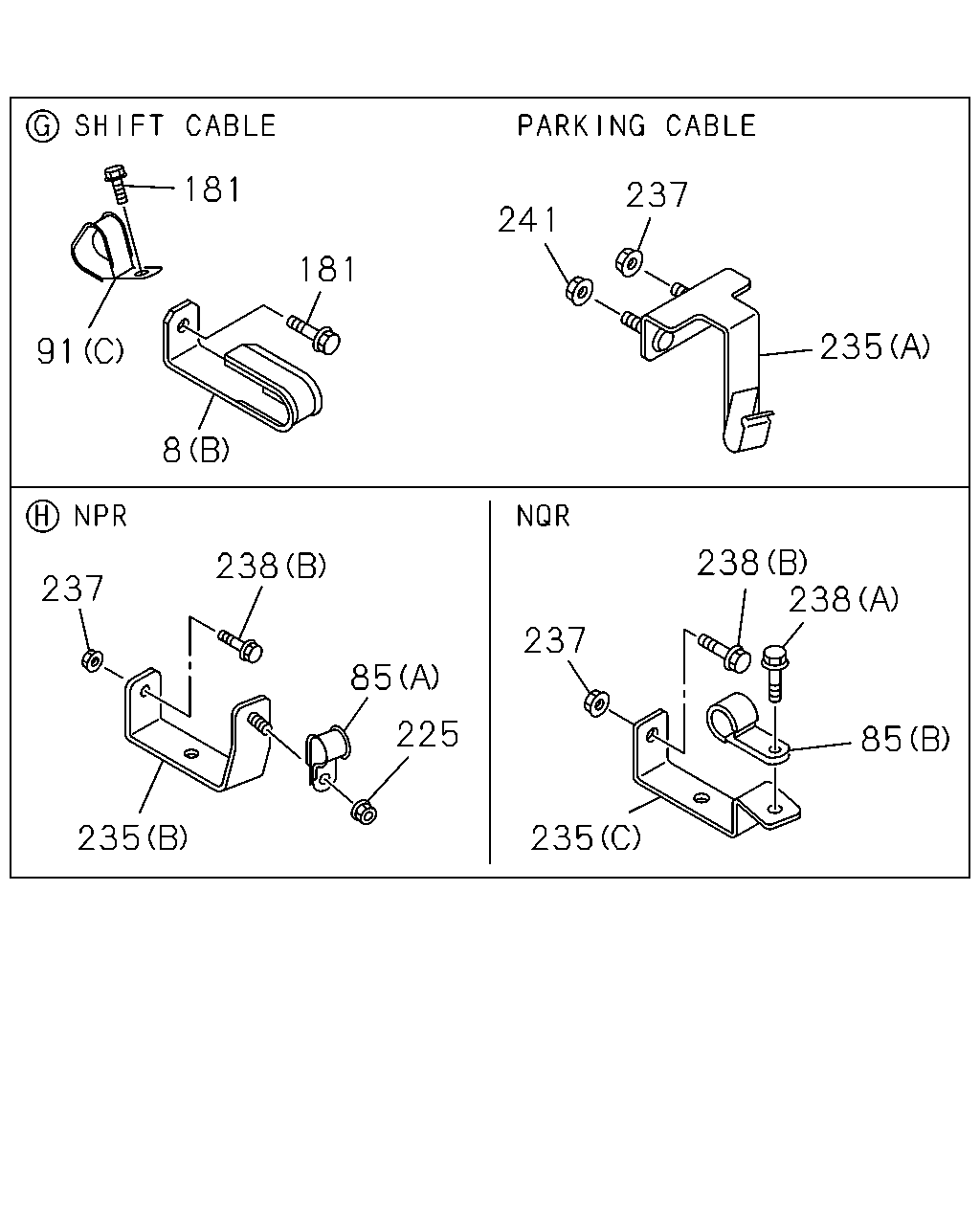

85 238 237 235 235 237 238 91 181 181 241 237 235 238 85 225 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	GUIDE; PARKING BRK FRAME STRAIGHT TYPE<7KJ> (A)	8-98096-374-0	01	1	1405-	●	●
8	GUIDE; PARKING BRK FRAME STRAIGHT TYPE<7KJ> (B)	8-98110-964-0	01	1	1405-	●	●
85	CLIP; BRKT FRAME STRAIGHT TYPE<7KJ> (A) ID=14.5 L=20	1-09701-012-0	01	1	1405-	●
85	CLIP; BRKT FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=20	0-95235-236-0	01	1	1405-		●
91	CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-97036-333-1	01	1	1405-	●
91	CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> (B)	8-97036-333-1	01	1	1405-		●
91	CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER<8GF> (E) ID=13 L=28	0-95235-255-0	03	1	1405-	●
91	CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER<8GF> (D) ID=19 L=32	1-09701-235-0	01	1	1405-	●
91	CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-97036-333-1	02	1	1405-	●
91	CLIP; PARKING BRK CABLE (B)	8-97036-333-1	02	1	1405-		●
91	CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A)	8-98023-622-0	01	1	1405-	●
91	CLIP; PARKING BRK CABLE (A)	8-98023-622-0	01	1	1405-		●
91	CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97036-332-1	01	1	1405-	●	●
181	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA	0-28650-825-0	03	1	1405-	●	●
181	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	01	1	1405-	●	●
225	NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	01	1	1405-1408	●
225	NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE THA	0-91180-108-0	01	1	1409-	●
225	NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	02	1	1405-	●	●
235	BRACKET; CONT CABLE TO FRAME FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER<8GF> (C)	8-98033-907-0	01	1	1405-	●
235	BRACKET; CONT CABLE TO FRAME FRAME STRAIGHT TYPE<7KJ> (C)	8-98033-907-0	01	1	1405-		●
235	BRACKET; CONT CABLE TO FRAME FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-98087-322-0	01	1	1405-	●
235	BRACKET; CONT CABLE TO FRAME FRAME STRAIGHT TYPE<7KJ> (A)	8-98074-995-0	01	1	1405-	●	●
237	NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA	0-91180-110-0	01	1	1405-	●	●
238	BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE THA	0-28651-030-0	01	1	1405-	●	●
238	BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA	0-28650-825-0	03	1	1405-	●	●
238	BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1405-1408		●
238	BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER<8GF> (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1409-	●
238	BOLT; CLIP TO BRKT M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1409-		●
241	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA	0-91180-108-0	03	1	1405-	●	●

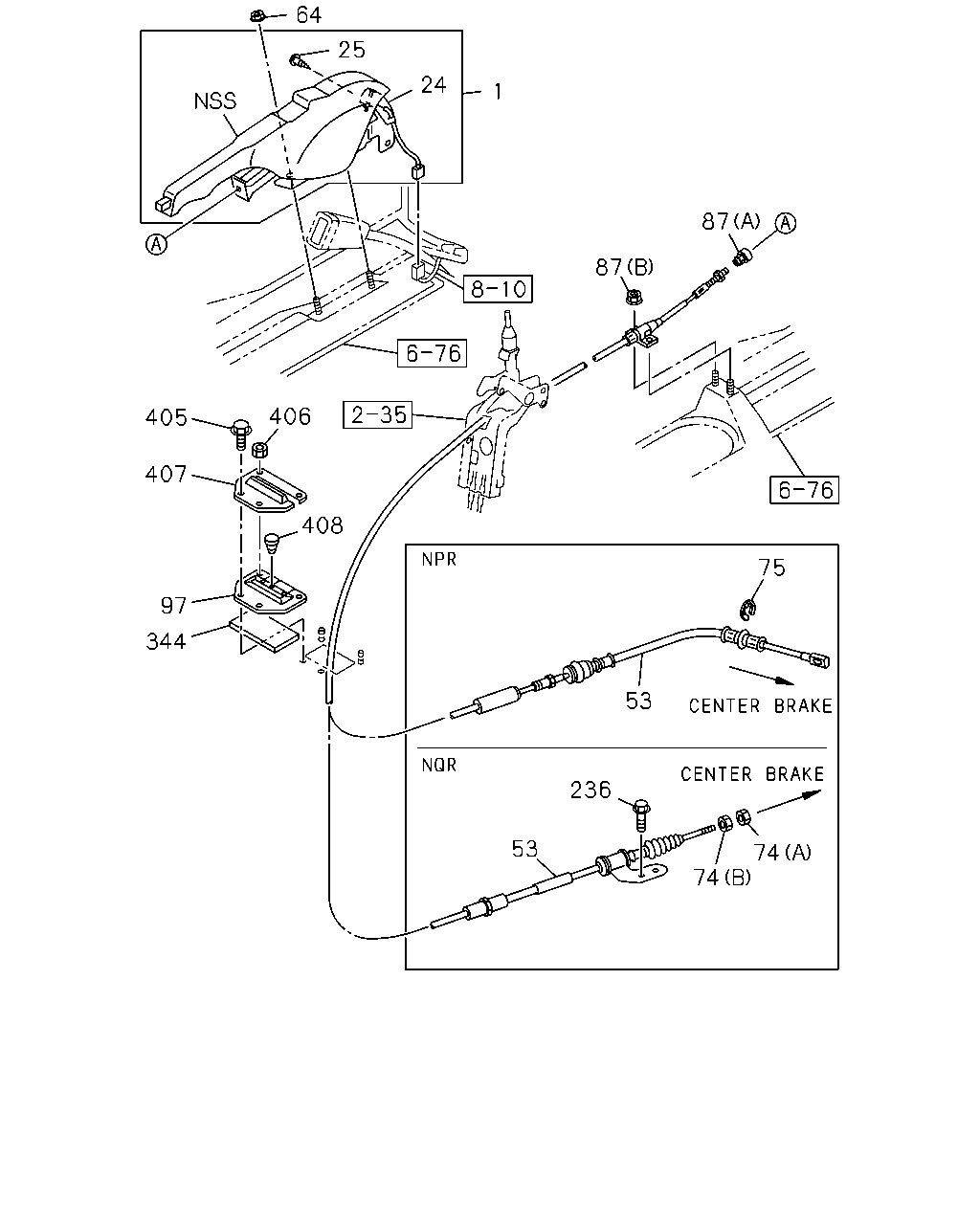

405 64 24 1 406 87 87 75 53 236 53 74 74 408 407 97 344 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEM ASM; PARKING BRK GRAY	8-97426-513-0	01	1	1405-	●	●
24	SWITCH ASM; PARK BRK	8-98238-611-0	01	1	1405-	●	●
25	SCREW; SW,PARKING BRK	8-98152-463-0	01	1	1405-	●	●
53	CABLE; PARK BRK,FRT LWR FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER<8GF>	8-98062-233-3	01	1	1405-	●
53	CABLE; PARK BRK,FRT LWR FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-98041-315-3	01	1	1405-	●
53	CABLE; PARK BRK,FRT LWR FRAME STRAIGHT TYPE<7KJ> THA	8-98062-232-3	01	1	1405-		●
64	NUT; PARKING BRK M8 LOCK NUT FLANGE	0-91380-008-0	02	1	1405-	●	●
74	NUT; CONT WIRE FRAME STRAIGHT TYPE<7KJ> (A) M8	0-91110-508-0	01	1	1405-		●
74	NUT; CONT WIRE FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE	9-46259-016-0	01	1	1405-		●
75	RING; SNAP,HAND BRK CABLE FRAME STRAIGHT TYPE<7KJ> ID=12	0-91805-512-0	01	1	1405-	●
87	NUT FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE THA	0-91180-108-0	02	1	1405-	●	●
87	NUT FRAME STRAIGHT TYPE<7KJ> (A) M6	8-98034-313-1	01	1	1405-	●	●
97	GROMMET; PARKING BRK CABLE	8-97065-212-1	01	1	1405-	●	●
236	BOLT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE THA	0-28651-030-0	02	1	1405-		●
344	GASKET; DASH LWR	8-97096-753-0	01	1	1405-	●	●
405	BOLT; GROMMET M6X20 FLANGE	0-28450-620-0	02	1	1405-	●	●
406	NUT; GROMMET M6 FLANGE THA	0-91180-106-0	02	1	1405-	●	●
407	RETAINER; GROMMET	1-33657-674-0	01	1	1405-	●	●
408	CAP; GROMMET TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97371-108-0	02	1	1405-	●
