Isuzu WW
▶
TRUCKS
▶
NPR
▶
51509 - NPR/NQR(THAILAND)
▶
3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶
3-08 — PARKING BRAKE
(#139511) — 57 parça
Tümü
A - NPR5SN
B - NPR5SS
◀
[308A] NQR(NO.2) (23 parça)
[308A] NQR(NO.1) (7 parça)
[308A] NPR (27 parça)
▶

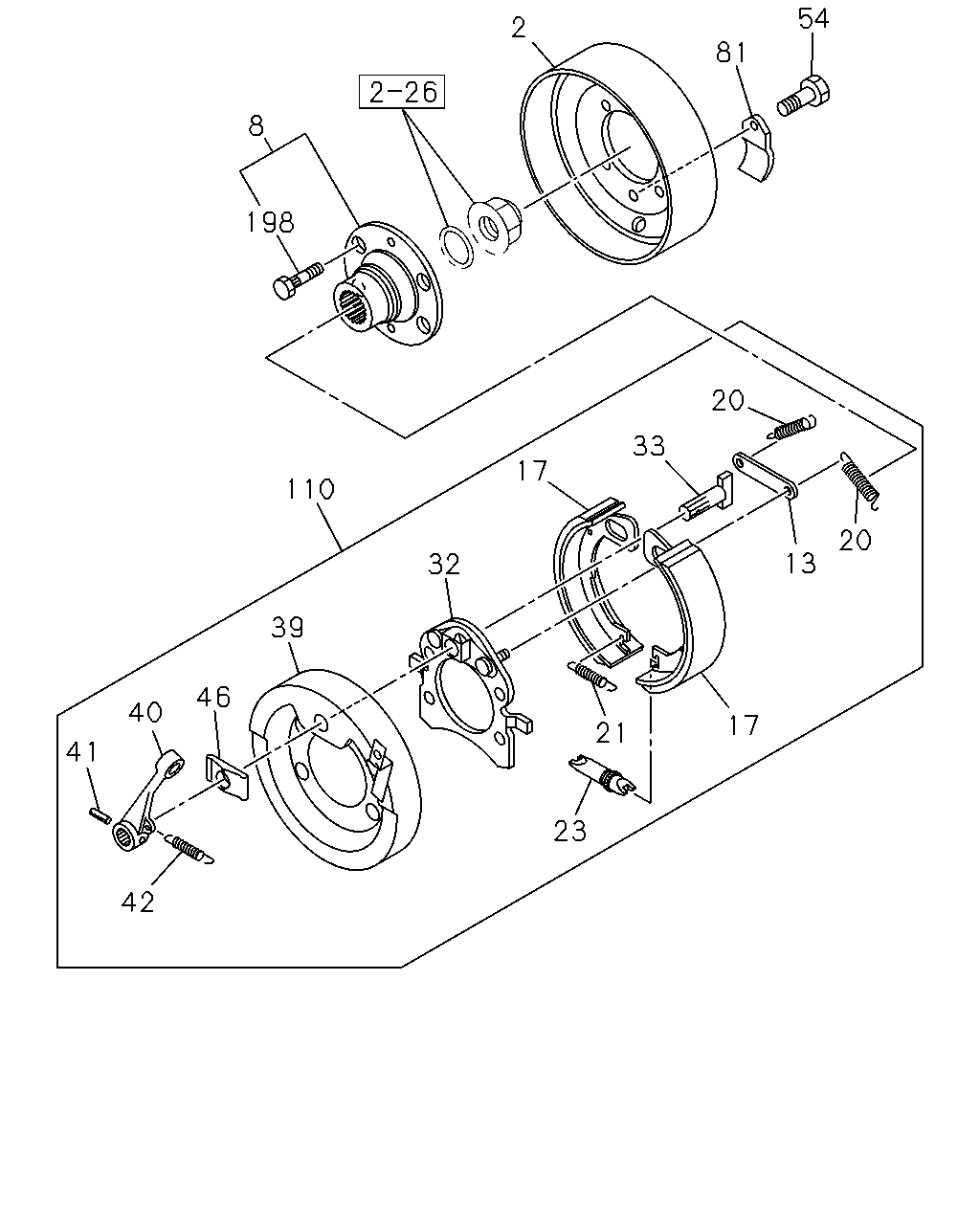

8
198
2
81
54
110
32
17
33
20
13
17
20
21
23
39
46
40
41
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
DRUM; PARKING BRK
8-97334-107-0
01
1
1405-
●
2
DRUM; PARKING BRK
1-46211-057-0
01
1
1405-
●
8
FLANGE; PARKING BRK
8-98044-142-0
01
1
1405-
●
13
BRACE; PARKING BRK
1-46239-003-0
01
1
1405-
●
17
SHOE; PARKING BRK
8-97020-250-2
02
1
1405-
●
17
SHOE; PARKING BRK
8-97042-934-1
02
1
1405-
●
20
SPRING; RETURN,SECONDARY,PARKING BRK
1-09586-002-0
02
1
1405-
●
21
SPRING; RETURN,PARKING BRK SHOE
8-94132-157-0
02
1
1405-
●
21
SPRING; RETURN,PARKING BRK SHOE
1-09583-280-0
01
1
1405-
●
23
SCREW; ADJ,PARKING BRK SHOE
8-98043-954-0
01
1
1405-
●
23
SCREW; ADJ,PARKING BRK SHOE
8-98043-963-0
01
1
1405-
●
32
PLATE; SUPPORT,PARKING BRK
8-97308-176-0
01
1
1405-
●
32
PLATE; SUPPORT,PARKING BRK
1-46213-069-0
01
1
1405-
●
33
SHAFT; CAM,PARKING BRK
8-98043-961-0
01
1
1405-
●
39
COVER; DUST,PARKING BRK
1-46213-075-0
01
1
1405-
●
40
LEVER; CM/SHF,PARKING BRK
8-98047-550-0
01
1
1405-
●
41
PIN; KNOCK,LEVER
9-09878-594-0
01
1
1405-
●
42
SPRING; RETURN,LEVER
1-09583-041-0
01
1
1405-
●
46
WASHER; LEVER
1-09509-057-0
01
1
1405-
●
54
BOLT; COVER
M8X20 W/LK&PL WASHER
0-50640-820-0
02
1
1405-
●
81
COVER; CHECK HOLE,PARKING BRK
8-98031-861-0
02
1
1405-
●
110
BRAKE ASM; PARKING
8-98034-305-0
01
1
1405-
●
198
BOLT; KNURL
M12X39
8-97365-446-0
04
1
1405-
●

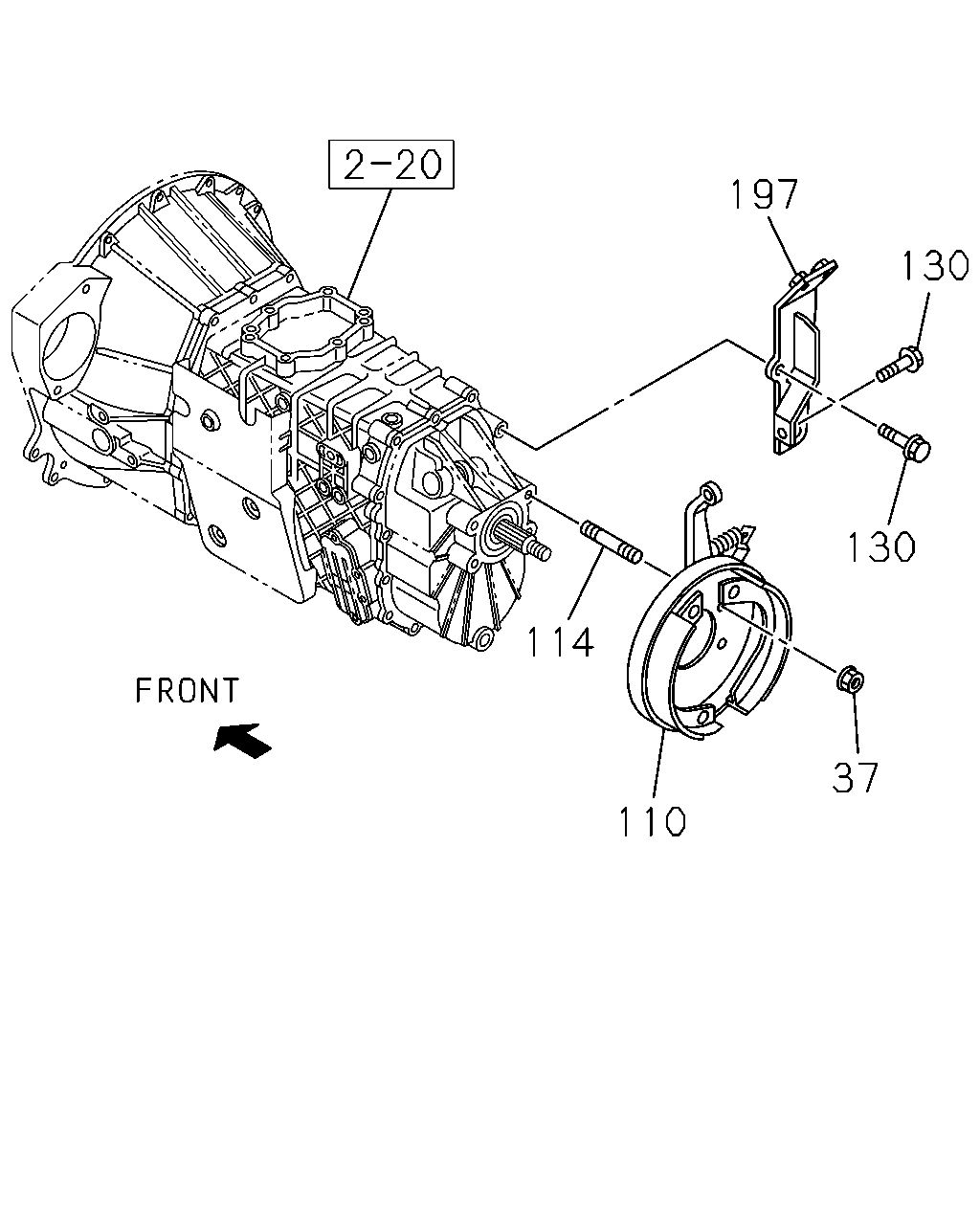

114
110
197
130
130
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
37
NUT; SUPPORT PLATE
M12 LOCK NUT
8-98029-927-0
04
1
1405-
●
37
NUT; SUPPORT PLATE
M14 FLANGE
8-97365-444-0
04
1
1405-
●
110
BRAKE ASM; PARKING
8-98034-305-0
01
1
1405-
●
114
STUD; SUPPORT PLATE
8-98029-929-0
04
1
1405-
●
114
STUD; SUPPORT PLATE
M14X22.5 L=42.5
8-97365-445-0
04
1
1405-
●
130
BOLT; BRKT
M10X25 FLANGE THA
0-28151-025-0
03
1
1405-
●
197
BRACKET; CENTER BRAKE CABLE
8-97244-812-0
01
1
1405-
●

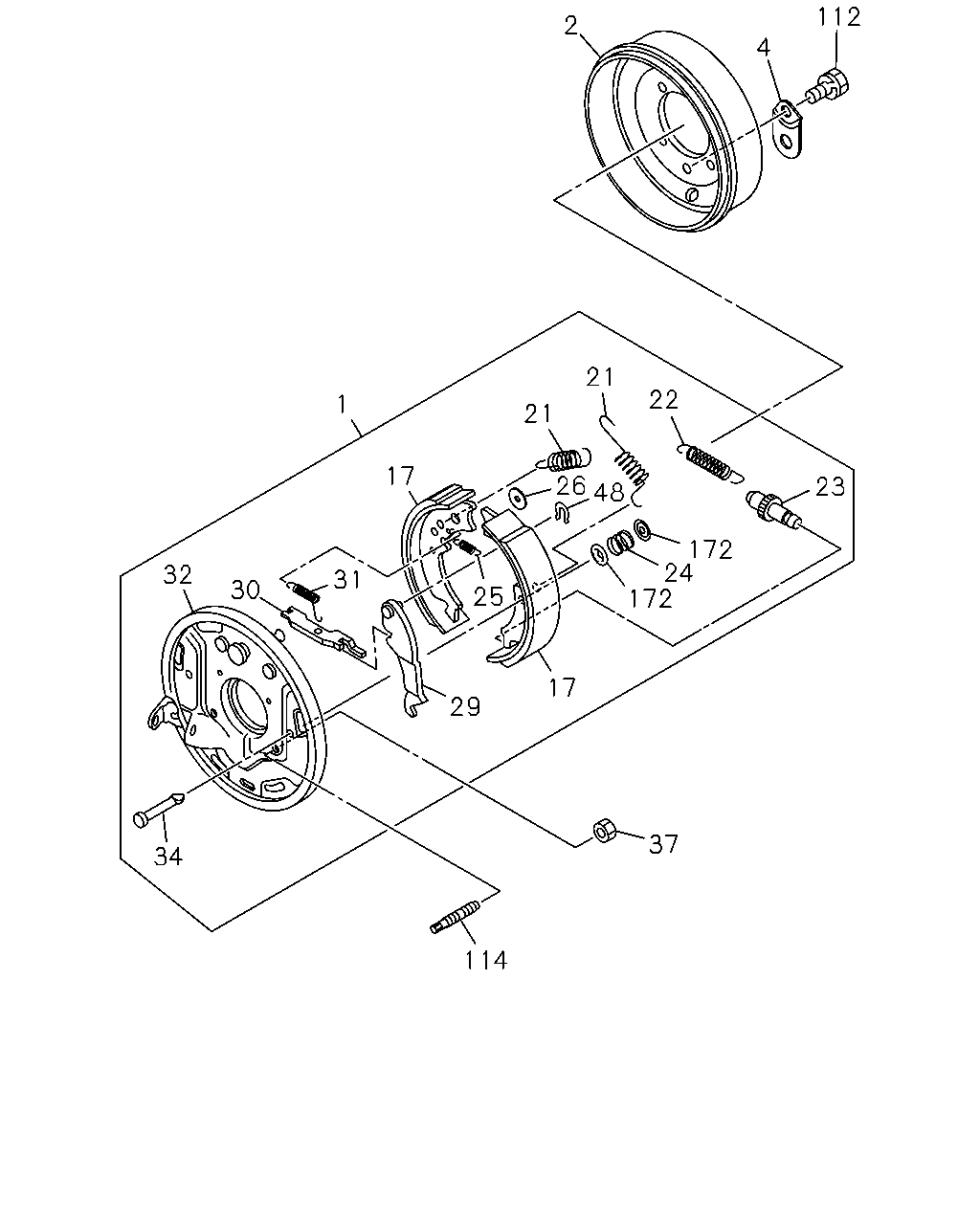

112
4
2
22
23
172
24
172
17
37
114
29
25
26
48
21
21
17
1
31
32
30
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRAKE ASM; CENTER,PARKING
8-98029-922-0
01
1
1405-
●
2
DRUM; PARKING BRK
8-97334-107-0
01
1
1405-
●
2
DRUM; PARKING BRK
1-46211-057-0
01
1
1405-
●
4
COVER; ADJ HOLE
8-98029-820-0
01
1
1405-
●
17
SHOE; PARKING BRK
8-97020-250-2
02
1
1405-
●
17
SHOE; PARKING BRK
8-97042-934-1
02
1
1405-
●
21
SPRING; RETURN,PARKING BRK SHOE
8-94132-157-0
02
1
1405-
●
21
SPRING; RETURN,PARKING BRK SHOE
1-09583-280-0
01
1
1405-
●
22
SPRING; ADJ SCREW,PARKING BRK
8-94107-618-0
01
1
1405-
●
23
SCREW; ADJ,PARKING BRK SHOE
8-98043-954-0
01
1
1405-
●
23
SCREW; ADJ,PARKING BRK SHOE
8-98043-963-0
01
1
1405-
●
24
SPRING; BRK SHOE
8-94132-155-1
02
1
1405-
●
25
SPRING; SHOE ALIGNMENT
8-94132-156-0
01
1
1405-
●
26
PLATE; SHOE GUIDE
8-98043-959-0
01
1
1405-
●
29
LEVER; PARKING BRK
8-98043-949-0
01
1
1405-
●
30
STRUT; PARKING BRK
8-98043-953-0
01
1
1405-
●
31
SPRING; SHOE TO STRUT
8-94132-158-0
01
1
1405-
●
32
PLATE; SUPPORT,PARKING BRK
8-97308-176-0
01
1
1405-
●
32
PLATE; SUPPORT,PARKING BRK
1-46213-069-0
01
1
1405-
●
34
PIN; BRK SHOE
8-98043-955-0
02
1
1405-
●
37
NUT; SUPPORT PLATE
M12 LOCK NUT
8-98029-927-0
04
1
1405-
●
37
NUT; SUPPORT PLATE
M14 FLANGE
8-97365-444-0
04
1
1405-
●
48
RETAINER; PIN,PARKING BRK
8-98043-958-0
01
1
1405-
●
112
BOLT; COVER TO BRK DRUM
M6X16 W/LK WASHER THA
0-50540-616-0
01
1
1405-
●
114
STUD; SUPPORT PLATE
8-98029-929-0
04
1
1405-
●
114
STUD; SUPPORT PLATE
M14X22.5 L=42.5
8-97365-445-0
04
1
1405-
●
172
CUP; SHOE HOLD
8-98043-956-0
04
1
1405-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
