◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11129 - FVM(THAI)EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#13951) — 278 parça

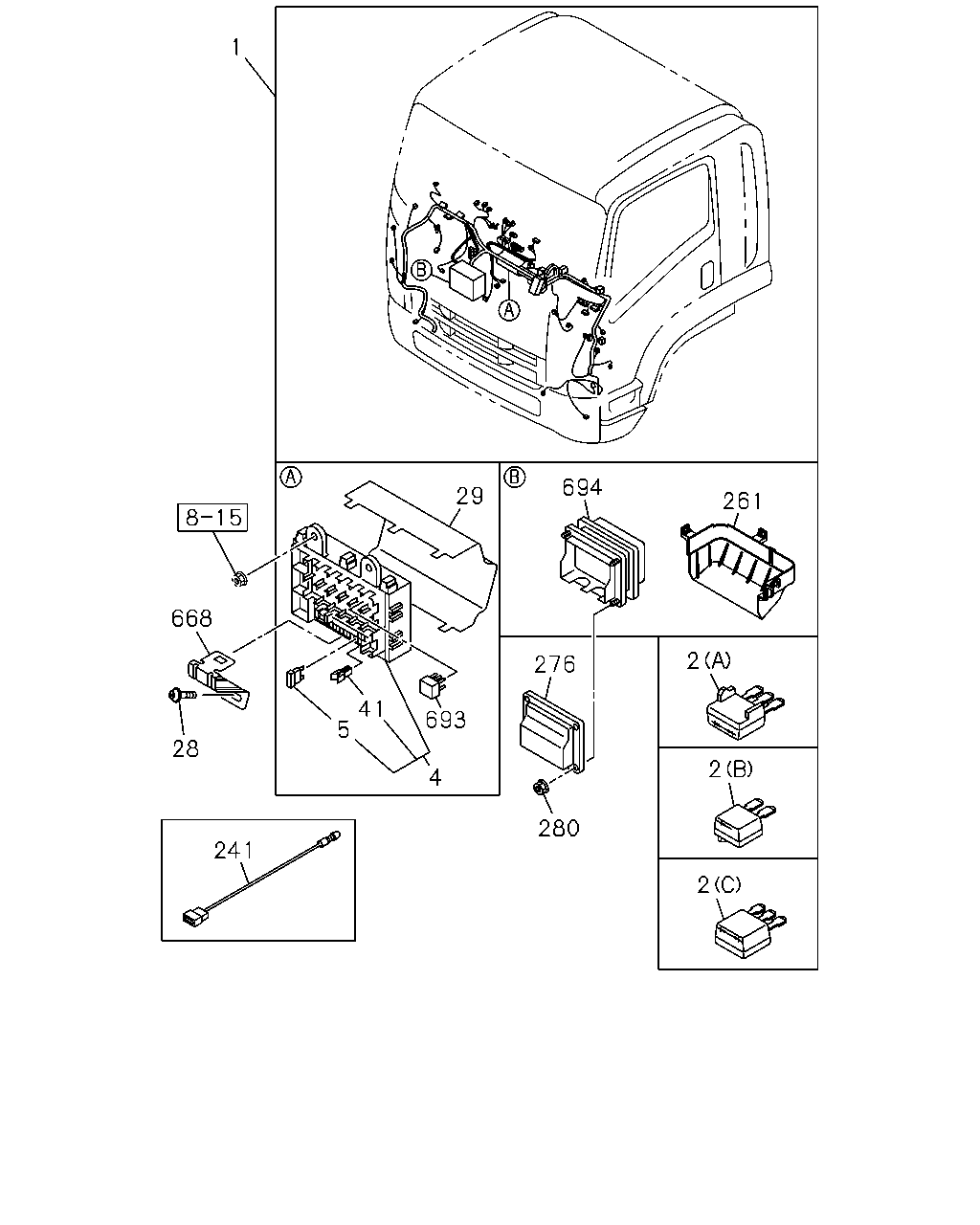

çizim 98245
29 694 261 668 28 5 41 693 4 276 280 2 2 2 241 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98166-074-1 01 1 1004-1102
1 HARNESS; CAB
ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98166-074-1 01 1 1103-
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> THA 		8-98166-075-1 01 1 1004-1102
1 HARNESS; CAB
MZW6P M/T<RSZ> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> THA 		8-98181-821-0 01 1 1103-
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> REMOTE CONT DOOR LOCK<6NF> THA 		8-98130-416-1 01 1 0808-0904
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> REMOTE CONT DOOR LOCK<6NF> THA 		8-98145-048-1 01 1 0905-1001
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. REMOTE CONT DOOR LOCK<6NF> THA 		8-98130-415-1 01 1 0808-0904
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. REMOTE CONT DOOR LOCK<6NF> THA 		8-98145-047-1 01 1 0905-1001
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> THA 		8-98145-047-1 01 1 1002-1003
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. VIN MODEL YEAR 2010<VZA> THA 		8-98145-047-1 01 1 1004-1102
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> REMOTE CONT DOOR LOCK<6NF> THA 		8-98099-554-2 01 1 0807-0807
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> REMOTE CONT DOOR LOCK<6NF> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98099-554-2 01 1 0808-0904
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> REMOTE CONT DOOR LOCK<6NF> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98145-044-1 01 1 0905-1001
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. REMOTE CONT DOOR LOCK<6NF> THA 		8-98099-553-2 01 1 0807-0807
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. ANTI LOCK BRAKE<JE5>,REMOTE CONT DOOR LOCK<6NF> THA 		8-98099-553-2 01 1 0808-0904
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. ANTI LOCK BRAKE<JE5>,REMOTE CONT DOOR LOCK<6NF> THA 		8-98145-043-1 01 1 0905-1001
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98145-043-1 01 1 1002-1003
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. ANTI LOCK BRAKE<JE5>,VIN MODEL YEAR 2010<VZA> THA 		8-98145-043-1 01 1 1004-1102
1 HARNESS; CAB
MZW6P M/T<RSZ> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98166-073-1 01 1 1103-
2 DIODE; CABLE HARNESS
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> (B) BLACK 2P-1.5A THA 		8-94422-639-1 01 1 0808-0904
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A THA 		8-94416-438-1 01 1 0807-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A THA 		8-94422-639-1 02 1 0807-0807
2 DIODE; CABLE HARNESS
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. ANTI LOCK BRAKE<JE5> (B) BLACK 2P-1.5A THA 		8-94422-639-1 02 1 0808-0904
2 DIODE; CABLE HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) BLACK 2P-1.5A THA 		8-94422-639-1 03 1 0905-1003
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A THA 		8-94422-639-1 03 1 1004-
2 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A THA 		8-94422-640-1 01 1 0807-0807
2 DIODE; CABLE HARNESS
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. ANTI LOCK BRAKE<JE5> (C) BLACK 3P-1.5A THA 		8-94422-640-1 01 1 0808-0904
2 DIODE; CABLE HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C) BLACK 3P-1.5A THA 		8-94422-640-1 01 1 0905-1003
2 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A THA 		8-94422-640-1 01 1 1004-
4 BOX ASM; FUSE,HARNESS
THA 		8-98065-666-0 01 1 0807-
5 FUSE; FACIA HARNESS
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> 25A WHITE THA 		8-98062-982-0 02 1 0808-0904
5 FUSE; FACIA HARNESS
10A RED THA 		8-98054-257-0 AR 1 0807-
5 FUSE; FACIA HARNESS
15A BLUE THA 		8-98054-258-0 AR 1 0807-
5 FUSE; FACIA HARNESS
20A YELLOW THA 		8-98054-259-0 AR 1 0807-
5 FUSE; FACIA HARNESS
25A WHITE THA 		8-98062-982-0 01 1 0807-0807
5 FUSE; FACIA HARNESS
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. ANTI LOCK BRAKE<JE5> 25A WHITE THA 		8-98062-982-0 01 1 0808-0904
5 FUSE; FACIA HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 25A WHITE THA 		8-98062-982-0 02 1 0905-1003
5 FUSE; FACIA HARNESS
25A WHITE THA 		8-98062-982-0 02 1 1004-
28 SCREW; FUSE BOX
M6X16 FLANGE THA 		0-28650-616-0 01 1 0807-
29 COVER; FUSE BOX
THA 		8-98056-968-0 01 1 0807-
41 PULLER; FUSE
THA 		8-98054-260-0 01 1 0807-
241 HARNESS; MARKER LAMP
THA 		8-97924-671-0 01 1 0807-
261 COVER; CONNECTOR BOX
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> HALOGEN HEADLAMPS<TT5> THA 		8-98065-986-1 01 1 1103-1107
261 COVER; CONNECTOR BOX
THA 		8-98065-986-1 01 1 1108-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 0807-
280 NUT; BOX ASM FIX
M6 FLANGE THA 		0-91180-106-0 04 1 0807-
668 BRACKET; HARNESS 8-98095-653-2 01 1 0807-
693 RELAY; FUSE BOX
24V 10A PANASONIC THA 		8-97173-035-1 AR 1 0807-
694 BOX ASM; CONNECTOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> HALOGEN HEADLAMPS<TT5> THA 		8-98057-771-0 01 1 1103-1107
694 BOX ASM; CONNECTOR
THA 		8-98057-771-0 01 1 1108-
694 BOX ASM; CONNECTOR 8-98063-269-1 01 1 0807-1102

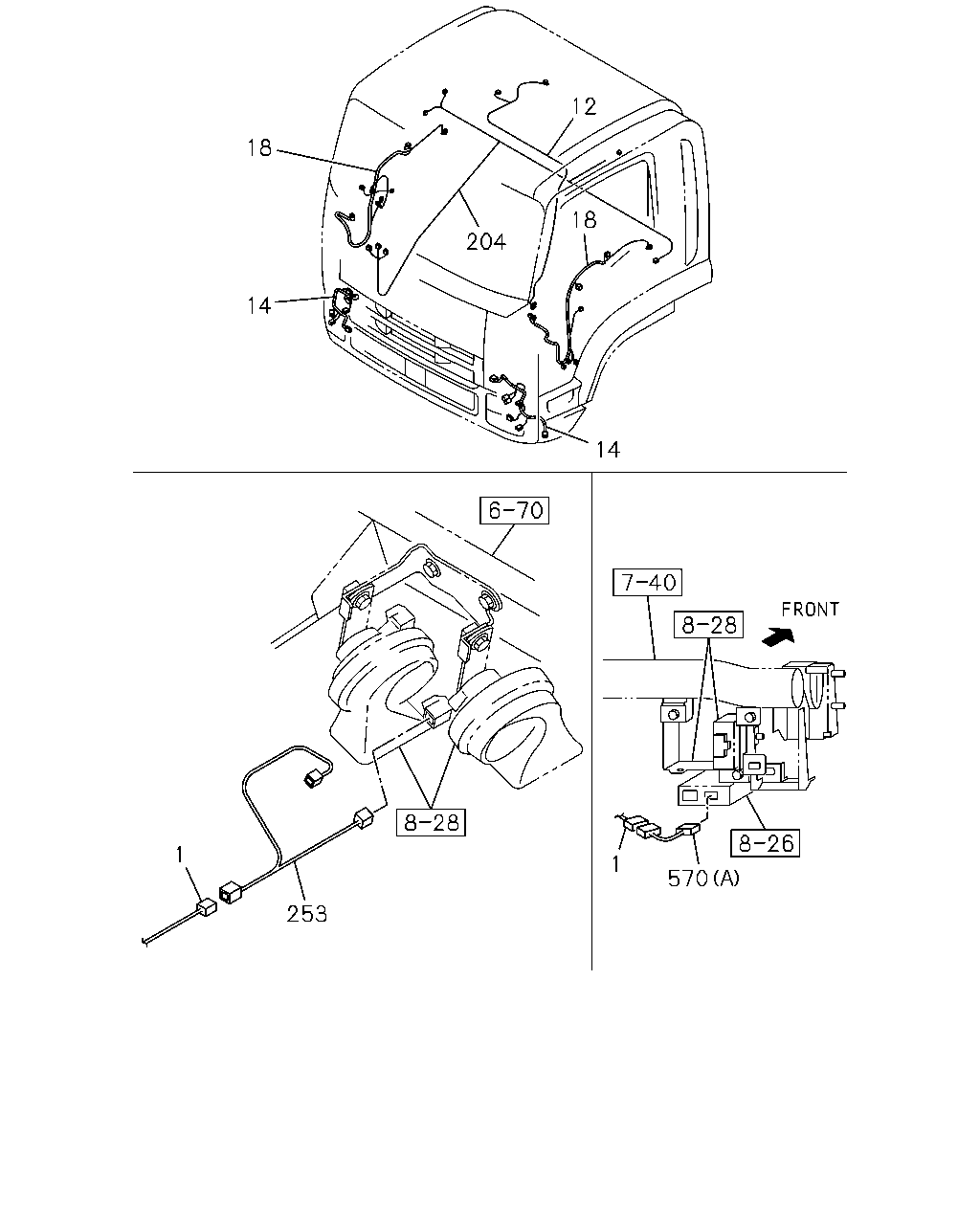

çizim 98313
12 18 18 204 14 14 1 1 570 253
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98166-074-1 01 1 1004-1102
1 HARNESS; CAB
ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98166-074-1 01 1 1103-
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> THA 		8-98166-075-1 01 1 1004-1102
1 HARNESS; CAB
MZW6P M/T<RSZ> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> THA 		8-98181-821-0 01 1 1103-
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> REMOTE CONT DOOR LOCK<6NF> THA 		8-98130-416-1 01 1 0808-0904
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> REMOTE CONT DOOR LOCK<6NF> THA 		8-98145-048-1 01 1 0905-1001
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. REMOTE CONT DOOR LOCK<6NF> THA 		8-98130-415-1 01 1 0808-0904
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. REMOTE CONT DOOR LOCK<6NF> THA 		8-98145-047-1 01 1 0905-1001
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> THA 		8-98145-047-1 01 1 1002-1003
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. VIN MODEL YEAR 2010<VZA> THA 		8-98145-047-1 01 1 1004-1102
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> REMOTE CONT DOOR LOCK<6NF> THA 		8-98099-554-2 01 1 0807-0807
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> REMOTE CONT DOOR LOCK<6NF> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98099-554-2 01 1 0808-0904
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> REMOTE CONT DOOR LOCK<6NF> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98145-044-1 01 1 0905-1001
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. REMOTE CONT DOOR LOCK<6NF> THA 		8-98099-553-2 01 1 0807-0807
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. ANTI LOCK BRAKE<JE5>,REMOTE CONT DOOR LOCK<6NF> THA 		8-98099-553-2 01 1 0808-0904
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. ANTI LOCK BRAKE<JE5>,REMOTE CONT DOOR LOCK<6NF> THA 		8-98145-043-1 01 1 0905-1001
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98145-043-1 01 1 1002-1003
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. ANTI LOCK BRAKE<JE5>,VIN MODEL YEAR 2010<VZA> THA 		8-98145-043-1 01 1 1004-1102
1 HARNESS; CAB
MZW6P M/T<RSZ> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98166-073-1 01 1 1103-
12 HARNESS; ROOF
THA 		8-97924-274-0 01 1 0807-
14 HARNESS; HEADLAMP
THA 		8-94270-986-0 02 1 0807-
14 HARNESS; HEADLAMP 8-98069-166-0 02 1 0807-1302
18 HARNESS; DOOR
THA 		8-98076-304-3 01 1 1103-
18 HARNESS; DOOR
THA 		8-98076-305-3 01 1 1103-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> DRIVER THA 		8-98108-439-1 01 1 0807-1003
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> PASSENGER THA 		8-98108-440-1 01 1 0807-1003
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> DRIVER THA 		8-98076-304-3 01 1 0807-1003
18 HARNESS; DOOR
DRIVER THA 		8-98076-304-3 01 1 1004-1102
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> PASSENGER THA 		8-98076-305-3 01 1 0807-1003
18 HARNESS; DOOR
PASSENGER THA 		8-98076-305-3 01 1 1004-1102
204 HARNESS; CABLE,FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		8-98081-205-2 01 1 1108-
204 HARNESS; CABLE,FLOOR
THA 		8-98081-206-2 01 1 0807-1102
204 HARNESS; CABLE,FLOOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		8-98081-206-2 01 1 1103-
253 HARNESS; EXT,HORN
DUAL HEAVY DUTY HORN<6KK> EXC. VIN MODEL YEAR 2010<VZA> 		8-98074-080-1 01 1 1004-1102
253 HARNESS; EXT,HORN
ELECTRICAL HORN<WB7> 		8-98074-081-1 01 1 0807-1001
253 HARNESS; EXT,HORN 8-98159-227-0 01 1 1002-1003
253 HARNESS; EXT,HORN
EXC. VIN MODEL YEAR 2010<VZA>,DUAL HEAVY DUTY HORN<6KK> 		8-98159-227-0 01 1 1004-1102
253 HARNESS; EXT,HORN
EXC. ELECTRICAL HORN<WB7> 		8-98074-080-1 01 1 0807-1001
570 HARNESS; SPEED SENSOR
(B) 		1-82659-230-0 01 1 0807-1004
570 HARNESS; SPEED SENSOR
(B) 		8-98148-602-0 01 1 1005-1102
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T<Y5E> (B) 		8-98148-602-0 01 1 1103-
570 HARNESS; SPEED SENSOR
(A) 		8-98058-327-1 01 1 0807-1003
570 HARNESS; SPEED SENSOR
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> EXC. VIN MODEL YEAR 2010<VZA> (A) 		8-98058-327-1 01 1 1004-1102

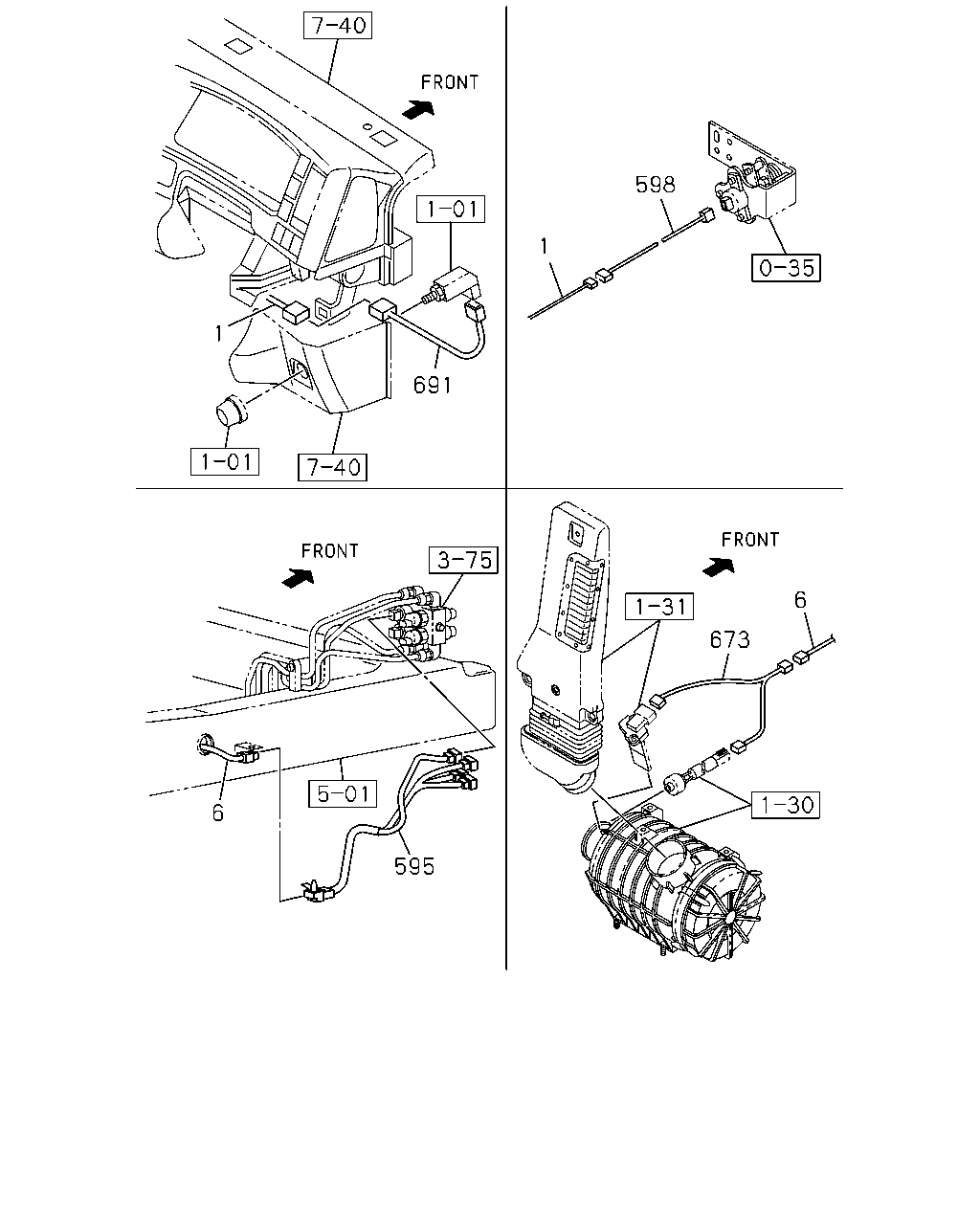

çizim 98334
598 1 1 691 6 673 6 595
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98166-074-1 01 1 1004-1102
1 HARNESS; CAB
ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98166-074-1 01 1 1103-
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> THA 		8-98166-075-1 01 1 1004-1102
1 HARNESS; CAB
MZW6P M/T<RSZ> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> THA 		8-98181-821-0 01 1 1103-
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> REMOTE CONT DOOR LOCK<6NF> THA 		8-98130-416-1 01 1 0808-0904
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> REMOTE CONT DOOR LOCK<6NF> THA 		8-98145-048-1 01 1 0905-1001
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. REMOTE CONT DOOR LOCK<6NF> THA 		8-98130-415-1 01 1 0808-0904
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. REMOTE CONT DOOR LOCK<6NF> THA 		8-98145-047-1 01 1 0905-1001
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> THA 		8-98145-047-1 01 1 1002-1003
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. VIN MODEL YEAR 2010<VZA> THA 		8-98145-047-1 01 1 1004-1102
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> REMOTE CONT DOOR LOCK<6NF> THA 		8-98099-554-2 01 1 0807-0807
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> REMOTE CONT DOOR LOCK<6NF> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98099-554-2 01 1 0808-0904
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> REMOTE CONT DOOR LOCK<6NF> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98145-044-1 01 1 0905-1001
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. REMOTE CONT DOOR LOCK<6NF> THA 		8-98099-553-2 01 1 0807-0807
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. ANTI LOCK BRAKE<JE5>,REMOTE CONT DOOR LOCK<6NF> THA 		8-98099-553-2 01 1 0808-0904
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. ANTI LOCK BRAKE<JE5>,REMOTE CONT DOOR LOCK<6NF> THA 		8-98145-043-1 01 1 0905-1001
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98145-043-1 01 1 1002-1003
1 HARNESS; CAB
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. ANTI LOCK BRAKE<JE5>,VIN MODEL YEAR 2010<VZA> THA 		8-98145-043-1 01 1 1004-1102
1 HARNESS; CAB
MZW6P M/T<RSZ> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98166-073-1 01 1 1103-
6 HARNESS; FRAME
MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		8-97925-497-3 01 1 1108-
6 HARNESS; FRAME
ZF6S1000 M/T<Y5D> ANTI LOCK BRAKE<JE5> THA 		8-97924-832-0 01 1 0808-1102
6 HARNESS; FRAME
MZW6P M/T<RSZ> ANTI LOCK BRAKE<JE5> THA 		8-97925-496-2 01 1 1103-
6 HARNESS; FRAME
ZF6S1000 M/T<Y5D> THA 		8-97923-691-1 01 1 0807-0807
6 HARNESS; FRAME
ZF6S1000 M/T<Y5D> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97923-691-1 01 1 0808-1102
6 HARNESS; FRAME
MZW6P M/T<RSZ> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97925-495-2 01 1 1103-1107
6 HARNESS; FRAME
MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97925-495-2 01 1 1108-
6 HARNESS; FRAME
ZF9S1110 M/T<Y5E> THA 		8-97923-692-2 01 1 0807-0807
6 HARNESS; FRAME
ZF9S1110 M/T<Y5E> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97923-692-2 01 1 0808-1102
6 HARNESS; FRAME
ZF9S1110 M/T<Y5E> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97925-498-2 01 1 1103-
595 HARNESS; WARNING,BRK 8-97620-487-1 01 1 0807-0809
595 HARNESS; WARNING,BRK
THA 		8-97924-875-0 01 1 0810-
598 HARNESS; EXT,PTO
PTO CONTROL<SV6> 		1-82675-898-0 01 1 1103-
673 HARNESS; EXT,SENSOR 8-98098-510-0 01 1 0807-1102
673 HARNESS; EXT,SENSOR 8-98069-172-0 01 1 1103-
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 0807-

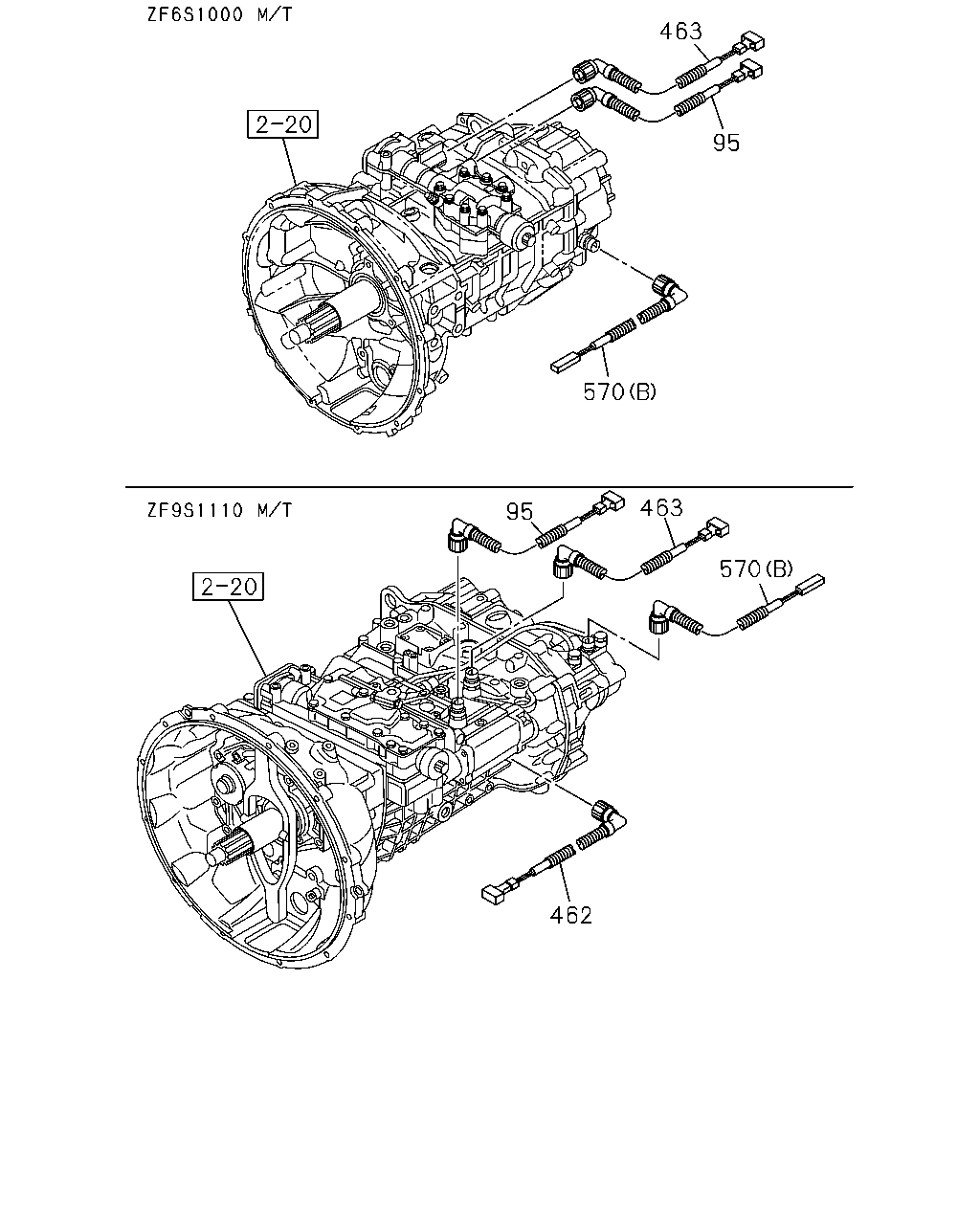

çizim 98336
463 95 570 463 95 570 462
BalonParca AdiParca NoAdetTipApplied Date
95 HARNESS; NEUTRAL SW
RED 		8-98071-232-0 01 1 0807-0905
95 HARNESS; NEUTRAL SW
RED 		8-98145-855-0 01 1 0906-1102
95 HARNESS; NEUTRAL SW
ZF9S1110 M/T<Y5E> RED 		8-98145-855-0 01 1 1103-
462 HARNESS; SW,RANGE
ZF9S1110 M/T<Y5E> BLUE 		1-82659-228-0 01 1 0807-0905
462 HARNESS; SW,RANGE
ZF9S1110 M/T<Y5E> BLUE 		8-98145-857-0 01 1 0906-
463 HARNESS; SW,BACK UP 1-82659-227-0 01 1 0807-0905
463 HARNESS; SW,BACK UP
BLACK 		8-98145-856-0 01 1 0906-1102
463 HARNESS; SW,BACK UP
ZF9S1110 M/T<Y5E> BLACK 		8-98145-856-0 01 1 1103-
570 HARNESS; SPEED SENSOR
(B) 		1-82659-230-0 01 1 0807-1004
570 HARNESS; SPEED SENSOR
(B) 		8-98148-602-0 01 1 1005-1102
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T<Y5E> (B) 		8-98148-602-0 01 1 1103-
570 HARNESS; SPEED SENSOR
(A) 		8-98058-327-1 01 1 0807-1003
570 HARNESS; SPEED SENSOR
ZF6S1000 M/T<Y5D>,ZF9S1110 M/T<Y5E> EXC. VIN MODEL YEAR 2010<VZA> (A) 		8-98058-327-1 01 1 1004-1102

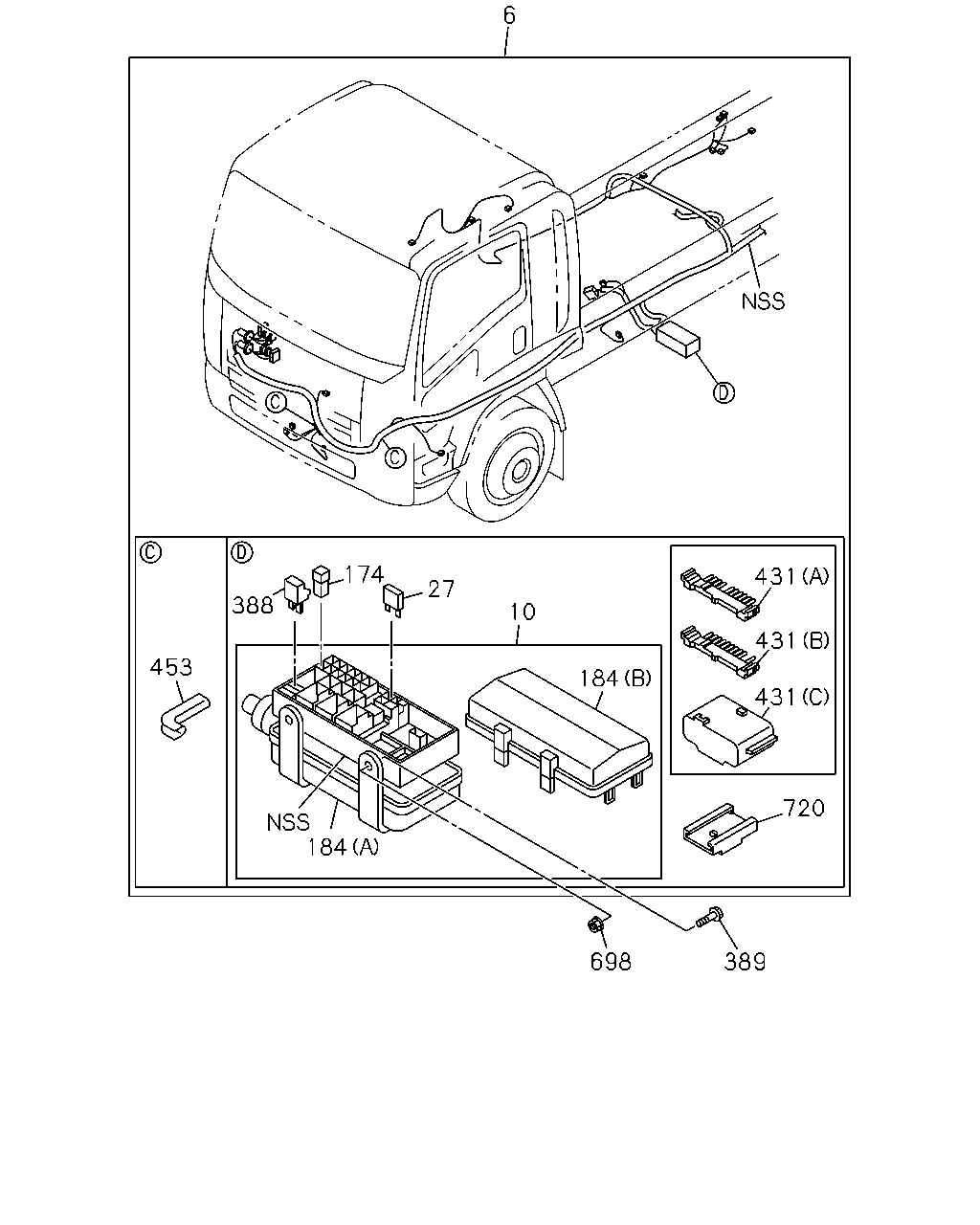

çizim 98426
6 174 431 27 388 10 431 453 184 431 720 184 698 389
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		8-97925-497-3 01 1 1108-
6 HARNESS; FRAME
ZF6S1000 M/T<Y5D> ANTI LOCK BRAKE<JE5> THA 		8-97924-832-0 01 1 0808-1102
6 HARNESS; FRAME
MZW6P M/T<RSZ> ANTI LOCK BRAKE<JE5> THA 		8-97925-496-2 01 1 1103-
6 HARNESS; FRAME
ZF6S1000 M/T<Y5D> THA 		8-97923-691-1 01 1 0807-0807
6 HARNESS; FRAME
ZF6S1000 M/T<Y5D> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97923-691-1 01 1 0808-1102
6 HARNESS; FRAME
MZW6P M/T<RSZ> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97925-495-2 01 1 1103-1107
6 HARNESS; FRAME
MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97925-495-2 01 1 1108-
6 HARNESS; FRAME
ZF9S1110 M/T<Y5E> THA 		8-97923-692-2 01 1 0807-0807
6 HARNESS; FRAME
ZF9S1110 M/T<Y5E> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97923-692-2 01 1 0808-1102
6 HARNESS; FRAME
ZF9S1110 M/T<Y5E> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97925-498-2 01 1 1103-
10 BOX; FUSE,HARNESS
THA 		8-98030-762-0 01 1 0807-
27 FUSE UNIT
10A RED THA 		8-98054-257-0 01 1 1105-
27 FUSE UNIT
15A BLUE THA 		8-98054-258-0 02 1 1105-
27 FUSE UNIT
10A RED THA 		8-98054-257-0 01 1 0807-
27 FUSE UNIT
15A BLUE THA 		8-98054-258-0 01 1 0807-
174 FUSE; SLOW BLOW
60A YELLOW THA 		8-97219-407-0 01 1 1111-
174 FUSE; SLOW BLOW
30A PINK THA 		8-98079-191-0 01 1 1105-
174 FUSE; SLOW BLOW
40A GREEN THA 		8-98079-192-0 01 1 1105-
174 FUSE; SLOW BLOW
50A RED THA 		8-98079-193-0 03 1 1105-
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW THA 		8-97219-407-0 02 1 1105-1110
174 FUSE; SLOW BLOW
30A PINK THA 		8-98079-191-0 01 1 0807-
174 FUSE; SLOW BLOW
40A GREEN THA 		8-98079-192-0 01 1 0807-
174 FUSE; SLOW BLOW
50A RED THA 		8-98079-193-0 04 1 0807-1102
174 FUSE; SLOW BLOW
50A RED THA 		8-98079-193-0 03 1 1103-
174 FUSE; SLOW BLOW
60A YELLOW THA 		8-98079-194-0 02 1 0807-1102
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW THA 		8-97219-407-0 02 1 1103-1110
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW THA 		8-97219-407-0 01 1 1111-
184 COVER; RELAY & FUSE BOX
(A) THA 		8-98030-766-0 01 1 0807-
184 COVER; RELAY & FUSE BOX
(B) THA 		8-98030-767-1 01 1 0807-
388 DIODE; RELAY BOX
BLACK 2P-1.5A THA 		8-94422-639-1 01 1 0807-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER THA 		1-09030-073-0 03 1 0807-
431 CONNECTOR; JOINT
(A) 10P BLUE THA 		1-82699-598-0 04 1 1103-1107
431 CONNECTOR; JOINT
ZF9S1110 M/T<Y5E> (A) 10P BLUE THA 		1-82699-598-0 04 1 1108-
431 CONNECTOR; JOINT
MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) 10P BLUE THA 		1-82699-598-0 04 1 1108-
431 CONNECTOR; JOINT
MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) 10P BLUE THA 		1-82699-598-0 03 1 1108-
431 CONNECTOR; JOINT
(B) 10P GREEN THA 		1-82698-579-0 01 1 0807-1102
431 CONNECTOR; JOINT
(A) 10P BLUE THA 		1-82699-598-0 03 1 0807-1102
431 CONNECTOR; JOINT
(C) 6P BLACK THA 		8-97616-194-0 01 1 0807-1102
453 PROTECTOR; HARNESS
THA 		1-82699-709-0 01 1 0807-
698 NUT; COVER,RELAY BOX
M8 FLANGE THA 		0-91180-108-0 02 1 0807-
720 ATTACHMENT; CONNECTOR
THA 		1-82699-688-0 03 1 0807-1102
720 ATTACHMENT; CONNECTOR
THA 		1-82699-688-0 01 1 1103-

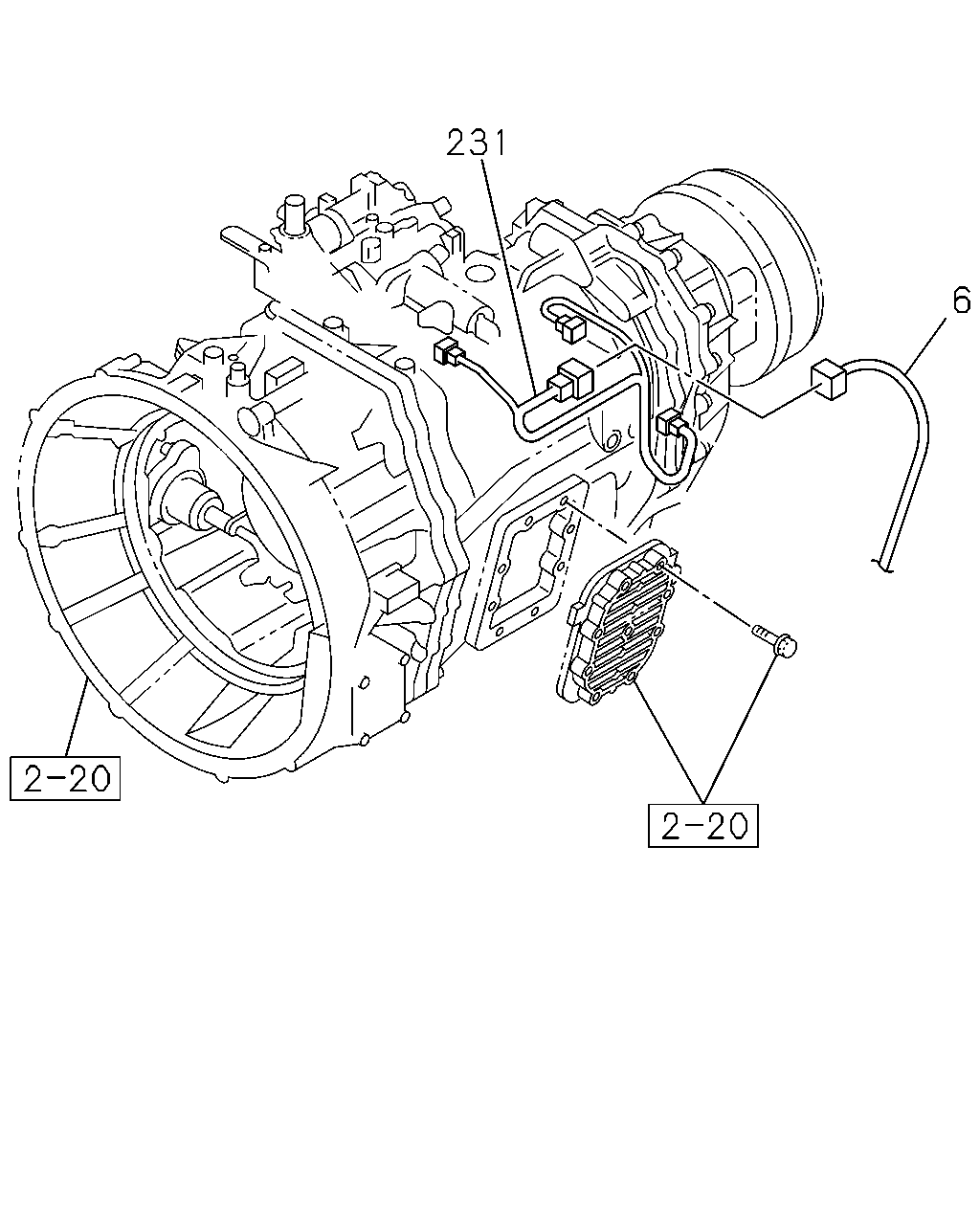

çizim 106962
231 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		8-97925-497-3 01 1 1108-
6 HARNESS; FRAME
ZF6S1000 M/T<Y5D> ANTI LOCK BRAKE<JE5> THA 		8-97924-832-0 01 1 0808-1102
6 HARNESS; FRAME
MZW6P M/T<RSZ> ANTI LOCK BRAKE<JE5> THA 		8-97925-496-2 01 1 1103-
6 HARNESS; FRAME
ZF6S1000 M/T<Y5D> THA 		8-97923-691-1 01 1 0807-0807
6 HARNESS; FRAME
ZF6S1000 M/T<Y5D> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97923-691-1 01 1 0808-1102
6 HARNESS; FRAME
MZW6P M/T<RSZ> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97925-495-2 01 1 1103-1107
6 HARNESS; FRAME
MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97925-495-2 01 1 1108-
6 HARNESS; FRAME
ZF9S1110 M/T<Y5E> THA 		8-97923-692-2 01 1 0807-0807
6 HARNESS; FRAME
ZF9S1110 M/T<Y5E> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97923-692-2 01 1 0808-1102
6 HARNESS; FRAME
ZF9S1110 M/T<Y5E> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97925-498-2 01 1 1103-
231 HARNESS; TRANS
MZW6P M/T<RSZ> THA 		8-97924-273-0 01 1 1103-

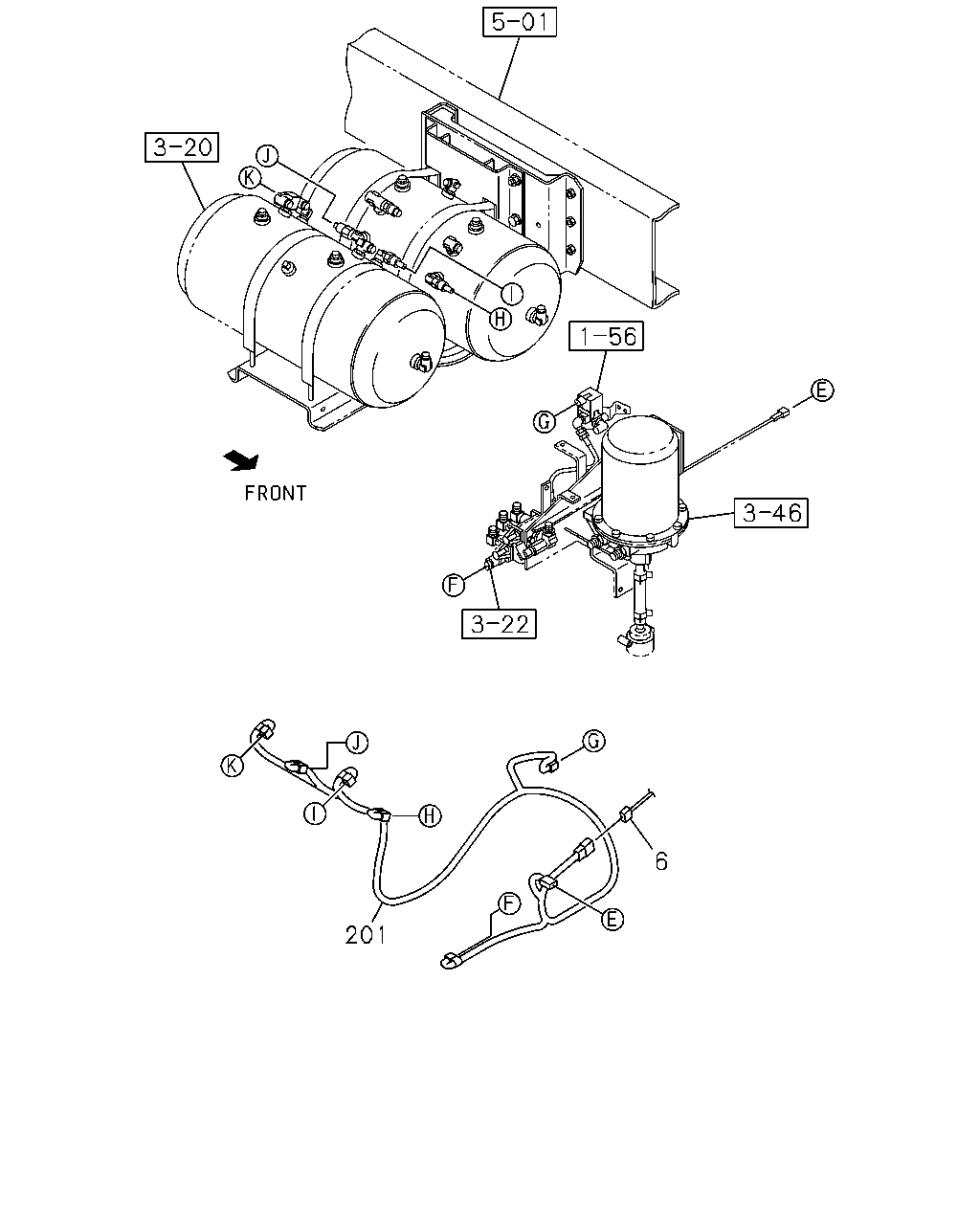

çizim 106979
6 201
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		8-97925-497-3 01 1 1108-
6 HARNESS; FRAME
ZF6S1000 M/T<Y5D> ANTI LOCK BRAKE<JE5> THA 		8-97924-832-0 01 1 0808-1102
6 HARNESS; FRAME
MZW6P M/T<RSZ> ANTI LOCK BRAKE<JE5> THA 		8-97925-496-2 01 1 1103-
6 HARNESS; FRAME
ZF6S1000 M/T<Y5D> THA 		8-97923-691-1 01 1 0807-0807
6 HARNESS; FRAME
ZF6S1000 M/T<Y5D> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97923-691-1 01 1 0808-1102
6 HARNESS; FRAME
MZW6P M/T<RSZ> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97925-495-2 01 1 1103-1107
6 HARNESS; FRAME
MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97925-495-2 01 1 1108-
6 HARNESS; FRAME
ZF9S1110 M/T<Y5E> THA 		8-97923-692-2 01 1 0807-0807
6 HARNESS; FRAME
ZF9S1110 M/T<Y5E> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97923-692-2 01 1 0808-1102
6 HARNESS; FRAME
ZF9S1110 M/T<Y5E> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97925-498-2 01 1 1103-
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		8-98167-262-1 01 1 1108-
201 HARNESS; AIR TANK
THA 		8-98060-672-1 01 1 0807-1102
201 HARNESS; AIR TANK
THA 		8-98175-322-0 01 1 1103-1107
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		8-98175-322-0 01 1 1108-

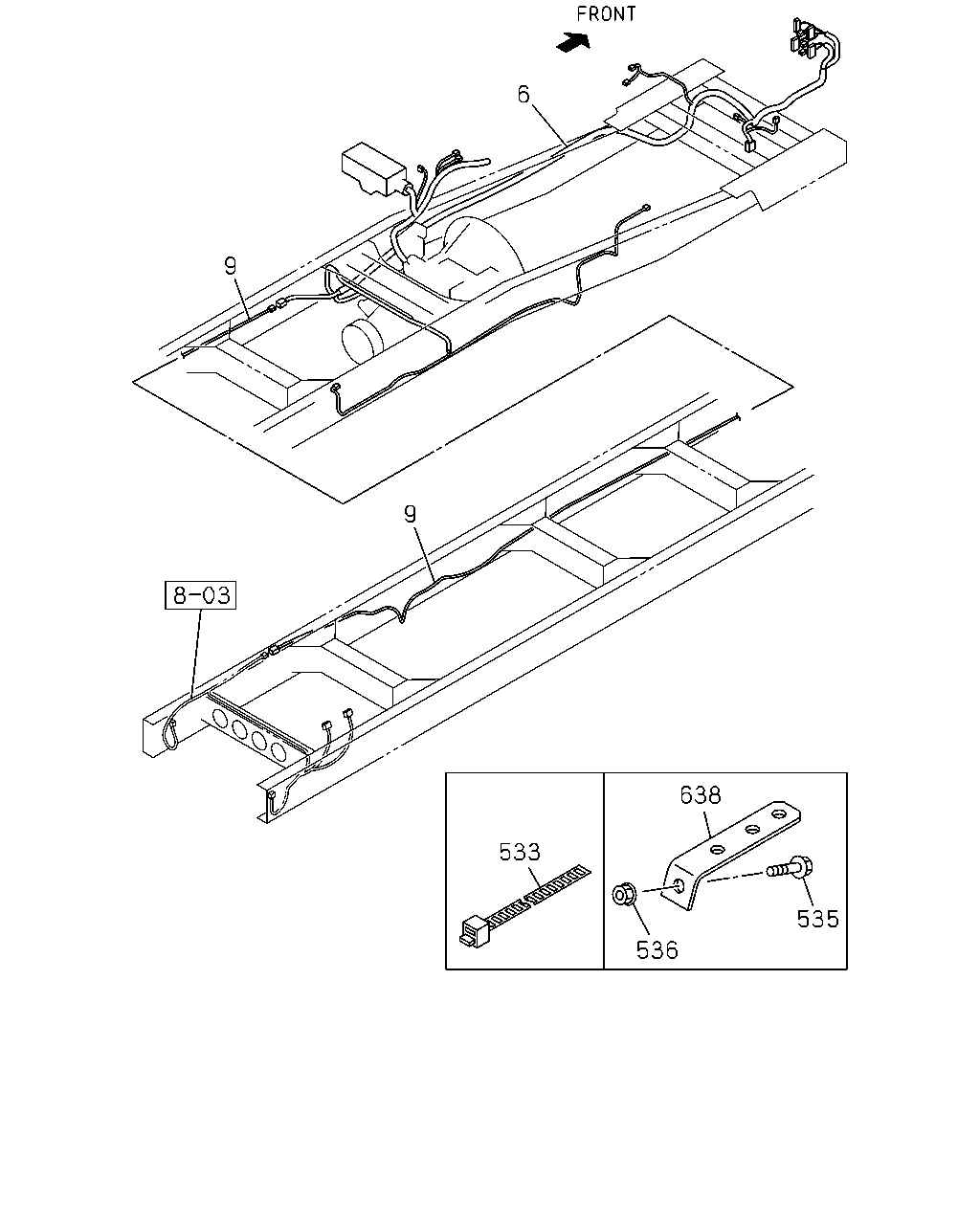

çizim 106991
6 9 9 638 533 535 536
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		8-97925-497-3 01 1 1108-
6 HARNESS; FRAME
ZF6S1000 M/T<Y5D> ANTI LOCK BRAKE<JE5> THA 		8-97924-832-0 01 1 0808-1102
6 HARNESS; FRAME
MZW6P M/T<RSZ> ANTI LOCK BRAKE<JE5> THA 		8-97925-496-2 01 1 1103-
6 HARNESS; FRAME
ZF6S1000 M/T<Y5D> THA 		8-97923-691-1 01 1 0807-0807
6 HARNESS; FRAME
ZF6S1000 M/T<Y5D> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97923-691-1 01 1 0808-1102
6 HARNESS; FRAME
MZW6P M/T<RSZ> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97925-495-2 01 1 1103-1107
6 HARNESS; FRAME
MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97925-495-2 01 1 1108-
6 HARNESS; FRAME
ZF9S1110 M/T<Y5E> THA 		8-97923-692-2 01 1 0807-0807
6 HARNESS; FRAME
ZF9S1110 M/T<Y5E> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97923-692-2 01 1 0808-1102
6 HARNESS; FRAME
ZF9S1110 M/T<Y5E> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97925-498-2 01 1 1103-
9 HARNESS; FRAME,RR
WHEEL BASE 7100MM<71W> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>, ANTILOCK BRAKE<JE5> THA 		8-98200-850-0 01 1 1110-
9 HARNESS; FRAME,RR
6HK1-TCN ENG<82L> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97925-830-0 01 1 1106-1107
9 HARNESS; FRAME,RR
6HK1-TCN ENG<82L> WHEEL BASE 6300MM<63W> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97925-830-0 01 1 1108-
9 HARNESS; FRAME,RR
WHEEL BASE 7100MM<71W> THA 		8-97925-921-0 01 1 1110-
9 HARNESS; FRAME,RR
MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA 		8-97925-482-0 01 1 1108-
9 HARNESS; FRAME,RR
MZW6P M/T<RSZ> WHEEL BASE 5800MM<58W> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA 		8-97925-483-0 01 1 1108-
9 HARNESS; FRAME,RR
WHEEL BASE 6300MM<63W> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>, ANTILOCK BRAKE<JE5> THA 		8-97925-484-0 01 1 1108-
9 HARNESS; FRAME,RR
ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> THA 		8-97924-833-0 01 1 0808-1102
9 HARNESS; FRAME,RR
MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97925-542-0 01 1 1103-1107
9 HARNESS; FRAME,RR
MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97925-542-0 01 1 1108-
9 HARNESS; FRAME,RR
WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> THA 		8-97924-834-0 01 1 0808-1107
9 HARNESS; FRAME,RR
WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA 		8-97924-834-0 01 1 1108-
9 HARNESS; FRAME,RR
WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> THA 		8-97924-835-0 01 1 0808-1105
9 HARNESS; FRAME,RR
6HK1-TCN ENG<82L> WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> THA 		8-97925-831-0 01 1 1106-1107
9 HARNESS; FRAME,RR
6HK1-TCN ENG<82L> WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA 		8-97925-831-0 01 1 1108-
9 HARNESS; FRAME,RR
ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> THA 		8-97924-223-2 01 1 0807-0807
9 HARNESS; FRAME,RR
ZF6S1000 M/T<Y5D> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97924-223-2 01 1 0808-1102
9 HARNESS; FRAME,RR
MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> THA 		8-97925-481-0 01 1 1103-1107
9 HARNESS; FRAME,RR
MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA 		8-97925-481-0 01 1 1108-
9 HARNESS; FRAME,RR
ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> THA 		8-97923-702-2 01 1 0807-0807
9 HARNESS; FRAME,RR
ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97923-702-2 01 1 0808-
9 HARNESS; FRAME,RR
WHEEL BASE 5800MM<58W> THA 		8-97923-703-2 01 1 0807-0807
9 HARNESS; FRAME,RR
WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97923-703-2 01 1 0808-1107
9 HARNESS; FRAME,RR
WHEEL BASE 5800MM<58W> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97923-703-2 01 1 1108-
9 HARNESS; FRAME,RR
WHEEL BASE 6300MM<63W> THA 		8-97923-704-1 01 1 0807-0807
9 HARNESS; FRAME,RR
WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97923-704-1 01 1 0808-1105
9 HARNESS; FRAME,RR
6HK1-TCS ENG<80L> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97923-704-1 01 1 1106-1107
9 HARNESS; FRAME,RR
6HK1-TCS ENG<80L> WHEEL BASE 6300MM<63W> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97923-704-1 01 1 1108-
9 HARNESS; FRAME,RR
6HK1-TCN ENG<82L> WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> THA 		8-98196-263-0 01 1 1106-1107
9 HARNESS; FRAME,RR
6HK1-TCN ENG<82L> WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA 		8-98196-263-0 01 1 1108-
9 HARNESS; FRAME,RR
6HK1-TCN ENG<82L> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98196-264-0 01 1 1106-1107
9 HARNESS; FRAME,RR
6HK1-TCN ENG<82L> WHEEL BASE 6300MM<63W> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98196-264-0 01 1 1108-
9 HARNESS; FRAME,RR
6HK1-TCS ENG<80L> WHEEL BASE 6300MM<63W> POOR QUALITY DIESEL FUEL<KF0> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98060-645-1 01 1 1106-1107
9 HARNESS; FRAME,RR
6HK1-TCS ENG<80L> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5>,POOR QUALITY DIESEL FUEL<KF0> THA 		8-98116-325-0 01 1 1106-1107
533 CLIP
L=180 		1-09707-162-1 01 1 0808-1303
533 CLIP
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> L=180 		1-09707-162-1 01 1 1304-
535 BOLT; BRKT FIX
ANTI LOCK BRAKE<JE5> M8X35 FLANGE THA 		0-28650-835-0 01 1 0808-
536 NUT; BRKT FIX
ANTI LOCK BRAKE<JE5> M8 FLANGE THA 		0-91180-108-0 01 1 0808-
638 BRACKET; SPD SENSOR
ANTI LOCK BRAKE<JE5> 		1-82698-167-0 01 1 0809-

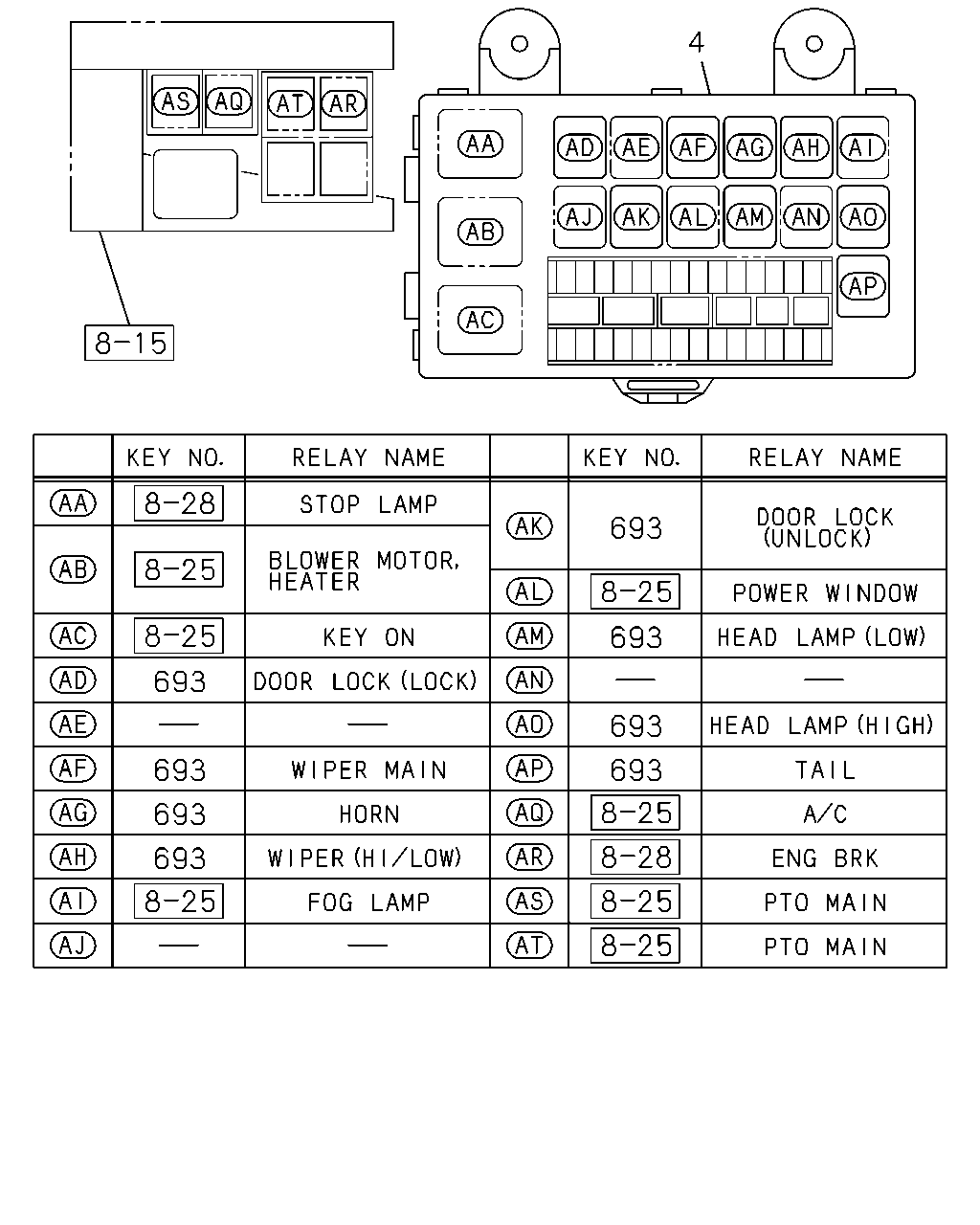

çizim 106997
4 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
THA 		8-98065-666-0 01 1 0807-
693 RELAY; FUSE BOX
24V 10A PANASONIC THA 		8-97173-035-1 AR 1 0807-

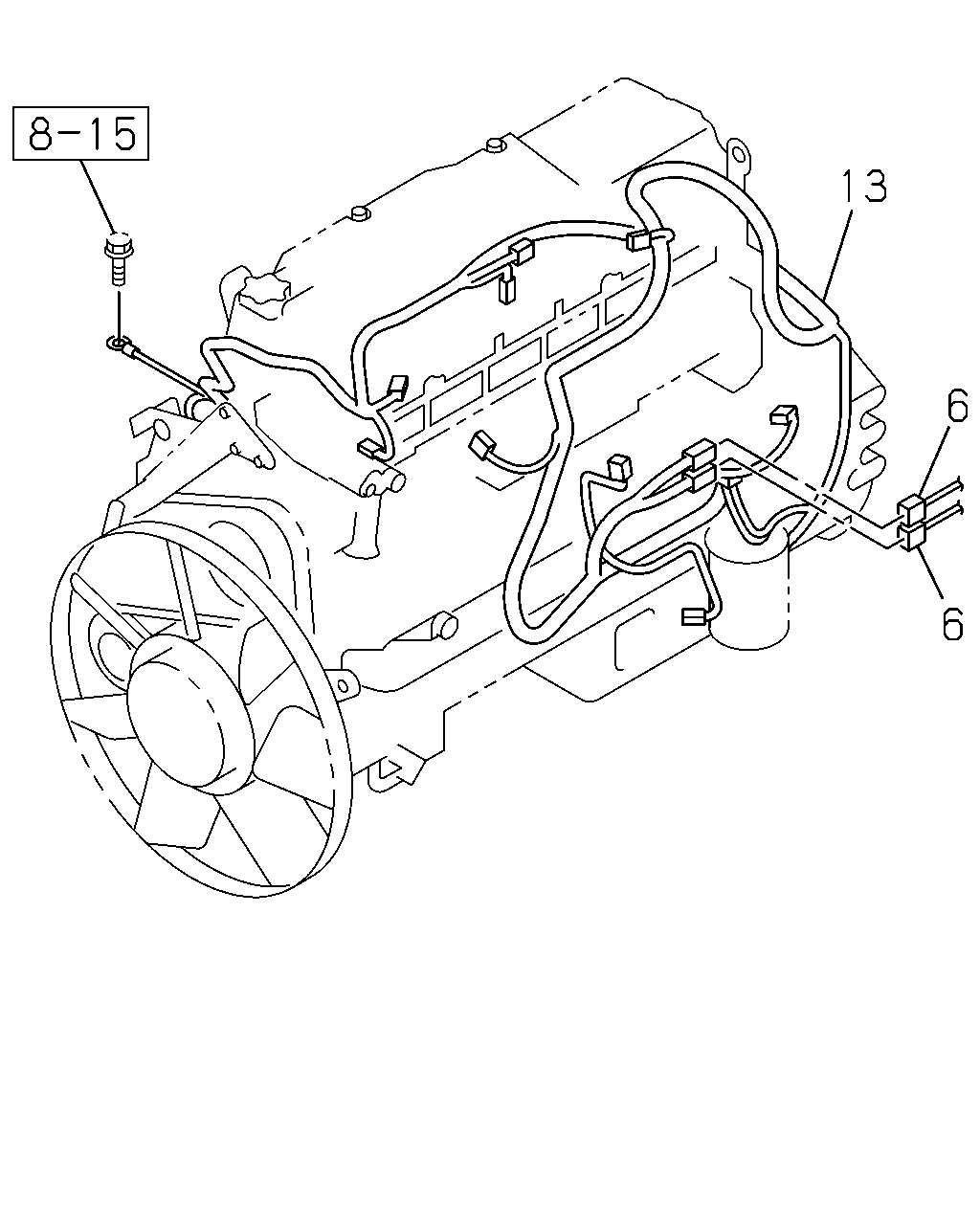

çizim 107009
13 6 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		8-97925-497-3 01 1 1108-
6 HARNESS; FRAME
ZF6S1000 M/T<Y5D> ANTI LOCK BRAKE<JE5> THA 		8-97924-832-0 01 1 0808-1102
6 HARNESS; FRAME
MZW6P M/T<RSZ> ANTI LOCK BRAKE<JE5> THA 		8-97925-496-2 01 1 1103-
6 HARNESS; FRAME
ZF6S1000 M/T<Y5D> THA 		8-97923-691-1 01 1 0807-0807
6 HARNESS; FRAME
ZF6S1000 M/T<Y5D> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97923-691-1 01 1 0808-1102
6 HARNESS; FRAME
MZW6P M/T<RSZ> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97925-495-2 01 1 1103-1107
6 HARNESS; FRAME
MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97925-495-2 01 1 1108-
6 HARNESS; FRAME
ZF9S1110 M/T<Y5E> THA 		8-97923-692-2 01 1 0807-0807
6 HARNESS; FRAME
ZF9S1110 M/T<Y5E> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97923-692-2 01 1 0808-1102
6 HARNESS; FRAME
ZF9S1110 M/T<Y5E> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97925-498-2 01 1 1103-
13 HARNESS; ENG
GENERATOR 24V60A<KG2>,GENERATOR 24V90A<K44> 		8-97616-797-8 01 1 0807-0909
13 HARNESS; ENG
GENERATOR 24V60A<KG2>,GENERATOR 24V90A<K44> 		8-98148-979-0 01 1 0910-1010
13 HARNESS; ENG
GENERATOR 24V60A<KG2>,GENERATOR 24V90A<K44> 		8-98177-188-0 01 1 1011-1102
13 HARNESS; ENG
GENERATOR 24V60A<KG2> 		8-98171-594-0 01 1 1103-
13 HARNESS; ENG
GENERATOR 24V50A<K89> 		8-97616-796-8 01 1 0807-0909
13 HARNESS; ENG
GENERATOR 24V50A<K89> 		8-98148-977-0 01 1 0910-1010
13 HARNESS; ENG
GENERATOR 24V50A<K89> 		8-98177-187-0 01 1 1011-1102
13 HARNESS; ENG
GENERATOR 24V50A<K89> 		8-98171-593-0 01 1 1103-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
