Sayfa 2-81 - Isuzu EPC

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#139507) — 117 parça

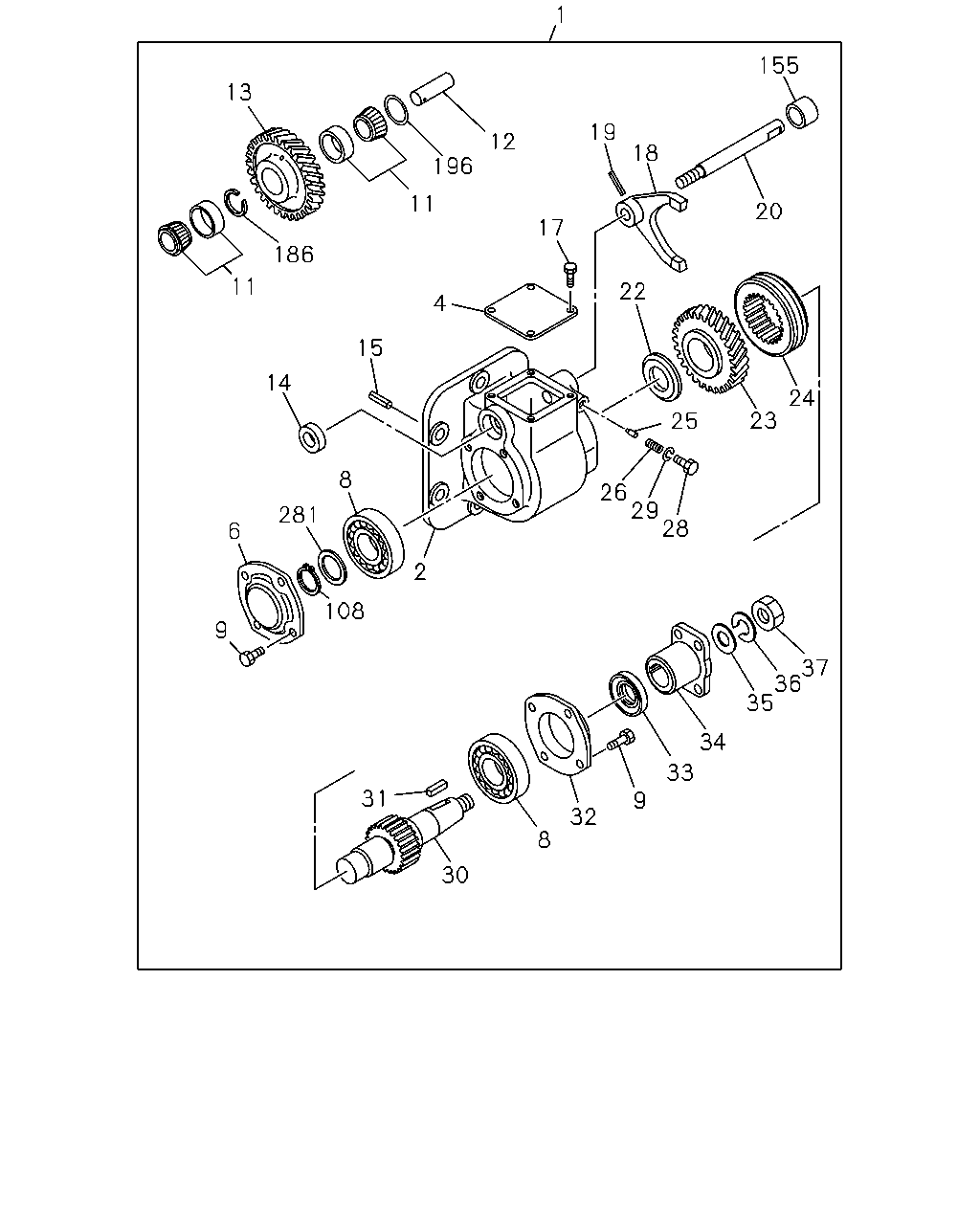

1 13 11 186 15 14 4 11 196 12 17 19 22 26 25 23 24 20 155 18 28 2 108 9 6 281 8 31 30 32 8 33 9 34 37 36 35 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> IDENTIFICATION=YG	8-98233-783-1	01	1	1405-	●
1	POWER TAKE OFF ASM; TRANS SIDE 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> NO IDENTIFICATION	8-98047-033-0	01	1	1405-		●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97308-689-2	01	1	1405-1409	●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98282-381-0	01	1	1410-	●
2	CASE; GEAR,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97309-239-1	01	1	1405-		●
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98046-613-0	01	1	1405-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98233-778-0	01	1	1405-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98046-612-0	01	1	1405-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> ID=25 OD=62	8-94343-031-1	02	1	1405-	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> M8X20 FLANGE THA	0-28050-820-0	08	1	1405-	●	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> NSK	8-97106-734-0	02	1	1405-	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98068-087-0	01	1	1405-		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	9-38211-606-0	01	1	1405-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97305-817-0	01	1	1405-		●
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> Z=31	8-97308-700-0	01	1	1405-	●
13	GEAR; IDLE,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> Z=36	8-97305-810-0	01	1	1405-		●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98028-789-0	01	1	1405-	●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	1-09625-358-0	01	1	1405-		●
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> L=16	9-09878-613-0	01	1	1405-	●
15	PIN; SPR,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> L=20 OD=4	9-09678-514-0	01	1	1405-		●
17	BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> M8X20 FLANGE THA	0-28050-820-0	04	1	1405-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97224-702-0	01	1	1405-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98009-081-0	01	1	1405-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> L=25 OD=5	8-94135-771-0	01	1	1405-	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97306-596-0	01	1	1405-		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98046-623-0	01	1	1405-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98046-934-0	01	1	1405-		●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	9-38245-603-1	01	1	1405-	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98068-086-0	01	1	1405-		●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> Z=27	8-98120-609-0	01	1	1405-	●
23	GEAR; OUTPUT,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> Z=26	8-97305-798-0	01	1	1405-		●
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97231-316-1	01	1	1405-	●
25	PIN; LK,SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-94169-071-0	01	1	1405-	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	9-09940-380-0	01	1	1405-	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97309-246-0	01	1	1405-		●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> M8	8-98038-424-0	01	1	1405-	●
29	WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> ID=8.2 THA	0-91510-808-0	01	1	1405-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98233-777-0	01	1	1405-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97374-129-1	01	1	1405-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> L=25	8-98068-088-0	01	1	1405-	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97305-794-0	01	1	1405-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	1-38159-007-0	01	1	1405-	●	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98223-519-0	01	1	1405-	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> ID=15	0-91610-514-0	01	1	1405-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> ID=14.2	0-91510-814-0	01	1	1405-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> M14	0-91111-514-0	01	1	1405-	●	●
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> ID=23.2	9-09180-025-0	01	1	1405-	●
155	PLUG; SHIFTER ROD PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98037-770-0	01	1	1405-	●
155	PLUG; SHIFTER ROD 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97309-248-0	01	1	1405-		●
186	RING; SNAP,IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97106-730-0	01	1	1405-	●
196	PIECE; THRUST PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> T=1.50	8-97106-724-0	02	1	1405-	●
196	PIECE; THRUST PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> T=1.60	8-97106-725-0	02	1	1405-	●
196	PIECE; THRUST PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> T=1.65	8-97106-726-0	02	1	1405-	●
196	PIECE; THRUST PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> T=1.70	8-97106-727-0	02	1	1405-	●
196	PIECE; THRUST PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> T=1.80	8-97106-728-0	02	1	1405-	●
196	PIECE; THRUST PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> T=1.85	8-97106-729-0	02	1	1405-	●
281	SHIM; OUTPUT SHAFT PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> T=1.85	8-97106-729-0	01	1	1405-	●

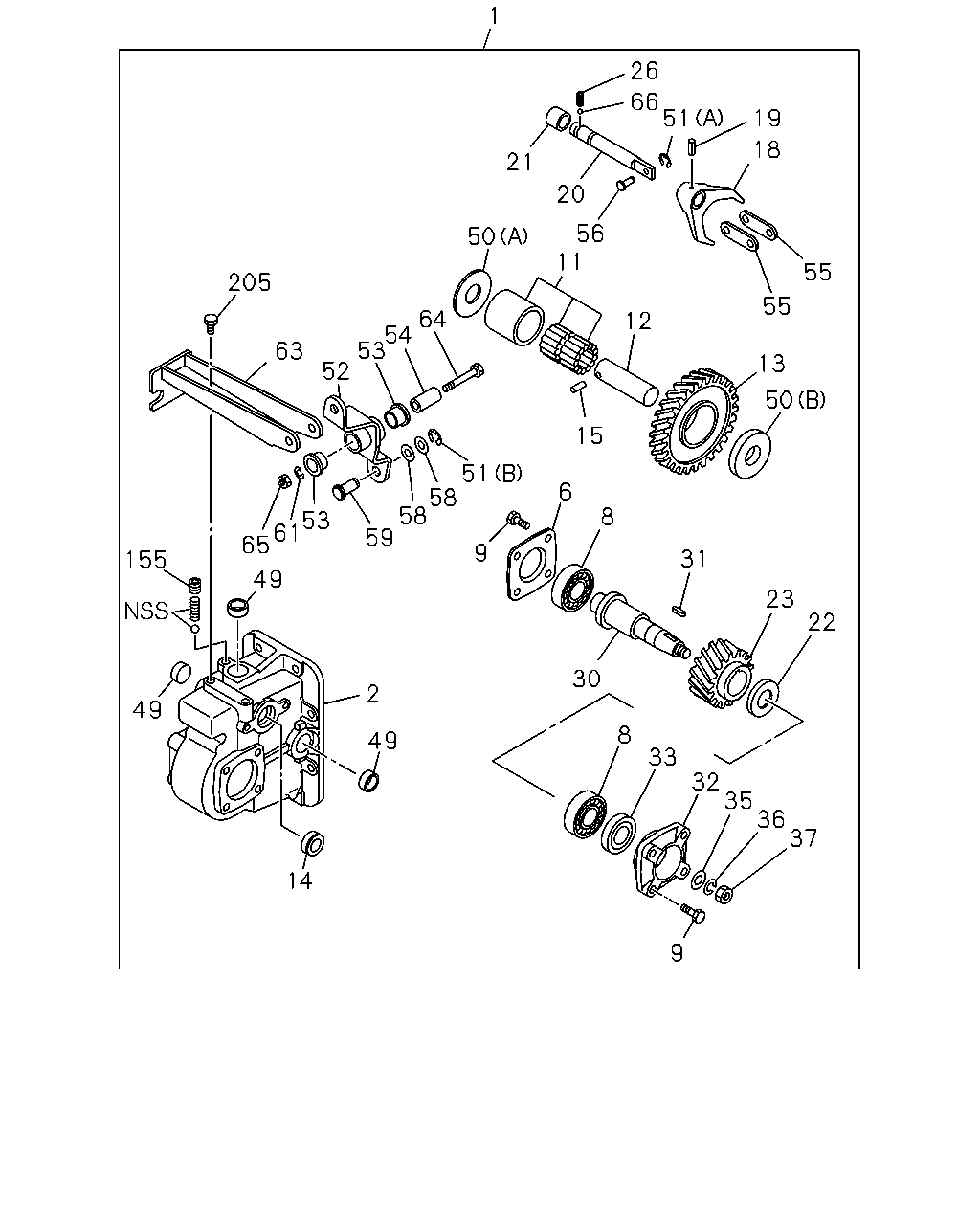

1 26 21 66 19 51 55 18 20 55 56 11 50 12 15 50 13 205 63 53 54 64 59 58 58 51 53 61 65 155 49 2 49 14 49 9 6 31 8 23 22 30 8 33 32 35 36 37 9 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> IDENTIFICATION=YG	8-98233-783-1	01	1	1405-	●
1	POWER TAKE OFF ASM; TRANS SIDE 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> NO IDENTIFICATION	8-98047-033-0	01	1	1405-		●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97308-689-2	01	1	1405-1409	●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98282-381-0	01	1	1410-	●
2	CASE; GEAR,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97309-239-1	01	1	1405-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98233-778-0	01	1	1405-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98046-612-0	01	1	1405-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> ID=25 OD=62	8-94343-031-1	02	1	1405-	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> M8X20 FLANGE THA	0-28050-820-0	08	1	1405-	●	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> NSK	8-97106-734-0	02	1	1405-	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98068-087-0	01	1	1405-		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	9-38211-606-0	01	1	1405-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97305-817-0	01	1	1405-		●
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> Z=31	8-97308-700-0	01	1	1405-	●
13	GEAR; IDLE,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> Z=36	8-97305-810-0	01	1	1405-		●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98028-789-0	01	1	1405-	●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	1-09625-358-0	01	1	1405-		●
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> L=16	9-09878-613-0	01	1	1405-	●
15	PIN; SPR,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> L=20 OD=4	9-09678-514-0	01	1	1405-		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97224-702-0	01	1	1405-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98009-081-0	01	1	1405-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> L=25 OD=5	8-94135-771-0	01	1	1405-	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97306-596-0	01	1	1405-		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98046-623-0	01	1	1405-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98046-934-0	01	1	1405-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98046-619-0	01	1	1405-		●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	9-38245-603-1	01	1	1405-	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98068-086-0	01	1	1405-		●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> Z=27	8-98120-609-0	01	1	1405-	●
23	GEAR; OUTPUT,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> Z=26	8-97305-798-0	01	1	1405-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	9-09940-380-0	01	1	1405-	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97309-246-0	01	1	1405-		●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98233-777-0	01	1	1405-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97374-129-1	01	1	1405-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> L=25	8-98068-088-0	01	1	1405-	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97305-794-0	01	1	1405-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	1-38159-007-0	01	1	1405-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> ID=15	0-91610-514-0	01	1	1405-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> ID=14.2	0-91510-814-0	01	1	1405-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> M14	0-91111-514-0	01	1	1405-	●	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98037-773-0	03	1	1405-		●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> (A)	1-38226-058-1	01	1	1405-		●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> (B)	8-97305-818-0	01	1	1405-		●
51	RING; SNAP,PIN,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> (A) ID=6	0-91805-506-0	01	1	1405-		●
51	RING; SNAP,PIN,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> (B) ID=8	0-91805-508-0	01	1	1405-		●
52	LEVER; CONT,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98049-416-0	01	1	1405-		●
53	BUSHING; CONT LVR,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	1-09330-023-0	02	1	1405-		●
54	COLLAR; DIST,CONT LVR,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	1-38321-003-1	01	1	1405-		●
55	PLATE; LEVER JOINT,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98046-938-0	02	1	1405-		●
56	PIN; PLATE TO LVR & ROD,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98046-942-0	01	1	1405-		●
58	WASHER; PL,CONT LEVER 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> ID=10.5	0-91610-510-0	02	1	1405-		●
59	PIN; PTO CONT LEVER 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	0-82154-025-0	01	1	1405-		●
61	WASHER; LK,CONT LVR,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> ID=10.2	0-91510-810-0	01	1	1405-		●
63	BRACKET; CONT LVR,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98049-415-0	01	1	1405-		●
64	BOLT; CONT LEVER 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> M10X60 FLANGE THA	0-28051-060-0	01	1	1405-		●
65	NUT; CONT LEVER 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> M10 THA	0-91110-510-0	01	1	1405-		●
66	BALL; SHIFTER ROD,TRANS SIDE PTO 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	9-00097-009-0	01	1	1405-		●
155	PLUG; SHIFTER ROD PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98037-770-0	01	1	1405-	●
155	PLUG; SHIFTER ROD 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-97309-248-0	01	1	1405-		●
205	BOLT; BRKT,PTO,TRANS SIDE 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> M10X16 FLANGE THA	0-28151-016-0	02	1	1405-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
