◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51509 - NPR/NQR(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#139502) — 53 parça

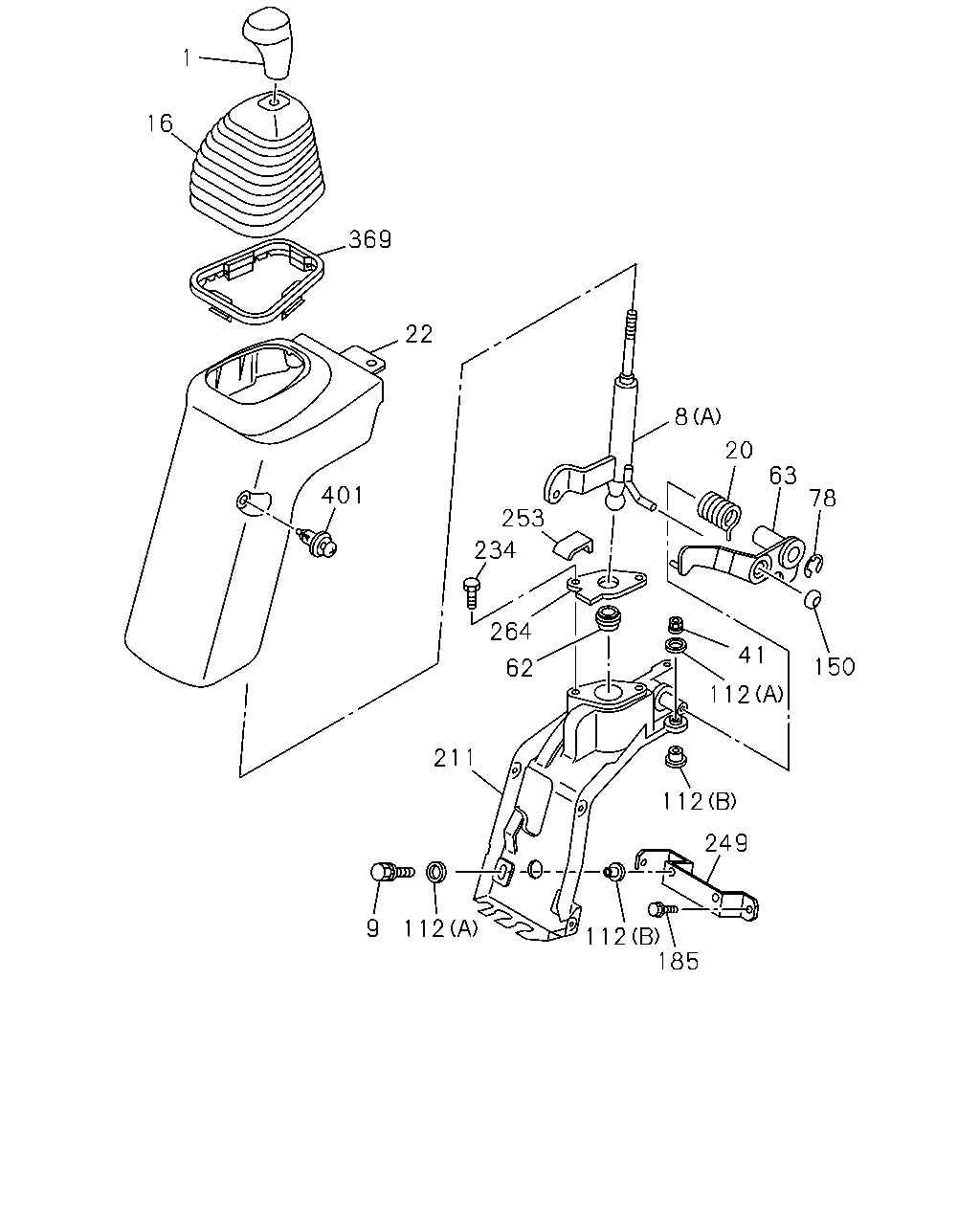

çizim 420755
1 16 369 22 401 9 211 112 112 185 249 112 112 78 63 20 8 253 234 264 62 41 150
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> BLACK 		8-97196-287-1 01 1 1405- ●
1 KNOB; CHANGE LEVER
BLACK 		8-97196-287-1 01 1 1405- ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) 		8-97204-507-0 01 1 1405- ●
8 LEVER; CHANGE
(A) 		8-97204-507-0 01 1 1405- ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) DARK GRAY 		8-97429-026-0 01 1 1405-1408 ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) DARK GRAY 		8-97465-737-0 01 1 1409- ●
9 BOLT; CHANGE LEVER
M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 1405- ● ●
16 BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98035-063-0 01 1 1405- ●
16 BOOT; CHANGE LEVER 8-98035-063-0 01 1 1405- ●
20 SPRING; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97204-514-1 01 1 1405- ●
20 SPRING; CHANGE LEVER 8-97204-514-1 01 1 1405- ●
22 COVER; DUST,CHANGE LEVER
GRAY 		8-97408-728-1 01 1 1405- ● ●
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE THA 		0-91180-108-0 02 1 1405- ●
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 W/DISHED WASHER 		8-97329-625-0 02 1 1405- ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1405- ●
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97011-895-1 01 1 1405- ●
62 SEAT; BALL,CHANGE LEVER 8-97011-895-1 01 1 1405- ●
63 LEVER; RELAY,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97163-768-0 01 1 1405- ●
63 LEVER; RELAY,SELECT 8-97163-768-0 01 1 1405- ●
78 RING; SNAP,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=10 		0-91805-510-0 01 1 1405- ●
78 RING; SNAP,CHANGE LEVER
ID=10 		0-91805-510-0 01 1 1405- ●
112 RUBBER; CUSHION
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) 		8-97091-426-0 04 1 1405- ●
112 RUBBER; CUSHION
(A) 		8-97091-426-0 04 1 1405- ●
112 RUBBER; CUSHION
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) 		8-97091-427-0 04 1 1405- ●
112 RUBBER; CUSHION
(B) 		8-97091-427-0 04 1 1405- ●
150 BALL; DETENT,CONT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97049-147-0 01 1 1405- ●
150 BALL; DETENT,CONT LEVER 8-97049-147-0 01 1 1405- ●
185 BOLT; BRKT,COVER
M8X20 FLANGE THA 		0-28650-820-0 02 1 1405- ● ●
211 BRACKET; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97204-505-1 01 1 1405- ●
211 BRACKET; CHANGE LEVER 8-97204-505-1 01 1 1405- ●
234 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M6X12 FLANGE 		1-33739-842-0 02 1 1405- ●
234 BOLT; BRKT
M6X12 FLANGE 		1-33739-842-0 02 1 1405- ●
249 BRACKET; COVER 8-97387-767-0 01 1 1405- ● ●
253 STOPPER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97204-510-0 01 1 1405- ●
253 STOPPER; CHANGE LEVER 8-97204-510-0 01 1 1405- ●
264 PLATE; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97204-511-0 01 1 1405- ●
264 PLATE; COVER 8-97204-511-0 01 1 1405- ●
369 RETAINER; REINF
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98032-213-1 01 1 1405- ●
369 RETAINER; REINF 8-98032-213-1 01 1 1405- ●
401 CLIP; COVER
GRAY 		8-97406-179-0 04 1 1405- ● ●
çizim 420800
8 41 249 185 22 401 9 525
BalonParca AdiParca NoAdetTipApplied Date A B
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) 		8-97204-507-0 01 1 1405- ●
8 LEVER; CHANGE
(A) 		8-97204-507-0 01 1 1405- ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) DARK GRAY 		8-97429-026-0 01 1 1405-1408 ●
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER<8GF> (B) DARK GRAY 		8-97465-737-0 01 1 1409- ●
9 BOLT; CHANGE LEVER
M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 1405- ● ●
22 COVER; DUST,CHANGE LEVER
GRAY 		8-97408-728-1 01 1 1405- ● ●
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER<8GF> M8 FLANGE THA 		0-91180-108-0 02 1 1405- ●
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 W/DISHED WASHER 		8-97329-625-0 02 1 1405- ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1405- ●
185 BOLT; BRKT,COVER
M8X20 FLANGE THA 		0-28650-820-0 02 1 1405- ● ●
249 BRACKET; COVER 8-97387-767-0 01 1 1405- ● ●
401 CLIP; COVER
GRAY 		8-97406-179-0 04 1 1405- ● ●
525 LABEL; SHIFT POSITION
TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98048-480-1 01 1 1405- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
