Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#139500) — 296 parça

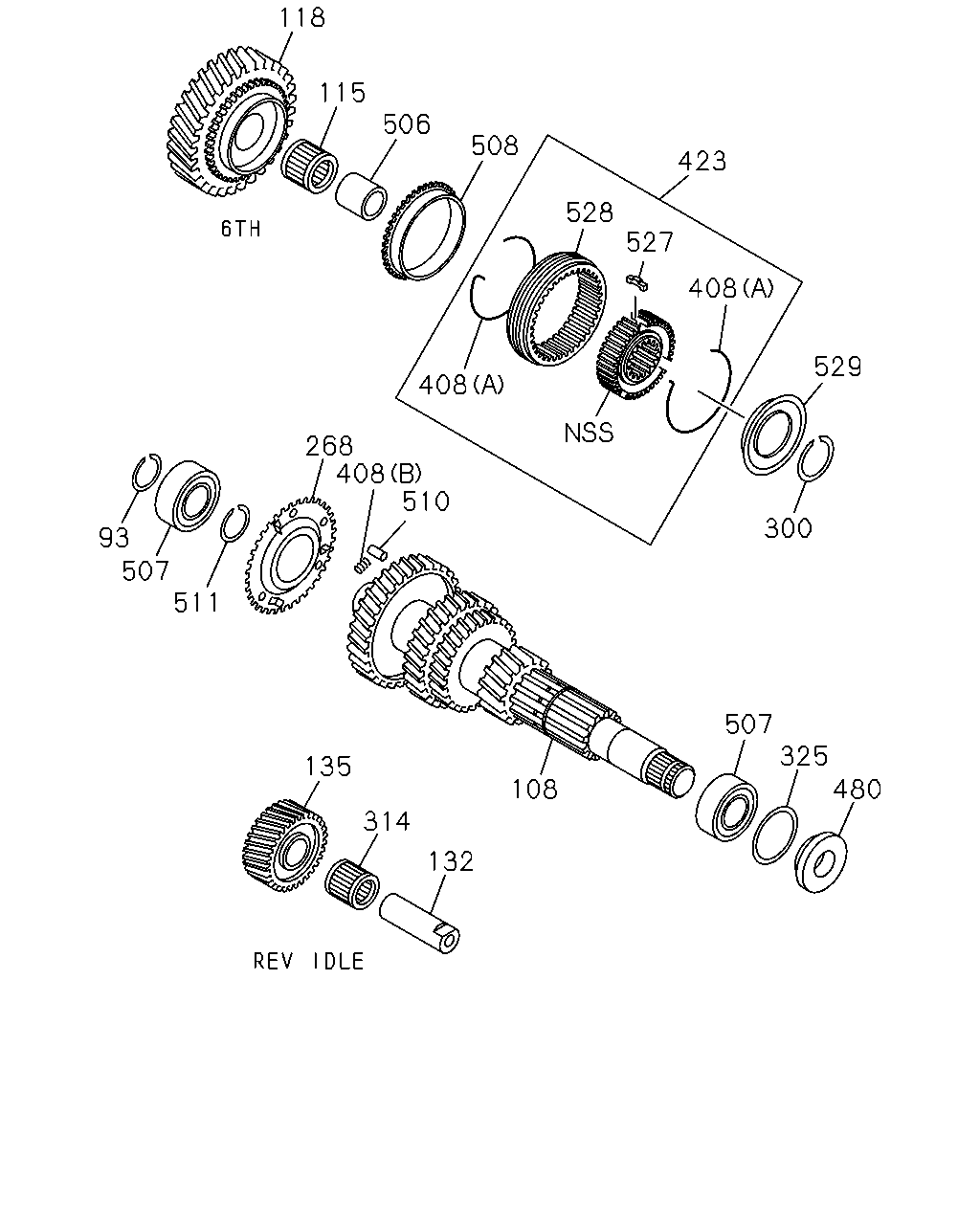

118 115 506 508 528 423 527 408 529 300 408 268 408 510 93 507 511 135 314 132 108 507 325 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1405-	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1405-	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1405-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	1405-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	1405-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	1405-		●
108	SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER<8GF> Z=47-39-33-20	8-97252-639-1	01	1	1405-	●
108	SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=47-39-33-20	8-97380-627-1	01	1	1405-	●
108	SHAFT; COUNTER Z=46-38-29-21	8-98249-489-0	01	1	1405-		●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1411-	●	●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	1405-	●	●
118	GEAR; 6TH,COUNTER Z=50	8-97386-580-0	01	1	1405-	●
118	GEAR; 6TH,COUNTER Z=47	8-97241-246-0	01	1	1405-		●
132	SHAFT; REV	8-97252-655-0	01	1	1405-	●	●
135	GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1405-	●
135	GEAR; REV IDLER Z=26	8-97241-292-2	01	1	1405-		●
268	PLATE; ANTI LASH,COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97252-684-1	01	1	1405-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7	8-97254-727-0	01	1	1405-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.8	8-97254-728-0	01	1	1405-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9	8-97254-734-0	01	1	1405-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6	8-97365-617-0	01	1	1405-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7	8-97288-618-0	01	1	1405-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8	8-97288-619-0	01	1	1405-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9	8-97288-620-0	01	1	1405-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6	8-97365-616-0	01	1	1405-		●
314	BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	1405-		●
408	SPRING (A)	8-97366-040-1	04	1	1405-	●
408	SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-94148-196-0	03	1	1405-	●
423	SLEEVE & HUB ASM; 6TH	8-97367-022-0	01	1	1405-	●
480	WASHER; THRUST,6TH	8-97253-123-1	01	1	1405-	●
480	WASHER; THRUST,6TH	8-97253-122-1	01	1	1405-		●
506	COLLAR; 6TH,COUNTER	8-97253-121-1	01	1	1405-	●
506	COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	1405-		●
507	BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1405-	●
507	BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	1405-		●
508	RING; BLOCK,6TH Z=45	8-97309-532-0	01	1	1405-	●
508	RING; BLOCK,6TH Z=45	8-97241-306-1	01	1	1405-		●
510	PIN; STRAIGHT,ANTI LASH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	9-08160-825-0	03	1	1405-	●
511	RING; SNAP,ANTI LASH PLATE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97254-767-0	01	1	1405-	●
527	INSERT; 6TH	8-94448-202-2	03	1	1405-	●
528	SLEEVE; 6TH Z=45	8-94421-871-1	01	1	1405-	●
529	PLATE; STOPPER,6TH	8-97248-952-0	01	1	1405-	●

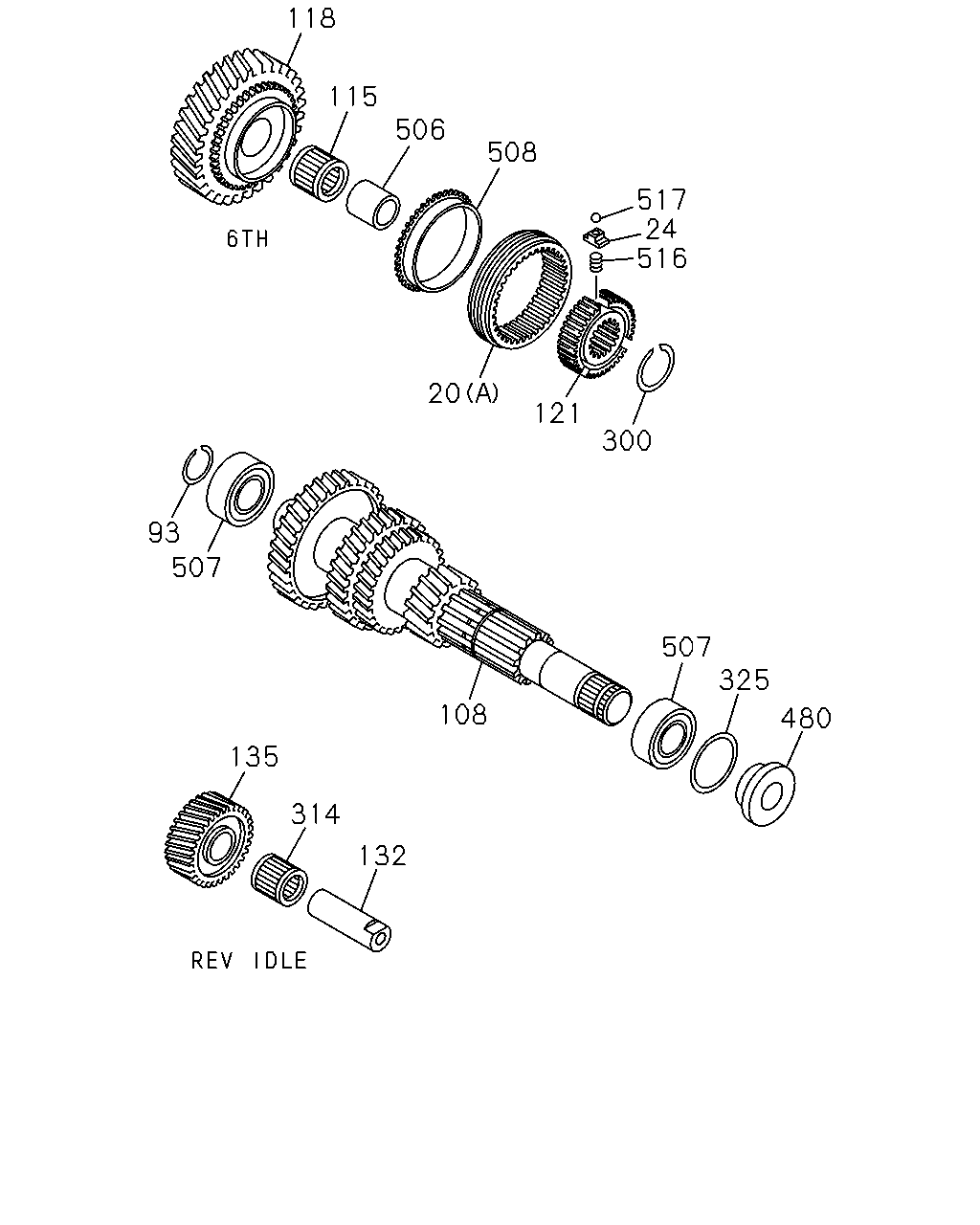

118 115 506 508 517 24 516 20 121 300 507 325 480 108 132 314 135 507 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	SLEEVE (B) Z=54	8-97241-295-2	02	1	1405-		●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1405-		●
24	BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-313-1	03	1	1405-	●
24	BLOCK; INDEX,SYN	8-97241-313-1	03	1	1405-	●
24	BLOCK; INDEX,SYN	8-97241-313-1	12	1	1405-		●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1405-	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1405-	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1405-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	1405-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	1405-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	1405-		●
108	SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER<8GF> Z=47-39-33-20	8-97252-639-1	01	1	1405-	●
108	SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=47-39-33-20	8-97380-627-1	01	1	1405-	●
108	SHAFT; COUNTER Z=46-38-29-21	8-98249-489-0	01	1	1405-		●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1411-	●	●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	1405-	●	●
118	GEAR; 6TH,COUNTER Z=50	8-97386-580-0	01	1	1405-	●
118	GEAR; 6TH,COUNTER Z=47	8-97241-246-0	01	1	1405-		●
121	HUB; CLU,6TH	8-97241-301-2	01	1	1405-		●
132	SHAFT; REV	8-97252-655-0	01	1	1405-	●	●
135	GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1405-	●
135	GEAR; REV IDLER Z=26	8-97241-292-2	01	1	1405-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7	8-97254-727-0	01	1	1405-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.8	8-97254-728-0	01	1	1405-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9	8-97254-734-0	01	1	1405-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6	8-97365-617-0	01	1	1405-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7	8-97288-618-0	01	1	1405-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8	8-97288-619-0	01	1	1405-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9	8-97288-620-0	01	1	1405-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6	8-97365-616-0	01	1	1405-		●
314	BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1405-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1405-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	1405-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	1405-		●
480	WASHER; THRUST,6TH	8-97253-123-1	01	1	1405-	●
480	WASHER; THRUST,6TH	8-97253-122-1	01	1	1405-		●
506	COLLAR; 6TH,COUNTER	8-97253-121-1	01	1	1405-	●
506	COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	1405-		●
507	BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1405-	●
507	BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	1405-		●
508	RING; BLOCK,6TH Z=45	8-97309-532-0	01	1	1405-	●
508	RING; BLOCK,6TH Z=45	8-97241-306-1	01	1	1405-		●
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97254-835-0	03	1	1405-	●
516	SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	1405-	●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	1405-		●
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97252-935-0	03	1	1405-	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	1405-	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	1405-		●

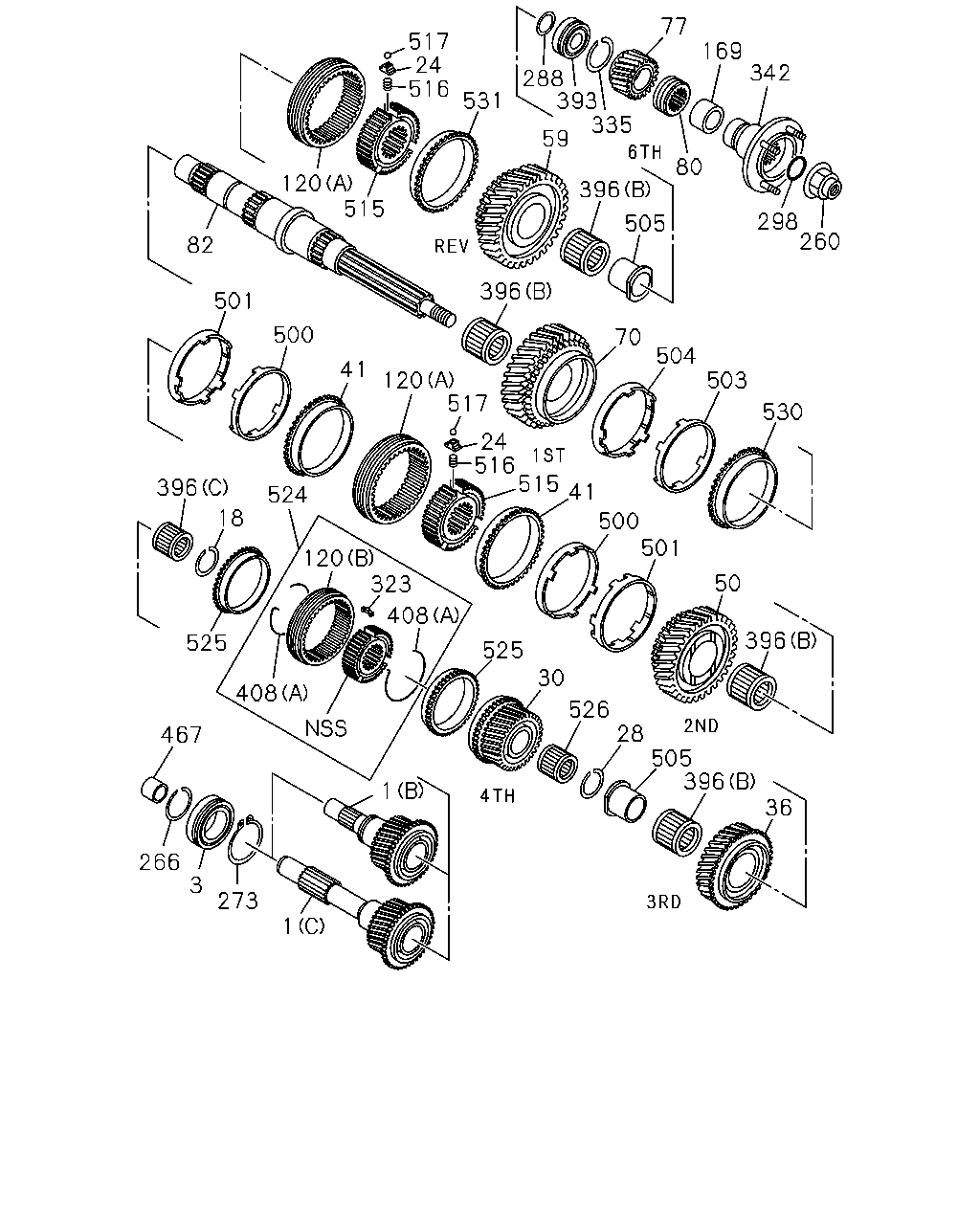

342 169 77 260 298 80 335 393 288 517 24 516 531 59 396 530 503 504 70 396 515 120 82 501 500 41 120 517 24 516 515 41 500 501 50 396 36 396 505 28 526 30 525 408 323 120 524 396 18 525 408 1 1 273 3 266 505 467

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER<8GF> (B) Z=26	8-98021-267-0	01	1	1405-	●
1	SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C) Z=26	8-98021-266-0	01	1	1405-	●
1	SHAFT; TOP GEAR,TRANS (A) Z=25	8-97371-090-0	01	1	1405-		●
3	BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1405-	●
3	BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	1405-		●
18	RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1405-	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1405-		●
24	BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-313-1	03	1	1405-	●
24	BLOCK; INDEX,SYN	8-97241-313-1	03	1	1405-	●
24	BLOCK; INDEX,SYN	8-97241-313-1	12	1	1405-		●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1405-	●	●
30	GEAR; 4TH,MAINSHAFT Z=28	8-97241-230-0	01	1	1405-	●
30	GEAR; 4TH,MAINSHAFT Z=28	8-97252-628-0	01	1	1405-		●
36	GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1405-	●
36	GEAR; 3RD,MAINSHAFT Z=31	8-97252-630-1	01	1	1405-		●
41	RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1405-	●
41	RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	1405-		●
50	GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1405-	●
50	GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	1405-		●
59	GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1405-	●
59	GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	1405-		●
70	GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER<8GF> Z=43	8-97352-815-0	01	1	1405-	●
70	GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=43	8-97350-010-0	01	1	1405-	●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	1405-		●
77	GEAR; 6TH,MAINSHAFT Z=21	8-97386-582-0	01	1	1405-	●
77	GEAR; 6TH,MAINSHAFT Z=20	8-97252-634-0	01	1	1405-		●
80	GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1405-	●
80	GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	1405-		●
82	SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	1405-	●
82	SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	1405-		●
120	SLEEVE (A) Z=45	8-98258-279-0	01	1	1405-	●
120	SLEEVE (A) Z=45	8-98258-279-0	01	1	1405-	●
120	SLEEVE (B) Z=45	8-94421-871-1	01	1	1405-	●
169	COLLAR; MAINSHAFT	8-97252-937-1	01	1	1405-	●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	1405-	●	●
266	RING; SNAP,BRG INNER	8-97286-916-0	01	1	1405-	●
266	RING; SNAP,BRG INNER	8-97286-915-0	01	1	1405-		●
273	RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1405-	●
273	RING; SNAP,BRG OUTER	8-97254-609-0	01	1	1405-		●
288	SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1405-	●
288	SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	1405-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1405-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	1405-		●
323	INSERT	8-94448-202-2	03	1	1405-	●
335	RING; SNAP,BEARING	8-97254-722-0	01	1	1405-	●
335	RING; SNAP,BEARING	8-97254-720-0	01	1	1405-		●
342	FLANGE; OUTPUT	8-98031-862-0	01	1	1405-	●
393	BEARING; MAINSHAFT END	8-97253-105-1	01	1	1405-	●
393	BEARING; MAINSHAFT END	8-97253-104-0	01	1	1405-		●
396	BEARING; NEEDLE,MAINSHAFT (C)	8-97253-102-1	01	1	1405-	●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1405-	●	●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-97253-099-1	01	1	1405-		●
408	SPRING (A)	8-97366-040-1	04	1	1405-	●
408	SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B)	8-94148-196-0	03	1	1405-	●
467	COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97255-183-1	01	1	1405-	●
500	RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1405-	●
500	RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	1405-		●
501	RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1405-	●
501	RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	1405-		●
503	RING; OUTSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-309-1	01	1	1405-	●
503	RING; OUTSIDE,LOW & REV	8-97241-307-1	02	1	1405-		●
504	RING; INSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-312-1	01	1	1405-	●
504	RING; INSIDE,LOW & REV	8-97241-311-1	02	1	1405-		●
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	1405-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	1405-	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	1405-	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	02	1	1405-		●
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97254-835-0	03	1	1405-	●
516	SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	1405-	●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	1405-		●
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97252-935-0	03	1	1405-	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	1405-	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	1405-		●
524	SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1405-	●
525	RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1405-	●
526	BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1405-	●
530	RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=45	8-97241-306-1	01	1	1405-	●
530	RING; BLOCK,LOW Z=54	8-97241-305-2	01	1	1405-		●
531	RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=45	8-97368-343-0	01	1	1405-	●
531	RING; BLOCK,REV Z=54	8-97241-305-2	01	1	1405-		●

517 24 516 531 20 515 82 501 500 41 20 517 24 516 41 500 501 50 396 77 288 503 504 393 335 59 396 80 298 260 505 70 504 503 530 396 396 18 19 20 21 266 3 273 1 36 396 505 28 432 30 19 516 24 517 515

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER<8GF> (B) Z=26	8-98021-267-0	01	1	1405-	●
1	SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C) Z=26	8-98021-266-0	01	1	1405-	●
1	SHAFT; TOP GEAR,TRANS (A) Z=25	8-97371-090-0	01	1	1405-		●
3	BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1405-	●
3	BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	1405-		●
18	RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1405-	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1405-		●
19	RING; BLOCK,4TH & 5TH Z=45	8-97241-306-1	02	1	1405-		●
20	SLEEVE (B) Z=54	8-97241-295-2	02	1	1405-		●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1405-		●
21	HUB; CLU,4TH & 5TH	8-97241-299-3	01	1	1405-		●
24	BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-313-1	03	1	1405-	●
24	BLOCK; INDEX,SYN	8-97241-313-1	03	1	1405-	●
24	BLOCK; INDEX,SYN	8-97241-313-1	12	1	1405-		●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1405-	●	●
30	GEAR; 4TH,MAINSHAFT Z=28	8-97241-230-0	01	1	1405-	●
30	GEAR; 4TH,MAINSHAFT Z=28	8-97252-628-0	01	1	1405-		●
36	GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1405-	●
36	GEAR; 3RD,MAINSHAFT Z=31	8-97252-630-1	01	1	1405-		●
41	RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1405-	●
41	RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	1405-		●
50	GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1405-	●
50	GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	1405-		●
59	GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1405-	●
59	GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	1405-		●
70	GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER<8GF> Z=43	8-97352-815-0	01	1	1405-	●
70	GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=43	8-97350-010-0	01	1	1405-	●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	1405-		●
77	GEAR; 6TH,MAINSHAFT Z=21	8-97386-582-0	01	1	1405-	●
77	GEAR; 6TH,MAINSHAFT Z=20	8-97252-634-0	01	1	1405-		●
80	GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1405-	●
80	GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	1405-		●
82	SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	1405-	●
82	SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	1405-		●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	1405-	●	●
266	RING; SNAP,BRG INNER	8-97286-916-0	01	1	1405-	●
266	RING; SNAP,BRG INNER	8-97286-915-0	01	1	1405-		●
273	RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1405-	●
273	RING; SNAP,BRG OUTER	8-97254-609-0	01	1	1405-		●
288	SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1405-	●
288	SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	1405-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1405-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	1405-		●
335	RING; SNAP,BEARING	8-97254-722-0	01	1	1405-	●
335	RING; SNAP,BEARING	8-97254-720-0	01	1	1405-		●
393	BEARING; MAINSHAFT END	8-97253-105-1	01	1	1405-	●
393	BEARING; MAINSHAFT END	8-97253-104-0	01	1	1405-		●
396	BEARING; NEEDLE,MAINSHAFT (C)	8-97253-102-1	01	1	1405-	●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1405-	●	●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-97253-099-1	01	1	1405-		●
432	BEARING; NEEDLE,4TH NSK	8-97253-111-0	01	1	1405-		●
500	RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1405-	●
500	RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	1405-		●
501	RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1405-	●
501	RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	1405-		●
503	RING; OUTSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-309-1	01	1	1405-	●
503	RING; OUTSIDE,LOW & REV	8-97241-307-1	02	1	1405-		●
504	RING; INSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97241-312-1	01	1	1405-	●
504	RING; INSIDE,LOW & REV	8-97241-311-1	02	1	1405-		●
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	1405-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	1405-	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	1405-	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	02	1	1405-		●
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97254-835-0	03	1	1405-	●
516	SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	1405-	●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	1405-		●
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>	8-97252-935-0	03	1	1405-	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	1405-	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	1405-		●
530	RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=45	8-97241-306-1	01	1	1405-	●
530	RING; BLOCK,LOW Z=54	8-97241-305-2	01	1	1405-		●
531	RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=45	8-97368-343-0	01	1	1405-	●
531	RING; BLOCK,REV Z=54	8-97241-305-2	01	1	1405-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
