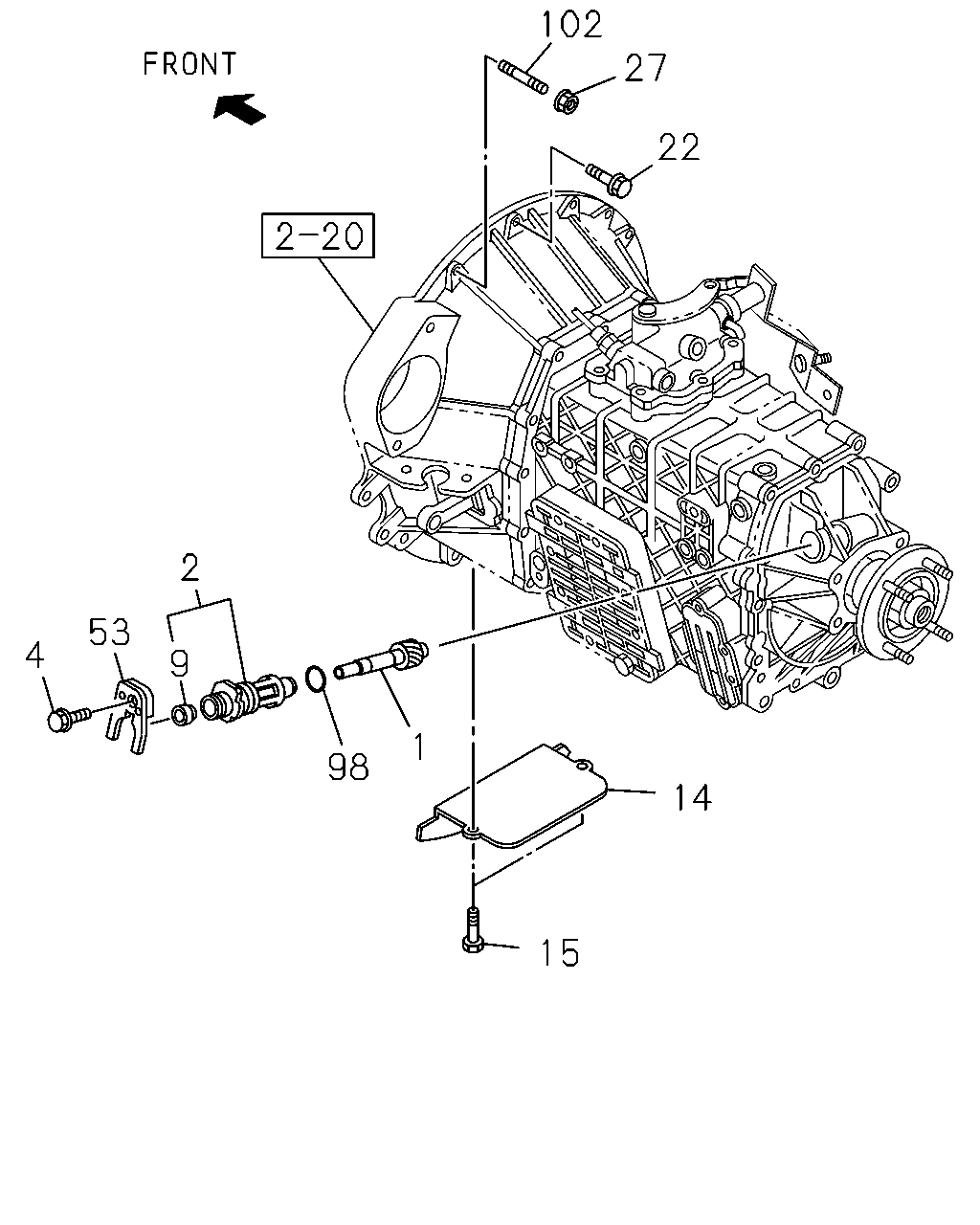

2-25 — SPEEDOMETER DRIVEN GEAR (#139499) — 27 parça

102 22 27 14 15 1 98 2 9 53 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/9<HC6>,FINAL GEAR RATIO 43/10<S7C> Z=11	8-97253-559-1	01	1	1405-	●
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/9<HC6> Z=11	8-97253-559-1	01	1	1405-		●
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/9<S2J> Z=12	8-97253-563-1	01	1	1405-	●
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10<GT5> Z=10	8-97253-579-1	01	1	1405-		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 41/9<HC6>,FINAL GEAR RATIO 43/10<S7C> MARK "10,11,16,17"	8-97253-124-0	01	1	1405-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER MARK "10,11,16,17"	8-97253-124-0	01	1	1405-		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 43/9<S2J> MARK "12,13,14,15"	8-97253-125-0	01	1	1405-	●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE THA	0-28650-820-0	01	1	1405-	●	●
9	SEAL; OIL,DRIVEN GEAR NOK	8-97131-328-1	01	1	1405-	●	●
14	COVER; UNDER,TRANS TRANSMISSION CONTROL-SMOOTHER<8GF>	8-97308-233-0	01	1	1405-	●
15	BOLT; UNDER COVER TO TRANS TRANSMISSION CONTROL-SMOOTHER<8GF> M6X16 FLANGE THA	0-28650-616-0	02	1	1405-	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X30 FLANGE	0-28151-030-0	02	1	1405-	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X35 FLANGE	0-28151-035-0	05	1	1405-	●
22	BOLT; TRANS CASE TO ENG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X55 FLANGE THA	8-97948-217-0	02	1	1405-	●
22	BOLT; TRANS CASE TO ENG M10X55 FLANGE THA	8-97948-217-0	02	1	1405-		●
22	BOLT; TRANS CASE TO ENG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> M10X30 FLANGE	0-28151-030-0	04	1	1405-	●
22	BOLT; TRANS CASE TO ENG M10X30 FLANGE	0-28151-030-0	04	1	1405-		●
22	BOLT; TRANS CASE TO ENG TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> M10X35 FLANGE	0-28151-035-0	03	1	1405-	●
22	BOLT; TRANS CASE TO ENG M10X35 FLANGE	0-28151-035-0	03	1	1405-		●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER<8GF> M10X50 FLANGE THA	0-28151-050-0	03	1	1405-	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> TRANSMISSION CONTROL-SMOOTHER<8GF> M10X55 FLANGE	8-97365-449-0	04	1	1405-	●
22	BOLT; TRANS CASE TO ENG TRANSMISSION CONTROL-SMOOTHER<8GF> EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> M10X50 FLANGE THA	0-28151-050-0	05	1	1405-	●
22	BOLT; TRANS CASE TO ENG TRANSMISSION CONTROL-SMOOTHER<8GF> EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> M10X55 FLANGE	8-97365-449-0	02	1	1405-	●
27	NUT; CLU HSG TO TRANS TRANSMISSION CONTROL-SMOOTHER<8GF> M10 FLANGE THA	0-91180-210-0	02	1	1405-	●
53	PLATE; LOCK,DRIVEN GEAR	8-98046-217-0	01	1	1405-	●	●
98	SEAL; OIL,BUSH	9-09561-324-0	01	1	1405-	●	●
102	STUD; TRANS TRANSMISSION CONTROL-SMOOTHER<8GF> M10X50 L=99	0-49241-050-0	02	1	1405-	●
