◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51509 - NPR/NQR(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#139496) — 20 parça

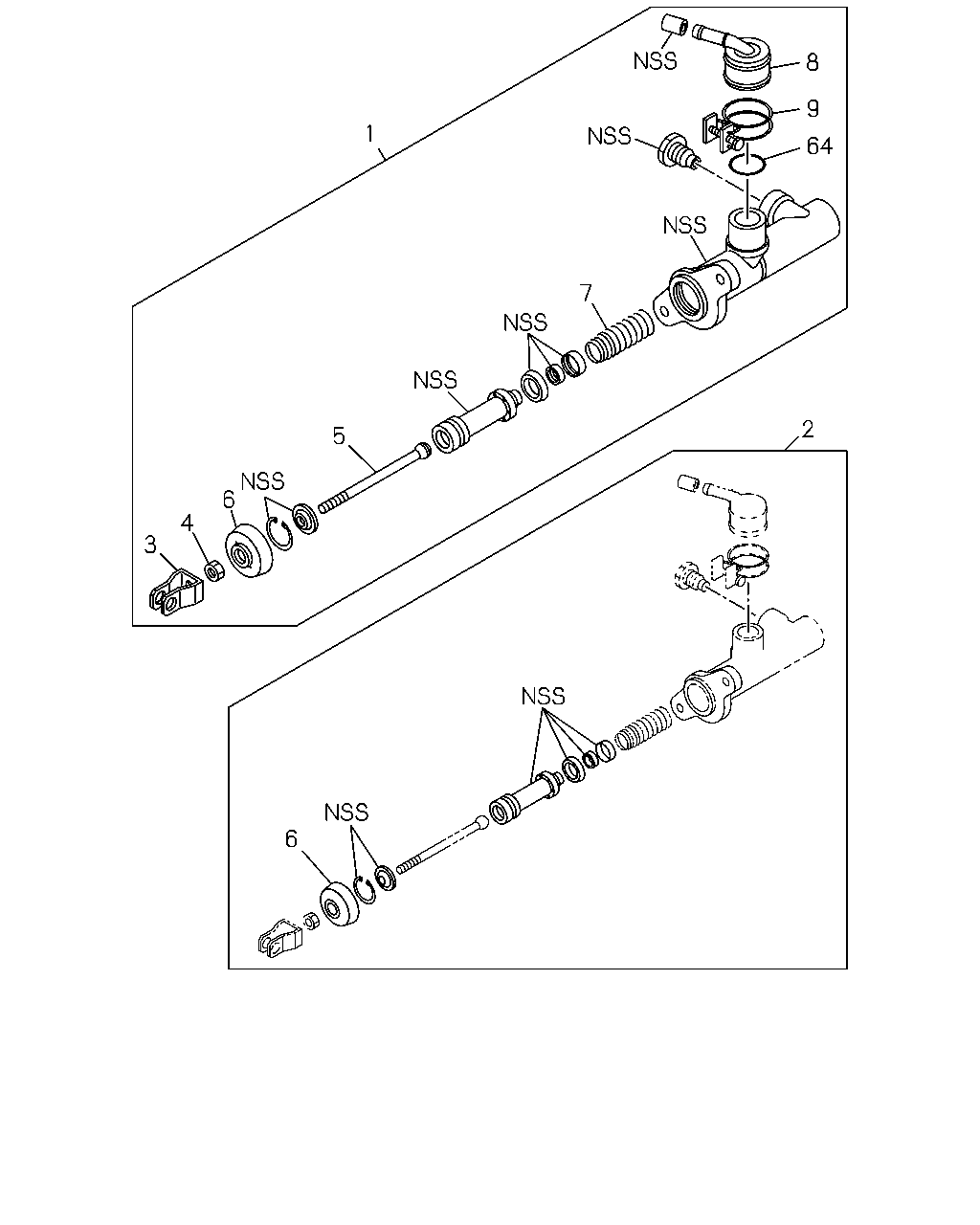

çizim 420012
3 4 6 5 7 64 9 8 1 2 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-98117-639-0 01 1 1405- ●
1 CYLINDER ASM; CLUTCH MASTER 8-98117-639-0 01 1 1405- ●
2 REPAIR KIT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		5-87832-226-0 01 1 1405- ●
2 REPAIR KIT; CLU M/CYL 5-87832-226-0 01 1 1405- ●
3 JOINT; JAW,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97167-770-0 01 1 1405- ●
3 JOINT; JAW,CLU M/CYL 8-97167-770-0 01 1 1405- ●
4 NUT; JAW JOINT
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 		0-91111-508-0 01 1 1405- ●
4 NUT; JAW JOINT
M8 		0-91111-508-0 01 1 1405- ●
5 ROD; PUSH,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97167-768-0 01 1 1405- ●
5 ROD; PUSH,CLU M/CYL 8-97167-768-0 01 1 1405- ●
6 BOOT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-94412-200-0 01 1 1405- ●
6 BOOT; CLU M/CYL 8-94412-200-0 01 1 1405- ●
7 SPRING ASM; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97167-780-0 01 1 1405- ●
7 SPRING ASM; CLU M/CYL 8-97167-780-0 01 1 1405- ●
8 CONNECTOR; PIPE,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97163-191-0 01 1 1405- ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 1405- ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97167-773-0 01 1 1405- ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 1405- ●
64 GASKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97167-767-0 01 1 1405- ●
64 GASKET; CONNECTOR 8-97167-767-0 01 1 1405- ●
