1-50 — EXHAUST PIPE AND SILENCER (#139489) — 96 parça

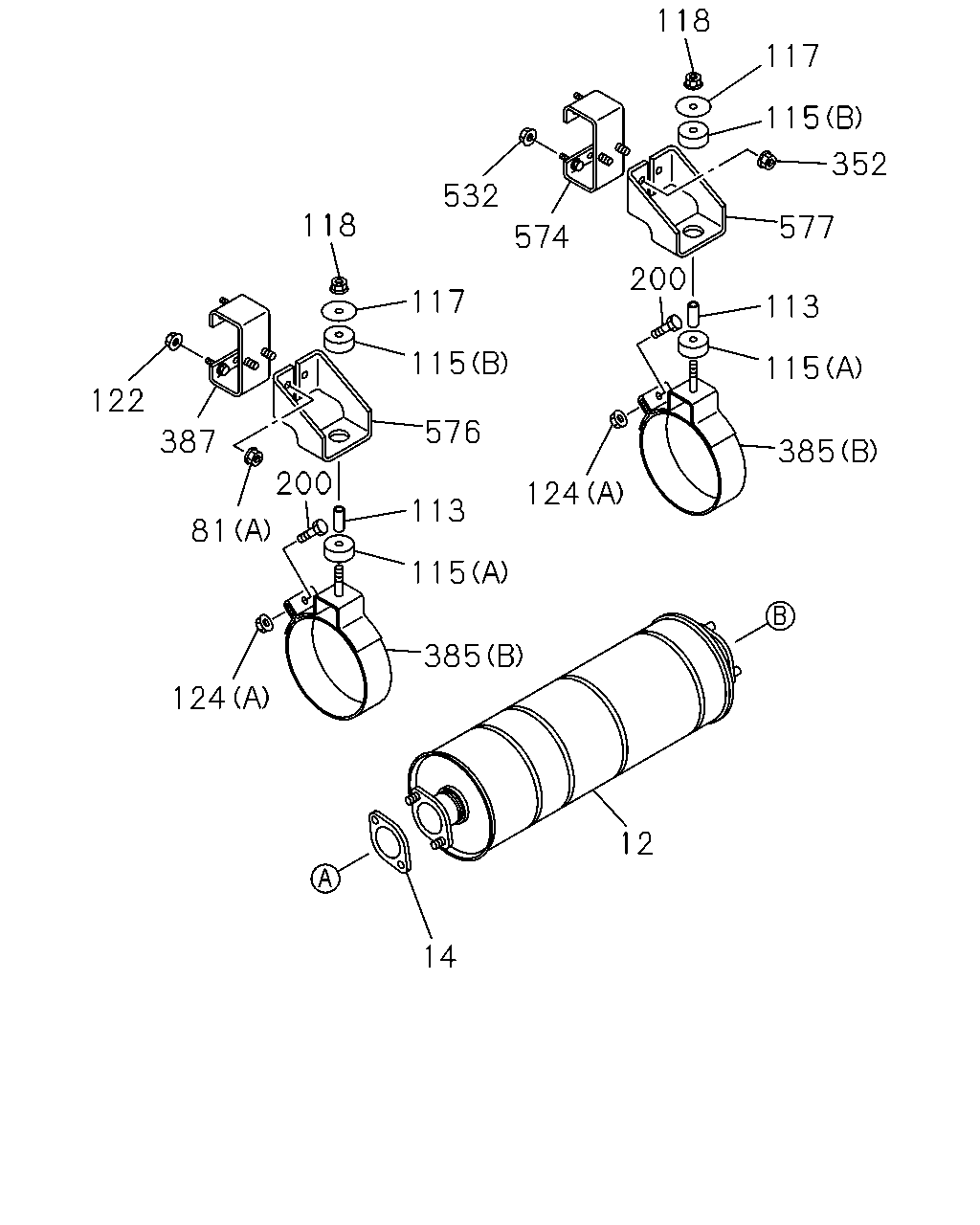

çizim 420010
12 14 124 81 387 122 118 385 115 113 576 115 117 574 532 124 385 115 113 577 352 115 117 118 200 200
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH
THA 		8-97924-545-1 01 1 1405- ● ●
14 GASKET; SILENCER TO EXH PIPE
ID=64.7 		8-94328-352-0 01 1 1405- ● ●
81 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 02 1 1405- ● ●
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-110-0 02 1 1405- ● ●
113 COLLAR; DIST,MTG BRKT
L=37.5 THA 		9-22151-217-0 02 1 1405- ● ●
115 RUBBER; MTG,SILENCER
(A) 		8-97379-882-0 02 1 1405- ● ●
115 RUBBER; MTG,SILENCER
(B) THA 		8-97925-254-0 02 1 1405- ● ●
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 02 1 1405- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		5-09440-006-0 02 1 1405- ● ●
122 NUT; HANGER BRKT
M10 FLANGE THA 		0-91180-110-0 02 1 1405- ● ●
124 NUT; SUPPORT RUBBER
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1405- ● ●
124 NUT; SUPPORT RUBBER
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1405- ● ●
124 NUT; SUPPORT RUBBER
(A) M8 		0-91110-508-0 02 1 1405- ● ●
124 NUT; SUPPORT RUBBER
WHEEL BASE 4100MM<41W> (C) M10 THA 		0-91110-510-0 01 1 1405- ●
200 BOLT; SUPPORT RUBBER
M8X45 W/LK WASHER THA 		0-50540-845-0 02 1 1405- ● ●
352 NUT; BRKT
M10 FLANGE THA 		0-91180-110-0 02 1 1405- ● ●
385 BRACKET; SILENCER MTG
(B) 		8-97207-224-0 02 1 1405- ● ●
385 BRACKET; SILENCER MTG
(A) 		8-98074-495-1 01 1 1405- ● ●
387 SPACER; BRKT 8-98044-774-0 01 1 1405- ● ●
532 NUT
M10 FLANGE THA 		0-91180-110-0 04 1 1405- ● ●
574 SPACER; DPD 8-98044-774-0 01 1 1405- ● ●
576 BRACKET; DPD FRT TO FRAME
THA 		8-98074-124-1 01 1 1405- ● ●
577 BRACKET; DPD RR TO FRAME
THA 		8-98074-124-1 01 1 1405- ● ●
çizim 421129
8 1 2 44 36 143 385 172 532 38 25 562
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
THA 		8-97924-535-0 01 1 1405- ● ●
2 GASKET; PIPE TO MANIF 8-97381-455-0 01 1 1405- ● ●
8 BRACKET; EXH PIPE 8-97365-228-0 01 1 1405- ● ●
25 PIPE; EXH,BRK VLV TO SILENCER
THA 		8-98074-109-0 01 1 1405- ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 1405- ● ●
36 NUT; EXH PIPE
WHEEL BASE 3800MM<38W> (B) M10 FLANGE THA 		0-91180-110-0 02 1 1405- ●
36 NUT; EXH PIPE
WHEEL BASE 4100MM<41W> (B) M10 FLANGE THA 		0-91180-110-0 02 1 1405- ●
38 NUT; SILENCER
M10 FLANGE THA 		0-91180-110-0 02 1 1405- ● ●
44 BOLT; BRKT
M10X40 FLANGE THA 		0-28051-040-0 01 1 1405- ● ●
143 RUBBER; SUPPORT
(A) 		8-97080-694-0 01 1 1405- ● ●
143 RUBBER; SUPPORT
(B) 		8-98034-767-0 01 1 1405- ● ●
172 BOLT
M10X35 FLANGE THA 		0-28651-035-0 02 1 1405- ● ●
385 BRACKET; SILENCER MTG
(B) 		8-97207-224-0 02 1 1405- ● ●
385 BRACKET; SILENCER MTG
(A) 		8-98074-495-1 01 1 1405- ● ●
532 NUT
M10 FLANGE THA 		0-91180-110-0 04 1 1405- ● ●
562 PLATE; STUD,BOLT
M8X70 		0-10855-870-0 04 1 1405- ● ●

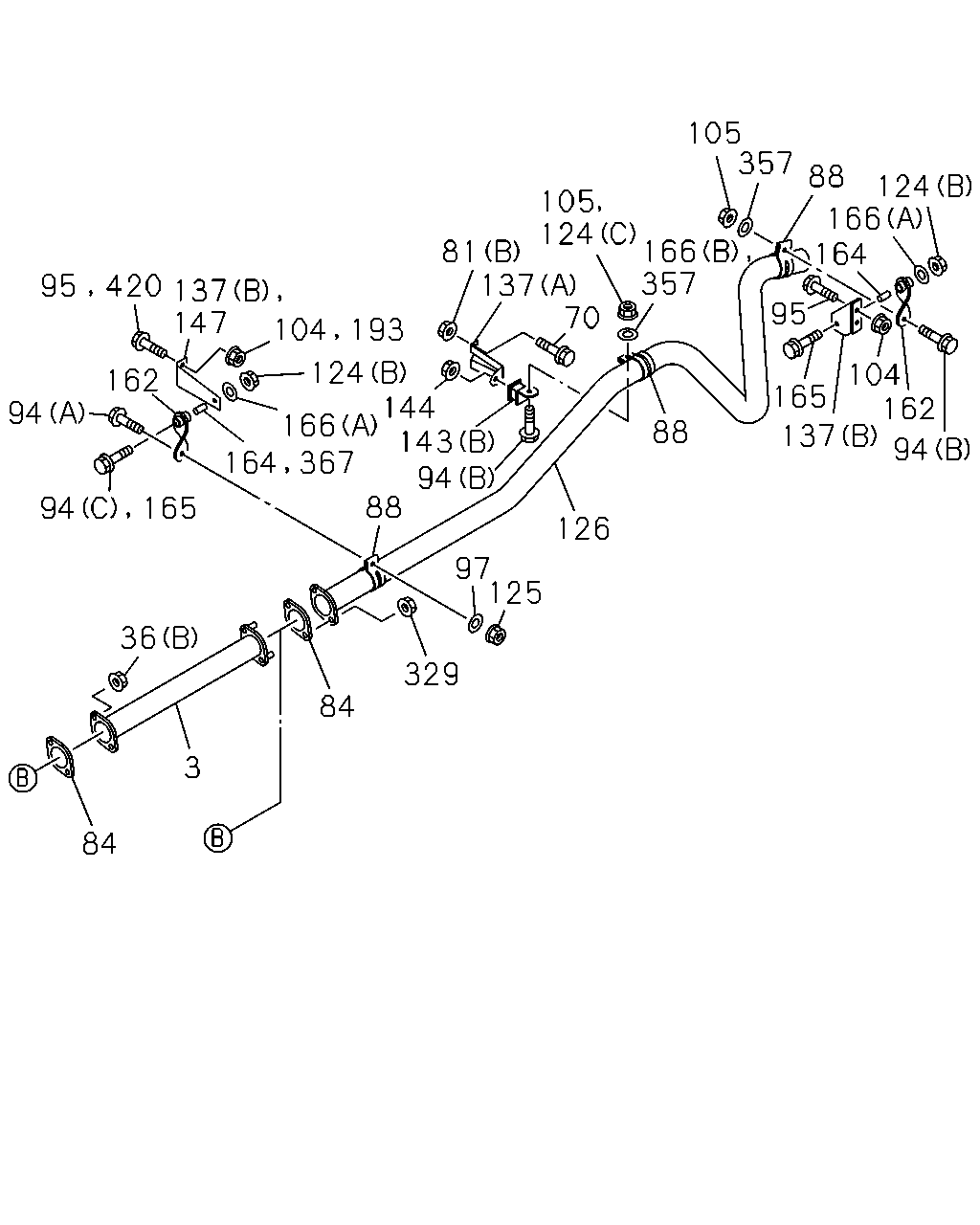

çizim 422006
84 36 3 84 329 125 97 88 367 166 164 165 94 94 162 126 88 94 143 144 124 193 104 147 137 420 95 137 165 95 104 162 94 357 166 81 105 124 137 70 105 88 357 124 166 164
BalonParca AdiParca NoAdetTipApplied Date A B
3 PIPE; EXH,CENTER
WHEEL BASE 3800MM<38W> THA 		8-97187-167-0 01 1 1405- ●
3 PIPE; EXH,CENTER
WHEEL BASE 4100MM<41W> THA 		8-97307-804-0 01 1 1405- ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 1405- ● ●
36 NUT; EXH PIPE
WHEEL BASE 3800MM<38W> (B) M10 FLANGE THA 		0-91180-110-0 02 1 1405- ●
36 NUT; EXH PIPE
WHEEL BASE 4100MM<41W> (B) M10 FLANGE THA 		0-91180-110-0 02 1 1405- ●
70 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 1405- ● ●
81 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 02 1 1405- ● ●
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-110-0 02 1 1405- ● ●
84 GASKET; EXH PIPE
ID=64.7 		8-94328-352-0 01 1 1405- ● ●
84 GASKET; EXH PIPE
WHEEL BASE 3800MM<38W>,WHEEL BASE 4100MM<41W> ID=64.7 		8-94328-352-0 01 1 1405- ● ●
88 CLAMP; EXH PIPE 8-97373-158-0 02 1 1405- ● ●
88 CLAMP; EXH PIPE 8-97373-158-0 01 1 1405- ● ●
94 BOLT; CLAMP
(B) M10X45 FLANGE THA 		0-28051-045-0 01 1 1405- ● ●
94 BOLT; CLAMP
(B) M10X45 FLANGE THA 		0-28051-045-0 01 1 1405- ● ●
94 BOLT; CLAMP
(A) M10X50 FLANGE THA 		8-97301-165-0 01 1 1405- ● ●
94 BOLT; CLAMP
WHEEL BASE 4100MM<41W> (C) M10X70 FLANGE THA 		0-28051-070-0 01 1 1405- ●
95 BOLT; BRKT
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> M8X25 FLANGE THA 		0-28650-825-0 02 1 1405- ● ●
95 BOLT; BRKT
WHEEL BASE 4100MM<41W> M10X30 FLANGE THA 		0-28651-030-0 04 1 1405- ●
97 WASHER; PL,CLAMP
ID=10.5 OD=22 		0-91614-610-0 01 1 1405- ● ●
104 NUT; BRKT
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> M8 FLANGE THA 		0-91180-108-0 02 1 1405- ● ●
104 NUT; BRKT
WHEEL BASE 4100MM<41W> M10 FLANGE THA 		0-91180-110-0 04 1 1405- ●
105 NUT; CLAMP
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> M10 THA 		0-91110-510-0 01 1 1405- ● ●
105 NUT; CLAMP
M10 THA 		0-91110-510-0 01 1 1405- ● ●
124 NUT; SUPPORT RUBBER
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1405- ● ●
124 NUT; SUPPORT RUBBER
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1405- ● ●
124 NUT; SUPPORT RUBBER
(A) M8 		0-91110-508-0 02 1 1405- ● ●
124 NUT; SUPPORT RUBBER
WHEEL BASE 4100MM<41W> (C) M10 THA 		0-91110-510-0 01 1 1405- ●
125 NUT; CLAMP
M10 THA 		0-91110-510-0 01 1 1405- ● ●
126 PIPE; EXH,RR
THA 		8-97924-505-0 01 1 1405- ●
126 PIPE; EXH,RR
WHEEL BASE 3400MM<34W> THA 		8-97924-505-0 01 1 1405- ●
126 PIPE; EXH,RR
WHEEL BASE 4100MM<41W> THA 		8-97924-506-0 01 1 1405- ●
137 BRACKET; TAIL PIPE
(A) 		8-98090-280-0 01 1 1405- ● ●
137 BRACKET; TAIL PIPE
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> (B) 		8-97116-588-2 01 1 1405- ● ●
137 BRACKET; TAIL PIPE
WHEEL BASE 4100MM<41W> (B) 		8-97185-801-0 02 1 1405- ●
143 RUBBER; SUPPORT
(A) 		8-97080-694-0 01 1 1405- ● ●
143 RUBBER; SUPPORT
(B) 		8-98034-767-0 01 1 1405- ● ●
144 NUT; MTG RUBBER
M8 FLANGE THA 		0-91180-108-0 01 1 1405- ● ●
147 BRACKET; VERTICAL PIPE 8-98090-125-1 01 1 1405- ●
147 BRACKET; VERTICAL PIPE
WHEEL BASE 3400MM<34W> 		8-98090-125-1 01 1 1405- ●
162 RUBBER; SUPPORT,TAIL PIPE
L=115 		8-98034-765-0 01 1 1405- ● ●
162 RUBBER; SUPPORT,TAIL PIPE
L=115 		8-98034-765-0 01 1 1405- ● ●
164 COLLAR; DIST,TAIL PIPE
L=37.5 THA 		9-22151-217-0 01 1 1405- ● ●
164 COLLAR; DIST,TAIL PIPE
WHEEL BASE 4100MM<41W> L=37.5 THA 		9-22151-217-0 01 1 1405- ●
165 BOLT; SUPPORT RUBBER
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> M10X70 FLANGE THA 		0-28051-070-0 01 1 1405- ● ●
165 BOLT; SUPPORT RUBBER
M10X70 FLANGE THA 		0-28051-070-0 01 1 1405- ● ●
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
(A) ID=10.5 OD=32 		0-91614-810-0 01 1 1405- ● ●
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
(A) ID=10.5 OD=32 		0-91614-810-0 01 1 1405- ● ●
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
WHEEL BASE 4100MM<41W> (B) ID=10.5 OD=22 		0-91614-610-0 01 1 1405- ●
193 NUT; BRKT,VERTICAL PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 1405- ●
193 NUT; BRKT,VERTICAL PIPE
WHEEL BASE 3400MM<34W> M10 FLANGE THA 		0-91180-110-0 02 1 1405- ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 1405- ● ●
357 WASHER; PL,CLAMP
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> ID=10.5 OD=22 		0-91614-610-0 01 1 1405- ● ●
357 WASHER; PL,CLAMP
ID=10.5 OD=22 		0-91614-610-0 01 1 1405- ● ●
367 COLLAR; DIST,SUPPORT RUBBER
L=37.5 THA 		9-22151-217-0 01 1 1405- ●
367 COLLAR; DIST,SUPPORT RUBBER
WHEEL BASE 3400MM<34W> L=37.5 THA 		9-22151-217-0 01 1 1405- ●
420 BOLT; BRKT,VERTICAL PIPE
M10X30 FLANGE THA 		0-28651-030-0 02 1 1405- ●
420 BOLT; BRKT,VERTICAL PIPE
WHEEL BASE 3400MM<34W> M10X30 FLANGE THA 		0-28651-030-0 02 1 1405- ●
