Isuzu WW
▶
TRUCKS
▶
NPR
▶
51509 - NPR/NQR(THAILAND)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#139487) — 31 parça
Tümü
A - NPR5SN
B - NPR5SS
◀

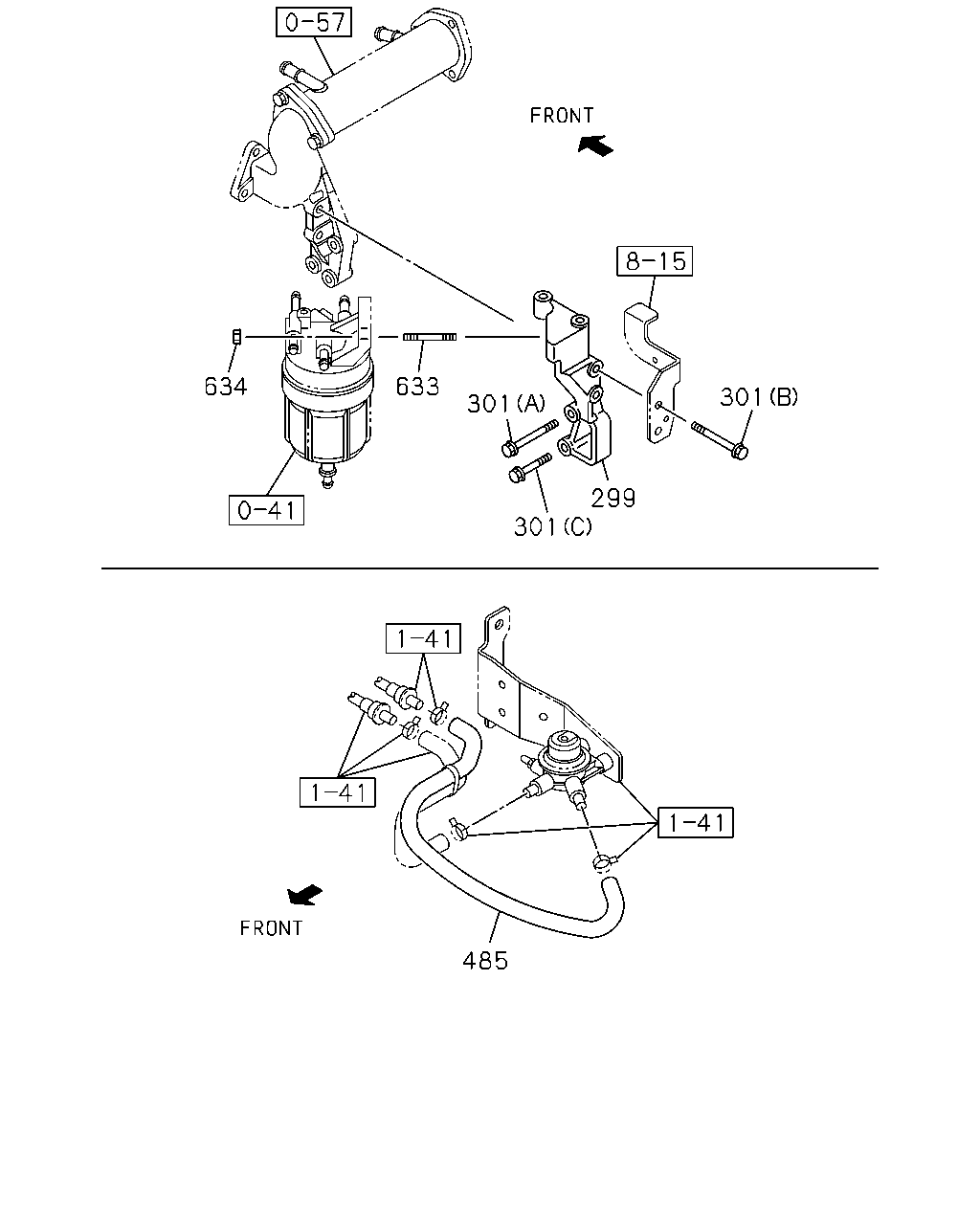

[140A] BRACKET AND FUEL HOSE (7 parça)

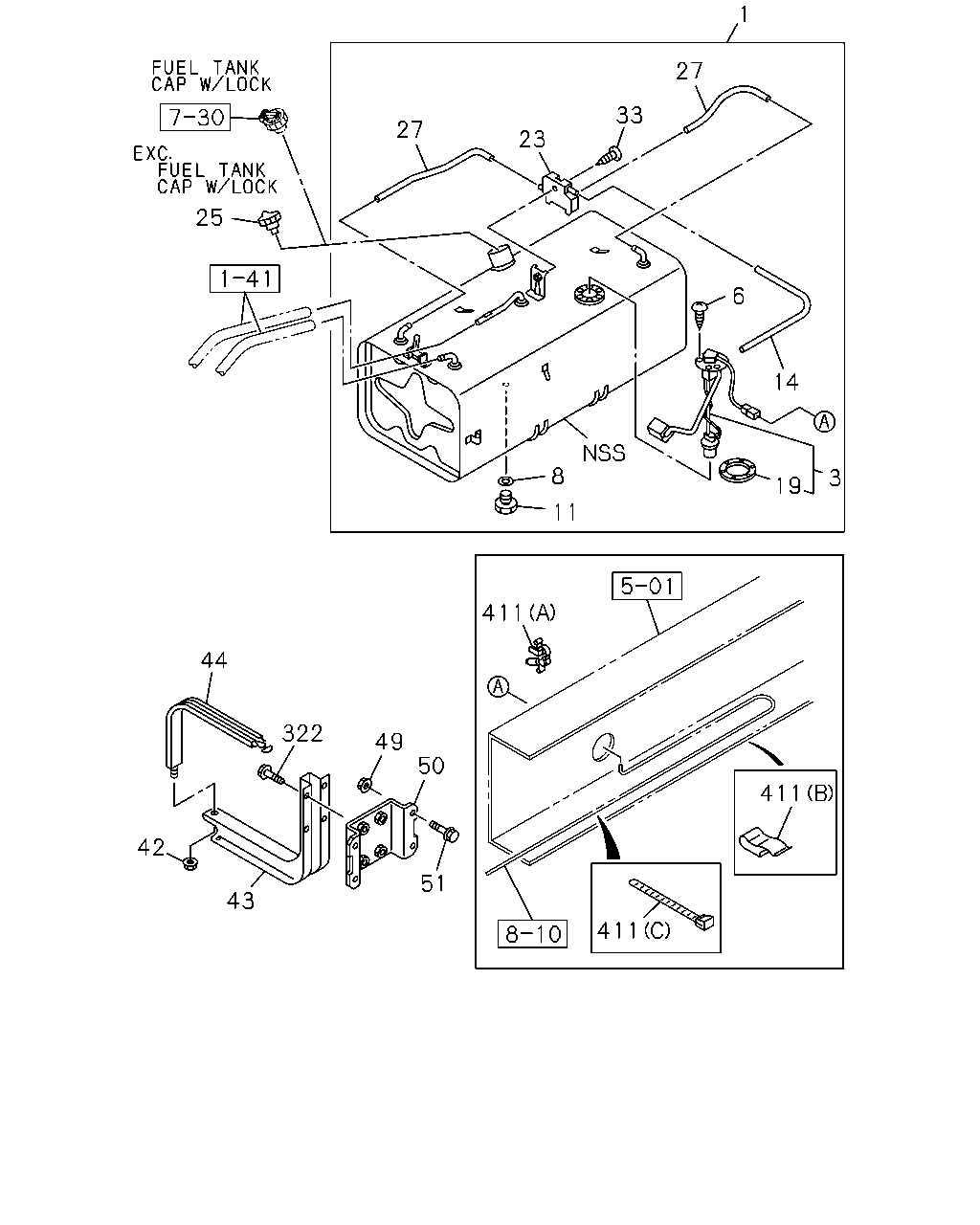

[140A] FUEL TANK (24 parça)
▶
633
634
301
301
299
301
485
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
299
BRACKET; FUEL FILTER
8-98023-175-3
01
1
1405-
●
●
301
BOLT; BRKT TO SEDIMENTER
(A) M12X100 FLANGE
0-28151-200-0
01
1
1405-
●
●
301
BOLT; BRKT TO SEDIMENTER
(B) M12X50 FLANGE THA
0-28151-250-0
01
1
1405-
●
●
301
BOLT; BRKT TO SEDIMENTER
(C) M12X80
0-28151-280-0
01
1
1405-
●
●
485
HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> THA
8-98041-728-0
01
1
1405-
●
●
633
STUD; BRKT TO SEDIMENTER
M8X25 L=37 THA
0-41010-825-0
02
1
1405-
●
●
634
NUT; BRKT TO SEDIMENTER
M8 FLANGE THA
0-91180-108-0
02
1
1405-
●
●
1
27
33
23
27
6
14
3
19
8
11
25
411
411
411
44
42
43
322
49
50
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; FUEL
1000X340X327 100L THA
8-97924-557-0
01
1
1405-
●
●
3
UNIT; FUEL TANK,SUB
8-94316-190-0
01
1
1405-
●
●
6
SCREW; TANK UNIT TO SUB FUEL TANK
M5X12 W/LK WASHER
0-36220-512-0
05
1
1405-
●
●
8
GASKET; DRAIN PLUG,FUEL TANK
THA
8-97918-206-0
01
1
1405-
●
●
11
PLUG; DRAIN,FUEL TANK
THA
8-97917-063-0
01
1
1405-
●
●
14
HOSE; BREATHER,OUTLET
L=430 THA
8-97917-065-0
01
1
1405-
●
●
19
GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
1405-
●
●
23
JOINT; BREATHER HOSE
THA
8-97917-064-0
01
1
1405-
●
●
25
CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05>
8-97387-179-0
01
1
1405-
●
●
27
HOSE; BREATHER
L=470 THA
8-97917-067-0
02
1
1405-
●
●
33
SCREW; JOINT TO FUEL TANK
M6X20 W/LK&PL WASHER THA
0-36230-620-0
01
1
1405-
●
●
42
NUT; SUPPORT BELT
M8 FLANGE
9-09130-408-0
02
1
1405-
●
●
43
BRACKET; FUEL TANK
THA
8-97917-011-0
02
1
1405-
●
●
44
BAND; FUEL TANK
THA
8-97916-551-0
02
1
1405-
●
●
49
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
08
1
1405-
●
●
50
BRACKET; SUPPORT,FUEL BRKT
THA
8-97923-999-1
02
1
1405-
●
●
51
BOLT; BRKT TO FRAME
M10X30 FLANGE THA
0-28661-030-0
08
1
1405-
●
●
322
BOLT; BRKT FIX
M10X40 FLANGE
0-28661-040-0
08
1
1405-
●
●
411
CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG<RDQ> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> (C) L=140 THA
8-97920-656-0
03
1
1412-
●
411
CLIP; FUEL TANK UNIT HARNESS
4HK1-TCS ENG<RJS> (C) L=140 THA
8-97920-656-0
03
1
1412-
●
411
CLIP; FUEL TANK UNIT HARNESS
(A) ID=5-12 L=18
1-09709-287-0
01
1
1405-
●
●
411
CLIP; FUEL TANK UNIT HARNESS
(B) T=6.0
5-09709-012-0
02
1
1405-
●
●
411
CLIP; FUEL TANK UNIT HARNESS
(C) L=140 THA
8-97920-656-0
03
1
1405-1411
●
●
411
CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG<RDQ> TRANSMISSION CONTROL-SMOOTHER<8GF> (C) L=140 THA
8-97920-656-0
04
1
1412-
●
