1-10 — RADIATOR (#139482) — 47 parça

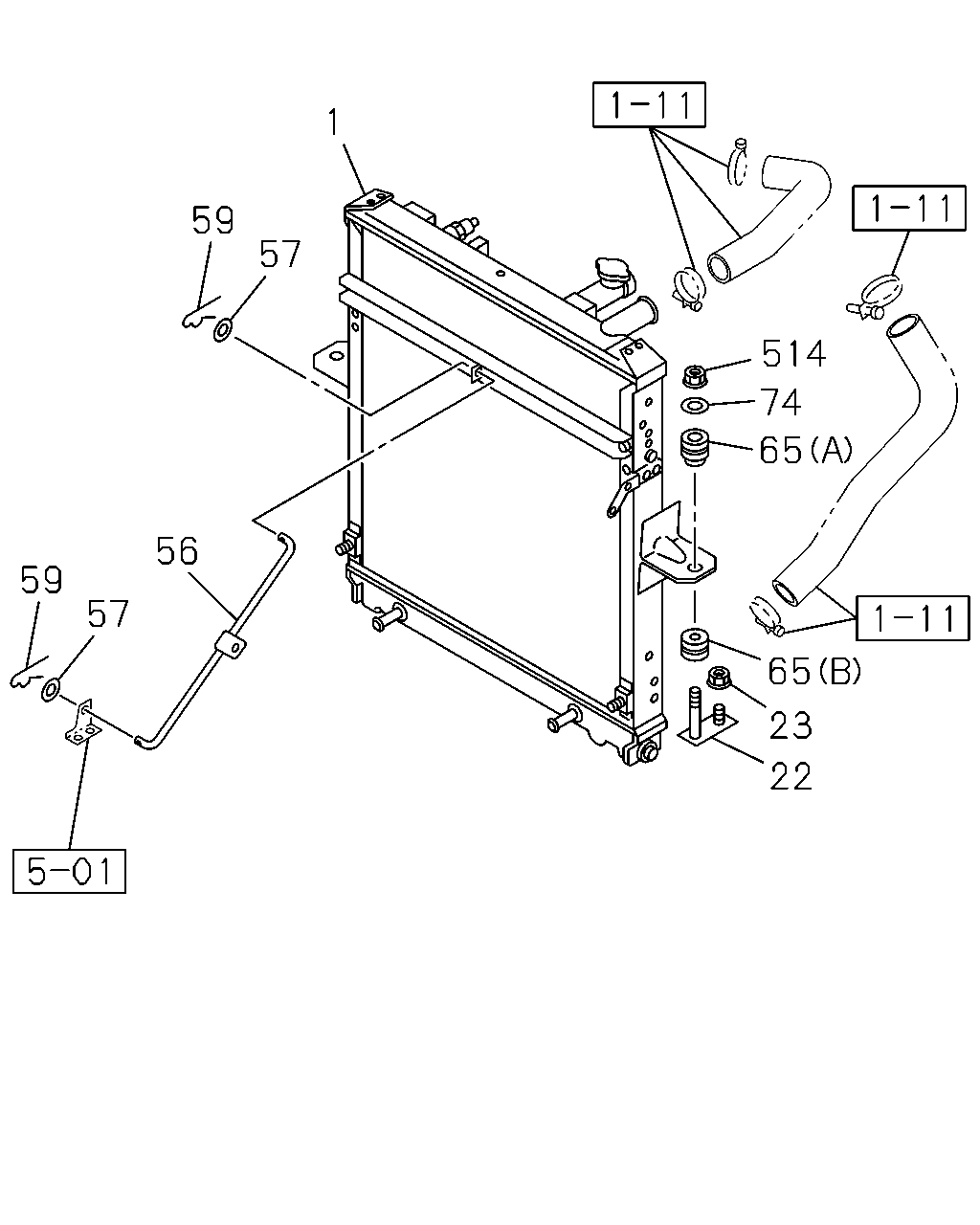

1 59 57 56 59 57 22 23 65 65 74 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RADIATOR ASM EXC. VIN MODEL YEAR 2011<VZB> THA	8-97948-953-0	01	1	1405-	●	●
1	RADIATOR ASM VIN MODEL YEAR 2011<VZB> TRANSMISSION CONTROL-SMOOTHER<8GF> THA	8-98174-421-0	01	1	1405-1411	●
1	RADIATOR ASM VIN MODEL YEAR 2011<VZB> TRANSMISSION CONTROL-SMOOTHER<8GF> THA	8-98301-163-0	01	1	1412-	●
1	RADIATOR ASM VIN MODEL YEAR 2011<VZB> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> THA	8-98174-420-0	01	1	1405-1411	●
1	RADIATOR ASM VIN MODEL YEAR 2011<VZB> THA	8-98174-420-0	01	1	1405-1411		●
1	RADIATOR ASM VIN MODEL YEAR 2011<VZB> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> THA	8-98301-164-0	01	1	1412-	●
1	RADIATOR ASM VIN MODEL YEAR 2011<VZB> THA	8-98301-164-0	01	1	1412-		●
22	BRACKET; RAD MTG	8-97330-527-1	02	1	1405-	●	●
23	NUT; RAD MTG M8 FLANGE THA	0-91180-108-0	02	1	1405-	●	●
56	STAY; RAD	8-98049-051-0	01	1	1405-	●	●
57	WASHER; PL,STAY ID=10.5	0-91610-510-0	02	1	1405-	●	●
59	PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1405-	●	●
65	INSULATOR; RAD (A)	8-94249-346-0	02	1	1405-	●	●
65	INSULATOR; RAD (B)	8-94249-347-0	02	1	1405-	●	●
74	WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1405-	●	●
514	NUT; RAD M8 FLANGE THA	0-91180-108-0	02	1	1405-	●	●

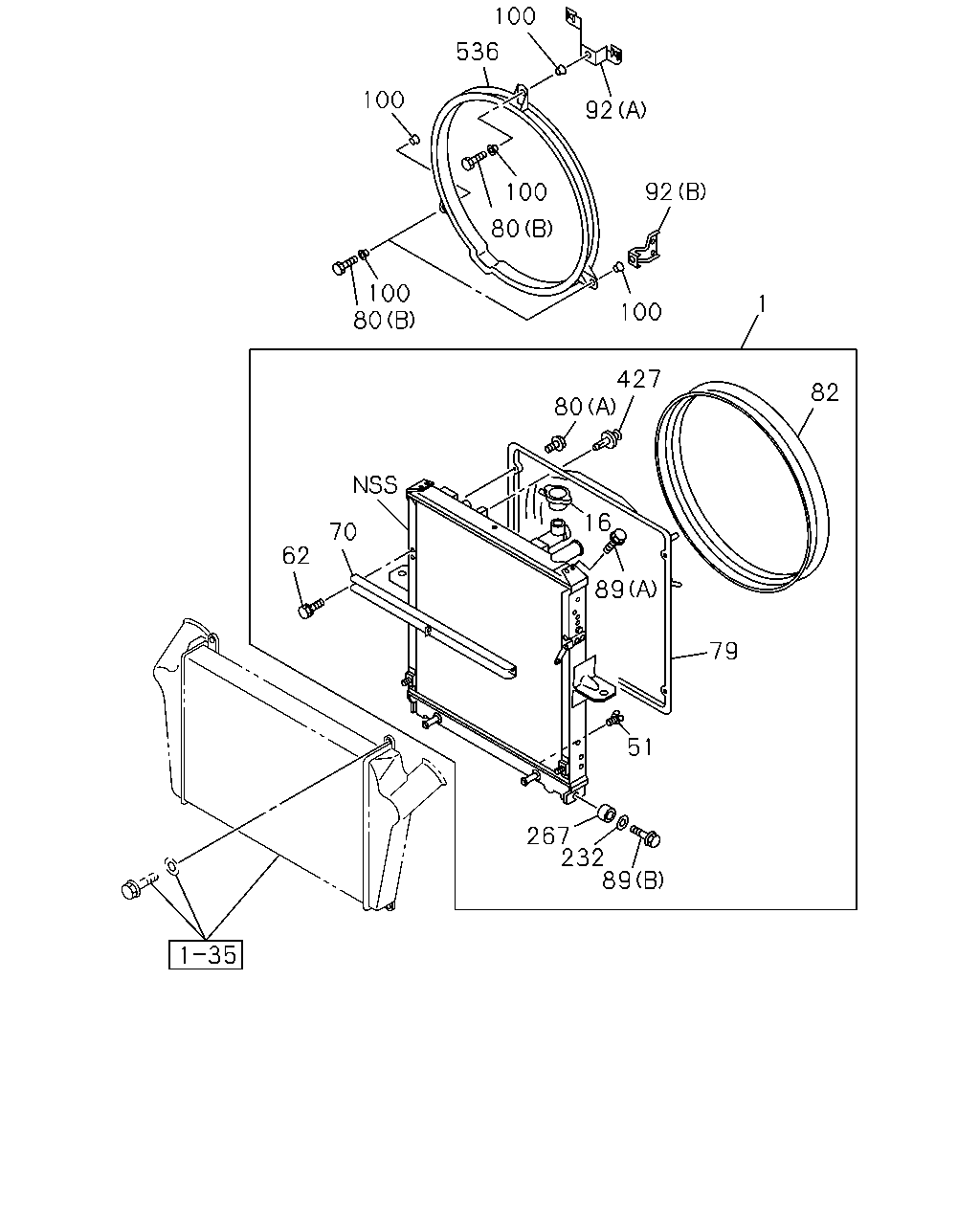

100 536 100 100 80 100 80 92 92 100 1 82 427 80 70 62 267 232 89 51 79 16 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RADIATOR ASM EXC. VIN MODEL YEAR 2011<VZB> THA	8-97948-953-0	01	1	1405-	●	●
1	RADIATOR ASM VIN MODEL YEAR 2011<VZB> TRANSMISSION CONTROL-SMOOTHER<8GF> THA	8-98174-421-0	01	1	1405-1411	●
1	RADIATOR ASM VIN MODEL YEAR 2011<VZB> TRANSMISSION CONTROL-SMOOTHER<8GF> THA	8-98301-163-0	01	1	1412-	●
1	RADIATOR ASM VIN MODEL YEAR 2011<VZB> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> THA	8-98174-420-0	01	1	1405-1411	●
1	RADIATOR ASM VIN MODEL YEAR 2011<VZB> THA	8-98174-420-0	01	1	1405-1411		●
1	RADIATOR ASM VIN MODEL YEAR 2011<VZB> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> THA	8-98301-164-0	01	1	1412-	●
1	RADIATOR ASM VIN MODEL YEAR 2011<VZB> THA	8-98301-164-0	01	1	1412-		●
16	CAP; RAD VIN MODEL YEAR 2011<VZB> THA	8-98096-226-0	01	1	1405-	●	●
16	CAP; RAD EXC. VIN MODEL YEAR 2011<VZB> THA	8-97239-187-0	01	1	1405-	●	●
51	PLUG; DRAIN W/GASKET THA	8-97171-437-0	01	1	1405-	●	●
62	BOLT; STAY M8X12 FLANGE THA	0-28050-812-0	02	1	1405-	●	●
70	STAY; RAD THA	8-98018-941-0	01	1	1405-	●	●
79	GUIDE; FAN,RAD VIN MODEL YEAR 2011<VZB>	8-98172-924-0	01	1	1405-	●	●
79	GUIDE; FAN,RAD EXC. VIN MODEL YEAR 2011<VZB>	8-98006-477-0	01	1	1405-	●	●
80	BOLT; FAN GUIDE (A) M6X16 THA	1-21559-481-0	04	1	1405-	●	●
80	BOLT; FAN GUIDE EXC. VIN MODEL YEAR 2011<VZB> (B) M8X30 FLANGE THA	0-28650-830-0	03	1	1405-	●	●
82	COVER; FAN,RAD EXC. VIN MODEL YEAR 2011<VZB>	8-98006-478-0	01	1	1405-	●	●
89	BOLT (A) M8X12 FLANGE THA	0-28050-812-0	02	1	1405-	●	●
89	BOLT (B) M8X25 THA	1-21469-153-0	02	1	1405-	●	●
92	BRACKET; FAN GUIDE (A)	8-97382-827-2	01	1	1405-	●	●
92	BRACKET; FAN GUIDE EXC. VIN MODEL YEAR 2011<VZB> (B)	8-97386-233-0	01	1	1405-	●	●
100	RUBBER; MTG EXC. VIN MODEL YEAR 2011<VZB>	1-09337-027-0	06	1	1405-	●	●
232	COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG<RDQ> EXC. VIN MODEL YEAR 2011<VZB> THA	8-98141-232-0	02	1	1405-1411	●
232	COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG<RDQ> VIN MODEL YEAR 2011<VZB> TRANSMISSION CONTROL-SMOOTHER<8GF> THA	8-98141-232-0	02	1	1405-1411	●
232	COLLAR; DIST,CUSHION RUBBER 4HK1-TCS ENG<RJS> EXC. VIN MODEL YEAR 2011<VZB> THA	8-98141-232-0	02	1	1405-1411		●
232	COLLAR; DIST,CUSHION RUBBER THA	8-98141-232-0	02	1	1412-	●	●
232	COLLAR; DIST,CUSHION RUBBER VIN MODEL YEAR 2011<VZB> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> THA	1-87410-723-0	02	1	1405-1411	●
232	COLLAR; DIST,CUSHION RUBBER VIN MODEL YEAR 2011<VZB> THA	1-87410-723-0	02	1	1405-1411		●
267	RUBBER; CUSHION THA	1-21467-023-0	02	1	1405-	●	●
427	CLIP; FAN GUIDE EXC. VIN MODEL YEAR 2011<VZB>	1-09470-009-0	01	1	1405-	●	●
536	SHROUD; FAN EXC. VIN MODEL YEAR 2011<VZB>	8-97350-995-0	01	1	1405-	●	●
