0-66 — GENERATOR (#139478) — 40 parça

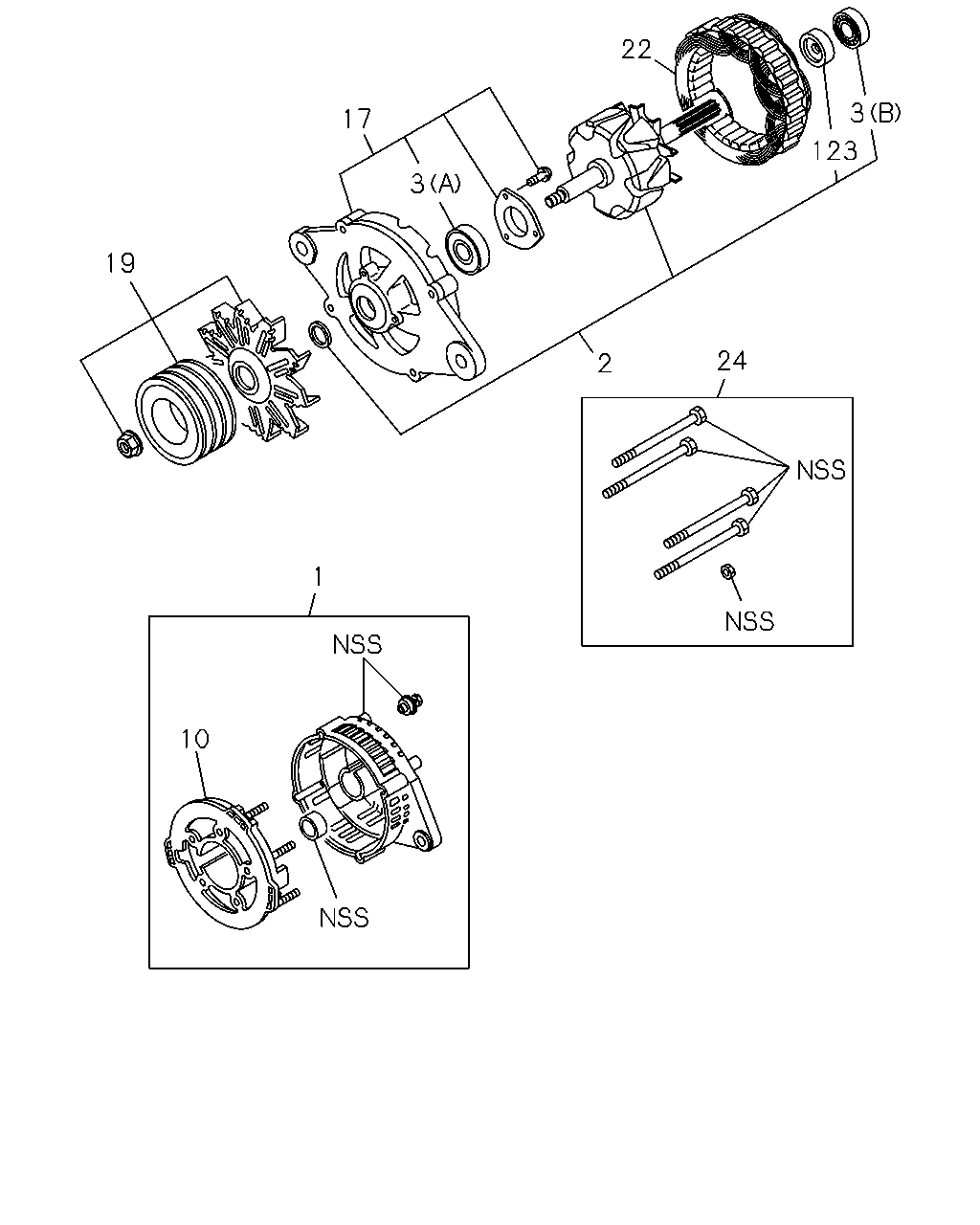

çizim 420208
22 17 3 19 2 3 123 24 1 10
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: B = 8-98029-892-2 		8-98230-317-0 01 1 -
1 COVER ASM; RR,GEN
THA ASM PART: A = 8-97948-541-0 		8-98251-118-0 01 1 -
2 ROTOR; GEN
ASM PART: B = 8-98029-892-2 		8-98038-916-1 01 1 -
2 ROTOR; GEN
THA ASM PART: A = 8-97948-541-0 		8-98251-115-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: B = 8-98029-892-2 		8-97062-744-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: B = 8-98029-892-2 		8-97161-473-0 01 1 -
3 BEARING; ROTOR,GEN
(C), THA ASM PART: A = 8-97948-541-0 		8-98251-113-0 01 1 -
3 BEARING; ROTOR,GEN
(D), THA ASM PART: A = 8-97948-541-0 		8-98251-116-0 01 1 -
10 RECTIFIER; GEN
ASM PART: B = 8-98029-892-2 		8-98230-327-0 01 1 -
10 RECTIFIER; GEN
THA ASM PART: A = 8-97948-541-0 		8-98251-119-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: B = 8-98029-892-2 		8-98038-924-0 01 1 -
17 COVER ASM; FRT,GEN
THA ASM PART: A = 8-97948-541-0 		8-98251-110-0 01 1 -
19 PULLEY; GEN
ASM PART: B = 8-98029-892-2 		8-98040-133-0 01 1 -
19 PULLEY; GEN
THA ASM PART: A = 8-97948-541-0 		8-98251-124-0 01 1 -
22 STATOR; GEN
ASM PART: B = 8-98029-892-2 		8-97249-331-1 01 1 -
22 STATOR; GEN
THA ASM PART: A = 8-97948-541-0 		8-98251-117-0 01 1 -
24 SCREW; RECTIFIER,GEN
ASM PART: B = 8-98029-892-2 		8-98038-928-0 01 1 -
123 GUIDE; BRUSH
ASM PART: B = 8-98029-892-2 		8-97062-644-0 01 1 -

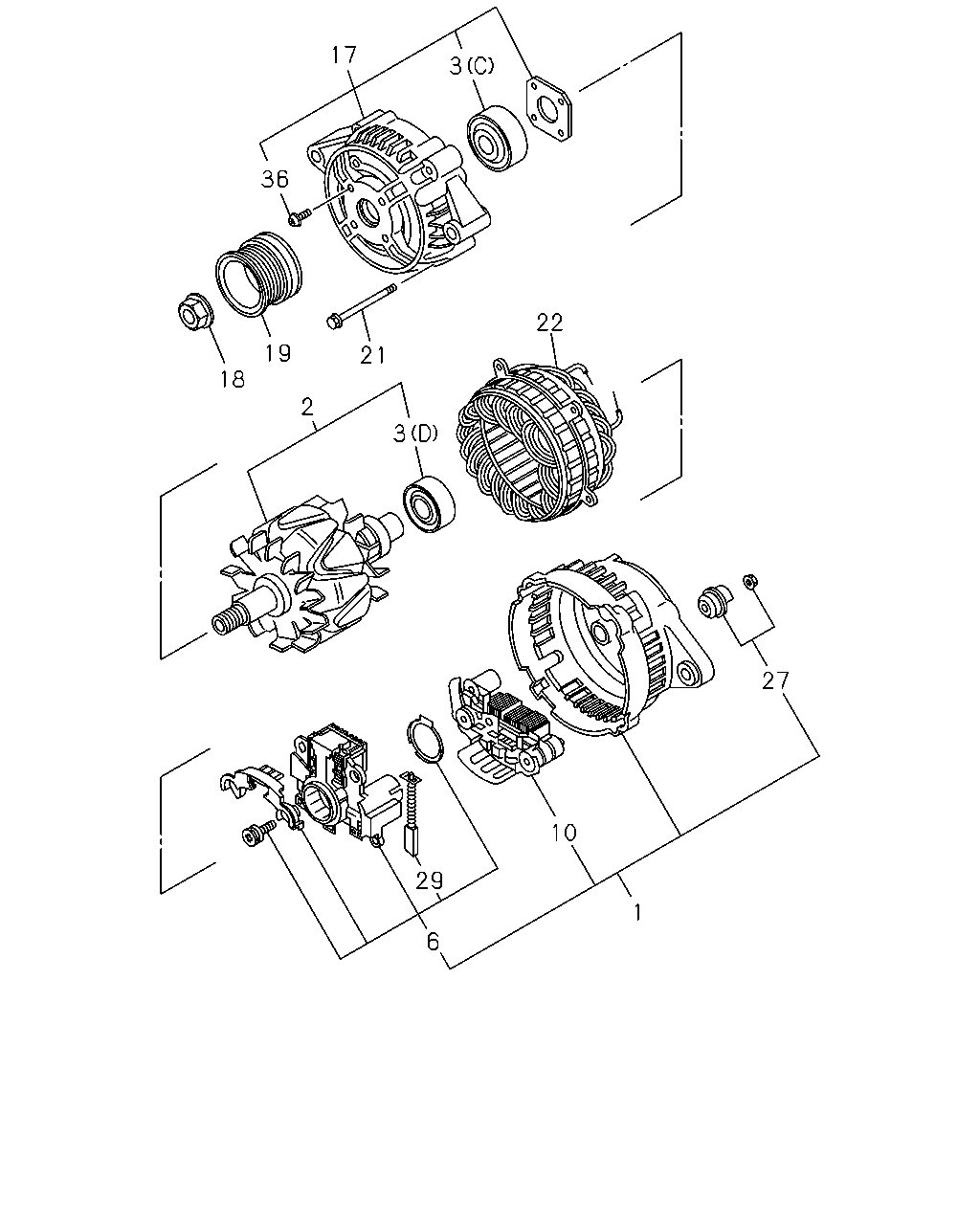

çizim 420267
6 10 29 1 27 2 21 3 22 19 18 36 17 3
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: B = 8-98029-892-2 		8-98230-317-0 01 1 -
1 COVER ASM; RR,GEN
THA ASM PART: A = 8-97948-541-0 		8-98251-118-0 01 1 -
2 ROTOR; GEN
ASM PART: B = 8-98029-892-2 		8-98038-916-1 01 1 -
2 ROTOR; GEN
THA ASM PART: A = 8-97948-541-0 		8-98251-115-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: B = 8-98029-892-2 		8-97062-744-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: B = 8-98029-892-2 		8-97161-473-0 01 1 -
3 BEARING; ROTOR,GEN
(C), THA ASM PART: A = 8-97948-541-0 		8-98251-113-0 01 1 -
3 BEARING; ROTOR,GEN
(D), THA ASM PART: A = 8-97948-541-0 		8-98251-116-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
THA ASM PART: A = 8-97948-541-0 		8-98251-121-0 01 1 -
10 RECTIFIER; GEN
ASM PART: B = 8-98029-892-2 		8-98230-327-0 01 1 -
10 RECTIFIER; GEN
THA ASM PART: A = 8-97948-541-0 		8-98251-119-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: B = 8-98029-892-2 		8-98038-924-0 01 1 -
17 COVER ASM; FRT,GEN
THA ASM PART: A = 8-97948-541-0 		8-98251-110-0 01 1 -
18 NUT; PULLEY,GEN
THA ASM PART: A = 8-97948-541-0 		8-98281-812-0 01 1 -
19 PULLEY; GEN
ASM PART: B = 8-98029-892-2 		8-98040-133-0 01 1 -
19 PULLEY; GEN
THA ASM PART: A = 8-97948-541-0 		8-98251-124-0 01 1 -
21 BOLT; THROUGH,GEN
THA ASM PART: A = 8-97948-541-0 		8-98281-813-0 01 1 -
22 STATOR; GEN
ASM PART: B = 8-98029-892-2 		8-97249-331-1 01 1 -
22 STATOR; GEN
THA ASM PART: A = 8-97948-541-0 		8-98251-117-0 01 1 -
27 NUT; RECTIFIER,GEN
THA ASM PART: A = 8-97948-541-0 		8-98251-120-0 01 1 -
29 BRUSH; GEN
THA ASM PART: A = 8-97948-541-0 		8-98251-125-0 01 1 -
36 SCREW; FRT COVER
THA ASM PART: A = 8-97948-541-0 		8-98281-814-0 01 1 -
