0-65 — STARTER (#139477) — 76 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	51	COVER SET; DUST ENGAGE SW STARTER ASM PART: B = 8-98245-258-0	8-98022-789-0	01	1	-

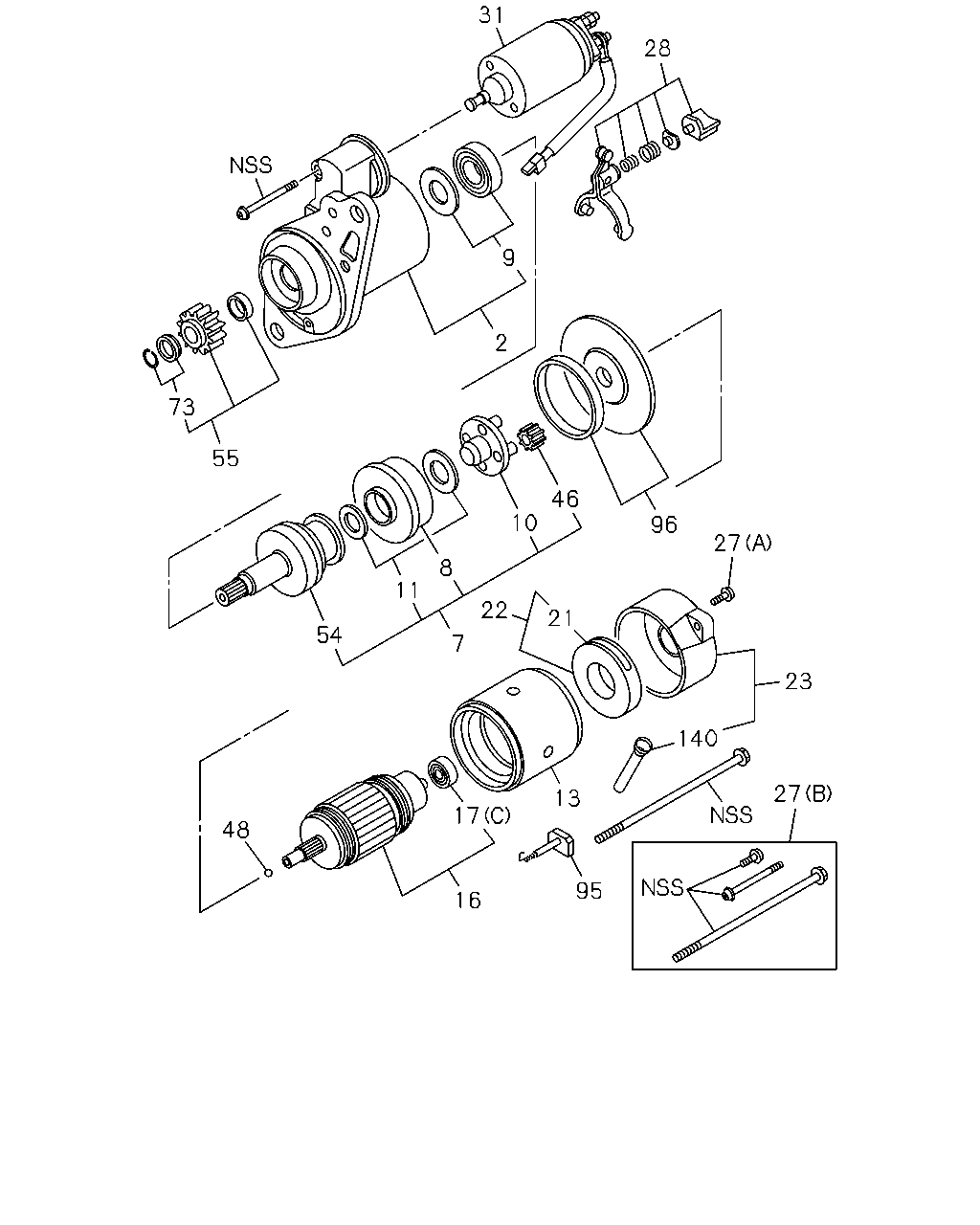

16 17 13 95 140 23 27 27 96 21 22 7 11 54 48 8 10 46 55 73 31 9 2 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: B = 8-98245-258-0	8-98246-368-0	01	1	-
2	CASE; PINION,STARTER THA ASM PART: A = 8-97948-121-1	8-98246-657-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 8-98245-258-0	8-98222-104-0	01	1	-
7	CLUTCH ASM; PINION,STARTER THA ASM PART: A = 8-97948-121-1	8-98246-658-0	01	1	-
8	BRACKET; CENTER STARTER THA ASM PART: A = 8-97948-121-1	8-97116-485-0	01	1	-
9	BEARING; GEAR SHAFT STARTER THA ASM PART: B = 8-98245-258-0	8-97025-673-0	02	1	-
9	BEARING; GEAR SHAFT STARTER THA ASM PART: A = 8-97948-121-1	8-97116-481-0	01	1	-
10	SHAFT; GEAR STARTER THA ASM PART: A = 8-97948-121-1	8-97178-152-0	01	1	-
10	SHAFT; GEAR STARTER THA ASM PART: B = 8-98245-258-0	8-98159-734-0	01	1	-
11	WASHER; GEAR SHAFT STARTER THA ASM PART: A = 8-97948-121-1	8-97116-484-0	01	1	-
13	YOKE; STARTER THA ASM PART: A = 8-97948-121-1	8-98252-443-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-98245-258-0	8-97230-557-0	01	1	-
16	ARMATURE; STARTER THA ASM PART: A = 8-97948-121-1	8-97231-280-0	01	1	-
17	BEARING; ARMATURE,STARTER (C), THA ASM PART: A = 8-97948-121-1	1-81129-837-0	01	1	-
17	BEARING; ARMATURE,STARTER (A), THA ASM PART: B = 8-98245-258-0	8-97025-676-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), THA ASM PART: B = 8-98245-258-0	8-97030-387-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER THA ASM PART: B = 8-98245-258-0	8-94152-972-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER THA ASM PART: A = 8-97948-121-1	8-97116-516-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-98245-258-0	8-97230-562-0	01	1	-
22	HOLDER; BRUSH STARTER THA ASM PART: A = 8-97948-121-1	8-98252-445-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-98245-258-0	8-98246-366-0	01	1	-
23	COVER; RR COVER STARTER THA ASM PART: A = 8-97948-121-1	8-98252-446-0	01	1	-
27	BOLT; THROUGH,STARTER (A), THA ASM PART: A = 8-97948-121-1	8-97116-495-0	01	1	-
27	BOLT; THROUGH,STARTER (B), THA ASM PART: A = 8-97948-121-1	8-97116-514-0	01	1	-
27	BOLT; THROUGH,STARTER (C), THA ASM PART: B = 8-98245-258-0	8-97192-423-0	02	1	-
28	LEVER; SHIFT,STARTER THA ASM PART: A = 8-97948-121-1	8-97116-492-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: B = 8-98245-258-0	8-98179-218-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-98245-258-0	8-98246-367-0	01	1	-
31	SWITCH; ENGAGE STARTER THA ASM PART: A = 8-97948-121-1	8-98252-441-1	01	1	-
46	GEAR; CLU STARTER THA ASM PART: A = 8-97948-121-1	8-97116-490-0	04	1	-
48	BALL; PINION,STARTER THA ASM PART: A = 8-97948-121-1	8-97116-515-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-98245-258-0	8-98222-106-0	01	1	-
54	CLUTCH; PINION,STARTER THA ASM PART: A = 8-97948-121-1	8-98246-659-0	01	1	-
55	PINION; CLU,STARTER THA ASM PART: A = 8-97948-121-1	8-98246-660-0	01	1	-
73	STOPPER SET; PINION THA ASM PART: A = 8-97948-121-1	8-94475-688-0	01	1	-
95	BRUSH ASM; STARTER THA ASM PART: A = 8-97948-121-1	8-98252-448-0	02	1	-
96	GASKET; FRT CASE THA ASM PART: A = 8-97948-121-1	8-98252-442-0	01	1	-
140	GROMMET; RR COVER THA ASM PART: A = 8-97948-121-1	8-98252-447-0	01	1	-

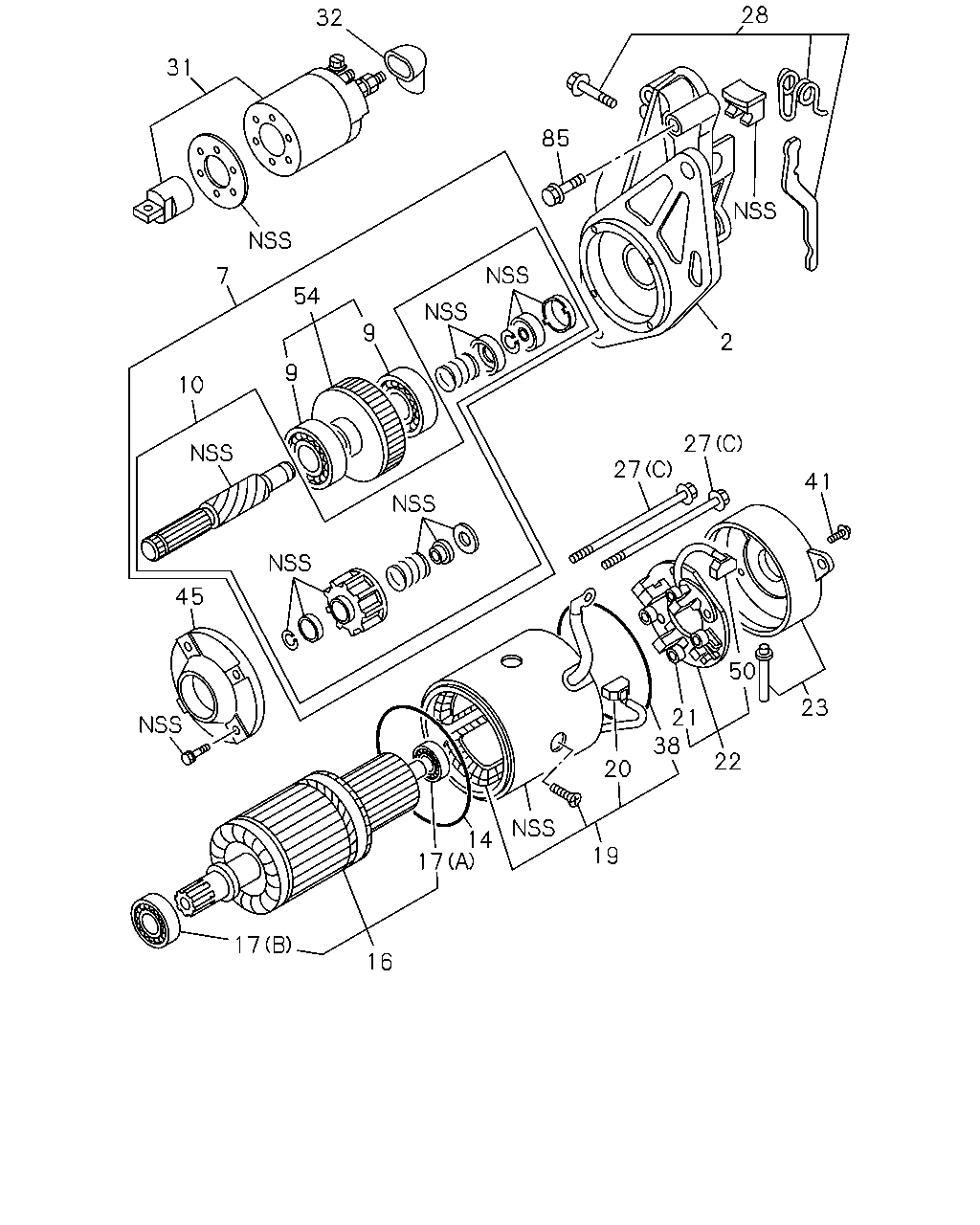

17 16 17 14 19 20 38 21 22 50 23 41 27 27 2 45 10 7 9 9 54 31 32 85 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: B = 8-98245-258-0	8-98246-368-0	01	1	-
2	CASE; PINION,STARTER THA ASM PART: A = 8-97948-121-1	8-98246-657-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 8-98245-258-0	8-98222-104-0	01	1	-
7	CLUTCH ASM; PINION,STARTER THA ASM PART: A = 8-97948-121-1	8-98246-658-0	01	1	-
9	BEARING; GEAR SHAFT STARTER THA ASM PART: B = 8-98245-258-0	8-97025-673-0	02	1	-
9	BEARING; GEAR SHAFT STARTER THA ASM PART: A = 8-97948-121-1	8-97116-481-0	01	1	-
10	SHAFT; GEAR STARTER THA ASM PART: A = 8-97948-121-1	8-97178-152-0	01	1	-
10	SHAFT; GEAR STARTER THA ASM PART: B = 8-98245-258-0	8-98159-734-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: B = 8-98245-258-0	8-97377-691-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-98245-258-0	8-97230-557-0	01	1	-
16	ARMATURE; STARTER THA ASM PART: A = 8-97948-121-1	8-97231-280-0	01	1	-
17	BEARING; ARMATURE,STARTER (C), THA ASM PART: A = 8-97948-121-1	1-81129-837-0	01	1	-
17	BEARING; ARMATURE,STARTER (A), THA ASM PART: B = 8-98245-258-0	8-97025-676-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), THA ASM PART: B = 8-98245-258-0	8-97030-387-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: B = 8-98245-258-0	8-98253-306-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: B = 8-98245-258-0	8-97230-560-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER THA ASM PART: B = 8-98245-258-0	8-94152-972-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER THA ASM PART: A = 8-97948-121-1	8-97116-516-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-98245-258-0	8-97230-562-0	01	1	-
22	HOLDER; BRUSH STARTER THA ASM PART: A = 8-97948-121-1	8-98252-445-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-98245-258-0	8-98246-366-0	01	1	-
23	COVER; RR COVER STARTER THA ASM PART: A = 8-97948-121-1	8-98252-446-0	01	1	-
27	BOLT; THROUGH,STARTER (A), THA ASM PART: A = 8-97948-121-1	8-97116-495-0	01	1	-
27	BOLT; THROUGH,STARTER (B), THA ASM PART: A = 8-97948-121-1	8-97116-514-0	01	1	-
27	BOLT; THROUGH,STARTER (C), THA ASM PART: B = 8-98245-258-0	8-97192-423-0	02	1	-
28	LEVER; SHIFT,STARTER THA ASM PART: A = 8-97948-121-1	8-97116-492-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: B = 8-98245-258-0	8-98179-218-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-98245-258-0	8-98246-367-0	01	1	-
31	SWITCH; ENGAGE STARTER THA ASM PART: A = 8-97948-121-1	8-98252-441-1	01	1	-
32	COVER; RUBBER,STARTER ASM PART: B = 8-98245-258-0	8-98253-307-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: B = 8-98245-258-0	8-97230-559-0	01	1	-
41	SCREW; RR COVER,STARTER THA ASM PART: B = 8-98245-258-0	8-97117-107-0	02	1	-
45	RETAINER; BEARING,STARTER ASM PART: B = 8-98245-258-0	8-98246-369-0	01	1	-
50	BRUSH; (-),STARTER ASM PART: B = 8-98245-258-0	8-97230-560-0	02	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-98245-258-0	8-98222-106-0	01	1	-
54	CLUTCH; PINION,STARTER THA ASM PART: A = 8-97948-121-1	8-98246-659-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER THA ASM PART: B = 8-98245-258-0	8-94408-500-0	02	1	-
