Isuzu WW
▶
TRUCKS
▶
NPR
▶
51509 - NPR/NQR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶

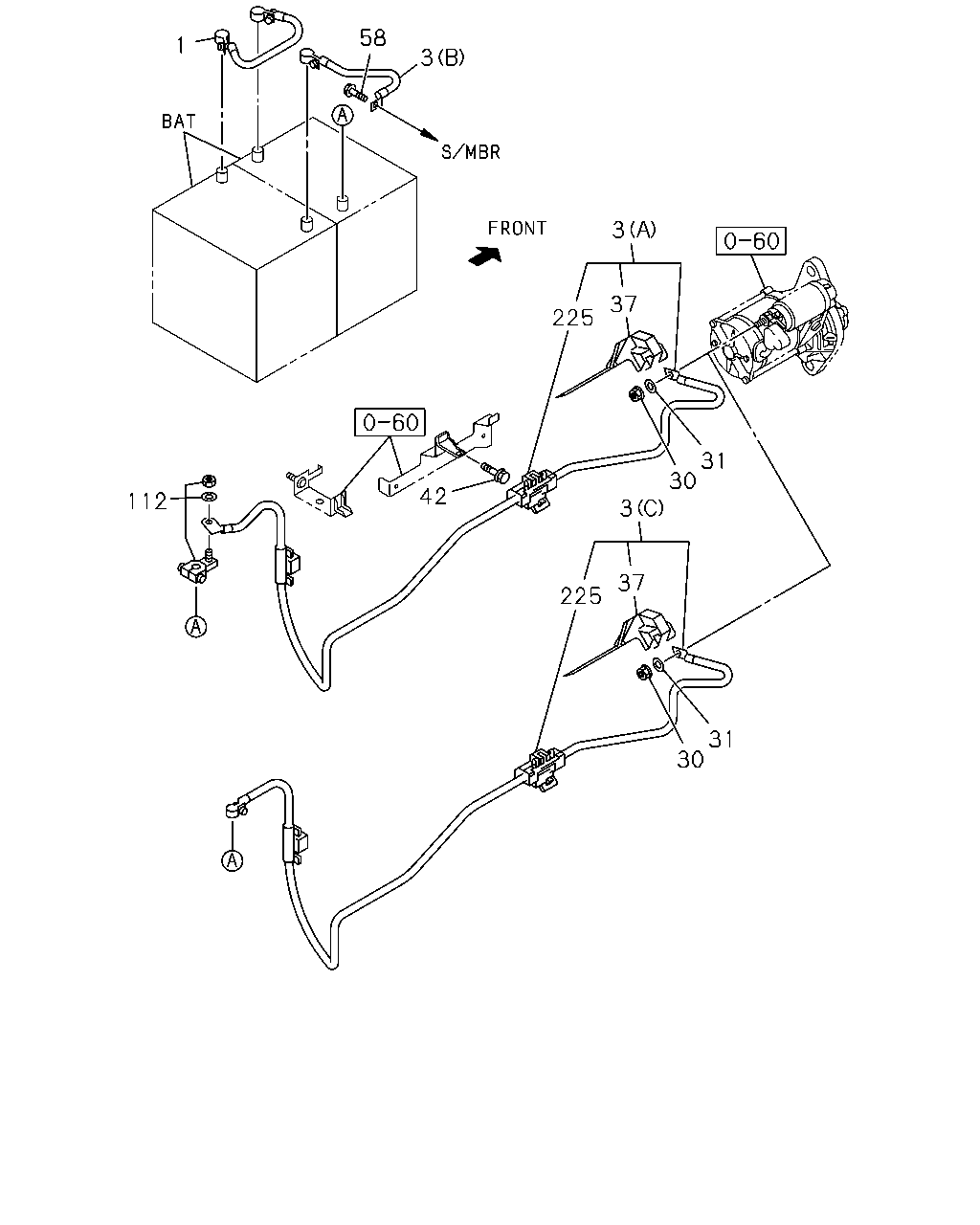

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#139476) — 14 parça
Tümü
A - 4HK1-TCN ENG
B - 4HK1-TCS ENG
1
58
3
3
37
225
31
30
3
37
225
31
30
42
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CABLE; BATTERY
L=280 THA
8-97922-383-0
01
1
1405-
●
●
3
HARNESS; CABLE,BATTERY TO STARTER
M/T MYY6S<RST> TRANSMISSION CONTROL-SMOOTHER<8GF> (A) THA
8-97927-142-1
01
1
1405-
●
●
3
HARNESS; CABLE,BATTERY TO STARTER
(B) THA
8-97922-384-0
01
1
1405-
●
●
3
HARNESS; CABLE,BATTERY TO STARTER
M/T MYY6S<RST> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C) THA
8-97926-984-0
01
1
1405-
●
●
3
HARNESS; CABLE,BATTERY TO STARTER
M/T MZZ6F<RSR> (C) THA
8-97926-985-0
01
1
1405-
●
30
NUT; CABLE,STARTER TO BATTERY
M8
0-91110-508-0
01
1
1405-
●
●
31
WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 THA
0-91510-808-0
01
1
1405-
●
●
37
CAP; TERMINAL,BATTERY CABLE
M/T MYY6S<RST> TRANSMISSION CONTROL-SMOOTHER<8GF>
8-98042-507-0
01
1
1405-
●
●
37
CAP; TERMINAL,BATTERY CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA
8-97927-023-1
01
1
1405-
●
37
CAP; TERMINAL,BATTERY CABLE
THA
8-97927-023-1
01
1
1405-
●
42
BOLT; BRKT,BATTERY CABLE
M6X16 FLANGE
8-97329-599-0
01
1
1405-
●
●
58
BOLT; CABLE,BATTERY
M8X24 W/PL WASHER
8-98141-256-1
01
1
1405-
●
●
112
TERMINAL; BATTERY
TRANSMISSION CONTROL-SMOOTHER<8GF>
8-97365-770-0
01
1
1405-
●
225
BLOCK; TERMINAL
THA
8-98029-689-0
01
1
1405-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
