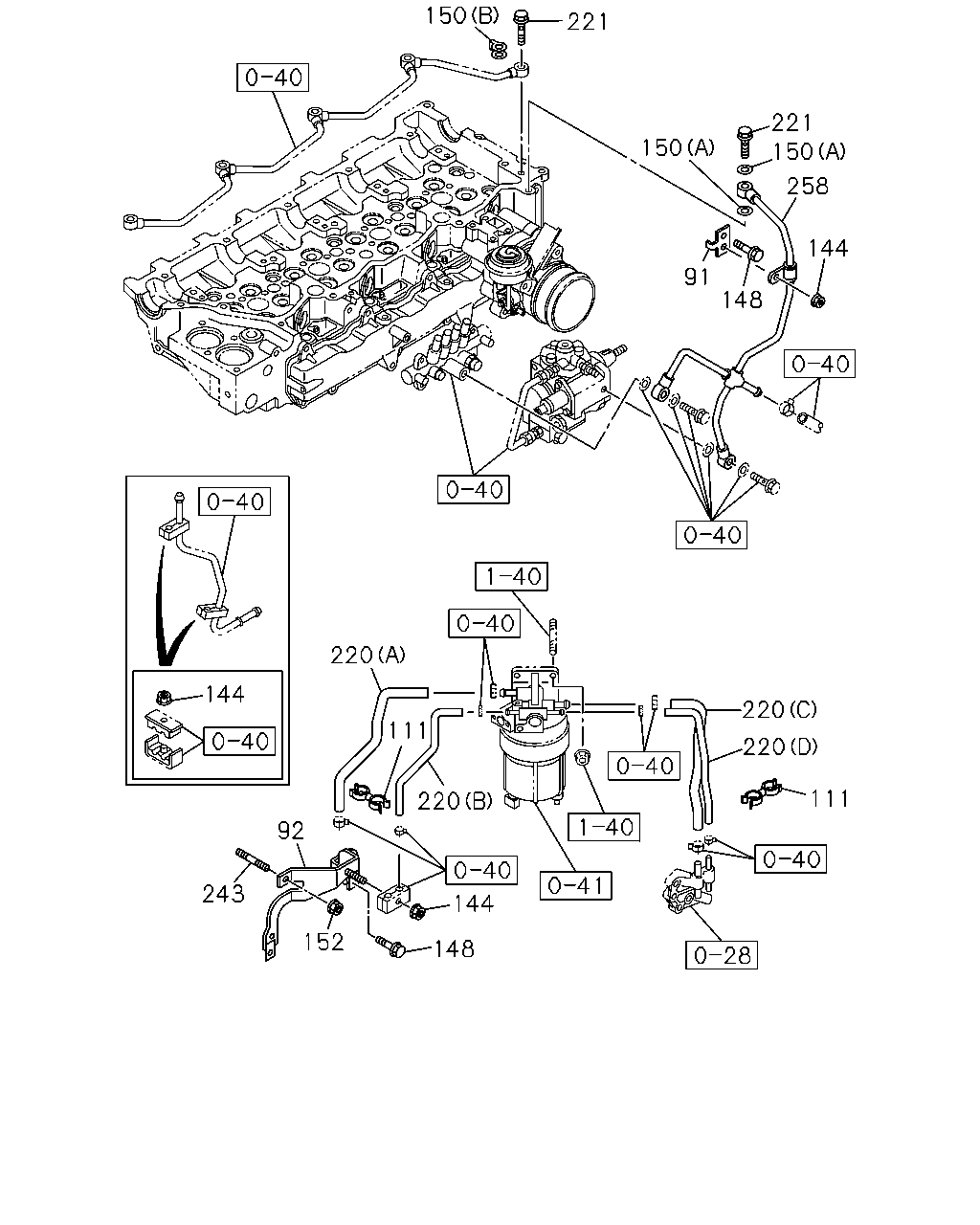

0-42 — FUEL PUMP AND PIPE
(#139469) — 15 parça
Tümü
A - 4HK1-TCN ENG
B - 4HK1-TCS ENG
150
221
150
221
150
258
144
91
148
220
144
220
220
111
148
144
152
243
92
220
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
91
BRACKET; FUEL PIPE TO INL MANIF
8-98033-979-0
01
1
1405-
●
●
92
BRACKET; FUEL PIPE
8-98051-532-1
01
1
1405-
●
●
111
CLIP; FUEL PIPE
ID=13 & 16.5
8-94169-028-0
03
1
1405-
●
●
144
NUT; CLIP
M6 FLANGE THA
0-91180-106-0
03
1
1405-
●
●
148
BOLT; BRKT
M6X12 FLANGE THA
0-28050-612-0
03
1
1405-
●
●
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2
1-09630-083-0
02
1
1405-
●
●
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17
8-98079-755-0
01
1
1405-
●
●
152
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
01
1
1405-
●
●
220
HOSE; FUEL
(C)
8-98036-180-3
01
1
1405-
●
●
220
HOSE; FUEL
(D)
8-98036-181-2
01
1
1405-
●
●
220
HOSE; FUEL
(A)
8-98076-056-1
01
1
1405-
●
●
220
HOSE; FUEL
(B)
8-98076-057-1
01
1
1405-
●
●
221
BOLT; FUEL PIPE
M10X21 FLANGE
8-94396-711-0
02
1
1405-
●
●
243
STUD; BRKT
M8X15,M8X17 L=40
8-98009-913-0
01
1
1405-
●
●
258
PIPE ASM; FUEL,LEAK OFF
8-98033-718-0
01
1
1405-
●
●
