◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51509 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#139468) — 8 parça

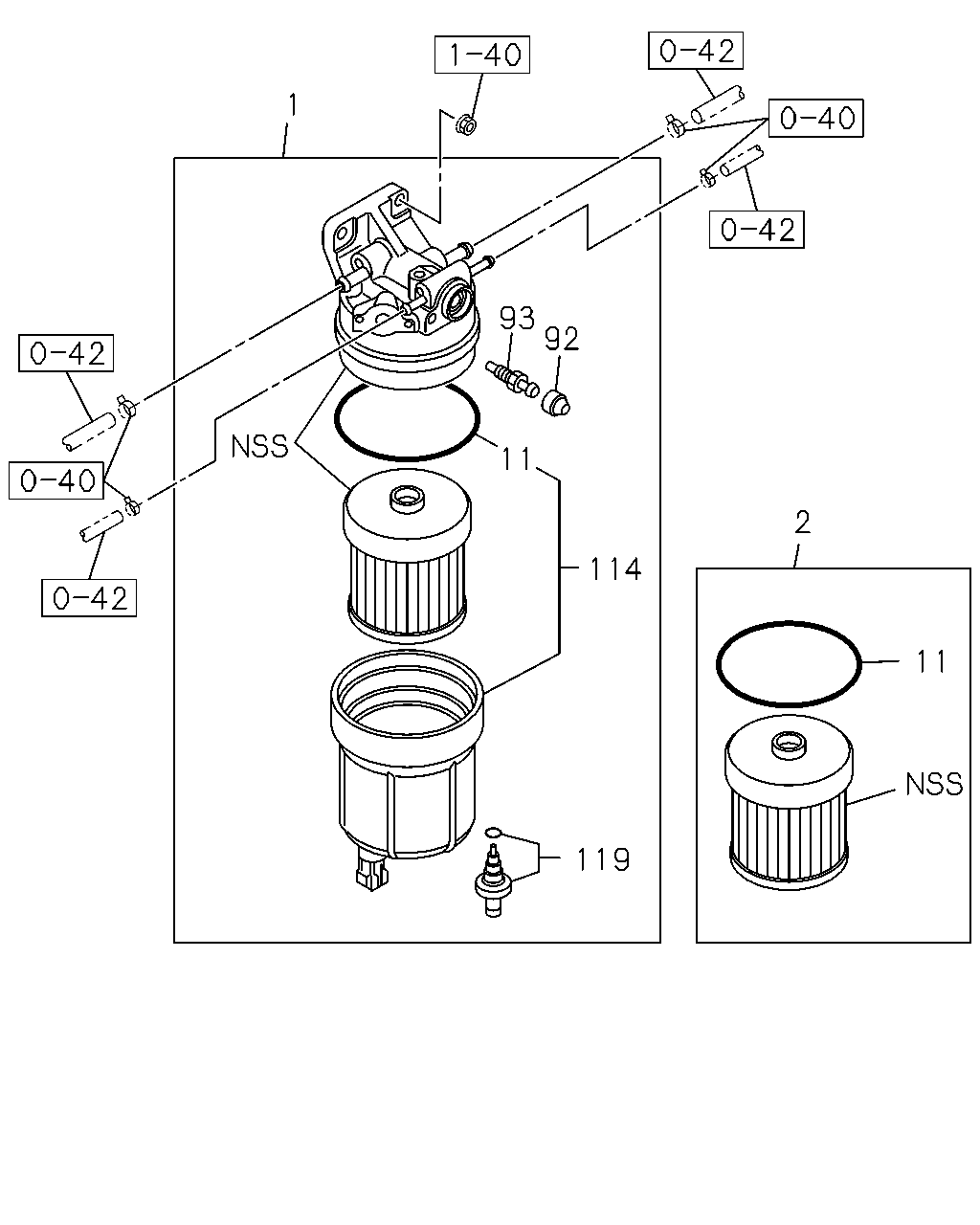

çizim 420169
1 93 92 11 114 119 2 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 FILTER ASM; FUEL 8-98162-903-2 01 1 1405- ● ●
2 ELEMENT KIT; FUEL FILTER 8-98203-599-0 01 1 1405- ● ●
2 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		1-87610-093-0 01 1 1405- ● ●
11 GASKET; CASE TO BODY,FUEL FILTER 8-98203-600-0 01 1 1405- ● ●
92 CAP; FUEL FILTER 8-98034-314-0 01 1 1405- ● ●
93 CONNECTOR; FUEL FILTER
M8X10 		8-98034-312-0 01 1 1405- ● ●
114 CASE ASM; FUEL FILTER 8-98039-987-1 01 1 1405- ● ●
119 PLUG; DRAIN,FUEL FILTER 8-98037-095-0 01 1 1405- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
