◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51509 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#139456) — 26 parça

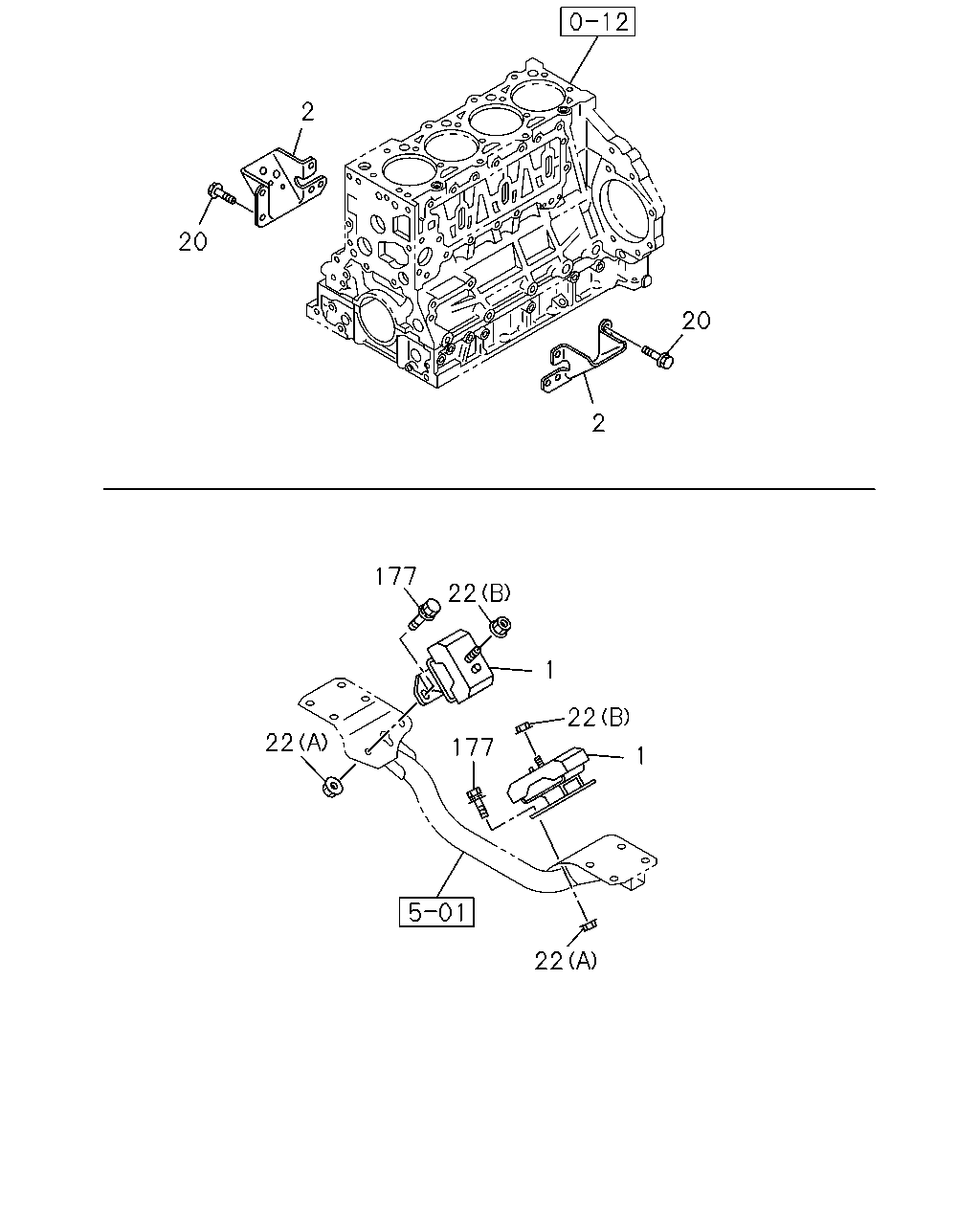

çizim 420131
2 20 20 2 177 22 1 22 1 22 177 22
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT
THA 		8-97948-469-0 01 1 1405- ● ●
1 RUBBER; ENG FOOT,FRT
THA 		8-97948-471-0 01 1 1405- ● ●
2 FOOT; ENG 8-97228-669-2 02 1 1405- ● ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28161-020-0 08 1 1405- ● ●
22 NUT; CUSHION RUBBER TO BRKT
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1405- ● ●
22 NUT; CUSHION RUBBER TO BRKT
(B) M12 FLANGE THA 		0-91180-112-0 02 1 1405- ● ●
177 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 1405- ● ●
çizim 420147
134 52 134 78 71 76 76 71 76 67 67 76 71 76 52 78 76 71 134 134 87 84
BalonParca AdiParca NoAdetTipApplied Date A B
52 RUBBER; CUSHION,ENG MTG,RR
M/T MYY6S<RST> FRAME STRAIGHT TYPE<7KJ> 		8-94111-903-1 02 1 1405- ●
52 RUBBER; CUSHION,ENG MTG,RR
M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> 		8-97039-277-0 02 1 1405- ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY6S<RST> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97350-753-0 01 1 1405- ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY6S<RST> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97350-754-0 01 1 1405- ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY6S<RST> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97255-776-1 01 1 1405- ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY6S<RST> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97255-778-1 01 1 1405- ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> 		8-97180-457-0 01 1 1405- ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> 		8-97180-458-0 01 1 1405- ●
71 NUT; SUPPORT RUBBER TO BRKT
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA 		0-91180-110-0 04 1 1405- ● ●
76 STOPPER; ENG MTG RUBBER
FRAME STRAIGHT TYPE<7KJ> (B) 		8-94111-904-0 02 1 1405- ● ●
76 STOPPER; ENG MTG RUBBER
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97039-947-1 04 1 1405- ● ●
78 BRACKET; ENG MTG,RR
M/T MYY6S<RST> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-97350-752-0 02 1 1405-1407 ●
78 BRACKET; ENG MTG,RR
M/T MYY6S<RST> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER<8GF> 		8-98144-646-1 02 1 1408- ●
78 BRACKET; ENG MTG,RR
M/T MYY6S<RST> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> 		8-97255-756-1 02 1 1405- ●
78 BRACKET; ENG MTG,RR
M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> 		8-97211-475-0 01 1 1405- ●
78 BRACKET; ENG MTG,RR
M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> 		8-97234-719-0 01 1 1405- ●
84 WASHER; PL,ENG MTG RR TO FRAME
FRAME STRAIGHT TYPE<7KJ> ID=10.5 OD=32 		0-91614-810-0 04 1 1405- ● ●
87 NUT; ENG MTG RR
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA 		0-91180-110-0 04 1 1405- ● ●
134 BOLT; SUPPORT BRKT
FRAME STRAIGHT TYPE<7KJ> M12X25 FLANGE 		0-28751-225-0 06 1 1405- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
