7-50 — FRONT SEAT (#13945) — 158 parça

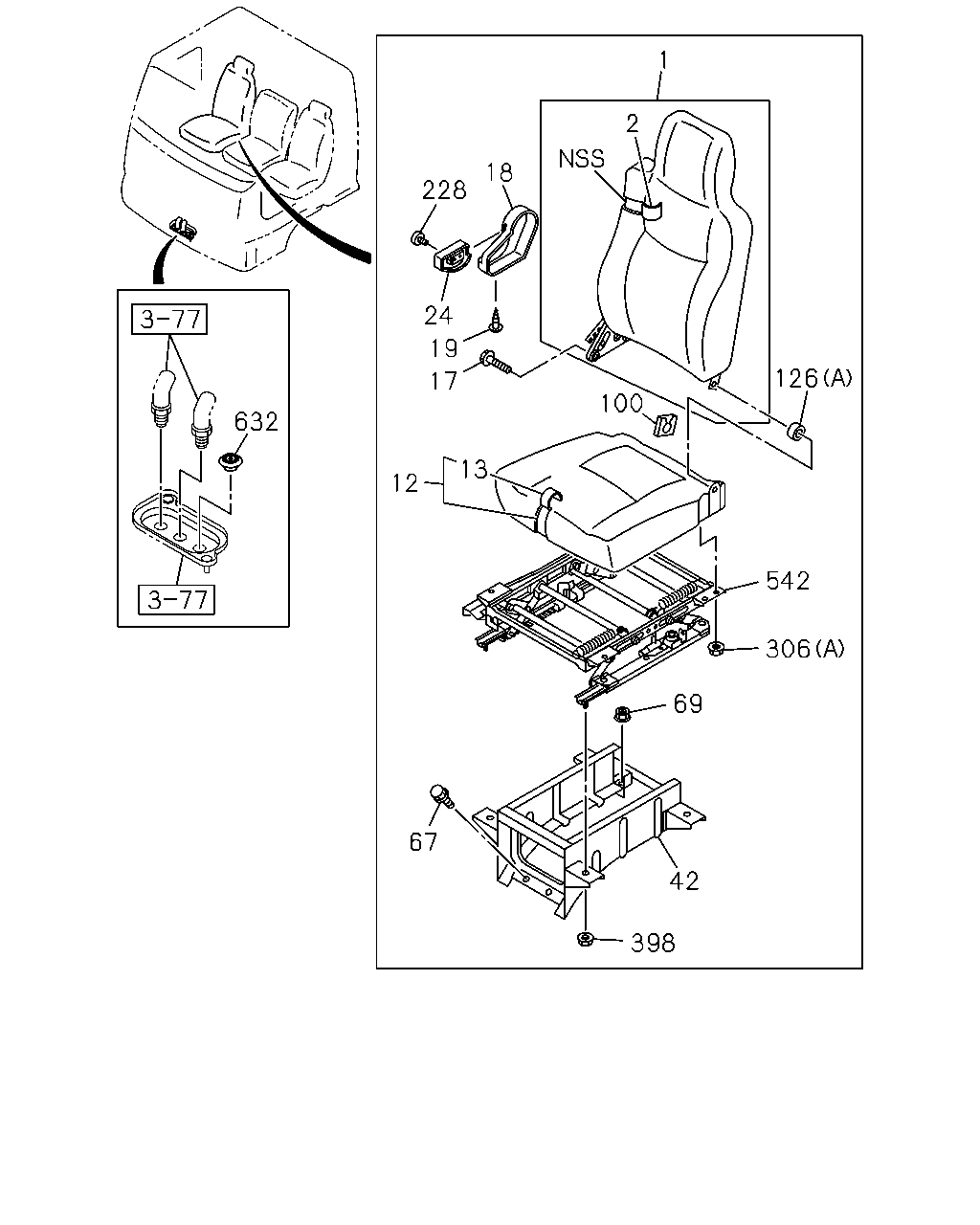

çizim 98331
1 2 18 228 24 19 126 17 100 632 13 12 542 306 69 67 42 398
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
THA 		8-97924-734-0 01 1 1210-
1 BACK ASM; SEAT
DARK GRAY 		8-97409-955-1 01 1 0807-0808
1 BACK ASM; SEAT
THA 		8-97924-734-0 01 1 0809-1102
2 COVER; TRIM,FRT SEAT,BACK
THA 		8-97924-750-0 01 1 1210-
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97411-910-0 01 1 0807-0808
2 COVER; TRIM,FRT SEAT,BACK
THA 		8-97924-750-0 01 1 0809-1102
12 CUSHION; SEAT,FRT
THA 		8-97924-748-1 01 1 1210-
12 CUSHION; SEAT,FRT
DARK GRAY 		8-97409-954-0 01 1 0807-0808
12 CUSHION; SEAT,FRT
THA 		8-97924-748-1 01 1 0809-1102
13 COVER; TRIM,FRT SEAT,CUSHION
THA 		8-97924-749-0 01 1 1210-
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97411-909-0 01 1 0807-0808
13 COVER; TRIM,FRT SEAT,CUSHION
THA 		8-97924-749-0 01 1 0809-1102
17 BOLT; RECLINING
DRIVER M10X20 THA 		8-98062-661-0 04 1 0807-
17 BOLT; RECLINING
PASSENGER M8X20 THA 		8-98092-334-0 02 1 0807-
18 COVER; RECLINING
GRAY THA 		8-97409-332-0 01 1 1210-
18 COVER; RECLINING
GRAY THA 		8-97409-332-0 01 1 0807-1102
19 SCREW; COVER
M5 THA 		8-98062-663-0 01 1 1210-
19 SCREW; COVER
M5 THA 		8-98062-663-0 01 1 0807-1102
24 KNOB; RECLINING,FRT,SEAT
GRAY THA 		8-97409-333-0 01 1 1210-
24 KNOB; RECLINING,FRT,SEAT
GRAY THA 		8-97409-333-0 01 1 0807-1102
42 STAND; DRIVER SEAT
THA 		1-75558-604-2 01 1 1210-
42 STAND; DRIVER SEAT 1-75558-604-1 01 1 0807-1102
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE THA 		0-28451-020-0 02 1 0807-
69 NUT; FRT SEAT
M10 FLANGE THA 		0-91180-110-0 02 1 0807-
100 COVER; HINGE 8-98203-070-0 01 1 1110-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) THA 		8-97917-184-0 01 1 1210-
126 BUSHING; HINGE,RECLINING
(A) THA 		8-98063-218-0 01 1 1210-
126 BUSHING; HINGE,RECLINING
(B) THA 		8-97917-184-0 01 1 0807-1102
126 BUSHING; HINGE,RECLINING
(A) THA 		8-98063-218-0 01 1 0807-1102
228 SCREW; KNOB
M4 THA 		8-98062-662-0 01 1 1210-
228 SCREW; KNOB
M4 THA 		8-98062-662-0 01 1 0807-1102
306 NUT; SEAT ADJ
(A) M8 FLANGE THA 		1-75538-207-0 08 1 1210-
306 NUT; SEAT ADJ
(B) M10 FLANGE THA 		0-91180-110-0 02 1 0807-
306 NUT; SEAT ADJ
(A) M8 FLANGE THA 		1-75538-207-0 08 1 0807-1102
398 NUT; STAND
M8 FLANGE THA 		1-75538-207-0 04 1 1210-
398 NUT; STAND
M8 FLANGE THA 		1-75538-207-0 04 1 0807-1102
542 ADJUSTER ASM; SEAT SLIDE
THA 		8-98093-310-0 01 1 0807-
632 GROMMET
OD=24 		8-94119-796-0 01 1 0807-

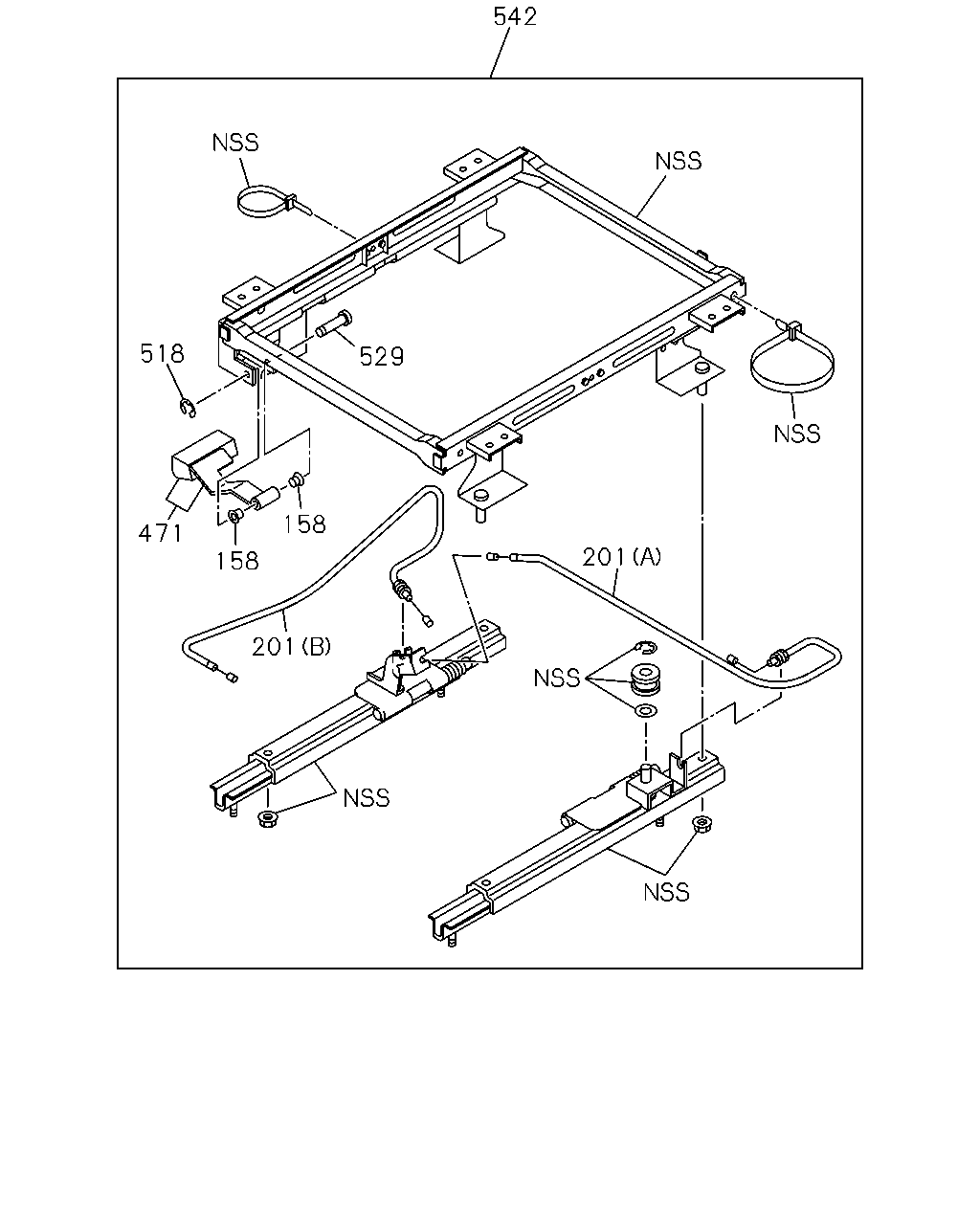

çizim 98383
542 518 529 158 471 201 158 201
BalonParca AdiParca NoAdetTipApplied Date
158 BUSHING; LINK ARM
THA 		1-75518-209-0 02 1 1210-
158 BUSHING; LINK ARM
THA 		1-75518-209-0 02 1 0807-1102
201 CABLE; ADJ
(A) L=667 THA 		1-75518-288-0 01 1 1210-
201 CABLE; ADJ
(B) L=605 THA 		1-75518-289-1 01 1 1210-
201 CABLE; ADJ
(A) L=667 THA 		1-75518-288-0 01 1 0807-1102
201 CABLE; ADJ
(B) L=605 THA 		1-75518-289-1 01 1 0807-1102
471 LEVER; SEAT ADJ
THA 		8-98107-869-0 01 1 1210-
471 LEVER; SEAT ADJ
THA 		8-98107-869-0 01 1 0807-1102
518 NUT; TILT ADJ
THA 		1-75518-263-0 01 1 1210-
518 NUT; TILT ADJ
THA 		1-75518-263-0 01 1 0807-1102
529 PIN; LINK
THA 		1-75518-262-0 01 1 1210-
529 PIN; LINK
THA 		1-75518-262-0 01 1 0807-1102
542 ADJUSTER ASM; SEAT SLIDE
THA 		8-98093-310-0 01 1 0807-

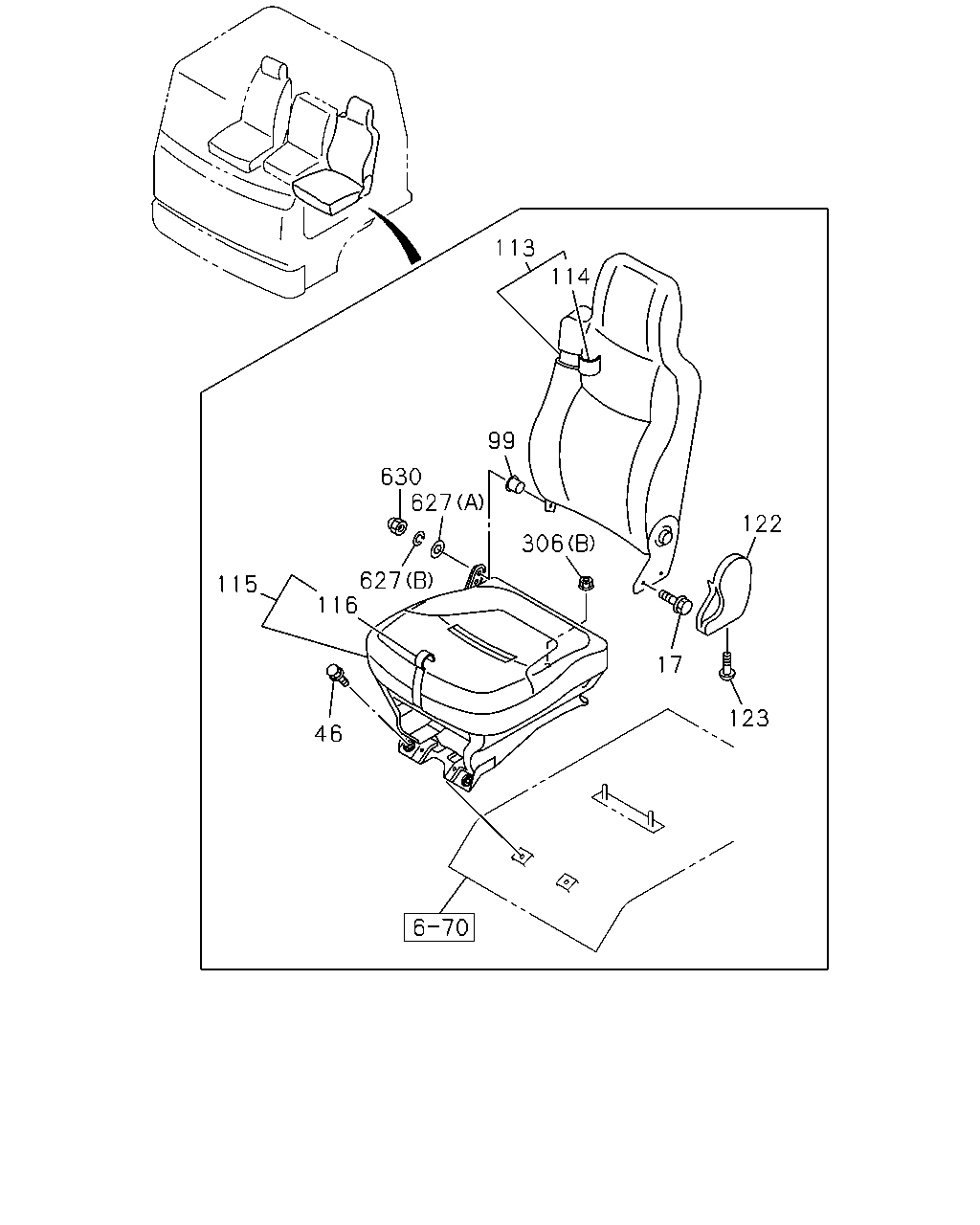

çizim 98408
113 114 99 630 627 122 306 627 116 115 17 123 46
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; RECLINING
DRIVER M10X20 THA 		8-98062-661-0 04 1 0807-
17 BOLT; RECLINING
PASSENGER M8X20 THA 		8-98092-334-0 02 1 0807-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE THA 		0-28451-020-0 02 1 0807-
99 BUSHING; SEAT BACK
THA 		8-98063-219-0 01 1 0807-
113 BACK ASM; SEAT
DARK GRAY 		8-97409-966-0 01 1 0807-0808
113 BACK ASM; SEAT
THA 		8-97924-737-0 01 1 0809-
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97411-916-0 01 1 0807-0808
114 COVER; TRIM,PASSENGER SEAT,BACK
THA 		8-97924-761-0 01 1 0809-
115 CUSHION ASM; PASSENGER SEAT
THA 		8-97924-759-0 01 1 0809-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
THA 		8-97924-760-0 01 1 0809-
122 COVER; ADJ,RECLINING
GRAY THA 		8-97409-967-0 01 1 0807-
123 SCREW; COVER,RECLINING
THA 		8-98070-026-0 01 1 0807-
306 NUT; SEAT ADJ
(A) M8 FLANGE THA 		1-75538-207-0 08 1 1210-
306 NUT; SEAT ADJ
(B) M10 FLANGE THA 		0-91180-110-0 02 1 0807-
306 NUT; SEAT ADJ
(A) M8 FLANGE THA 		1-75538-207-0 08 1 0807-1102
627 WASHER; FRT SEAT
(A) THA 		8-98063-223-0 01 1 0807-
627 WASHER; FRT SEAT
(B) THA 		8-98063-224-0 01 1 0807-
630 NUT; CAP
M8 THA 		8-98063-225-0 01 1 0807-

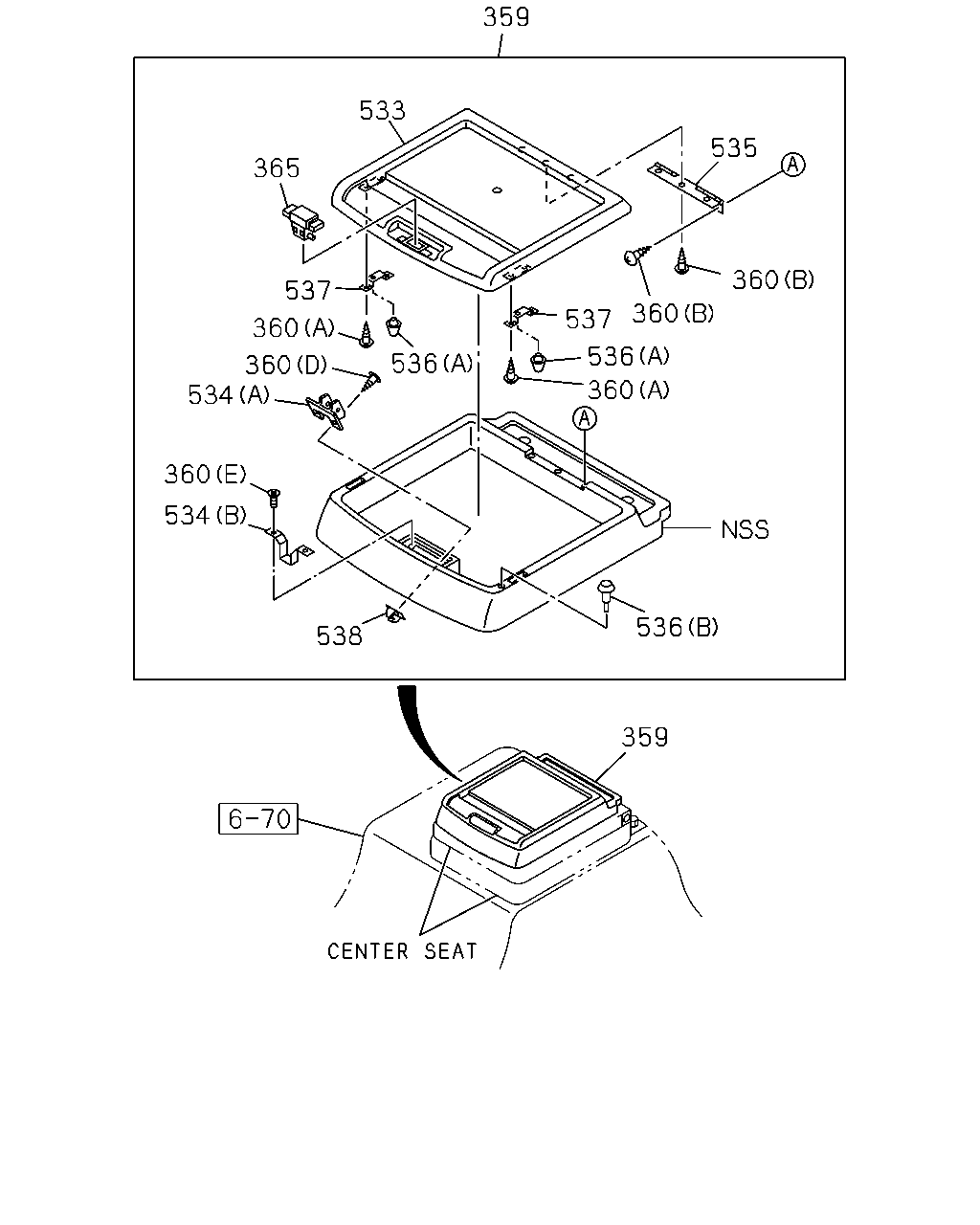

çizim 98449
359 533 535 365 360 537 360 537 360 536 536 360 534 360 360 534 536 538 359
BalonParca AdiParca NoAdetTipApplied Date
359 BOX; PARCEL
GRAY 		8-97417-261-0 01 1 1103-1107
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1108-
359 BOX; PARCEL
THA 		8-97924-469-0 01 1 0807-1003
359 BOX; PARCEL
EXC. VIN MODEL YEAR 2010<VZA> THA 		8-97924-469-0 01 1 1004-1102
360 SCREW; PARCEL
(E) M5X14 TAPPING CK-HEAD THA 		0-70040-514-0 02 1 1103-1107
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD THA 		0-70040-514-0 02 1 1108-
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 1103-1107
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1108-
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER THA 		0-74360-516-0 04 1 1103-1107
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER THA 		0-74360-516-0 04 1 1108-1110
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 THA 		8-98062-663-0 04 1 1111-
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0807-1003
360 SCREW; PARCEL
EXC. VIN MODEL YEAR 2010<VZA> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 1004-1102
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 0807-1003
360 SCREW; PARCEL
EXC. VIN MODEL YEAR 2010<VZA> (B) M4X16 		0-70040-416-0 06 1 1004-1102
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER THA 		0-74360-516-0 04 1 0807-1003
360 SCREW; PARCEL
EXC. VIN MODEL YEAR 2010<VZA> (C) M5X16 TAPPING W/PL WASHER THA 		0-74360-516-0 04 1 1004-1102
360 SCREW; PARCEL
(D) M5X20 		9-09829-324-1 02 1 0807-1003
360 SCREW; PARCEL
EXC. VIN MODEL YEAR 2010<VZA> (D) M5X20 		9-09829-324-1 02 1 1004-1102
365 LOCK ASM; SEAT
THA 		1-72538-312-0 01 1 1103-1107
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> THA 		1-72538-312-0 01 1 1108-
365 LOCK ASM; SEAT
THA 		8-97924-512-0 01 1 0807-1003
365 LOCK ASM; SEAT
EXC. VIN MODEL YEAR 2010<VZA> THA 		8-97924-512-0 01 1 1004-1102
533 LID; PARCEL BOX
GRAY 		8-97417-263-0 01 1 1103-1107
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1108-
533 LID; PARCEL BOX
THA 		8-97924-511-0 01 1 0807-1003
533 LID; PARCEL BOX
EXC. VIN MODEL YEAR 2010<VZA> THA 		8-97924-511-0 01 1 1004-1102
534 STRIKER; PARCEL BOX
(B) THA 		1-72538-190-0 01 1 1103-1107
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (B) THA 		1-72538-190-0 01 1 1108-
534 STRIKER; PARCEL BOX
(A) THA 		8-97913-529-0 01 1 0807-1003
534 STRIKER; PARCEL BOX
EXC. VIN MODEL YEAR 2010<VZA> (A) THA 		8-97913-529-0 01 1 1004-1102
535 HINGE; PARCEL BOX
THA 		1-72447-391-1 01 1 1103-1107
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> THA 		1-72447-391-1 01 1 1108-
535 HINGE; PARCEL BOX
THA 		8-97913-533-0 01 1 0807-1003
535 HINGE; PARCEL BOX
EXC. VIN MODEL YEAR 2010<VZA> THA 		8-97913-533-0 01 1 1004-1102
536 RUBBER; CUSHION
(B) THA 		1-72538-187-0 02 1 1103-1107
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (B) THA 		1-72538-187-0 02 1 1108-
536 RUBBER; CUSHION
(A) THA 		8-97914-858-0 02 1 0807-1003
536 RUBBER; CUSHION
EXC. VIN MODEL YEAR 2010<VZA> (A) THA 		8-97914-858-0 02 1 1004-1102
537 BRACKET; RUBBER
THA 		8-97914-859-0 02 1 0807-1003
537 BRACKET; RUBBER
EXC. VIN MODEL YEAR 2010<VZA> THA 		8-97914-859-0 02 1 1004-1102
538 GROMMET; SCREW
THA 		8-97914-867-0 02 1 0807-1003
538 GROMMET; SCREW
EXC. VIN MODEL YEAR 2010<VZA> THA 		8-97914-867-0 02 1 1004-1102
çizim 98456
506 360 175 176 188 16 188 126 359 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> THA 		1-75418-062-1 01 1 1210-
16 ADJUSTER ASM; RECLINING
THA 		1-75418-062-1 01 1 0807-1102
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) THA 		8-97917-184-0 01 1 1210-
126 BUSHING; HINGE,RECLINING
(A) THA 		8-98063-218-0 01 1 1210-
126 BUSHING; HINGE,RECLINING
(B) THA 		8-97917-184-0 01 1 0807-1102
126 BUSHING; HINGE,RECLINING
(A) THA 		8-98063-218-0 01 1 0807-1102
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> THA 		8-97925-314-0 01 1 1210-
175 BACK ASM; PASSENGER CENTER SEAT
VIN MODEL YEAR 2010<VZA> THA 		8-97925-314-0 01 1 1004-1102
175 BACK ASM; PASSENGER CENTER SEAT
THA 		8-97924-455-1 01 1 0807-1003
175 BACK ASM; PASSENGER CENTER SEAT
EXC. VIN MODEL YEAR 2010<VZA> THA 		8-97924-455-1 01 1 1004-1102
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> THA 		8-97925-308-0 01 1 1210-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VIN MODEL YEAR 2010<VZA> THA 		8-97925-308-0 01 1 1004-1102
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
THA 		8-97924-457-0 01 1 0807-1003
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. VIN MODEL YEAR 2010<VZA> THA 		8-97924-457-0 01 1 1004-1102
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> THA 		8-97924-453-0 01 1 1210-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
THA 		8-97924-453-0 01 1 0807-1102
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> THA 		8-97924-451-0 01 1 1210-
182 CUSHION ASM; CENTER SEAT
THA 		8-97924-451-0 01 1 0807-1102
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X20 THA 		8-97924-820-0 04 1 1210-
188 BOLT; BACK TO CUSHION
M10X16 FLANGE THA 		8-97917-806-0 04 1 0807-0807
188 BOLT; BACK TO CUSHION
M10X20 THA 		8-97924-820-0 04 1 0808-1102
359 BOX; PARCEL
GRAY 		8-97417-261-0 01 1 1103-1107
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1108-
359 BOX; PARCEL
THA 		8-97924-469-0 01 1 0807-1003
359 BOX; PARCEL
EXC. VIN MODEL YEAR 2010<VZA> THA 		8-97924-469-0 01 1 1004-1102
360 SCREW; PARCEL
(E) M5X14 TAPPING CK-HEAD THA 		0-70040-514-0 02 1 1103-1107
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD THA 		0-70040-514-0 02 1 1108-
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 1103-1107
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1108-
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER THA 		0-74360-516-0 04 1 1103-1107
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER THA 		0-74360-516-0 04 1 1108-1110
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 THA 		8-98062-663-0 04 1 1111-
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0807-1003
360 SCREW; PARCEL
EXC. VIN MODEL YEAR 2010<VZA> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 1004-1102
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 0807-1003
360 SCREW; PARCEL
EXC. VIN MODEL YEAR 2010<VZA> (B) M4X16 		0-70040-416-0 06 1 1004-1102
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER THA 		0-74360-516-0 04 1 0807-1003
360 SCREW; PARCEL
EXC. VIN MODEL YEAR 2010<VZA> (C) M5X16 TAPPING W/PL WASHER THA 		0-74360-516-0 04 1 1004-1102
360 SCREW; PARCEL
(D) M5X20 		9-09829-324-1 02 1 0807-1003
360 SCREW; PARCEL
EXC. VIN MODEL YEAR 2010<VZA> (D) M5X20 		9-09829-324-1 02 1 1004-1102
403 NUT; CENTER SEAT
M8 FLANGE THA 		0-91180-108-0 04 1 0807-1107
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE THA 		0-91180-108-0 04 1 1108-
506 CAP; PARCEL BOX
GRAY 		8-97409-980-1 02 1 1103-1107
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1108-
506 CAP; PARCEL BOX
THA 		8-97924-470-0 04 1 0807-1003
506 CAP; PARCEL BOX
EXC. VIN MODEL YEAR 2010<VZA> THA 		8-97924-470-0 04 1 1004-1102
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
