Isuzu WW
▶
TRUCKS
▶
NMR
▶
51508 - NMR CNG(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-75 - CONDENSER
▶
8-75 — CONDENSER
(#139443) — 16 parça
◀

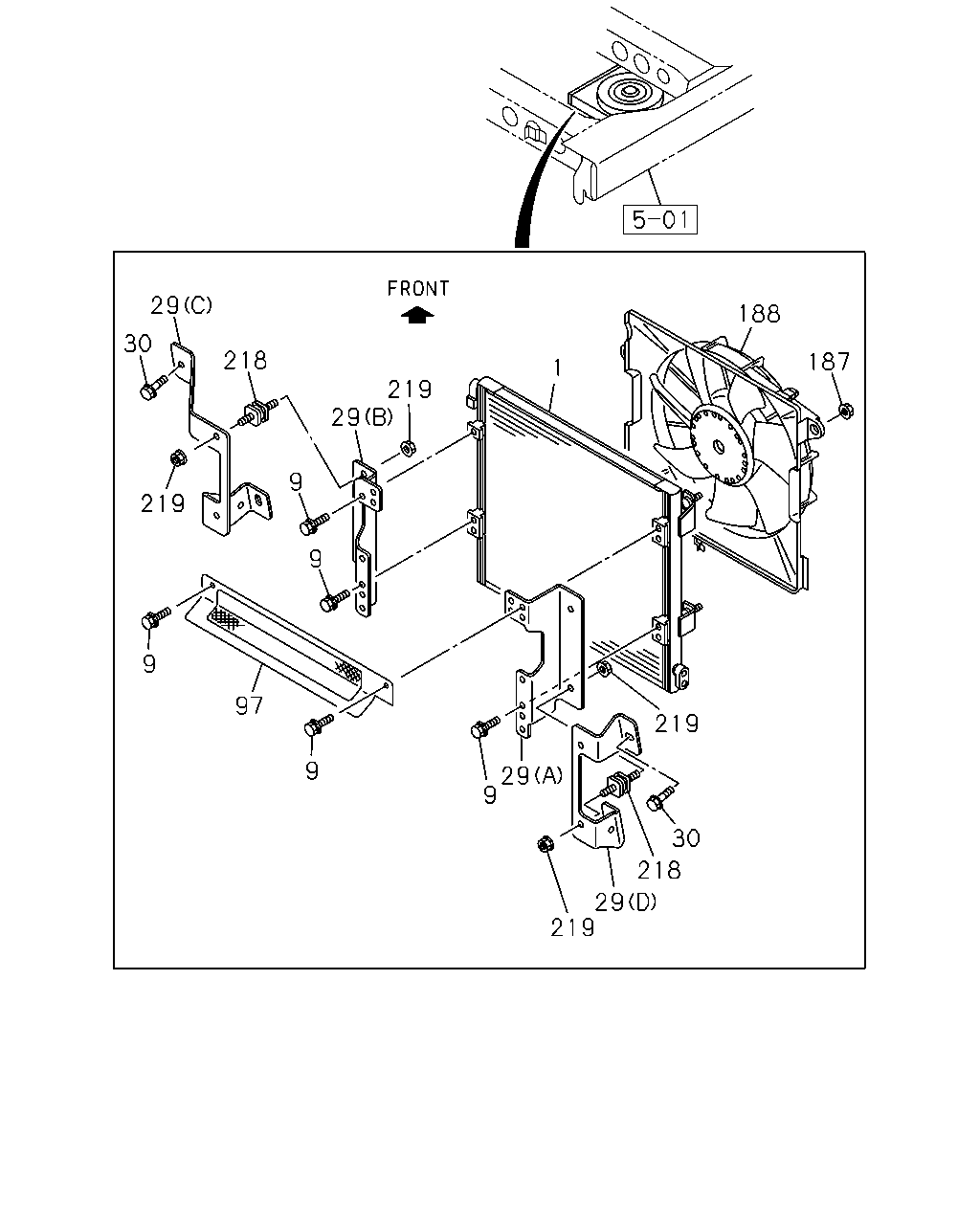

[875A] CONDENSER;AIR CONDITIONER (12 parça)

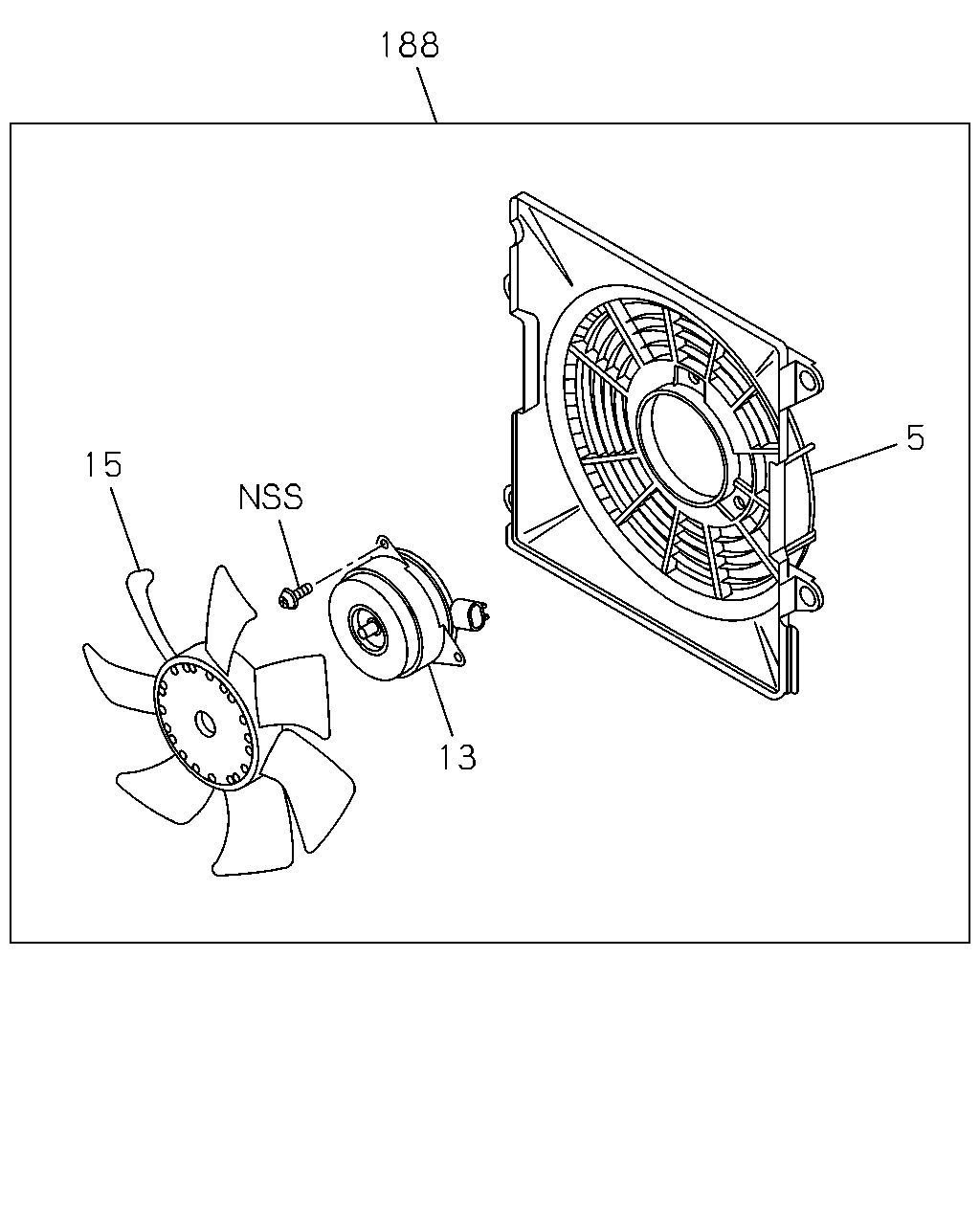

[875A] COMPONENT;BLOWER (4 parça)
▶
29
30
218
219
9
97
9
9
9
29
219
1
188
187
219
30
218
29
219
29
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CONDENSER; A/C
COOLER WO/HEATER<C65> THA
8-98041-884-0
01
1
1405-
9
BOLT; BRKT
COOLER WO/HEATER<C65> M6X14 THA
1-83539-382-0
08
1
1405-
29
BRACKET; SIDE
COOLER WO/HEATER<C65> (A) THA
8-98041-893-0
01
1
1405-
29
BRACKET; SIDE
COOLER WO/HEATER<C65> (B) THA
8-98041-895-0
01
1
1405-
29
BRACKET; SIDE
COOLER WO/HEATER<C65> (C) THA
8-98041-896-1
01
1
1405-
29
BRACKET; SIDE
COOLER WO/HEATER<C65> (D) THA
8-98041-897-1
01
1
1405-
30
BOLT; CONDENSER,A/C
COOLER WO/HEATER<C65> M8X35 FLANGE THA
0-28650-835-0
04
1
1405-
97
NET; CONDENSER UNIT
COOLER WO/HEATER<C65> THA
8-98041-900-0
01
1
1405-
187
NUT; SHROUD
COOLER WO/HEATER<C65> M6 THA
1-83539-354-0
04
1
1405-
188
BLOWER ASM; SHROUD
COOLER WO/HEATER<C65> THA
8-98041-889-0
01
1
1405-
218
CUSHION; CONDENSER
COOLER WO/HEATER<C65> THA
8-98041-898-0
04
1
1405-
219
NUT; CUSHION
COOLER WO/HEATER<C65> M8 THA
1-83539-319-0
08
1
1405-
188
5
13
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
SHROUD; FAN MOTOR
COOLER WO/HEATER<C65> THA
8-98152-865-0
01
1
1405-
13
MOTOR; FAN
COOLER WO/HEATER<C65> THA
8-98157-044-0
01
1
1405-
15
FAN; MOTOR
COOLER WO/HEATER<C65> THA
8-98152-860-0
01
1
1405-
188
BLOWER ASM; SHROUD
COOLER WO/HEATER<C65> THA
8-98041-889-0
01
1
1405-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
