Isuzu WW
▶
TRUCKS
▶
NMR
▶
51508 - NMR CNG(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-65 - CONTROL LEVER; HEATER AND AIR CON
▶

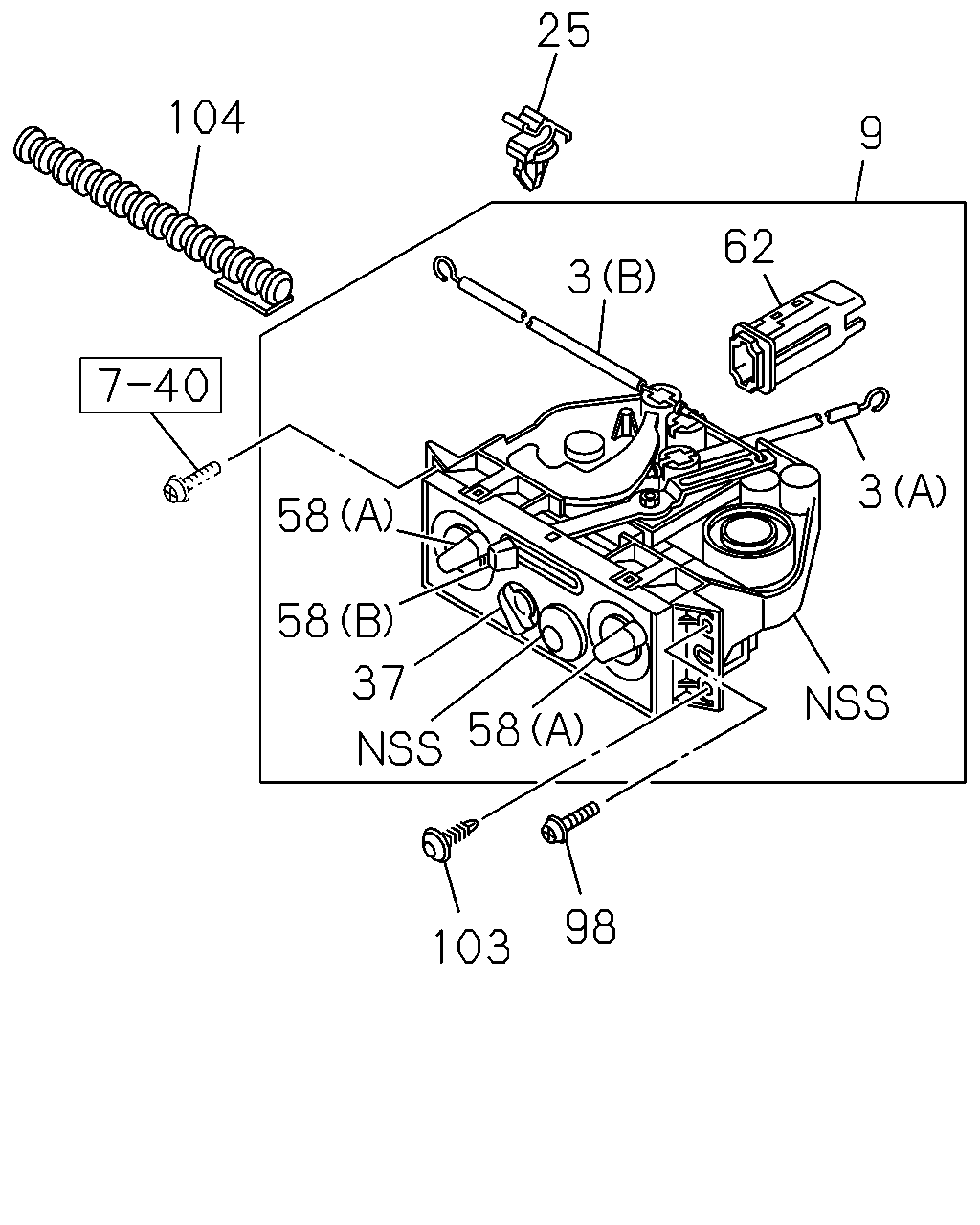

8-65 — CONTROL LEVER; HEATER AND AIR CON
(#139440) — 11 parça
9
3
98
103
58
37
58
58
3
62
104
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
CABLE; HTR CONT LVR
COOLER WO/HEATER<C65> (B) FRESH THA
8-97927-121-0
01
1
1405-
3
CABLE; HTR CONT LVR
COOLER WO/HEATER<C65> (A) MODE THA
8-97927-123-0
01
1
1405-
9
LEVER ASM; HTR & A/C CONT
COOLER WO/HEATER<C65> THA
8-97926-516-0
01
1
1405-
25
CLIP; CABLE,CONT LEVER
COOLER WO/HEATER<C65> ID=4.8
8-94128-483-0
01
1
1405-
37
KNOB; SW,HTR CONT LVR
COOLER WO/HEATER<C65> THA
8-97926-674-0
01
1
1405-
58
KNOB; LVR,HTR CONT LVR
COOLER WO/HEATER<C65> (A) THA
8-97926-673-0
02
1
1405-
58
KNOB; LVR,HTR CONT LVR
COOLER WO/HEATER<C65> (B) THA
8-97926-675-0
01
1
1405-
62
BULB; HTR CONT LVR
COOLER WO/HEATER<C65> THA
8-97926-676-0
01
1
1405-
98
SCREW; CONT PANEL
COOLER WO/HEATER<C65> T25 M5X20 TAPPING HEXALOBULAR
0-72180-520-0
01
1
1405-
103
CLIP
COOLER WO/HEATER<C65> DARK GRAY
8-97098-326-0
01
1
1405-
104
GUIDE; CABLE
COOLER WO/HEATER<C65>
8-98048-216-0
01
1
1405-
