◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11129 - FVM(THAI)EURO3 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#13944) — 10 parça

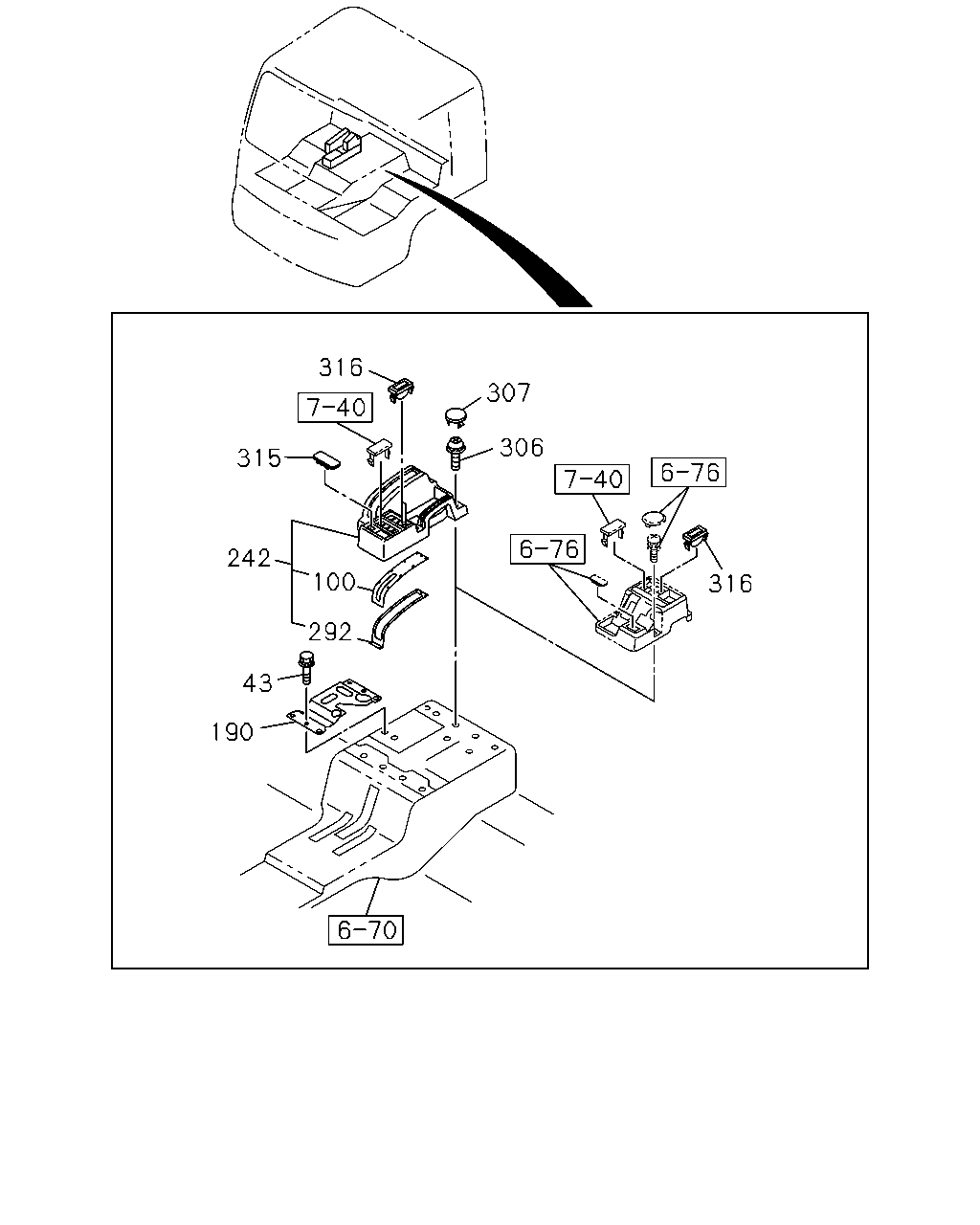

çizim 98335
316 315 242 43 190 307 306 316 100 292
BalonParca AdiParca NoAdetTipApplied Date
43 SCREW; BRKT,PARCEL BOX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1108-
100 RUBBER; CONSOLE,FRT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> 		1-72538-161-3 01 1 1108-
190 BRACKET; PARCEL BOX,SEAT SIDE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> 		8-98059-836-0 01 1 1108-
242 TRAY ASM; CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> GRAY 		8-97407-950-1 01 1 1108-
292 RETAINER; COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> 		1-72538-162-1 01 1 1108-
306 SCREW; TRAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 04 1 1210-1212
306 SCREW; TRAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 04 1 1108-
307 COVER; HOLE,CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> GRAY 		8-97407-951-0 04 1 1108-
315 COVER; HOLE,SW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> GRAY 		8-97409-339-0 01 1 1108-
316 BOX; COIN 8-94482-280-2 02 1 0807-
