Isuzu WW
▶
TRUCKS
▶
NMR
▶
51508 - NMR CNG(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶
8-50 — AIR CONDITIONING SYSTEM; FRONT
(#139437) — 25 parça
◀

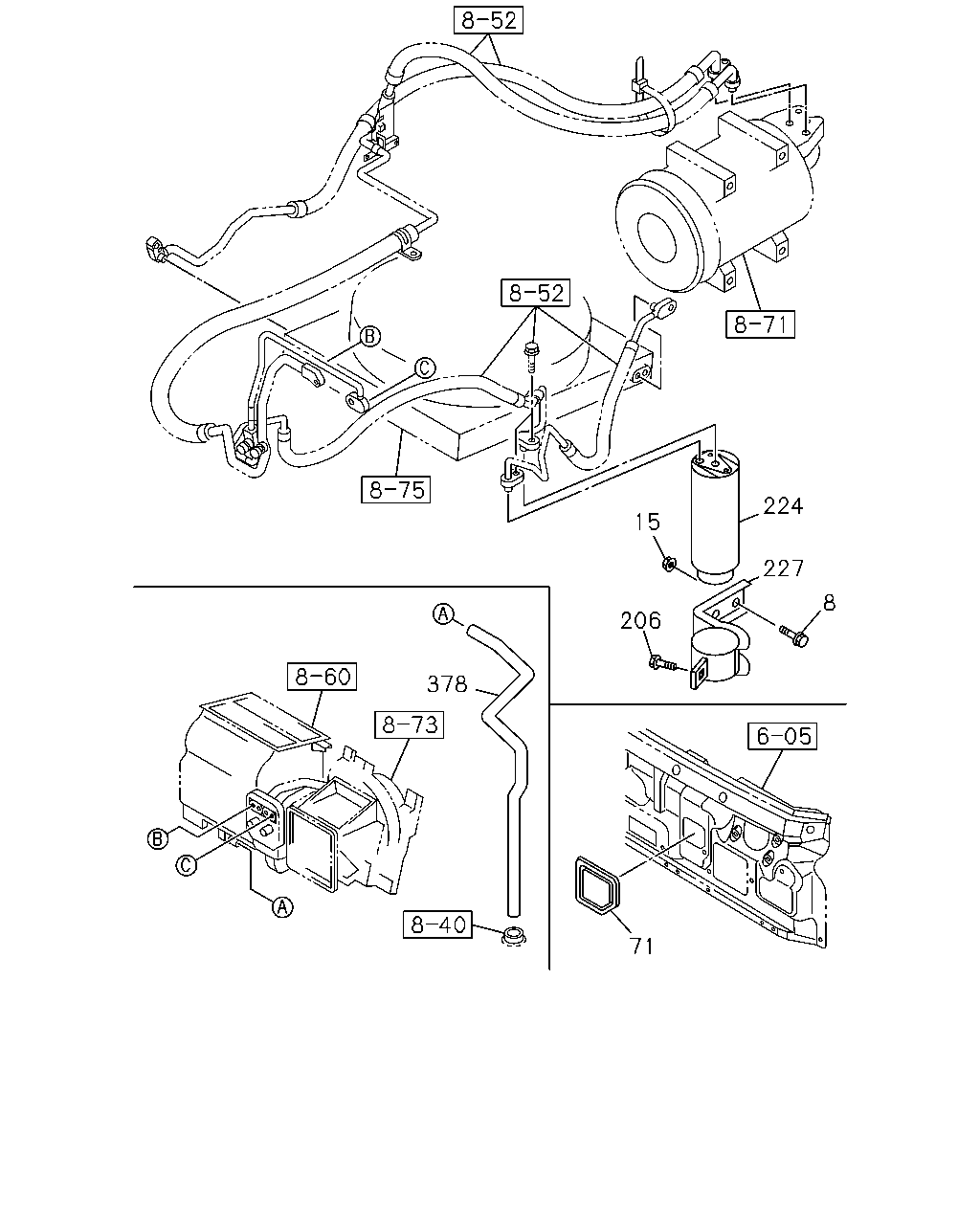

[850A] RECEIVER TANK AND OTHER PARTS (7 parça)

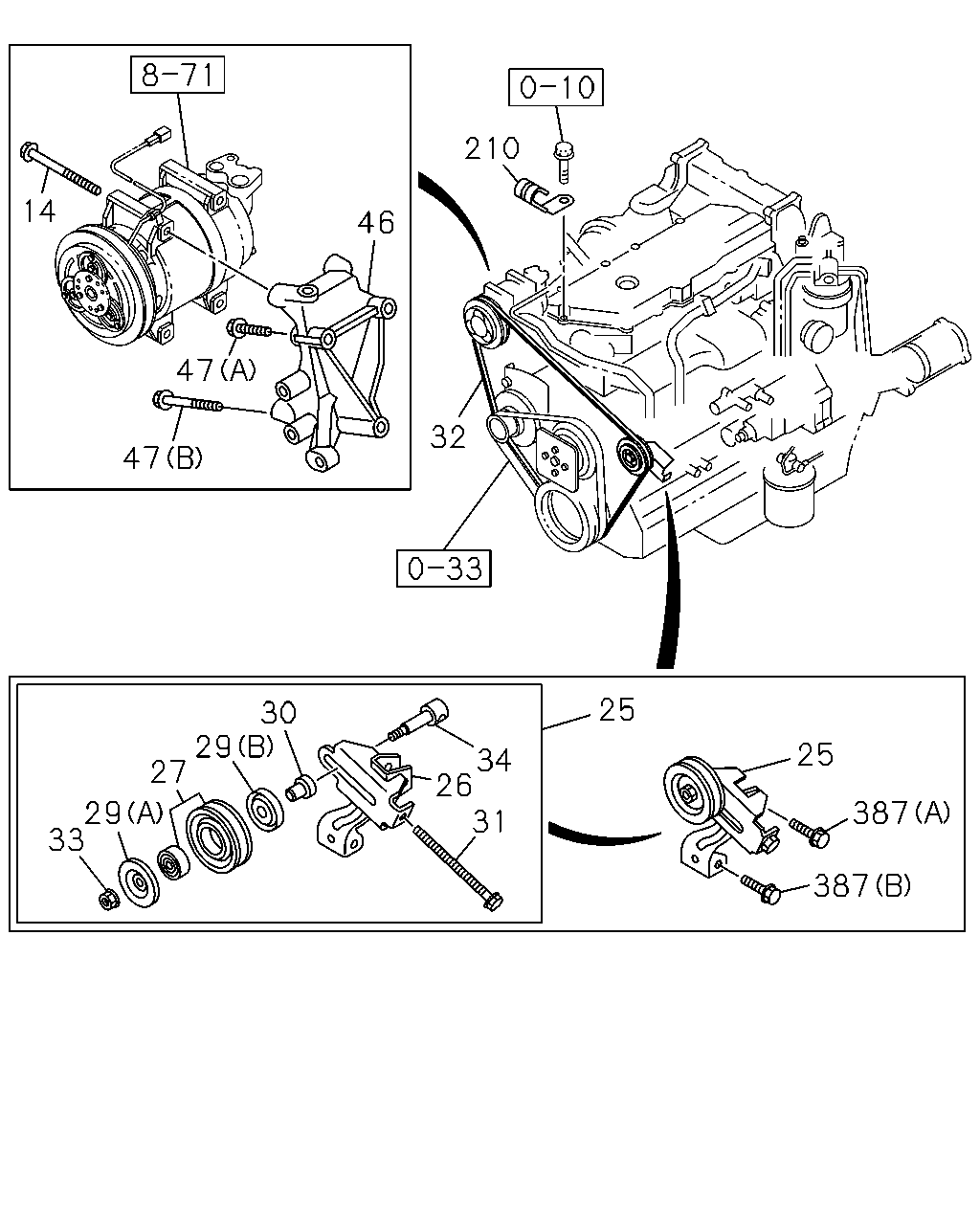

[850A] BELT AND PULLEY (18 parça)
▶
15
224
227
206
8
71
378
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
BOLT; BRKT
COOLER WO/HEATER<C65> M8X25 FLANGE THA
0-28650-825-0
02
1
1405-
15
NUT; BRKT
COOLER WO/HEATER<C65> M8 FLANGE THA
0-91180-108-0
02
1
1405-
71
COVER; EVAP,A/C
EXC. COOLER WO/HEATER<C65>
8-98017-234-1
01
1
1405-
206
BOLT; CLIP BRKT
COOLER WO/HEATER<C65> M6X16
8-97096-525-0
01
1
1405-
224
TANK ASM; RECEIVER
COOLER WO/HEATER<C65>
8-97096-593-0
01
1
1405-
227
BRACKET; RECEIVER TANK
COOLER WO/HEATER<C65>
8-98042-566-0
01
1
1405-
378
HOSE; DRAIN,EVAPORATOR
COOLER WO/HEATER<C65>
8-98001-241-2
01
1
1405-
14
46
210
32
47
25
25
387
387
31
26
30
29
27
29
33
34
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
BOLT; CMPR
COOLER WO/HEATER<C65> M8X90 FLANGE
0-28050-890-0
04
1
1405-
25
PULLEY ASM; IDLER,CMPR
COOLER WO/HEATER<C65> 1-GROOVE
8-97161-198-1
01
1
1405-
26
BRACKET; IDLE PULLEY,A/C
COOLER WO/HEATER<C65>
8-97161-031-1
01
1
1405-
27
PULLEY; IDLE,A/C
COOLER WO/HEATER<C65>
8-97386-869-0
01
1
1405-
29
COVER; DUST,IDLE PULLEY
COOLER WO/HEATER<C65> (A)
8-97384-114-0
01
1
1405-
29
COVER; DUST,IDLE PULLEY
COOLER WO/HEATER<C65> (B)
8-97384-115-0
01
1
1405-
30
COLLAR; IDLE PULLEY
COOLER WO/HEATER<C65>
8-97384-117-0
01
1
1405-
31
BOLT; ADJ,IDLE PULLEY
COOLER WO/HEATER<C65>
8-97384-113-0
01
1
1405-
32
BELT; A/C CMPR
COOLER WO/HEATER<C65> L=1569
8-97180-183-3
01
1
1405-
32
BELT; A/C CMPR
COOLER WO/HEATER<C65> BEST VALUE PARTS
5-87610-097-0
01
1
1405-
33
NUT; IDLER PULLEY
COOLER WO/HEATER<C65>
8-97384-118-0
01
1
1405-
34
SHAFT; IDLE PULLEY
COOLER WO/HEATER<C65>
8-97384-116-0
01
1
1405-
46
BRACKET; CMPR
8-97305-489-0
01
1
1405-
47
BOLT; BRKT TO BODY
(B) M10X110 FLANGE
0-28156-011-0
01
1
1405-
47
BOLT; BRKT TO BODY
(A) M10X55 FLANGE THA
8-97948-217-0
02
1
1405-
210
CLIP; HARNESS
ID=12 VINYL CHLORIDE
8-97367-984-1
01
1
1405-
387
BOLT; TENSIONER FIX
COOLER WO/HEATER<C65> (A) M8X50 FLANGE THA
0-28050-850-0
01
1
1405-
387
BOLT; TENSIONER FIX
COOLER WO/HEATER<C65> (B) M10X65 FLANGE
8-94344-540-1
01
1
1405-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
