◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51508 - NMR CNG(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-45 - HEATER PIPING ▶
8-45 — HEATER PIPING (#139436) — 17 parça

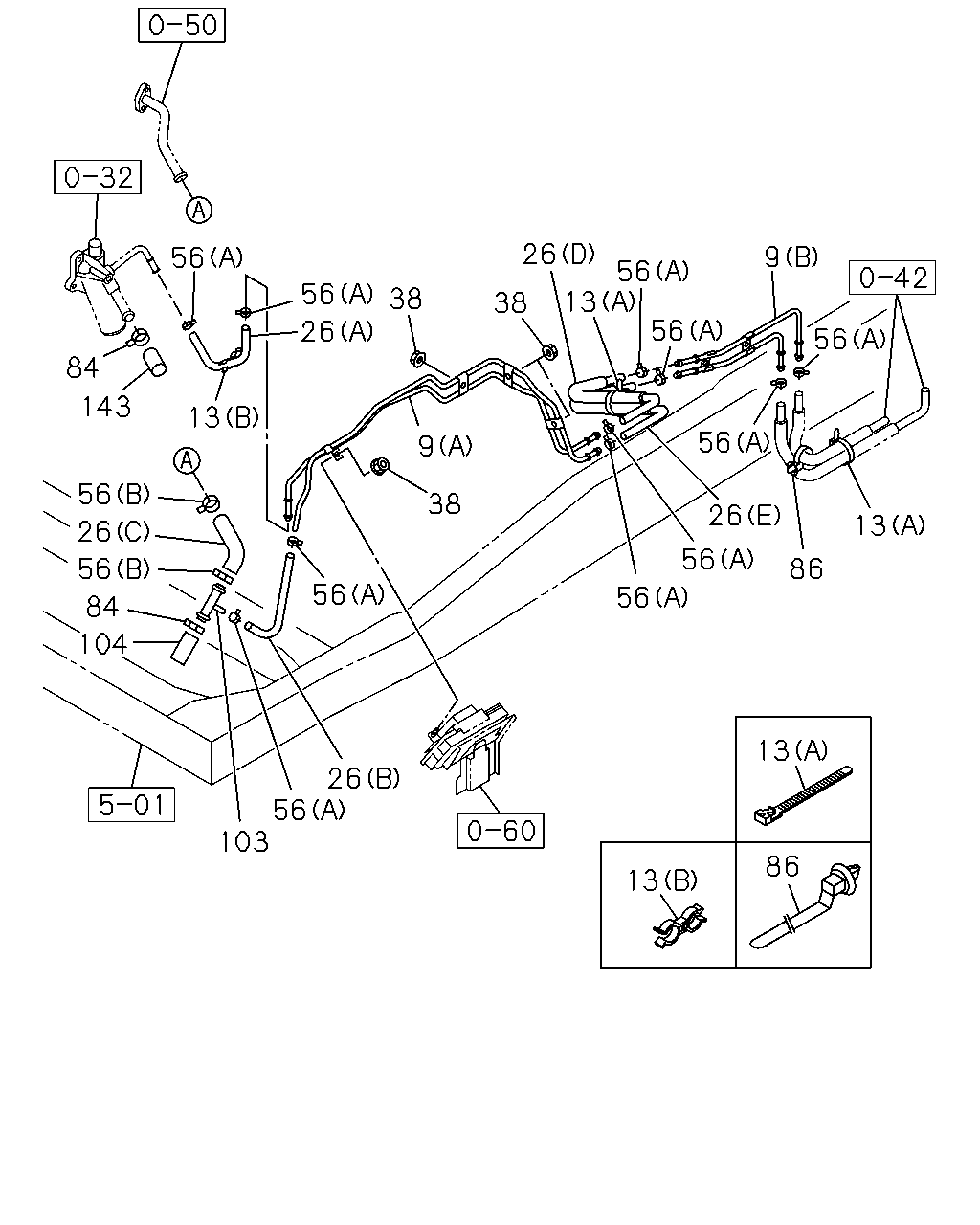

çizim 421107
84 56 26 84 56 104 103 26 56 26 56 56 38 9 38 26 38 56 13 9 56 13 86 56 26 56 56 56 86 13 13 13 143 56
BalonParca AdiParca NoAdetTipApplied Date
9 PIPE; HTR
(B) 		8-98114-287-2 01 1 1405-
9 PIPE; HTR
(A) 		8-98187-783-0 01 1 1405-
13 CLIP; HTR HOSE
(A) L=250 		5-09707-030-1 02 1 1405-
13 CLIP; HTR HOSE
(B) ID=13.2 & 11.5 THA 		8-97230-081-0 01 1 1405-
26 HOSE; HTR
(A) L=230 SERVICED BY L=3000 		0-03257-300-0 01 1 1405-
26 HOSE; HTR
(B) 		8-97378-489-1 01 1 1405-
26 HOSE; HTR
(D) 		8-98114-294-1 01 1 1405-
26 HOSE; HTR
(E) 		8-98114-296-0 01 1 1405-
26 HOSE; HTR
(C) 		8-98144-454-0 01 1 1405-
38 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 05 1 1405-
56 CLAMP; HTR HOSE
(B) ID=22 		8-97359-141-0 03 1 1405-
56 CLAMP; HTR HOSE
(A) ID=13 		8-98150-357-0 10 1 1405-
84 CLIP; HTR PIPE
ID=25 		8-94233-115-0 01 1 1405-
86 CLIP; HTR HOSE
L=155 THA 		8-97173-307-0 01 1 1405-
103 CONNECTOR; HOSE 8-97378-346-0 01 1 1405-
104 PLUG; RUBBER,HTR HOSE HOLE 8-94107-793-0 01 1 1405-
143 CAP; HEATER PIPE 8-94107-793-0 01 1 1405-
