8-40 — HEATER SYSTEM (#139435) — 57 parça

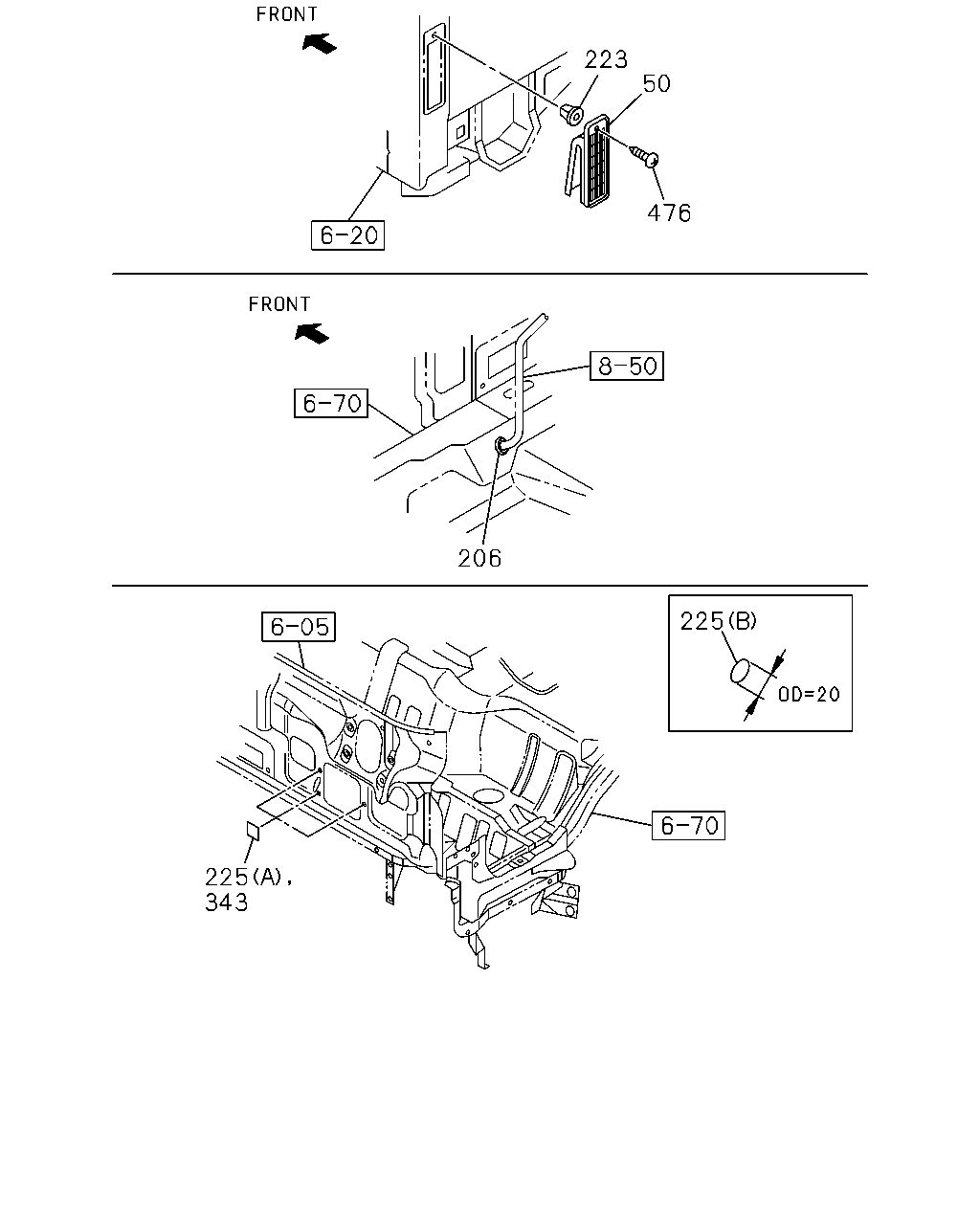

çizim 421448
476 50 223 206 225 343 225
BalonParca AdiParca NoAdetTipApplied Date
50 VALVE ASM; HTR
THA 		8-97925-112-0 01 1 1405-
206 GROMMET; A/C PIPE TO BLOWER UNIT 8-98019-649-0 01 1 1405-
223 GROMMET; SCREW
D=7.9X7.9 L=20 M5 		8-94441-539-0 01 1 1405-
225 SEAL; WATER
COOLER WO/HEATER<C65> (A) 		8-97856-616-0 03 1 1405-
225 SEAL; WATER
EXC. COOLER WO/HEATER<C65> (B) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1405-
343 SEAL; AIR DUCT
EXC. COOLER WO/HEATER<C65> 		8-97856-616-0 02 1 1405-
476 SCREW; VALVE
T25 M5X16 TAPPING HEXALOBULAR 		8-98062-675-0 01 1 1405-

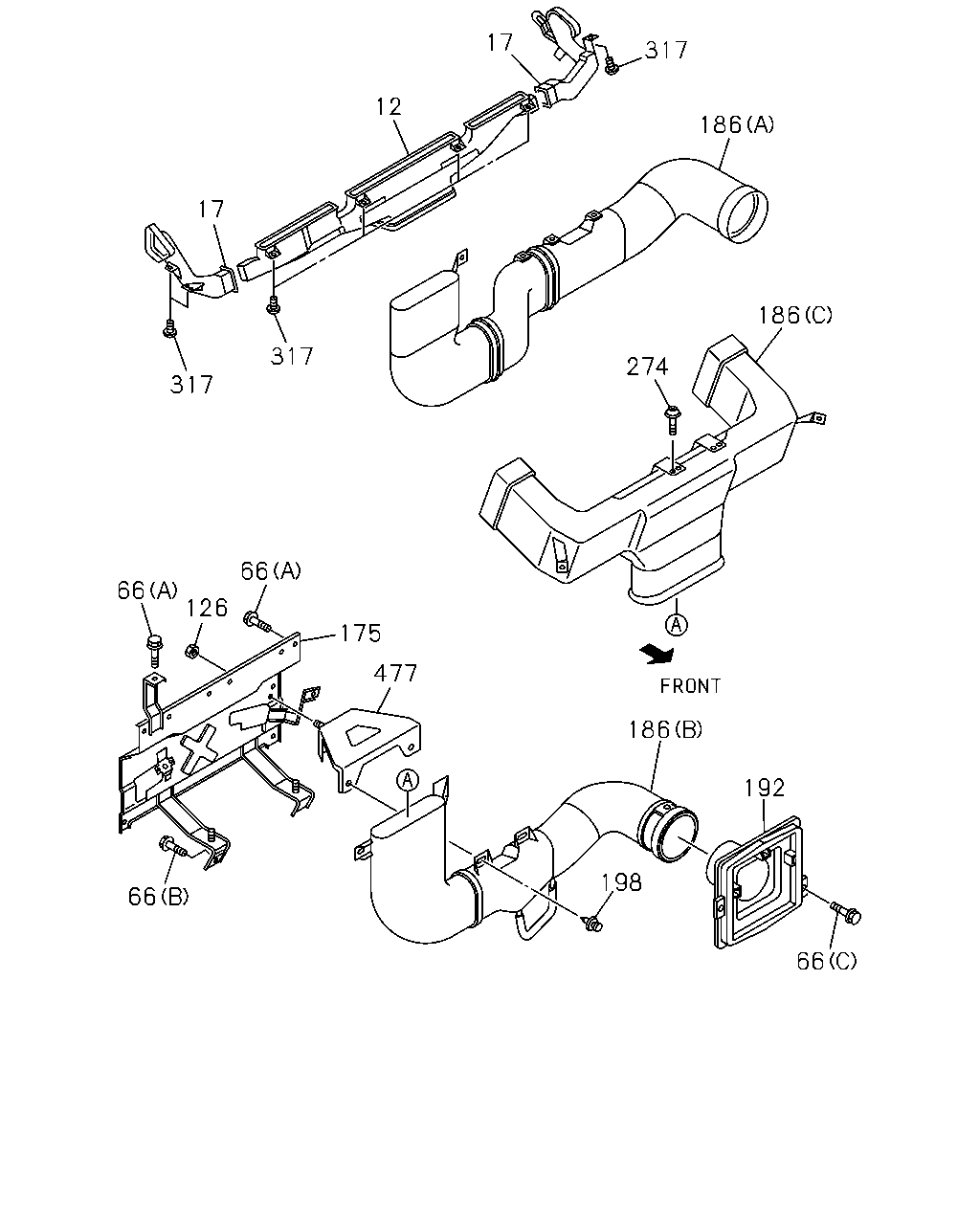

çizim 421711
317 17 12 17 317 317 186 186 274 66 126 66 175 477 66 198 186 192 66
BalonParca AdiParca NoAdetTipApplied Date
12 NOZZLE; DEFROSTER 8-97585-478-3 01 1 1405-
17 NOZZLE; DEFROSTER,SIDE
COOLER WO/HEATER<C65> 		8-97585-469-1 01 1 1405-
17 NOZZLE; DEFROSTER,SIDE
COOLER WO/HEATER<C65> 		8-97585-475-5 01 1 1405-
66 BOLT; DUCT
EXC. COOLER WO/HEATER<C65> (A) M6X16 FLANGE THA 		0-28650-616-0 02 1 1405-
66 BOLT; DUCT
EXC. COOLER WO/HEATER<C65> (C) M6X20 W/LK&PL WASHER 		8-98081-030-0 03 1 1405-
66 BOLT; DUCT
EXC. COOLER WO/HEATER<C65> (B) M6X20 W/LK&PL WASHER 		8-98081-175-0 01 1 1405-
126 NUT; BRKT
EXC. COOLER WO/HEATER<C65> M6 FLANGE THA 		0-91180-106-0 01 1 1405-
175 BRACKET; HTR DUCT
EXC. COOLER WO/HEATER<C65> 		8-98221-687-0 01 1 1405-
186 DUCT; VENTILATOR
COOLER WO/HEATER<C65> (D) 		8-97585-466-7 01 1 1405-1410
186 DUCT; VENTILATOR
COOLER WO/HEATER<C65> (D) 		8-98285-582-0 01 1 1411-
186 DUCT; VENTILATOR
COOLER WO/HEATER<C65> (E) 		8-97585-484-5 01 1 1405-1410
186 DUCT; VENTILATOR
COOLER WO/HEATER<C65> (E) 		8-98285-589-0 01 1 1411-
186 DUCT; VENTILATOR
EXC. COOLER WO/HEATER<C65> (C) 		8-98054-361-0 01 1 1405-
186 DUCT; VENTILATOR
EXC. COOLER WO/HEATER<C65> (A) 		8-98054-371-0 01 1 1405-
186 DUCT; VENTILATOR
EXC. COOLER WO/HEATER<C65> (B) 		8-98054-379-2 01 1 1405-
192 DUCT; RAM AIR
EXC. COOLER WO/HEATER<C65> 		8-98054-386-4 01 1 1405-
198 CLIP; DUCT
EXC. COOLER WO/HEATER<C65> 		1-09987-144-0 05 1 1405-
274 SCREW; VENT DUCT
EXC. COOLER WO/HEATER<C65> T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1405-
317 SCREW; DEFROSTER NOZZLE
COOLER WO/HEATER<C65> T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1405-
317 SCREW; DEFROSTER NOZZLE
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1405-
477 BRACKET; DUCT
EXC. COOLER WO/HEATER<C65> 		8-98091-304-0 01 1 1405-

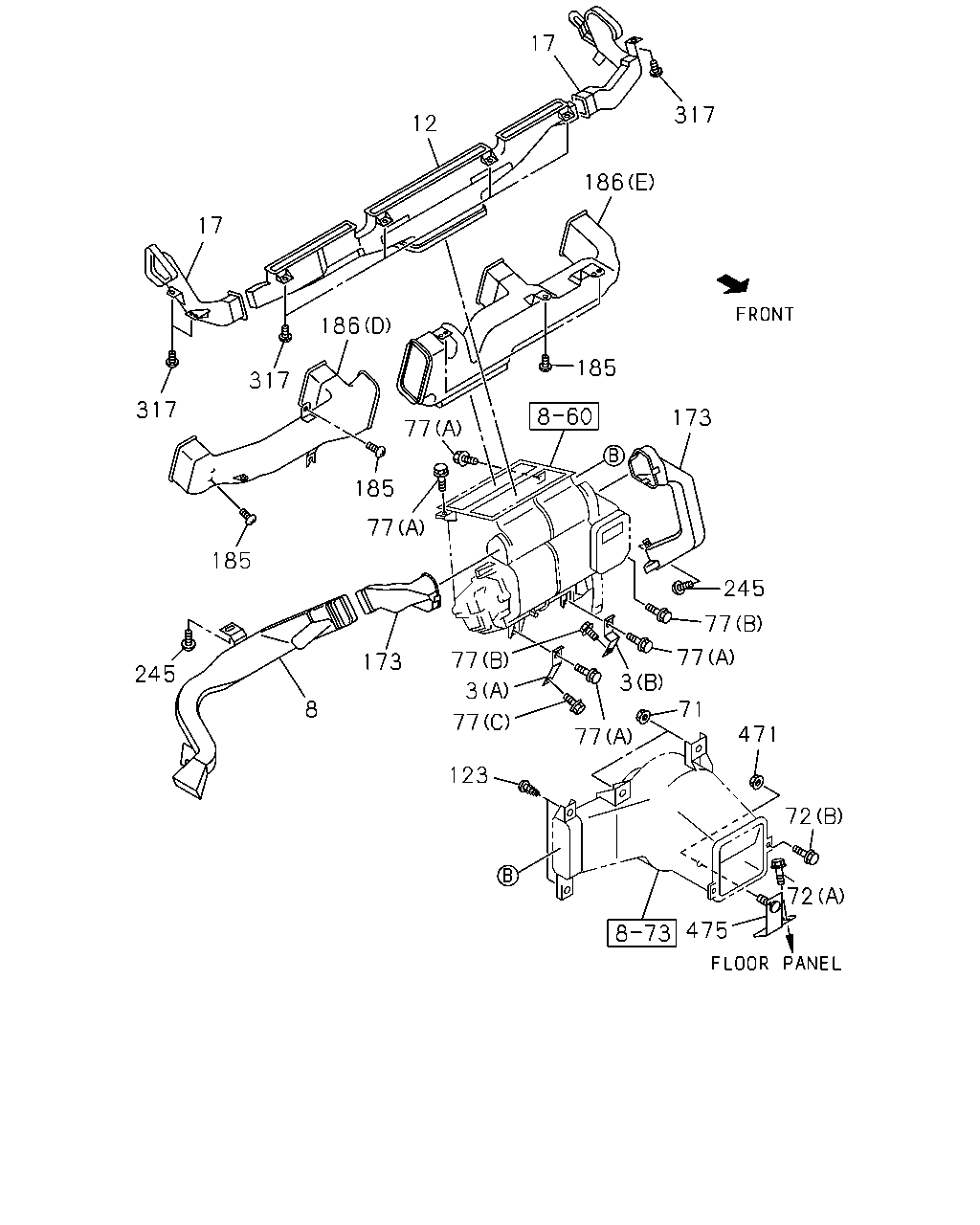

çizim 421796
12 17 185 245 8 173 77 185 186 17 317 173 245 77 77 3 77 3 77 123 77 71 471 72 475 72 186 185 77 317 317
BalonParca AdiParca NoAdetTipApplied Date
3 BRACKET; HTR UNIT
COOLER WO/HEATER<C65> (A) 		8-98082-473-1 01 1 1405-
3 BRACKET; HTR UNIT
COOLER WO/HEATER<C65> (B) 		8-98082-474-1 01 1 1405-
8 DUCT; HTR AIR,DRIVER FOOT
COOLER WO/HEATER<C65> 		8-98084-146-0 01 1 1405-
12 NOZZLE; DEFROSTER 8-97585-478-3 01 1 1405-
17 NOZZLE; DEFROSTER,SIDE
COOLER WO/HEATER<C65> 		8-97585-469-1 01 1 1405-
17 NOZZLE; DEFROSTER,SIDE
COOLER WO/HEATER<C65> 		8-97585-475-5 01 1 1405-
71 NUT; BLOWER UNIT TO DASH
COOLER WO/HEATER<C65> M6 FLANGE THA 		0-91180-106-0 02 1 1405-
72 BOLT; BLOWER UNIT
COOLER WO/HEATER<C65> (A) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1405-
72 BOLT; BLOWER UNIT
COOLER WO/HEATER<C65> (B) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1405-
77 BOLT; HTR UNIT
COOLER WO/HEATER<C65> (A) M6X16 FLANGE THA 		0-28650-616-0 04 1 1405-
77 BOLT; HTR UNIT
COOLER WO/HEATER<C65> (B) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1405-
77 BOLT; HTR UNIT
COOLER WO/HEATER<C65> (C) M6X20 W/LK&PL WASHER 		8-98081-175-0 01 1 1405-
123 SCREW; DUCT
COOLER WO/HEATER<C65> T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1405-
173 DUCT; FOOT,HTR
COOLER WO/HEATER<C65> 		8-97585-504-3 01 1 1405-
173 DUCT; FOOT,HTR
COOLER WO/HEATER<C65> 		8-98084-145-0 01 1 1405-1411
173 DUCT; FOOT,HTR
COOLER WO/HEATER<C65> 		8-98246-555-0 01 1 1412-
185 SCREW; VENT DUCT
COOLER WO/HEATER<C65> T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1405-
186 DUCT; VENTILATOR
COOLER WO/HEATER<C65> (D) 		8-97585-466-7 01 1 1405-1410
186 DUCT; VENTILATOR
COOLER WO/HEATER<C65> (D) 		8-98285-582-0 01 1 1411-
186 DUCT; VENTILATOR
COOLER WO/HEATER<C65> (E) 		8-97585-484-5 01 1 1405-1410
186 DUCT; VENTILATOR
COOLER WO/HEATER<C65> (E) 		8-98285-589-0 01 1 1411-
186 DUCT; VENTILATOR
EXC. COOLER WO/HEATER<C65> (C) 		8-98054-361-0 01 1 1405-
186 DUCT; VENTILATOR
EXC. COOLER WO/HEATER<C65> (A) 		8-98054-371-0 01 1 1405-
186 DUCT; VENTILATOR
EXC. COOLER WO/HEATER<C65> (B) 		8-98054-379-2 01 1 1405-
245 CLIP; FOOT DUCT
COOLER WO/HEATER<C65> 		1-09987-144-0 02 1 1405-
317 SCREW; DEFROSTER NOZZLE
COOLER WO/HEATER<C65> T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1405-
317 SCREW; DEFROSTER NOZZLE
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1405-
471 NUT; BLOWER
COOLER WO/HEATER<C65> M6 FLANGE THA 		0-91180-106-0 01 1 1405-
475 BRACKET; BLOWER
COOLER WO/HEATER<C65> 		8-98001-196-2 01 1 1405-
