Isuzu WW
▶
TRUCKS
▶
NMR
▶
51508 - NMR CNG(THAILAND)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶

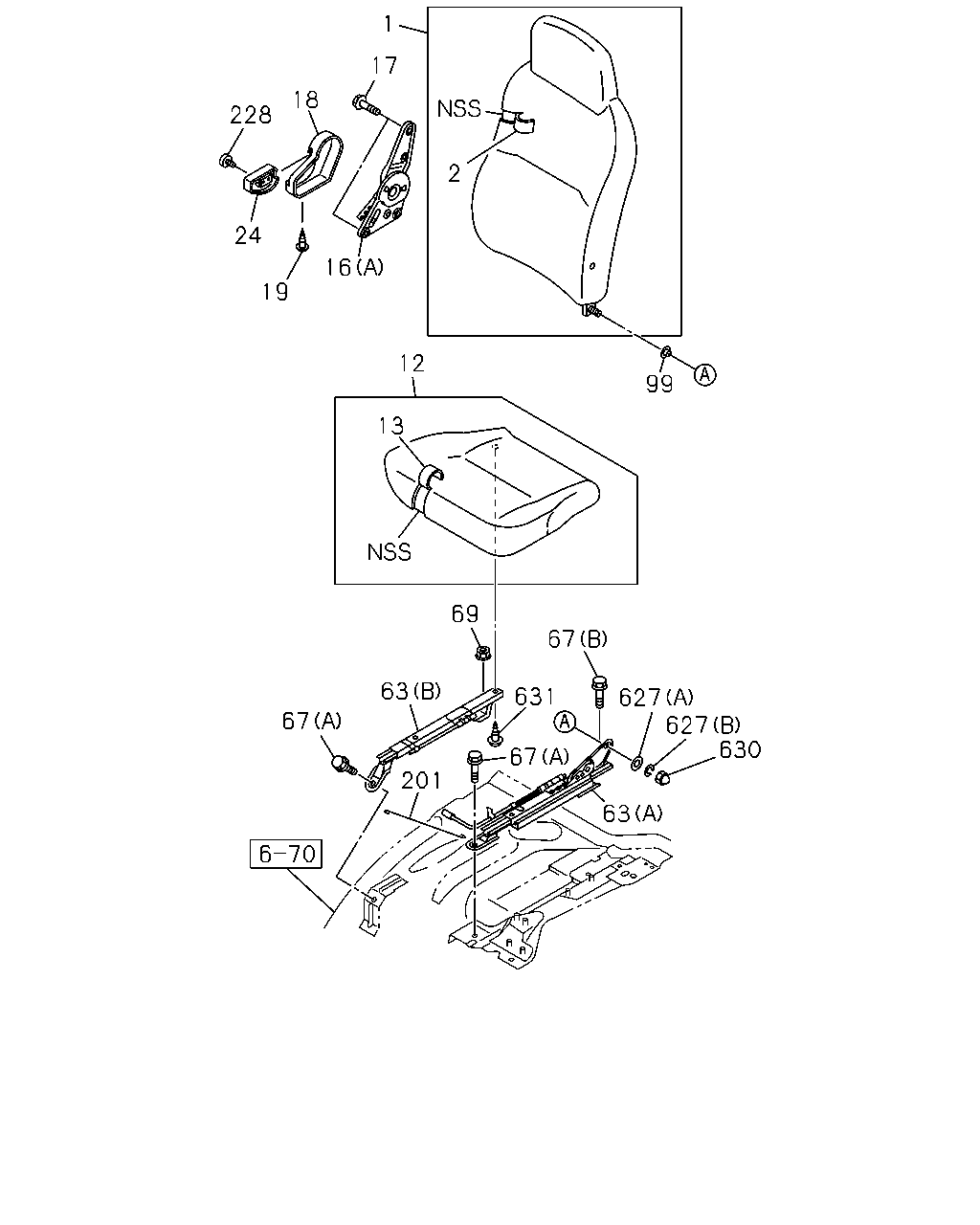

7-50 — FRONT SEAT
(#139424) — 40 parça
◀
[750A] PASSENGER SEAT (17 parça)
[750A] DRIVER SEAT (23 parça)
▶
139
478
126
460
114
16
361
368
139
115
116
480
479
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
ADJUSTER ASM; RECLINING
(B) BLACK THA
8-97859-273-3
01
1
1405-
16
ADJUSTER ASM; RECLINING
(A) THA
8-98003-087-1
01
1
1405-
114
COVER; TRIM,PASSENGER SEAT,BACK
VIN MODEL YEAR 2011<VZB> THA
8-97925-277-0
01
1
1405-
114
COVER; TRIM,PASSENGER SEAT,BACK
EXC. VIN MODEL YEAR 2011<VZB> THA
8-97924-477-0
01
1
1405-
115
CUSHION ASM; PASSENGER SEAT
VIN MODEL YEAR 2011<VZB> THA
8-97925-270-0
01
1
1405-
115
CUSHION ASM; PASSENGER SEAT
EXC. VIN MODEL YEAR 2011<VZB> THA
8-97924-743-0
01
1
1405-
116
COVER; TRIM,PASSENGER SEAT,CUSHION
VIN MODEL YEAR 2011<VZB> THA
8-97925-275-0
01
1
1405-
116
COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. VIN MODEL YEAR 2011<VZB> THA
8-97924-744-0
01
1
1405-
126
BUSHING; HINGE,RECLINING
8-98069-558-0
01
1
1405-
139
BOLT; PASSENGER SEAT
M8X20 W/PL WASHER
8-98031-841-0
03
1
1405-
361
BOLT; ADJ,RECLINING
M8X18
8-94279-109-1
02
1
1405-
368
BOLT; SEAT
M8X24.5 W/LK&PL WASHER
8-94279-217-0
01
1
1405-
460
BACK ASM; PASSENGER SEAT
VIN MODEL YEAR 2011<VZB> THA
8-97925-272-0
01
1
1405-
460
BACK ASM; PASSENGER SEAT
EXC. VIN MODEL YEAR 2011<VZB> THA
8-97924-465-2
01
1
1405-
478
BRACKET ASM; HINGE,PASSENGER SEAT
8-97868-186-0
01
1
1405-
479
PLUG; HINGE
OD=25 BLACK THA
1-76798-019-0
02
1
1405-
480
CLIP; CUSHION
8-94279-977-0
05
1
1405-
1
17
18
228
24
19
16
12
2
99
13
69
67
627
627
630
63
631
63
201
67
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BACK ASM; SEAT
THA
8-97924-733-0
01
1
1405-
2
COVER; TRIM,FRT SEAT,BACK
THA
8-97924-740-0
01
1
1405-
12
CUSHION; SEAT,FRT
THA
8-97924-741-1
01
1
1405-
13
COVER; TRIM,FRT SEAT,CUSHION
THA
8-97924-742-0
01
1
1405-
16
ADJUSTER ASM; RECLINING
(B) BLACK THA
8-97859-273-3
01
1
1405-
16
ADJUSTER ASM; RECLINING
(A) THA
8-98003-087-1
01
1
1405-
17
BOLT; RECLINING
M10X20 THA
8-98062-661-0
04
1
1405-
18
COVER; RECLINING
GRAY THA
8-97409-332-0
01
1
1405-
19
SCREW; COVER
M5 THA
8-98062-663-0
01
1
1405-
24
KNOB; RECLINING,FRT,SEAT
GRAY THA
8-97409-333-0
01
1
1405-
63
ADJUSTER; SEAT SLIDE
(A) INNER THA
8-97382-800-2
01
1
1405-
63
ADJUSTER; SEAT SLIDE
(B) OUTER THA
8-97382-801-1
01
1
1405-
67
BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE
8-98055-941-0
02
1
1405-
67
BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE
8-98055-942-0
01
1
1405-
69
NUT; FRT SEAT
M10 FLANGE
8-98055-961-0
01
1
1405-
99
BUSHING; SEAT BACK
THA
8-98112-751-0
01
1
1405-
201
CABLE; ADJ
THA
8-98003-086-1
01
1
1405-
228
SCREW; KNOB
M4 THA
8-98062-662-0
01
1
1405-
627
WASHER; FRT SEAT
(A) THA
8-98063-223-0
01
1
1405-
627
WASHER; FRT SEAT
(B) THA
8-98063-224-0
01
1
1405-
630
NUT; CAP
M8 THA
8-98063-225-0
01
1
1405-
631
BOLT; ADJ,SEAT
M8X25 W/LK WASHER THA
8-98062-658-0
02
1
1405-
631
BOLT; ADJ,SEAT
M8X32 W/LK WASHER THA
8-98062-659-0
02
1
1405-
