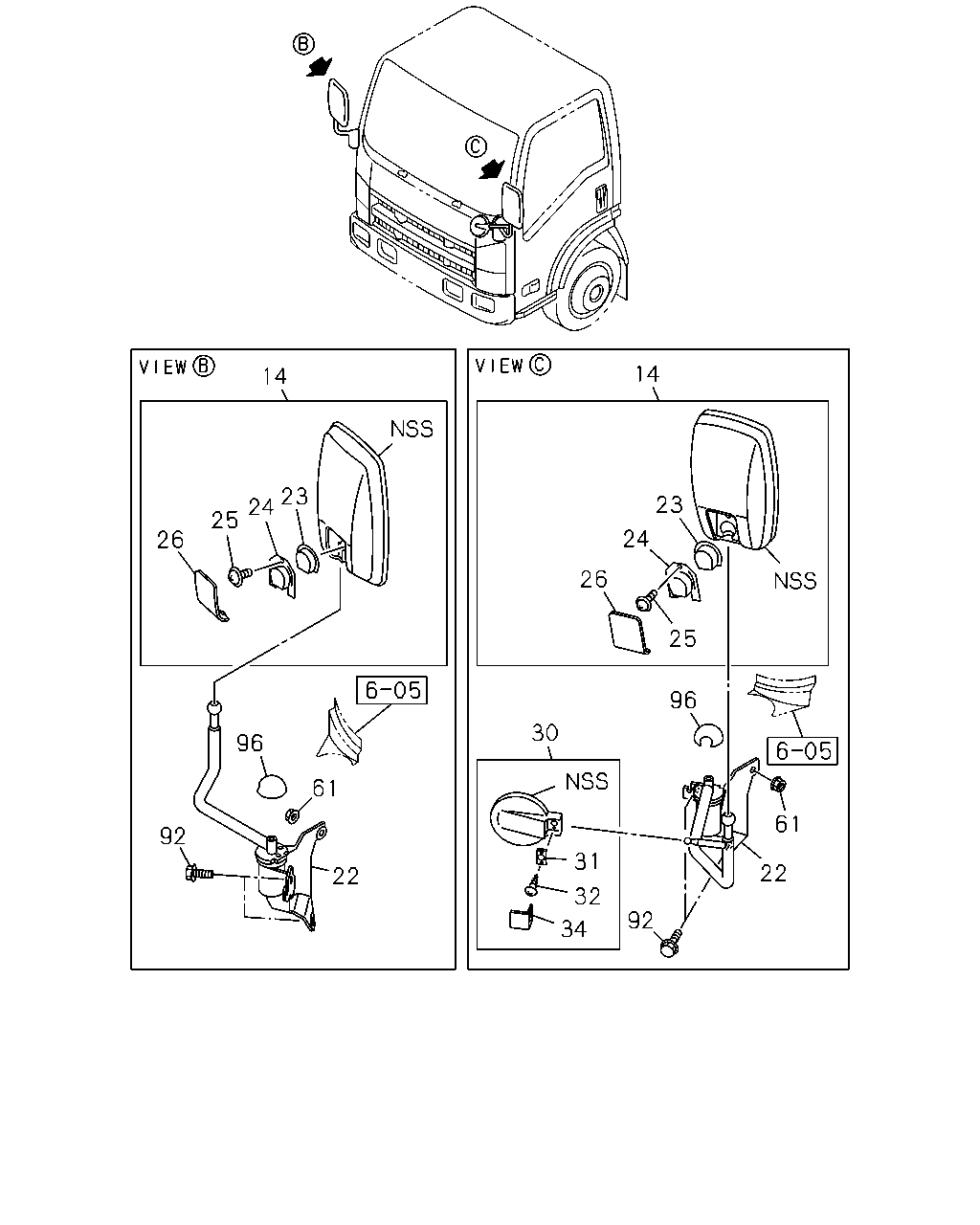

14 |
MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>
|
8-94262-542-3 |
01 |
1 |
1405- |
| |
14 |
MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>
|
8-94262-542-3 |
01 |
1 |
1405- |
| |
22 |
STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>
UNDER MIRROR<RR9>
|
8-98070-507-0 |
01 |
1 |
1405- |
| |
22 |
STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>
EXC. UNDER MIRROR<RR9>
|
8-98070-505-0 |
01 |
1 |
1405- |
| |
22 |
STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>
|
8-98038-224-1 |
01 |
1 |
1405- |
| |
22 |
STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9>
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>
|
8-98027-519-0 |
01 |
1 |
1405- |
| |
22 |
STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9>
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>
|
8-98147-079-0 |
01 |
1 |
1405- |
| |
22 |
STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>
EXC. UNDER MIRROR<RR9>
|
8-98070-509-0 |
01 |
1 |
1405- |
| |
22 |
STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>
|
8-98147-082-0 |
01 |
1 |
1405- |
| |
22 |
STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>
EXC. UNDER MIRROR<RR9>
|
8-98147-080-0 |
01 |
1 |
1405- |
| |
23 |
WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>
T=2.0
|
8-94262-545-0 |
01 |
1 |
1405- |
| |
23 |
WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>
T=2.0
|
8-94262-545-0 |
01 |
1 |
1405- |
| |
24 |
HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>
T=1.6
|
8-94262-546-1 |
01 |
1 |
1405- |
| |
24 |
HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>
T=1.6
|
8-94262-546-1 |
01 |
1 |
1405- |
| |
25 |
SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>
M6X30
|
8-94279-365-0 |
01 |
1 |
1405- |
| |
25 |
SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>
M6X30
|
8-94279-365-0 |
01 |
1 |
1405- |
| |
26 |
COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>
T=2.3
|
8-94262-547-2 |
01 |
1 |
1405- |
| |
26 |
COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>
T=2.3
|
8-94262-547-2 |
01 |
1 |
1405- |
| |
30 |
MIRROR; UNDER
UNDER MIRROR<RR9>
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SID
E MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>
|
8-94262-625-2 |
01 |
1 |
1405- |
| |
31 |
PLATE; MIRROR
UNDER MIRROR<RR9>
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SID
E MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>
|
8-94262-631-0 |
01 |
1 |
1405- |
| |
32 |
SCREW; UNDER MIRROR
UNDER MIRROR<RR9>
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SID
E MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>
M5X18
|
8-94279-372-0 |
02 |
1 |
1405- |
| |
34 |
CAP; MIRROR
UNDER MIRROR<RR9>
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SID
E MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>
|
8-94262-629-0 |
01 |
1 |
1405- |
| |
61 |
NUT; STAY,OUTSIDE MIRROR
M8 FLANGE
THA
|
0-91180-108-0 |
02 |
1 |
1405- |
| |
92 |
BOLT; STAY BRKT,MIRROR
M8X25 FLANGE
THA
|
0-28650-825-0 |
04 |
1 |
1405- |
| |
96 |
CAP; MIRROR STAY
|
8-98027-552-2 |
02 |
1 |
1405- |
