Isuzu WW
▶
TRUCKS
▶
NMR
▶
51508 - NMR CNG(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-70 - FLOOR PANEL
▶
6-70 — FLOOR PANEL
(#139409) — 37 parça
◀

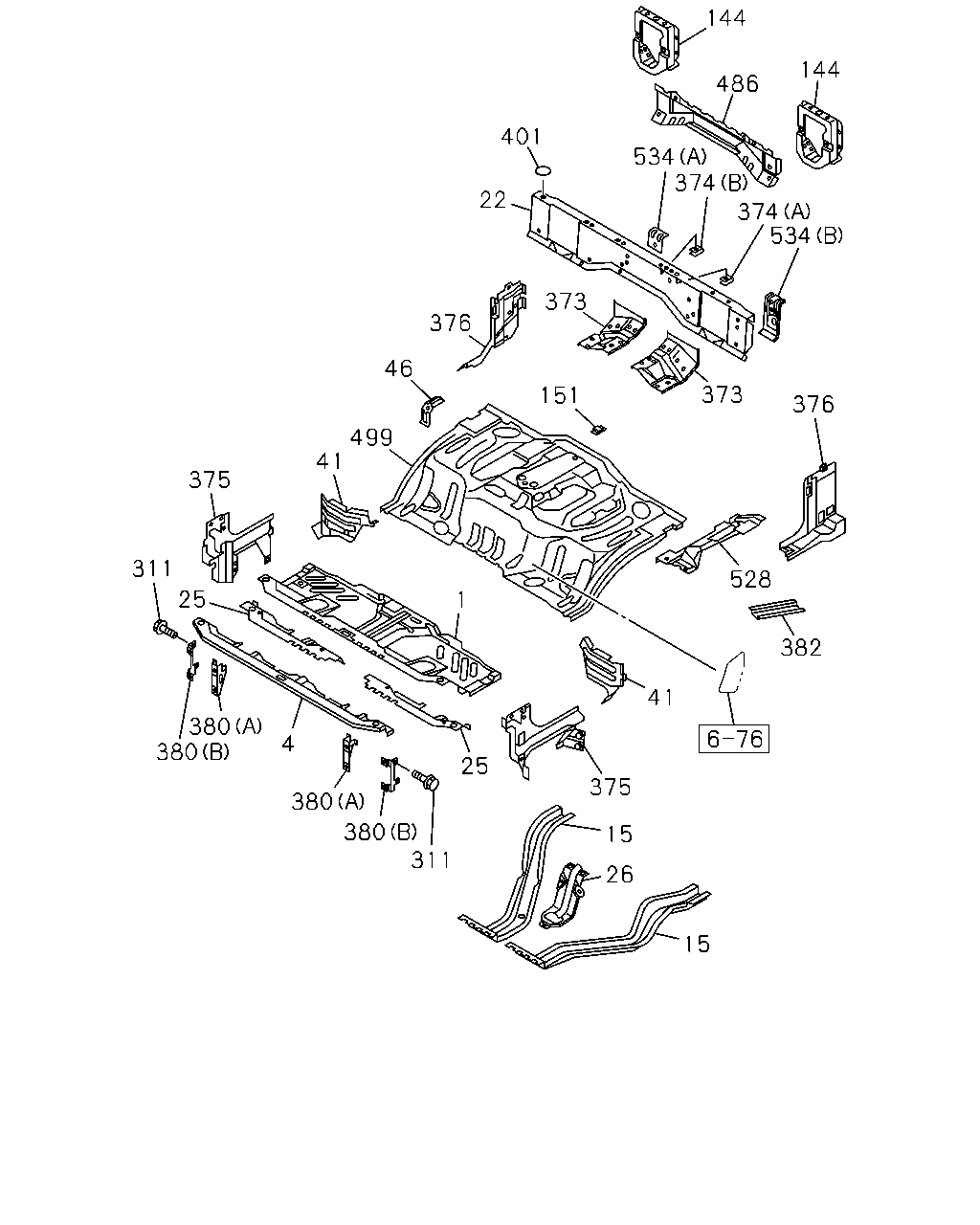

[670A] PANEL (33 parça)
[670A] GROMMET (4 parça)
▶
144
144
486
534
374
374
534
401
22
373
151
373
376
528
382
41
375
15
15
26
311
380
380
25
4
1
380
380
25
311
375
41
499
46
376
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; FLOOR
8-97583-910-5
01
1
1405-
4
FRAME; FLOOR,FRT
8-98059-496-0
01
1
1405-
15
FRAME; UNDER
8-98061-277-1
01
1
1405-
15
FRAME; UNDER
8-98061-278-1
01
1
1405-
22
FRAME; FLOOR REAR
8-97583-925-3
01
1
1405-
25
REINFORCEMENT; FRAME FLOOR,FRT
8-97588-030-1
01
1
1405-
25
REINFORCEMENT; FRAME FLOOR,FRT
8-97588-031-1
01
1
1405-
26
PANEL; GEAR CONT REINF
8-97589-382-1
01
1
1405-
41
SUPPORT; STEP,RR
8-97583-935-2
01
1
1405-
41
SUPPORT; STEP,RR
8-97583-936-2
01
1
1405-
46
BRACKET; FRT SEAT,RR OUTER
8-97583-834-0
01
1
1405-
144
BRACKET; MTG,RR
8-97589-544-2
02
1
1405-
151
BRACKET; SEAT CUSHION STOPPER
8-97583-833-0
01
1
1405-
311
BOLT; BRKT
M6X16 FLANGE THA
0-28650-616-0
04
1
1405-
373
REINFORCEMENT; SEAT BELT
8-98014-521-2
01
1
1405-
373
REINFORCEMENT; SEAT BELT
8-98014-522-2
01
1
1405-
374
NUT; FLOOR
(B) M6
1-09984-110-0
02
1
1405-
374
NUT; FLOOR
(A) M8
1-09984-111-0
01
1
1405-
375
CLOSING; PILLAR
8-97583-882-3
01
1
1405-
375
CLOSING; PILLAR
8-97583-883-2
01
1
1405-
376
CLOSING; PILLAR,LWR
THA
8-97583-888-2
01
1
1405-
376
CLOSING; PILLAR,LWR
THA
8-97584-618-2
01
1
1405-
380
BRACKET; HEAD LAMP
(A)
8-97589-384-4
01
1
1405-
380
BRACKET; HEAD LAMP
(A)
8-97589-385-3
01
1
1405-
380
BRACKET; HEAD LAMP
(B)
8-98029-288-0
01
1
1405-
380
BRACKET; HEAD LAMP
(B)
8-98029-289-0
01
1
1405-
382
STIFFENER; RR FLOOR
8-98041-232-0
01
1
1405-
401
GROMMET; HOLE
OD=24.5 T=7.5
8-97224-683-0
01
1
1405-
486
REINFORCEMENT; FRAME FLOOR,REAR
8-98030-610-2
01
1
1405-
499
PANEL; FLOOR,RR
8-97583-912-4
01
1
1405-
528
REINFORCEMENT; PARKING BRAKE
8-97583-829-4
01
1
1405-
534
REINFORCEMENT; SEAT BACK
(B)
8-98007-678-2
01
1
1405-
534
REINFORCEMENT; SEAT BACK
(A)
8-98019-181-2
01
1
1405-
32
32
536
532
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
GROMMET; FLOOR PANEL,LOCATION HOLE
(A) OD=15.0
8-94279-040-0
02
1
1405-
32
GROMMET; FLOOR PANEL,LOCATION HOLE
(B) OD=12.1
8-97898-423-0
02
1
1405-
532
SEAL; CABLE
8-98042-432-1
01
1
1405-
536
PLUG; CABLE,PTO
8-98029-219-1
01
1
1405-
