0-40 — FUEL INJECTION SYSTEM (#1394) — 74 parça

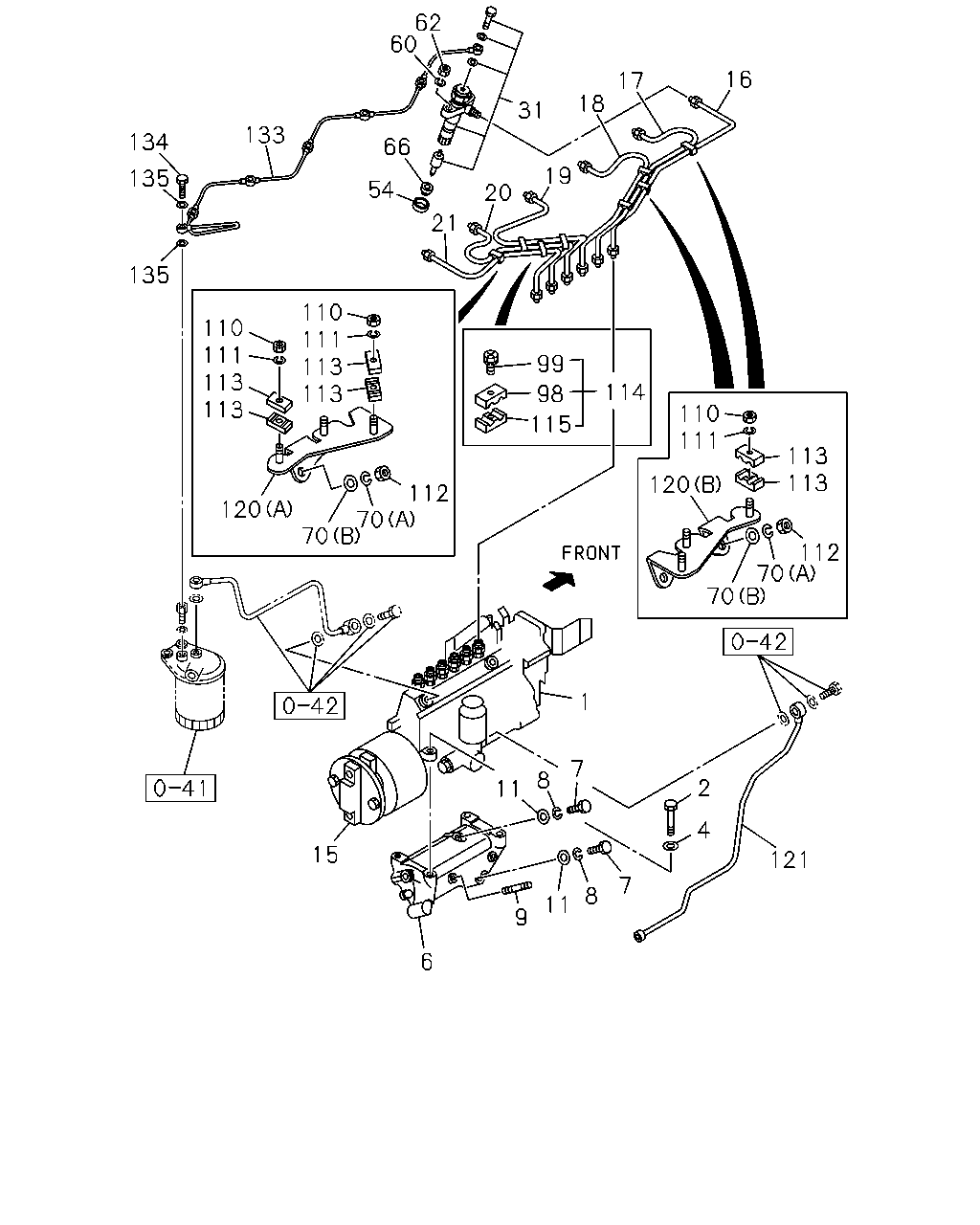

çizim 29391
62 60 16 17 18 31 133 134 66 19 135 54 20 21 135 110 111 113 113 110 111 113 113 99 114 98 110 111 115 113 113 120 112 120 70 70 112 70 70 1 7 2 8 11 4 15 121 7 8 11 9 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TAMPER PROOF INJ PUMP SET<W44> 		1-15602-812-0 01 1 9203- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TAMPER PROOF INJ PUMP SET<W44> 		1-15602-760-1 01 1 9203-9211 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TAMPER PROOF INJ PUMP SET<W44> 		1-15602-905-0 01 1 9212- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		1-15602-152-2 01 1 9203-9211 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		1-15602-903-0 01 1 9212- ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 9203- ● ●
4 WASHER; INJ PUMP
ID=8.5 MITSUBISHI 		9-09851-934-0 04 1 9203- ● ●
6 BRACKET; INJ PUMP TO C/BL 1-19751-087-0 01 1 9203- ● ●
7 BOLT; INJ PUMP BRKT
M10X50 		0-16806-050-0 03 1 9203- ● ●
7 BOLT; INJ PUMP BRKT
M10X65 		0-16806-065-0 02 1 9203- ● ●
8 WASHER; LK,INJ PUMP BRKT
ID=10.2 		9-09150-510-0 05 1 9203- ● ●
9 STUD; CLIP 9-04010-612-0 02 1 9203- ● ●
11 WASHER; INJ PUMP BRKT
ID=10.5 OD=18 		9-09160-510-0 05 1 9203- ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-113-2 01 1 9203- ● ●
16 PIPE; INJ NO.1 1-15413-940-1 01 1 9203- ●
16 PIPE; INJ NO.1 1-15414-044-1 01 1 9203- ●
17 PIPE; INJ NO.2 1-15413-941-1 01 1 9203- ●
17 PIPE; INJ NO.2 1-15414-045-1 01 1 9203- ●
18 PIPE; INJ NO.3 1-15413-942-1 01 1 9203- ●
18 PIPE; INJ NO.3 1-15414-046-1 01 1 9203- ●
19 PIPE; INJ NO.4 1-15413-943-1 01 1 9203- ●
19 PIPE; INJ NO.4 1-15414-047-1 01 1 9203- ●
20 PIPE; INJ NO.5 1-15413-944-1 01 1 9203- ●
20 PIPE; INJ NO.5 1-15414-022-1 01 1 9203- ●
21 PIPE; INJ NO.6 1-15413-945-1 01 1 9203- ●
21 PIPE; INJ NO.6 1-15414-023-1 01 1 9203- ●
31 NOZZLE ASM; INJ 1-15300-288-3 06 1 9203- ●
31 NOZZLE ASM; INJ 1-15300-186-0 06 1 9203- ●
54 COVER; DUST,NOZZLE HOLDER 9-15339-051-0 06 1 9203- ● ●
60 WASHER; NOZZLE HOLDER
ID=8.2 		9-09150-508-0 12 1 9203- ● ●
62 NUT; NOZZLE HOLDER
M8 		9-09110-408-0 12 1 9203- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15315-013-1 06 1 9203- ● ●
70 WASHER; LK,BRKT
(A) ID=8.2 		9-09150-508-0 04 1 9203- ●
70 WASHER; LK,BRKT
(B) ID=8.4 OD=18 		9-09160-608-0 04 1 9203- ●
98 CLIP; "A",INJ PIPE 9-15419-613-0 07 1 9203- ●
99 BOLT; CLIP,INJ,PIPE
M5X20 		9-09802-539-0 07 1 9203- ●
110 NUT; CLIP
M5 		9-99110-405-0 06 1 9203- ●
111 WASHER; LK,CLIP
ID=5.1 		9-09150-505-0 06 1 9203- ●
112 NUT; BRKT,INJ PIPE CLIP
M8 		9-09110-408-0 04 1 9203- ●
113 CLIP; INJ PIPE 9-15419-613-0 12 1 9203- ●
114 CLIP; INJ PIPE 9-15419-612-0 07 1 9203- ●
115 CLIP; "B",INJ PIPE 9-15419-614-0 07 1 9203- ●
120 BRACKET; INJ PIPE
(A) 		1-15419-211-0 01 1 9203- ●
120 BRACKET; INJ PIPE
(B) 		1-15419-212-0 01 1 9203- ●
121 PIPE; FUEL,FEED PUMP,SUCTION 1-15414-099-0 01 1 9203- ● ●
133 PIPE; INJ NOZZLE LEAK OFF 1-15414-185-0 01 1 9203- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
M8X18 EYE BOLT 		1-09675-037-1 01 1 9203- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 02 1 9203- ● ●
çizim 93762
34 36 36 37 38 32 31 39 44 45 41 42 46 46 33 35
BalonParca AdiParca NoAdetTipApplied Date A B
31 NOZZLE ASM; INJ 1-15300-288-3 06 1 9203- ●
31 NOZZLE ASM; INJ 1-15300-186-0 06 1 9203- ●
32 HOLDER ASM; NOZZLE 1-15330-101-0 06 1 9203-9305 ●
32 HOLDER ASM; NOZZLE 1-15330-087-1 06 1 9306- ●
32 HOLDER ASM; NOZZLE 1-15330-063-0 06 1 9203- ●
33 NOZZLE; INJ 1-15311-234-0 06 1 9203- ●
33 NOZZLE; INJ 1-15311-164-0 06 1 9203- ●
34 BOLT; EYE,NOZZLE HOLDER 1-09675-037-1 06 1 9203-9305 ●
34 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 06 1 9306- ●
34 BOLT; EYE,NOZZLE HOLDER
M8X19 FLANGE 		1-09675-139-0 06 1 9203- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15332-017-0 06 1 9306- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94171-195-0 06 1 9203-9305 ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94171-195-0 06 1 9306- ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15339-010-0 12 1 9306- ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 12 1 9203-9305 ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 12 1 9306- ●
37 NUT; CAP,NOZZLE HOLDER 5-15332-006-0 06 1 9203- ●
37 NUT; CAP,NOZZLE HOLDER 1-15334-007-0 06 1 9203- ●
38 GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE). 		5-15339-060-0 06 1 9203- ●
39 SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER 8-94169-503-0 06 1 9203- ● ●
41 CONNECTOR; FUEL INL,NOZZLE HOLDER 5-15351-001-0 06 1 9203- ●
41 CONNECTOR; FUEL INL,NOZZLE HOLDER 5-15349-002-0 06 1 9203- ●
42 GASKET; INL CONNECTOR,NOZZLE HOLDER 5-15339-003-0 06 1 9203- ● ●
44 SPRING; NOZZLE,NOZZLE HOLDER 5-15343-005-0 06 1 9203- ● ●
45 ROD; PUSH,NOZZLE HOLDER 8-94169-502-0 06 1 9203- ● ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 9-15347-003-0 12 1 9203- ● ●
