Isuzu WW
▶
TRUCKS
▶
NMR
▶
51508 - NMR CNG(THAILAND)
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#139392) — 21 parça
◀

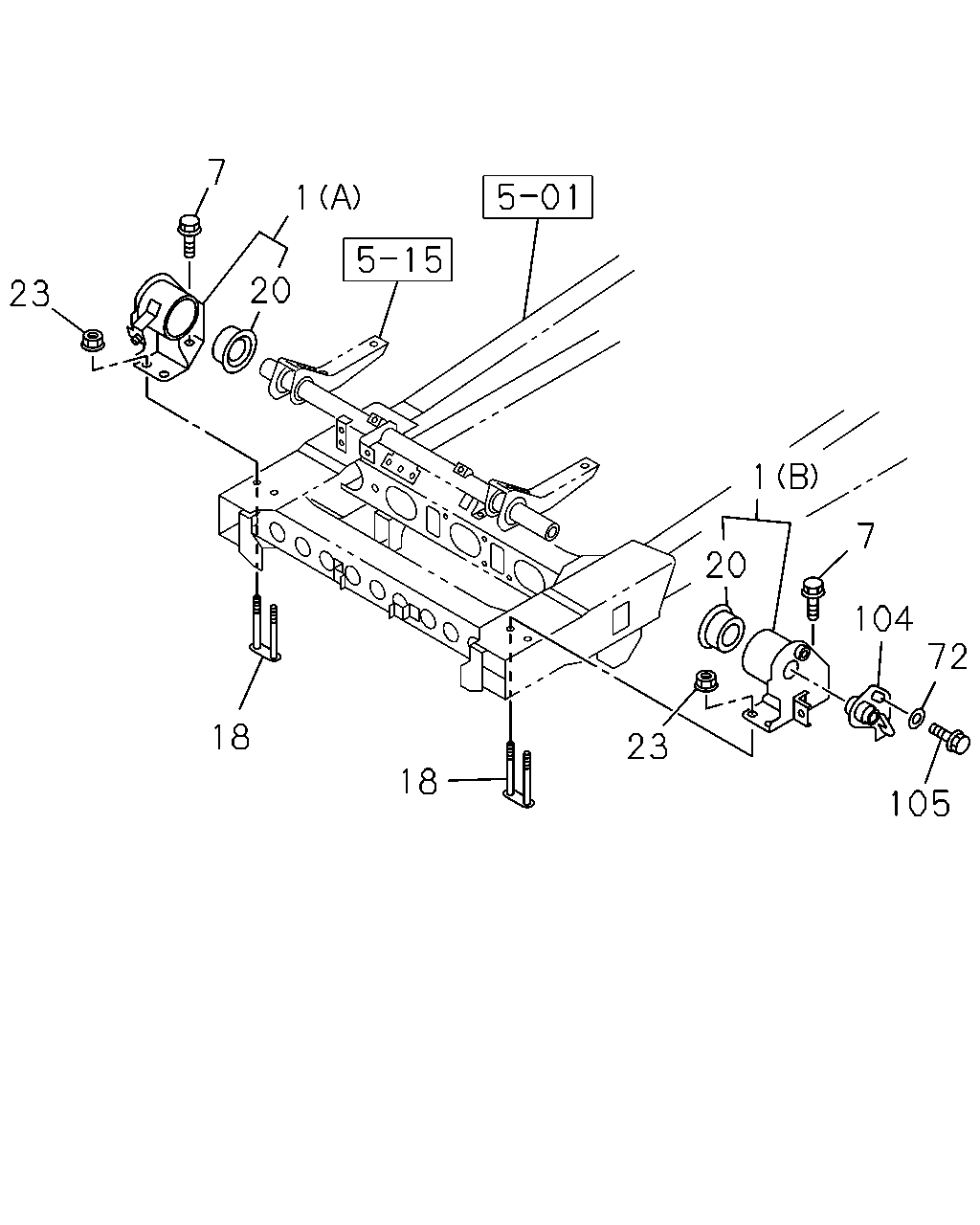

[510A] CAB MTG BRKT FRONT (10 parça)

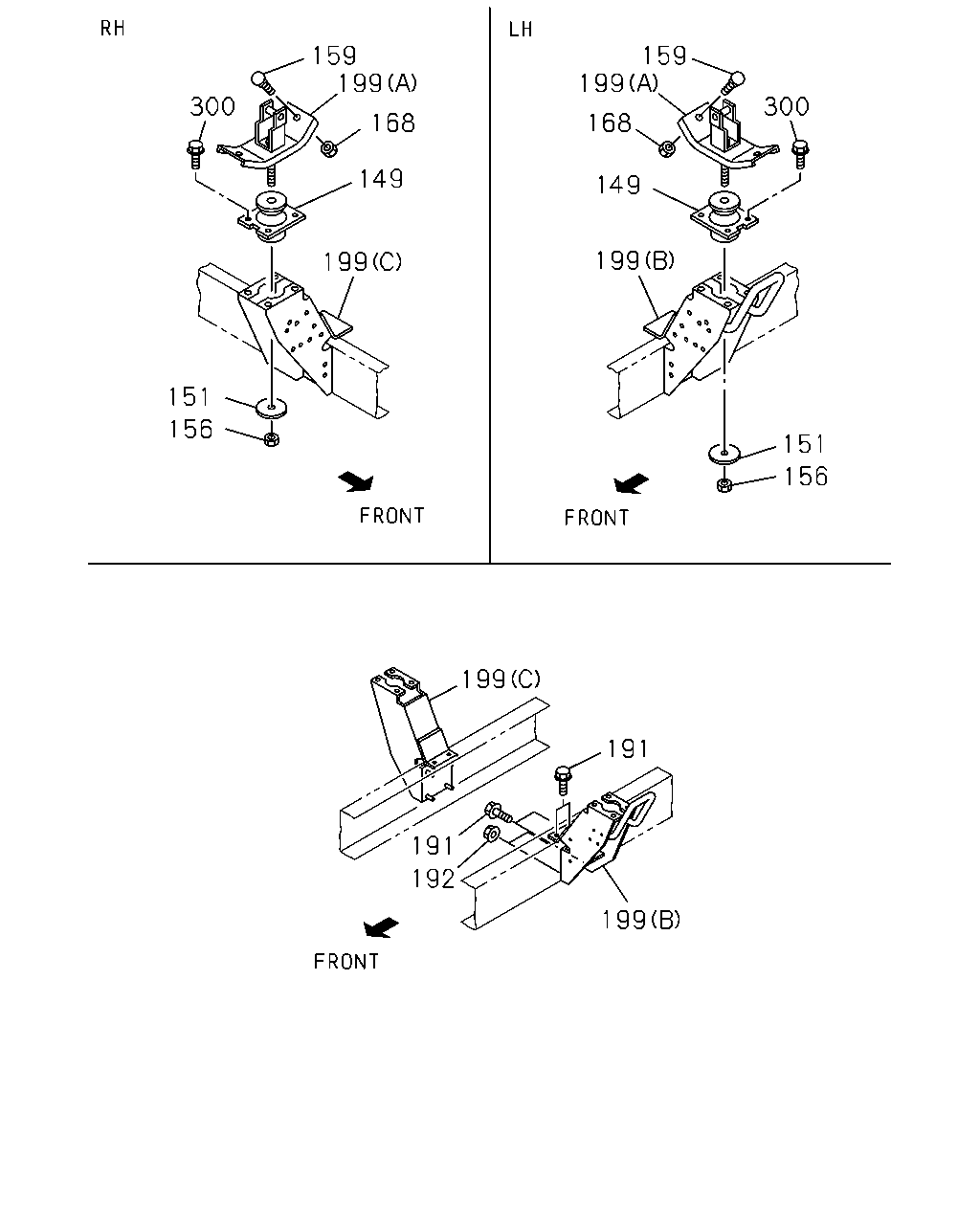

[510A] CAB MTG BRKT REAR (11 parça)
▶
7
23
20
18
18
23
20
1
104
72
105
7
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CAB MTG
(B)
8-98021-410-5
01
1
1405-
1
BRACKET; CAB MTG
(A)
8-98021-407-6
01
1
1405-
7
BOLT; BRKT,CAB TILT
M14X40 FLANGE
0-28661-440-0
02
1
1405-
18
PLATE; MTG BRKT FIX
8-98029-285-1
02
1
1405-
20
RUBBER; MTG,CAB BRKT
8-98007-037-1
01
1
1405-
20
RUBBER; MTG,CAB BRKT
MANUAL TILT CAB<RWZ>
8-98007-037-1
01
1
1405-
23
NUT; MTG BRKT
M14
8-98039-989-0
04
1
1405-
72
WASHER; PL,BRKT TO FRAME
MANUAL TILT CAB<RWZ> ID=15 OD=36
0-91614-714-0
01
1
1405-
104
BRACKET; CAB FRAME,CAB FRT MTG
MANUAL TILT CAB<RWZ>
8-97383-788-1
01
1
1405-
105
BOLT; BRKT TO CAB FRAME
MANUAL TILT CAB<RWZ> M14X35 FLANGE
0-28661-435-0
01
1
1405-
159
199
168
149
199
156
151
300
159
199
149
168
199
156
151
300
199
191
199
191
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
149
RUBBER; MTG,CAB,UPR RR
MANUAL TILT CAB<RWZ>
8-98021-561-1
02
1
1405-
151
WASHER; CAB MTG,RR UPR
MANUAL TILT CAB<RWZ> ID=17 OD=62
8-97359-042-1
02
1
1405-
156
NUT; CAB MTG RR
MANUAL TILT CAB<RWZ> M16 THA
0-91111-516-0
02
1
1405-
159
RUBBER; CUSHION,CAB MTG
MANUAL TILT CAB<RWZ>
8-97113-340-0
04
1
1405-
168
NUT; CUSHION RUBBER,BODY MTG
MANUAL TILT CAB<RWZ> M8 FLANGE THA
0-91180-108-0
04
1
1405-
191
BOLT; BRKT FIX
M12X35 FLANGE THA
0-28651-235-0
08
1
1405-
192
NUT; BRKT FIX
M12 FLANGE THA
0-91180-112-0
04
1
1405-
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (C) THA
8-98001-443-4
01
1
1405-
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (B) THA
8-98001-444-2
01
1
1405-
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (A)
8-98036-883-0
02
1
1405-
300
BOLT; MTG RUBBER
M10X20 FLANGE THA
0-28651-020-0
08
1
1405-
