Isuzu WW
▶
TRUCKS
▶
NMR
▶
51508 - NMR CNG(THAILAND)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶
4-80 — ROAD WHEEL
(#139390) — 14 parça
◀

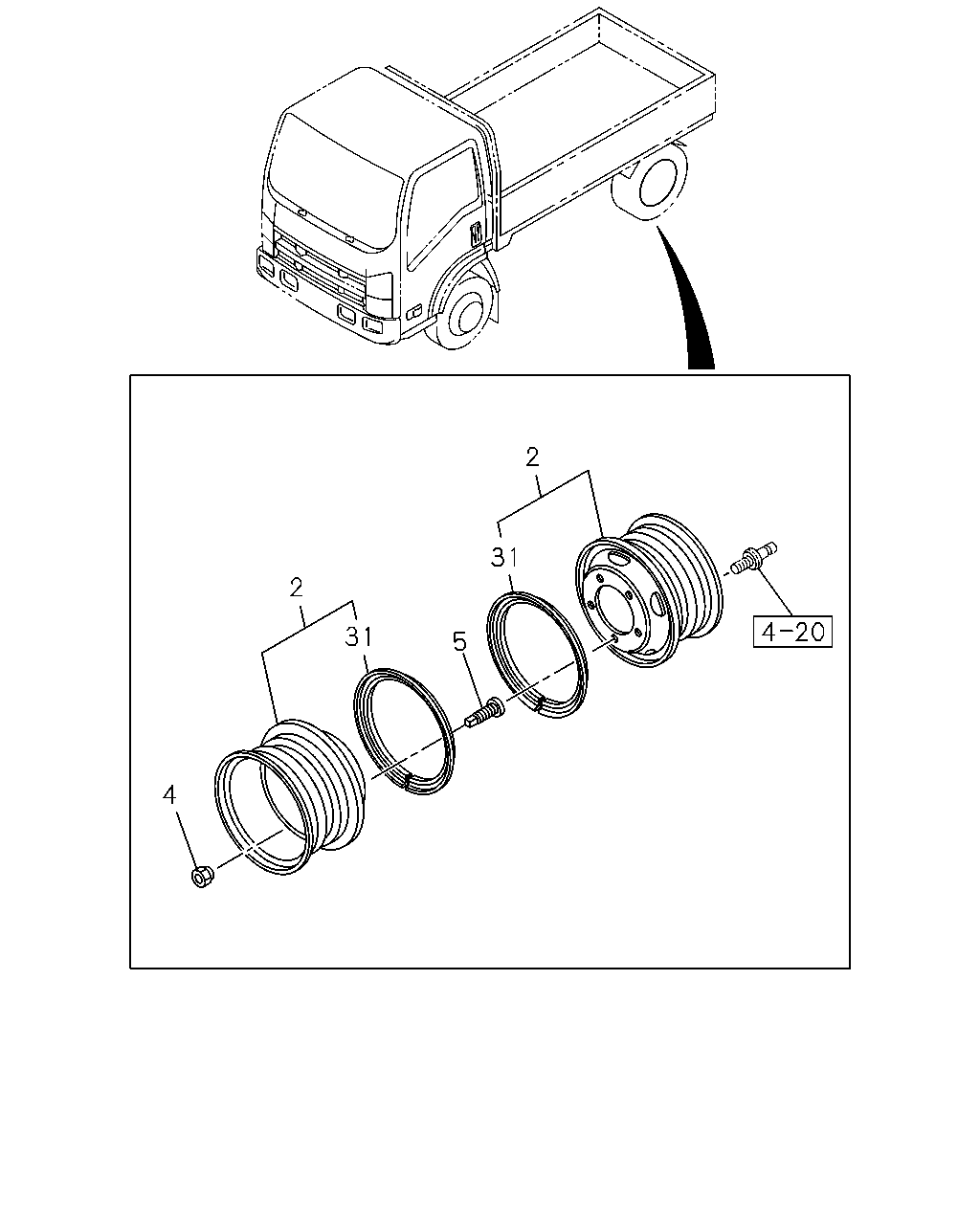

[480A] REAR (8 parça)

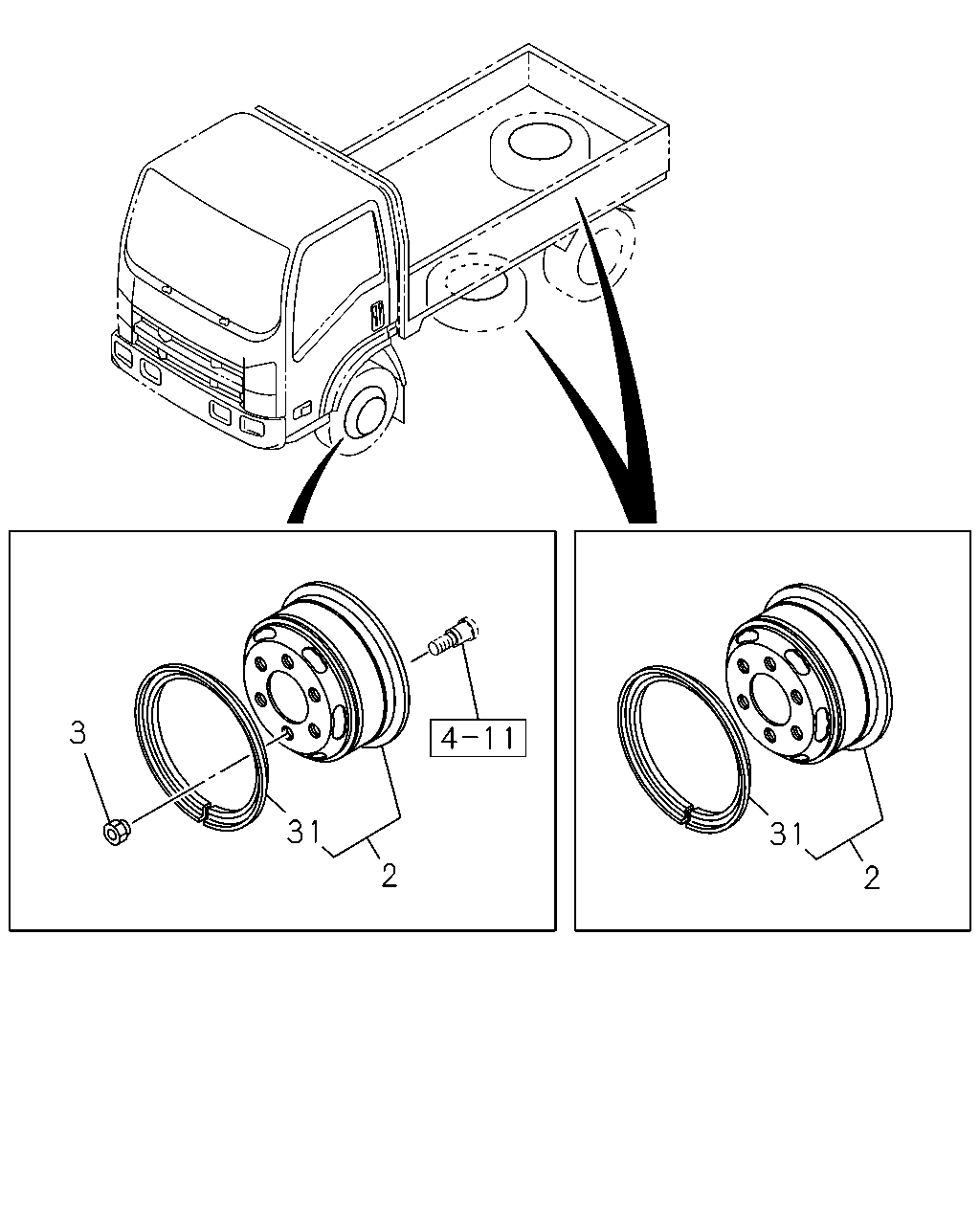

[480A] FRONT AND SPARE (6 parça)
▶
2
2
31
5
31
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
SPARE THA
8-97915-709-0
01
1
1405-
2
WHEEL; DISC
FRONT,REAR THA
8-97915-709-0
06
1
1405-
4
NUT; WHEEL,RR AXLE
M27 RH THREAD
8-98007-824-0
05
1
1405-
4
NUT; WHEEL,RR AXLE
M27 LH THREAD
8-98007-825-0
05
1
1405-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD
8-98007-810-0
05
1
1405-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD
8-98007-811-0
05
1
1405-
31
RING; SIDE,DISC WHEEL
SPARE THA
8-97916-782-0
01
1
1405-
31
RING; SIDE,DISC WHEEL
FRONT,REAR THA
8-97916-782-0
06
1
1405-
3
31
2
31
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
SPARE THA
8-97915-709-0
01
1
1405-
2
WHEEL; DISC
FRONT,REAR THA
8-97915-709-0
06
1
1405-
3
NUT; WHEEL,FRT AXLE
M18 RH THREAD
8-98007-907-0
05
1
1405-
3
NUT; WHEEL,FRT AXLE
M18 LH THREAD
8-98007-908-0
05
1
1405-
31
RING; SIDE,DISC WHEEL
SPARE THA
8-97916-782-0
01
1
1405-
31
RING; SIDE,DISC WHEEL
FRONT,REAR THA
8-97916-782-0
06
1
1405-
