◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51508 - NMR CNG(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#139385) — 25 parça

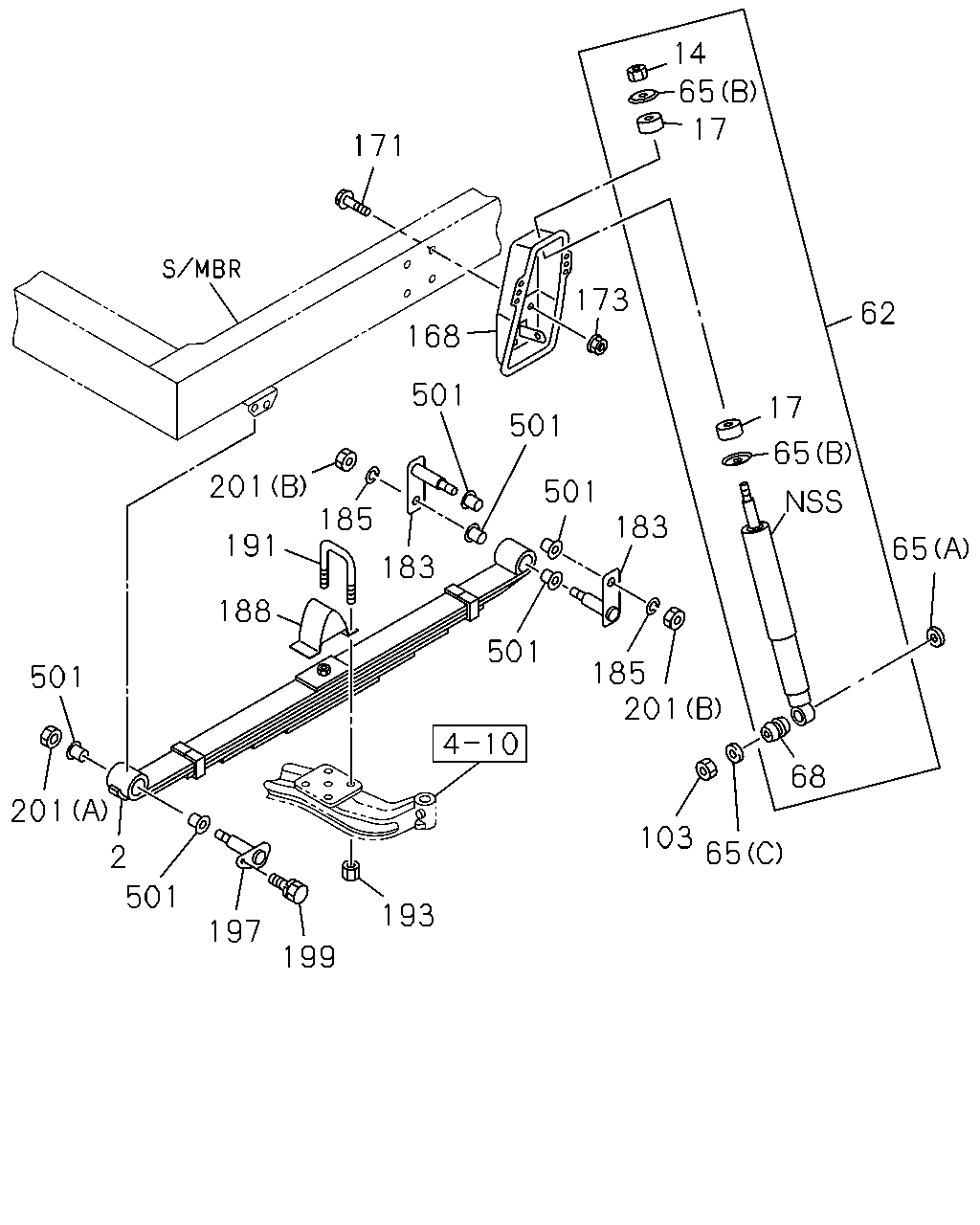

çizim 421473
171 14 65 17 173 62 17 65 65 68 65 103 201 185 183 501 501 501 501 183 185 201 168 191 188 501 201 2 501 197 199 193
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. REAR WIDE TREAD<V4T> 8-LEAF THA 		8-98079-926-0 01 1 1405-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. REAR WIDE TREAD<V4T> 8-LEAF THA 		8-98079-961-0 01 1 1405-
14 NUT; S/ABS,UPR
M10 THA 		8-94317-772-0 02 1 1405-
17 BUSHING; RUBBER,S/ABS
TOKICO THA 		9-51631-603-0 04 1 1405-
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97924-097-0 02 1 1405-
65 WASHER; S/ABS
(A) ID=17 OD=32 		0-91614-616-0 02 1 1405-
65 WASHER; S/ABS
(B) ID=10.5 OD=38 THA 		9-51631-062-0 04 1 1405-
65 WASHER; S/ABS
(C) ID=12.5 		9-51679-022-0 02 1 1405-
68 BUSHING; S/ABS
TOKICO THA 		8-94224-694-0 02 1 1405-
103 NUT; S/ABS TO LWR LINK
M12 		0-91111-512-0 02 1 1405-
168 BRACKET; S/ABS,FRT SUSP 8-98002-081-0 01 1 1405-
168 BRACKET; S/ABS,FRT SUSP 8-98039-597-0 01 1 1405-
171 BOLT; S/ABS BRKT
M10X30 FLANGE THA 		0-28651-030-0 08 1 1405-
173 NUT; S/ABS
M10 FLANGE THA 		0-91180-110-0 08 1 1405-
183 SHACKLE; FRT SUSP 8-98034-341-0 04 1 1405-
185 WASHER; LK,PIN
ID=16.5 		8-98011-489-0 04 1 1405-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-515-0 02 1 1405-
191 U-BOLT; FRT SPR
L=125 THA 		8-97948-512-0 04 1 1405-
193 NUT; U BOLT
M14 FLANGE 		8-97360-124-0 08 1 1405-
197 PIN; FRT SPR,FRT 8-94117-900-1 02 1 1405-
199 BOLT
M10X25 FLANGE THA 		0-28651-025-0 02 1 1405-
201 NUT; PIN LK
(B) M16 THA 		0-91110-516-0 04 1 1405-
201 NUT; PIN LK
(A) M16 FLANGE 		8-97360-125-0 02 1 1405-
501 BUSHING; LEAF SPR,FRT
THA 		8-97925-208-0 04 1 1405-
501 BUSHING; LEAF SPR,FRT
THA 		8-97925-208-0 08 1 1405-
