4-40 — STEERING UNIT (#139383) — 12 parça
çizim 421530
72 35 14 23 24 30 32 19 8 132
BalonParca AdiParca NoAdetTipApplied Date
8 BOX ASM; STRG UNIT
THA ASM PART: A = 8-97948-358-0 		8-97948-865-1 01 1 -
14 SHAFT; SECTOR,STRG UNIT
THA ASM PART: A = 8-97948-358-0 		8-97948-879-0 01 1 -
19 COVER; SIDE STRG UNIT
THA ASM PART: A = 8-97948-358-0 		8-97948-876-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
THA ASM PART: A = 8-97948-358-0 		8-97948-878-0 01 1 -
24 RETAINER; STRG UNIT
THA ASM PART: A = 8-97948-358-0 		8-97948-877-0 01 1 -
30 BOLT; COVER STRG UNIT
THA ASM PART: A = 8-97948-358-0 		8-97948-870-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
THA ASM PART: A = 8-97948-358-0 		8-97948-869-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
THA ASM PART: A = 8-97948-358-0 		8-97948-848-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
THA ASM PART: A = 8-97948-358-0 		8-97948-870-0 04 1 -
132 COVER; DUST,STRG UNIT
THA ASM PART: A = 8-97948-358-0 		8-97948-867-0 01 1 -

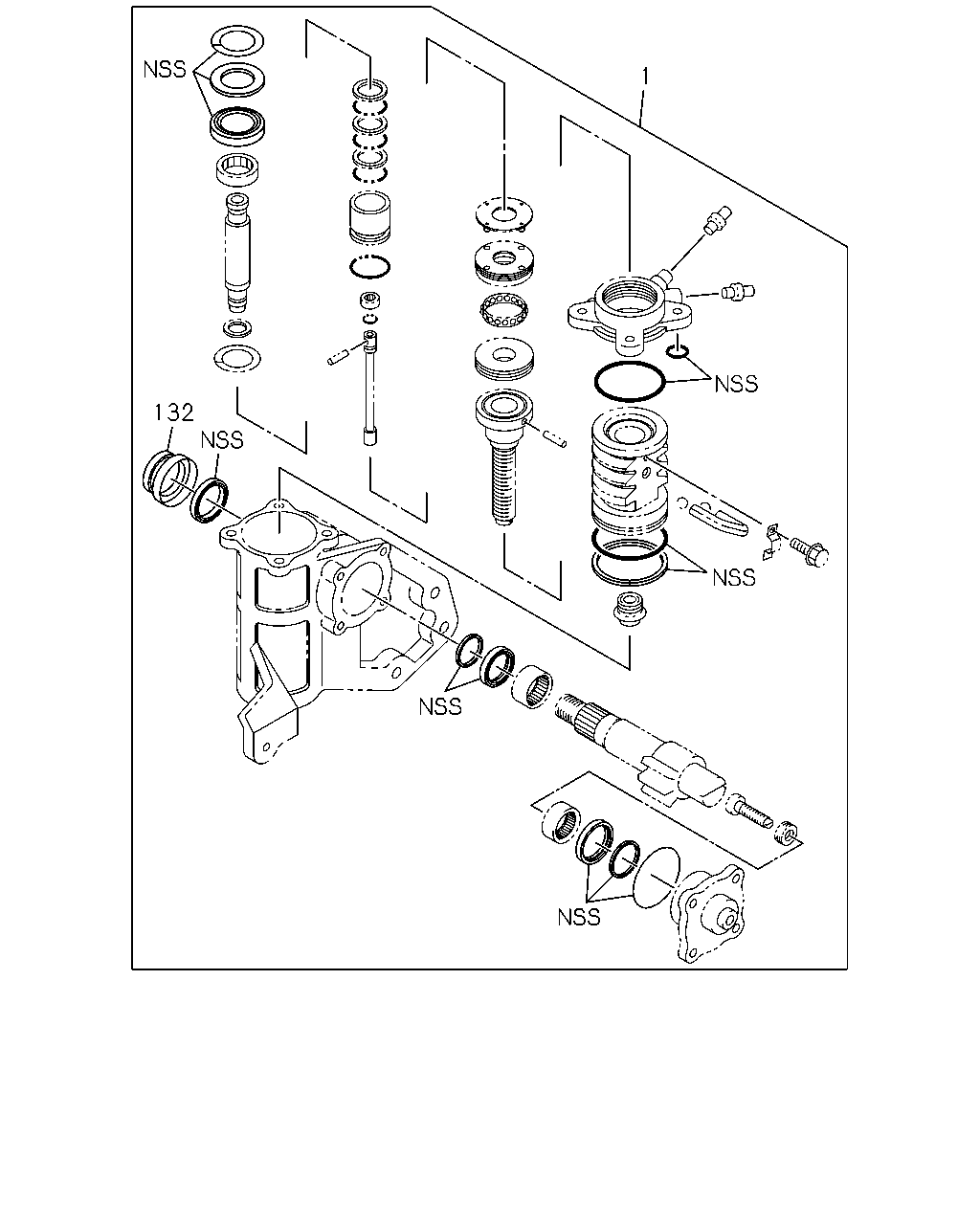

çizim 421554
1 132
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
THA ASM PART: A = 8-97948-358-0 		8-97948-866-0 01 1 -
132 COVER; DUST,STRG UNIT
THA ASM PART: A = 8-97948-358-0 		8-97948-867-0 01 1 -
