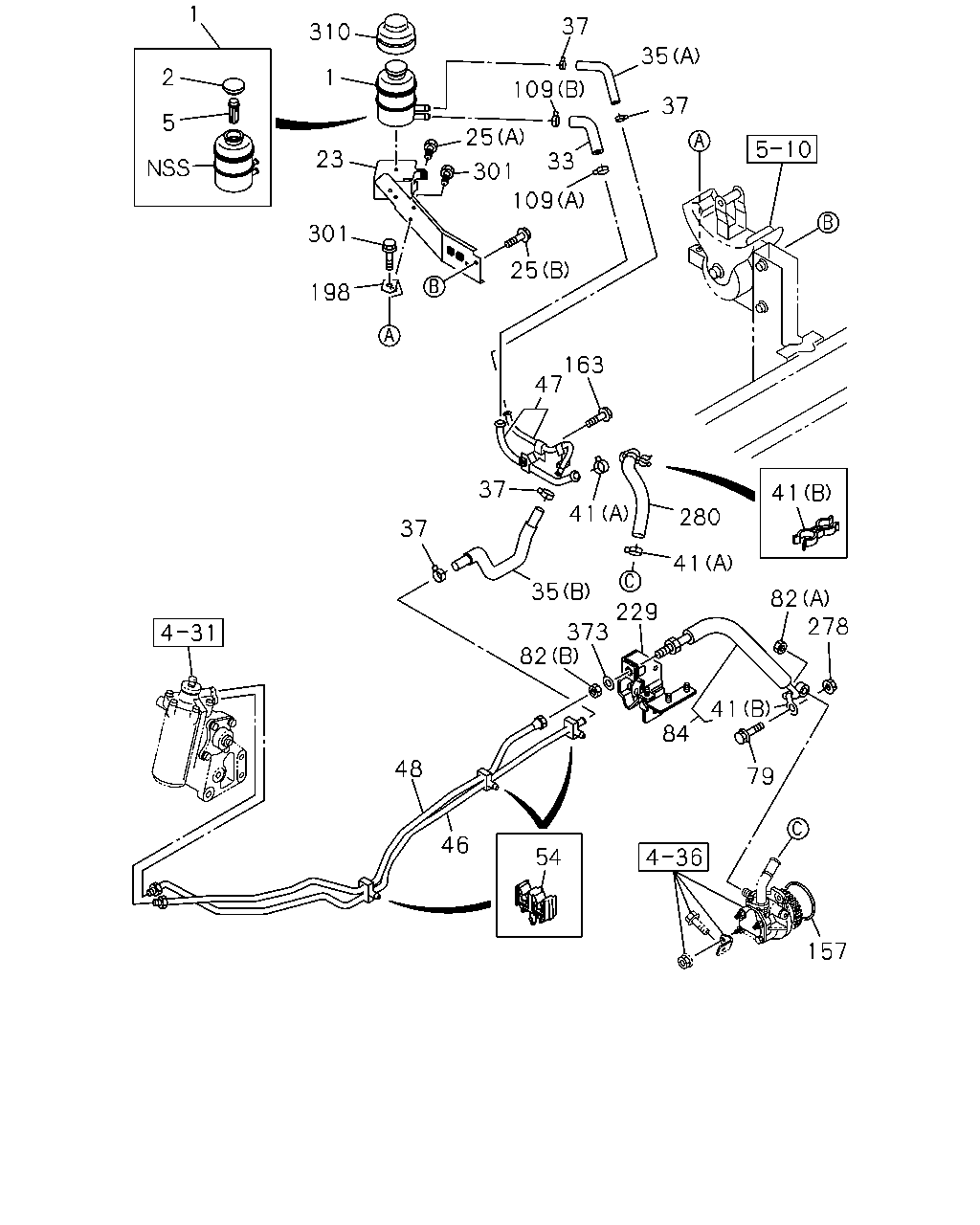

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#139381) — 34 parça

1 2 5 310 23 301 198 25 37 109 35 37 301 25 33 163 47 37 37 41 35 82 229 280 82 41 373 84 278 41 79 48 46 54 157 109 1 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	1405-
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	1405-
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1405-
23	BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	1405-
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	1405-
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE THA	0-28650-825-0	02	1	1405-
33	HOSE; RUBBER,POWER STRG THA	8-98054-267-0	01	1	1405-
35	HOSE; RETURN,P/S TANK (A)	8-98054-265-0	01	1	1405-
35	HOSE; RETURN,P/S TANK (B)	8-98054-307-0	01	1	1405-
37	CLIP; HOSE,P/S ID=16	8-98008-098-0	02	1	1405-
37	CLIP; HOSE,P/S ID=16	8-98008-098-0	02	1	1405-
41	CLIP; HOSE,P/S (B) ID=25 & 11	8-97068-799-0	01	1	1405-
41	CLIP; HOSE,P/S (A) ID=21	8-98150-355-0	01	1	1405-
41	CLIP; HOSE,P/S (A) ID=21	8-98150-355-0	01	1	1405-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1181 THA	8-98141-175-0	01	1	1405-
47	PIPE; RETURN THA	8-98173-323-0	01	1	1405-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98054-220-3	01	1	1405-
54	CLIP; OIL PIPE ID=10X2 H=37.5	8-97018-546-0	01	1	1405-
54	CLIP; OIL PIPE ID=10X2 H=37.5	8-97018-546-0	02	1	1405-
79	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	1405-
82	NUT; FLEX HOSE,P/S (B) M16	8-94370-339-0	01	1	1405-
82	NUT; FLEX HOSE,P/S (A) M12 SELF LOCK	8-97028-390-1	01	1	1405-
84	HOSE; FLEX,P/S THA	8-97948-687-0	01	1	1405-
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1405-
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	1405-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	1405-
163	BOLT; OIL PIPE M8X25 FLANGE THA	0-28650-825-0	01	1	1405-
198	STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	1405-
229	BRACKET; HOSE,POWER STRG	8-98189-388-0	01	1	1405-
278	NUT; HOSE CLIP M8 FLANGE THA	0-91180-108-0	01	1	1405-
280	HOSE; P/S OIL PUMP,INL	8-98077-499-0	01	1	1405-
301	BOLT; STAY,OIL TANK M8X25 FLANGE THA	0-28650-825-0	02	1	1405-
310	COVER; OIL TANK	8-97103-394-0	01	1	1405-
373	WASHER; HOSE,P/S ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1405-
