◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11129 - FVM(THAI)EURO3 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#13938) — 12 parça
çizim 106964
6 51
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
THA 		8-97918-788-0 01 1 0807-
51 PLATE; CAUTION,WARNING
THA 		8-97924-894-1 01 1 0810-

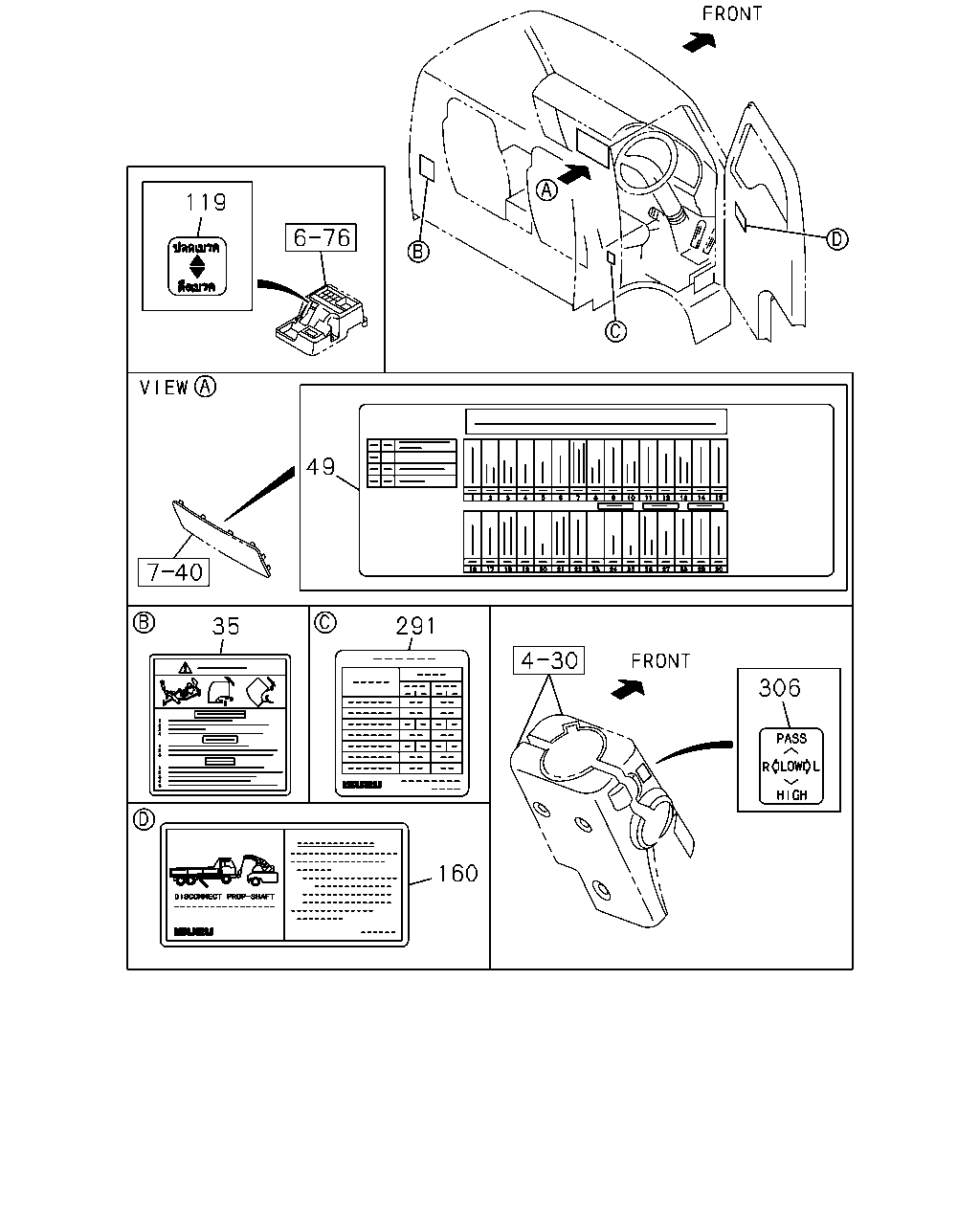

çizim 107164
119 49 291 35 306 160
BalonParca AdiParca NoAdetTipApplied Date
35 PLATE; CAUTION,CAB
THA 		8-97924-297-0 01 1 0807-
49 PLATE; CAUTION,FUSE BOX
ANTI LOCK BRAKE<JE5> THA 		8-97924-882-0 01 1 0809-0908
49 PLATE; CAUTION,FUSE BOX
THA 		8-97925-230-0 01 1 0909-
49 PLATE; CAUTION,FUSE BOX
THA 		8-97923-717-2 01 1 0807-0808
49 PLATE; CAUTION,FUSE BOX
EXC. ANTI LOCK BRAKE<JE5> THA 		8-97923-717-2 01 1 0809-0908
119 PLATE; CAUTION,HAND BRK LEVER
THA 		8-97924-257-1 01 1 0807-1107
119 PLATE; CAUTION,HAND BRK LEVER
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA 		8-97924-257-1 01 1 1108-
160 PLATE; CAUTION,TOWING
ZF9S1110 M/T<Y5E> THA 		8-97918-791-1 01 1 0807-
291 PLATE; CAUTION,TIRE AIR PRESS
THA 		8-97924-660-1 01 1 0807-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0807-
