Isuzu WW
▶
TRUCKS
▶
NMR
▶
51508 - NMR CNG(THAILAND)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

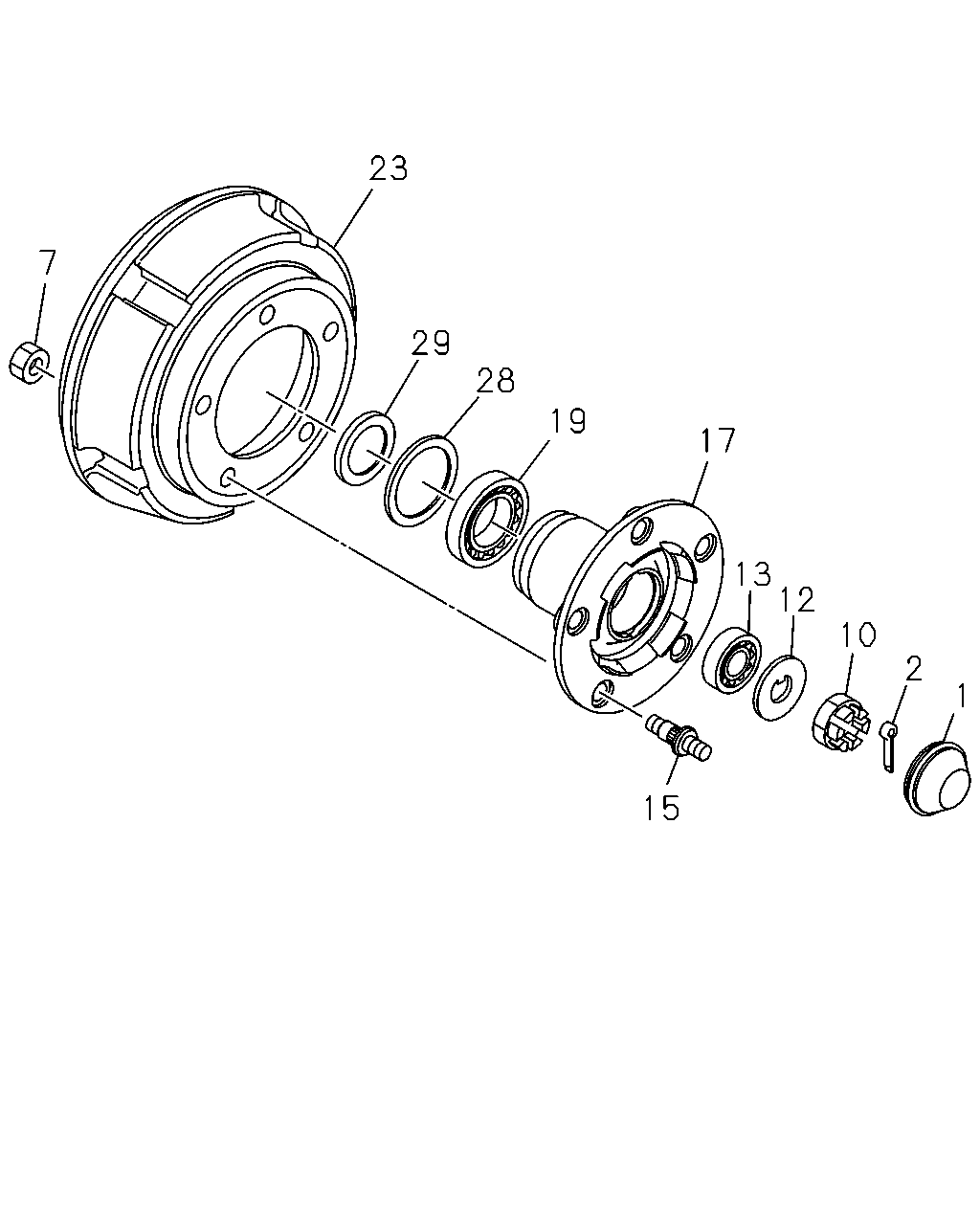

4-11 — FRONT HUB AND DRUM OR ROTOR
(#139375) — 19 parça
7
23
29
19
17
13
12
10
2
1
15
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
8-97360-101-0
02
1
1405-1407
1
CAP; HUB,FRT AXLE
8-98276-604-0
02
1
1408-
2
PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40
0-81125-040-0
02
1
1405-
7
NUT; FRT HUB
M20
0-91110-520-0
10
1
1405-
10
NUT; FRT HUB BRG
8-94247-357-1
02
1
1405-
12
WASHER; LK,FRT HUB BRG
8-94247-356-1
02
1
1405-1502
12
WASHER; LK,FRT HUB BRG
8-98282-435-0
02
1
1503-
13
BEARING; HUB OUTER,FRT AXLE
NSK
9-00093-172-0
02
1
1405-
13
BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS
5-87610-134-0
02
1
1405-
15
PIN; WHEEL,FRT AXLE
M18X29,M20X43.5 RH THREAD
8-94383-436-2
05
1
1405-
15
PIN; WHEEL,FRT AXLE
M18X29 LH THREAD,M20X43.5 RH THREAD
8-94383-437-2
05
1
1405-
17
HUB; FRT AXLE
8-94365-459-0
04
1
1405-1409
17
HUB; FRT AXLE
8-94365-459-0
02
1
1410-
19
BEARING; HUB INNER,FRT AXLE
JTEKT
8-98171-254-0
02
1
1405-
19
BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS
1-87610-134-0
02
1
1405-
23
DRUM; BRK,FRT
THA
8-97036-366-2
02
1
1405-1409
23
DRUM; BRK,FRT
THA
8-98293-366-0
02
1
1410-
28
SEAL; OIL,FRT HUB
8-94248-117-1
02
1
1405-
29
DISTANCE PIECE; HUB BRKT
NTN
8-97234-513-0
02
1
1405-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
