Isuzu WW
▶
TRUCKS
▶
NMR
▶
51508 - NMR CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-60 - BRAKE PIPING; VACUUM
▶
3-60 — BRAKE PIPING; VACUUM
(#139371) — 41 parça
◀

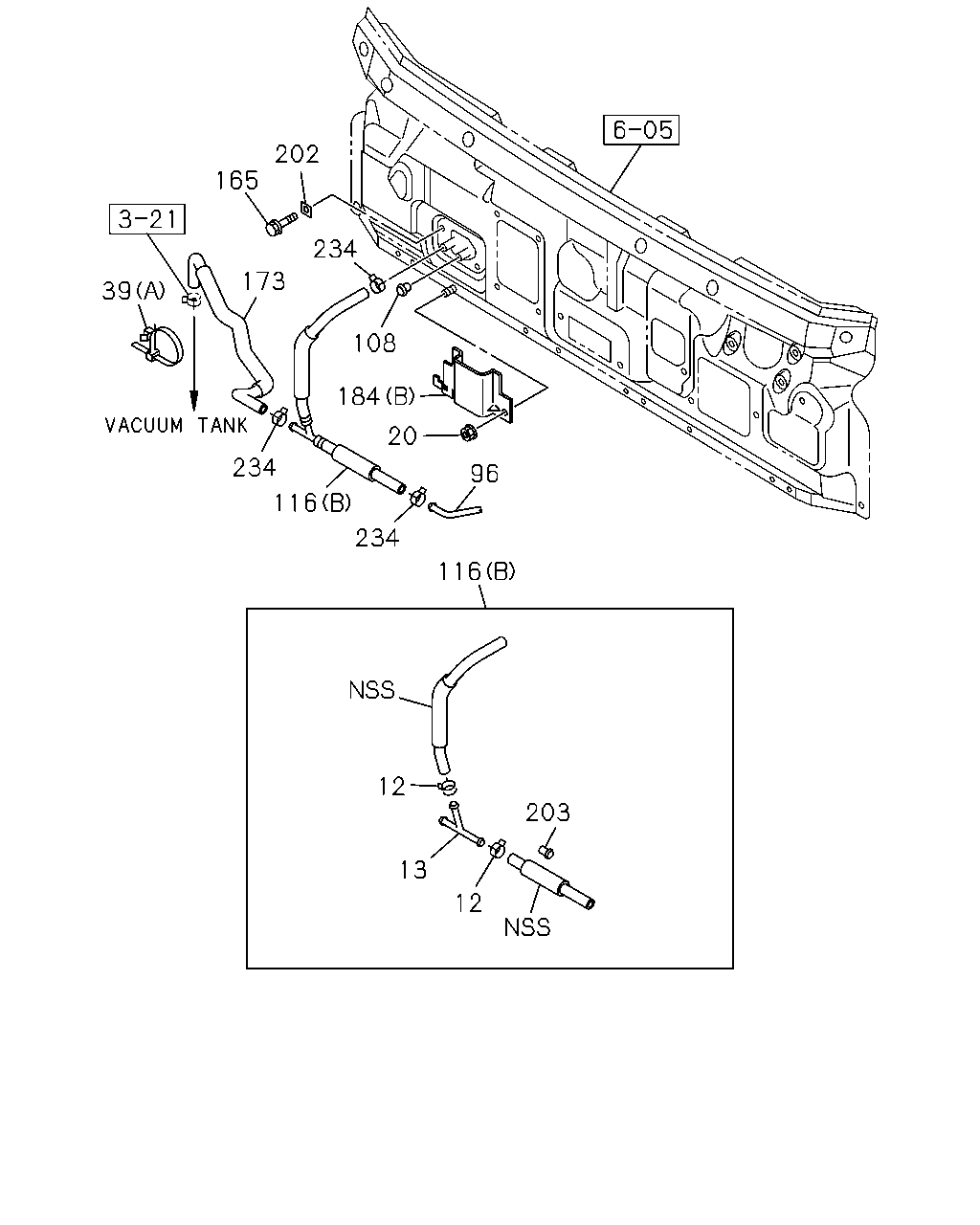

[360A] CAB OUTSIDE (17 parça)
[360A] FRAME SIDE (17 parça)
[360A] CAB INSIDE (7 parça)
▶
202
165
173
108
20
184
96
116
234
116
234
39
234
12
13
12
203
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
CLIP; HOSE
ID=15.5 THA
8-98008-097-0
02
1
1405-
13
JOINT; HOSE,VAC
THA
8-98035-106-0
01
1
1405-
20
NUT; BRKT
M6 FLANGE THA
0-91180-106-0
01
1
1405-
39
CLIP; HOSE,VAC
(A) L=170.3 THA
1-09987-182-0
01
1
1405-
39
CLIP; HOSE,VAC
(B) ID=16
8-94238-568-0
02
1
1405-
39
CLIP; HOSE,VAC
(C) ID=16
8-98008-098-0
02
1
1405-
96
PIPE; VAC,M/VAC TO VAC PUMP
THA
8-98039-736-1
01
1
1405-
108
GROMMET; PIPE
9-09956-353-0
01
1
1405-
116
HOSE; VAC,M/VAC
(B) THA
8-97924-102-1
01
1
1405-
116
HOSE; VAC,M/VAC
(A) THA
8-98094-547-0
01
1
1405-
165
BOLT; BRKT
M6X20 W/LK&PL WASHER
8-98031-842-0
02
1
1405-
173
HOSE; VAC,VAC TANK SIDE
THA
8-98107-558-0
01
1
1405-
184
BRACKET; UNION FIX
(B)
8-98017-628-1
01
1
1405-
184
BRACKET; UNION FIX
(A)
8-98183-467-1
01
1
1405-
202
SEAL
8-97856-616-0
02
1
1405-
203
VALVE; CHECK
8-94386-540-0
01
1
1405-
234
CLAMP; PIPE
ID=16
8-94238-568-0
03
1
1405-
66
85
66
80
236
96
39
39
78
78
136
136
122
136
44
80
136
236
136
228
236
136
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
CLIP; HOSE,VAC
(A) L=170.3 THA
1-09987-182-0
01
1
1405-
39
CLIP; HOSE,VAC
(B) ID=16
8-94238-568-0
02
1
1405-
39
CLIP; HOSE,VAC
(C) ID=16
8-98008-098-0
02
1
1405-
44
PIPE; VAC,MAG VLV
8-98053-848-1
01
1
1405-
66
CLIP; VAC HOSE,M/VAC
ID=16
8-98008-098-0
02
1
1405-
78
HOSE; VAC,PIPE TO PIPE
(B)
8-97226-977-1
01
1
1405-
78
HOSE; VAC,PIPE TO PIPE
(A) THA
8-97389-745-1
01
1
1405-
78
HOSE; VAC,PIPE TO PIPE
(C)
8-98108-901-0
01
1
1405-
80
PIPE; VAC,ENG SIDE
8-98053-847-3
01
1
1405-
85
HOSE; VAC,ENG SIDE
8-97322-957-2
01
1
1405-
96
PIPE; VAC,M/VAC TO VAC PUMP
THA
8-98039-736-1
01
1
1405-
122
HOSE; AIR,MAG VLV TO AIR PIPE
8-97183-719-2
01
1
1405-
136
CLIP; VAC HOSE
ID=16
8-98008-098-0
02
1
1405-
136
CLIP; VAC HOSE
ID=16
8-98008-098-0
04
1
1405-
228
NUT; PIPE
M8 FLANGE THA
0-91180-108-0
01
1
1405-
236
BOLT; PIPE
(B) M6X12 FLANGE THA
0-28050-612-0
01
1
1405-
236
BOLT; PIPE
(A) M8X25 FLANGE THA
0-28650-825-0
01
1
1405-
39
116
39
184
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
CLIP; HOSE,VAC
(A) L=170.3 THA
1-09987-182-0
01
1
1405-
39
CLIP; HOSE,VAC
(B) ID=16
8-94238-568-0
02
1
1405-
39
CLIP; HOSE,VAC
(C) ID=16
8-98008-098-0
02
1
1405-
116
HOSE; VAC,M/VAC
(B) THA
8-97924-102-1
01
1
1405-
116
HOSE; VAC,M/VAC
(A) THA
8-98094-547-0
01
1
1405-
184
BRACKET; UNION FIX
(B)
8-98017-628-1
01
1
1405-
184
BRACKET; UNION FIX
(A)
8-98183-467-1
01
1
1405-
